2018 MITSUBISHI ECLIPSE CROSS low beam

Outside (Front) 1-7 Overview
1
N00100602753
Outside (Front)
Power panoramic sunroof
(if so equipped) P.5-43
Windshield wipers P.5-198
Engine hood P.9-3
Front fog lights P.5-198, 9-28, 9-32
Outside rearview mirrors P.5-53 Side turn signal lights P.5-196, 9-28, 9-31Side-view camera (if so equipped) P.5-129
Fuel tank filler P.3-3
Power window P.5-40
Front turn signal lights P.5-196, 9-28, 9-31
Headlights, high/low beam P.5-188, 9-28, 9-29
Headlights, high/low beam P.5-188, 9-28, 9-30
Parking lights/Daytime running lights P.5-188, 9-28, 9-30
Parking lights/Daytime running lights P.5-188, 9-28, 9-30
Halogen headlights type LED headlights type
Front side-marker lights P.5-188, 9-28, 9-30
Front side-marker lights P.5-188, 9-28, 9-30
Sensor (if so equipped) [for Fo
rward Collision Mitigation system
(FCM), Lane Departure Warn
ing (LDW) and Automatic High
Beam (AHB)] P.5-100, 5-115, 5-191 Rain sensor (if so equipped) P.5-198
Front-view camera (if so equipped) P.5-129 Parking sensors (if so equipped) P.5-123
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

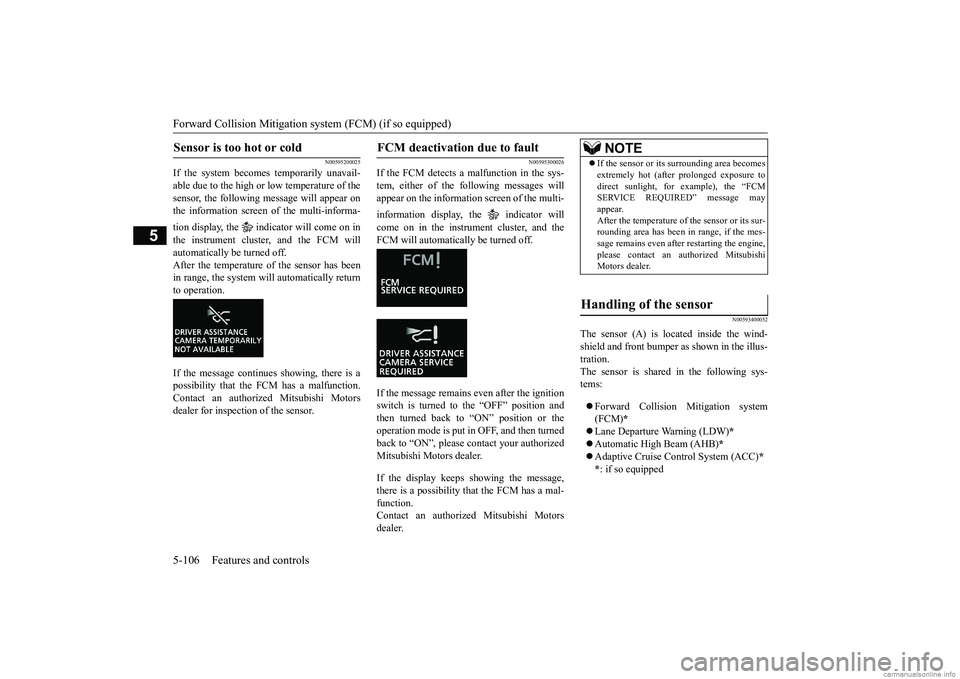

Forward Collision Mitigation sy
stem (FCM) (if so equipped)
5-106 Features and controls
5
N00595200025
If the system becomes temporarily unavail- able due to the high or
low temperature of the
sensor, the following message will appear on the information screen of the multi-informa- tion display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. After the temperature of the sensor has been in range, the system will automatically returnto operation. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595300026
If the FCM detects a malfunction in the sys-tem, either of the following messages willappear on the information screen of the multi- information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message remains even after the ignition switch is turned to the “OFF” position and then turned back to “ON” position or the operation mode is put in OFF, and then turnedback to “ON”, please contact your authorized Mitsubishi Motors dealer. If the display keeps showing the message, there is a possibility that the FCM has a mal-function. Contact an authorized Mitsubishi Motors dealer.
N00593400052
The sensor (A) is located inside the wind- shield and front bumper
as shown in the illus-
tration.The sensor is shared in the following sys- tems:  Forward Collision Mitigation system (FCM)
*
 Lane Departure Warning (LDW)
*
 Automatic High Beam (AHB)
*
 Adaptive Cruise Control System (ACC)
*
* : if so equipped
Sensor is too hot or cold

FCM deactivation due to fault

NOTE
If the sensor or its surrounding area becomes extremely hot (after prolonged exposure to direct sunlight, for example), the “FCM SERVICE REQUIRED” message may appear.After the temperature of the sensor or its sur- rounding area has been in range, if the mes- sage remains even after restarting the engine,please contact an authorized Mitsubishi Motors dealer.
Handling of the sensor

BK0252700US.book
106 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-160 Features and controls
5
N00557701090 N00557801352
Indicator light, warning light, and information screen display list Indicator and warning light list 1- Position indicator
 P.5-180
2- Turn signal indicators/hazard warning
lights
 P.5-180
3- Front fog light indicator
 P.5-180
4- High beam indicator
 P.5-180
5- Automatic High Beam (AHB) indicator
(if so equipped)
 P.5-191
6- LED headlight warning light (if so
equipped)
 P.5-190
7- Forward Collision Mitigation system
(FCM) OFF indicator (if so equipped)  P.5-104
8- Charging system warning light
 P.5-183
9- Electric power steering system (EPS)
warning light
 P.5-80
10- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-108
11- Information screen display
 P.5-161
12- Electric parking brake warning light
(yellow) (if so equipped)
 P.5-181
13- Active stability control (ASC) indicator
 P.5-83
14- Active stability control (ASC) OFF
indicator
 P.5-83
15- Anti-lock braking system warning light
 P.5-79
16- Supplemental Restraint System (SRS)
warning light
 P. 4-36
BK0252700US.book
160 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-176 Features and controls
5
 The Forward Collision M
itigation system (FCM),
Lane Departure Warning (LDW) and Automatic High Beam (AHB) is temporarily unavailable due to the high or low temperature of the sensor.
 After the temperature of the sensor has been in range, the system will automatically return to opera- tion.Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117. Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
 The sensor is temporarily unavailable due to condi- tions such as the adhesion of contaminants to the sensor or windshield. This is not a malfunction.
Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117.Refer to “Automatic High Beam (AHB): System prob- lem warning” on page 5-194.
 There is a fault in the system of automatic high beam.
 Contact an authorized M
itsubishi Motors dealer.
Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
Screen
Cause
Do this (Reference)
BK0252700US.book
176 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicators 5-180 Features and controls
5
The rest time can be set.
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn signal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520201273
This indicator comes on while the front foglights are on.
N00551301094
This indicator light illuminates while theparking lights are on.
Screen
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide fo
r taking rests during a long drive.
The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings” on page 5-152. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds approx
imately every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is re
set and the display returns to the previous
display screen. After this, when the set time is reached again, the display and buzzer encourage you to take a rest. • The buzzer sounds three times. • The ignition switch is turned to the “OFF
” position or the operation mode is put in
OFF. • The multi-information display switches are held (for approximately 2 seconds or more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator
Front fog light indicator Position indicator
BK0252700US.book
180 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-191
5
from the ignition switch while the lights are on, the tone will sound to remind you to turn off the lights. [When using the F.A.S.T.-key to start the engine]If the driver’s door is opened with the opera- tion mode is put in OFF or ACC, or if the operation mode is changed to OFF while thelights are on, the tone will sound to remind you to turn off the lights. In either case, the lights will turn off automat- ically and so will the tone. Or you can turn the light switch to the
“OFF” position to stop
the tone.
N00549901178
To change the headlights from high beam to low beam and vice versa, pull the turn signal lever to (1). Switch the headlights to lowbeam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument cluster indicates when the headlights are on high beam.
N00550001225
You can flash the high beams by pulling the lever gently toward you (2). The lights willgo back to normal when you let go. While the high beam is on, you will see a blue light on the instrument panel.
N00591300060
The Automatic High Beam (AHB) turns the high beam light on or off automatically according to surrounding light conditions.The sensor (A) detects lights, such as the lights of an oncoming vehicle, a vehicle ahead or street lights.
Dimmer (high/low beam change)
Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high beam illumination, the headlights are automatically returned to their low beam setting.
Automatic High Beam (AHB)
(if
so equipped)
WA R N I N G Do not rely solely on the AHB. Always observe surrounding traffic and light con- ditions. If necessary, manually turn the high beams on or off.Refer to “Dimmer (high/low beam change)” on page 5-191.
BK0252700US.book
191 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch 5-192 Features and controls
5
N00593600054
1. Rotate the light switch to “ ” position or “AUTO” position when the engine is running. 2. Press the AHB switch. The AHB is activated and the indicator is illuminated.If the AHB switch is pressed again, the AHB will be deactivated and AHB indica- tor will go off.
1. Pull the turn signal lever toward you. 2. The AHB indicator will go off.
3. The AHB switch is pressed again, the AHB will be activated. 1. Pull the turn signal lever toward you. 2. The AHB indicator will go off and the high beam indicator illuminates.3. The AHB switch is pressed again, the AHB will be activated.
N00593700055
The high beam headlights illuminate when all of the following conditions are met:  Your vehicle speed exceeds approxi- mately 33 mph (53 km/h).  It is dark ahead of your vehicle.  There are no vehicles
in front or oncom-
ing vehicles, or none of their exterior lights are illuminating.
The low beam headlights illuminate when any of the following conditions occur:  Your vehicle speed does not exceed approximately 28 mph (45 km/h).  It is bright ahead of your vehicle.  An exterior light of a vehicle in front or oncoming vehicle is illuminating.
How to use the AHB

NOTE
 If the headlights are on when the light switch is in the “AUTO” position, the AHB works.
NOTE
 You can switch the headlight beams (high/low) manually by operating the lever even if the AHB is working. Refer to “Dimmer (high/low beam change)”on page 5-191. If the lever is operated manually, the AHB indicator will go off and the AHB will bedeactivated. Refer to “Manual switching” on page 5-192.  The AHB is not deactivated when you pull the lever slightly (operation of the headlight flasher).

Manual switching

Switching to low beam
Switching to high beamAutomatic switching conditions

BK0252700US.book
192 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-193
5
The sensitivity of the sensor can be temporar- ily lowering in the following ways. 1. Park your vehicle in a safe place and the ignition switch is turned to the “OFF” position or the operation mode is put inOFF.
NOTE
 The headlights may not be switched from high beam to low beam under the following circumstances. • A vehicle in front or oncoming vehicle is hindered by any object such as continuous bends, elevated median/island, traffic signs, roadside trees. • Your vehicle passes an oncoming vehicle suddenly on a bend with poor visibility. • Another vehicle crosses ahead of your vehi- cle.
 The headlights may remain at low beam (or be switched from high beam to low beam)when a reflective object
(e.g. street light,
traffic signal, noticeboard and signboard) reflects light.  Any of the following factors may influence the headlight beam switching timing: • How brightly the exteri
or lights of a vehicle
in front or oncoming vehicle illuminate. • Movement or direction of a vehicle in front or oncoming vehicle. • Only right or left exterior light of a vehicle in front or oncoming vehicle is illuminat-ing. • A vehicle in front or oncoming vehicle is a motorcycle. • Road conditions (gradient, bends and road surface). • The number of occupants and luggage load.
 The AHB recognizes environmental condi- tions by sensing a light source ahead of your vehicle. Therefore, you may feel like some- thing is not quite right when the headlight beams are switched automatically.  The system may not detect a light vehicle such as a bicycle.  The system may not detect an ambient brightness precisely. This causes the trafficto be dazzled by high beam or the low beam to be maintained. In such cases, you should switch the headlight beams manually. • In bad weather (heavy rain, fog, snow or sandstorm). • The windshield is dirty or fogged up. • The windshield is cracked or broken. • The sensor is deformed or dirty.• A light, which is similar to the headlights or tail lights, is shining around your vehicle. • A vehicle in front or oncoming vehicle is driven without lights, the exterior lights aredirty or discolored, or the direction of the headlight beams is adjusted improperly. • It becomes dark and bright suddenly and continuously around your vehicle. • Your vehicle is driven on uneven surfaces. • Your vehicle is driven on a winding road.• A reflective object such as a noticeboard or a mirror reflects a light ahead of your vehi- cle.NOTE
• When lights of the vehicle in front or head-lights of an oncoming vehicle blend into the other lights. • The rear end of a vehicle in front (such as a container truck) reflect a strong light. • Your vehicle's headlight
is broken or dirty.
• Your vehicle is inclined due to a flat tire or towing. • The warning display appears. (Refer to “System problem warning” onpage 5-194.)
 Observe the precautions below to maintain good usage conditions: • Do not attempt to disassemble the sensor.• Do not affix a sticker or label on the wind- shield near the sensor. • Avoid overload. • Do not modify your vehicle. • When the windshield is replaced, use the Mitsubishi Motors genuine parts.
To adjust the sensitivity of the sensor
NOTE
BK0252700US.book
193 ページ ２０１７年１０月４日　水曜日　午後４時５４分
