2018 MITSUBISHI ECLIPSE CROSS Owner's Manual (in English)

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equippe\
d)

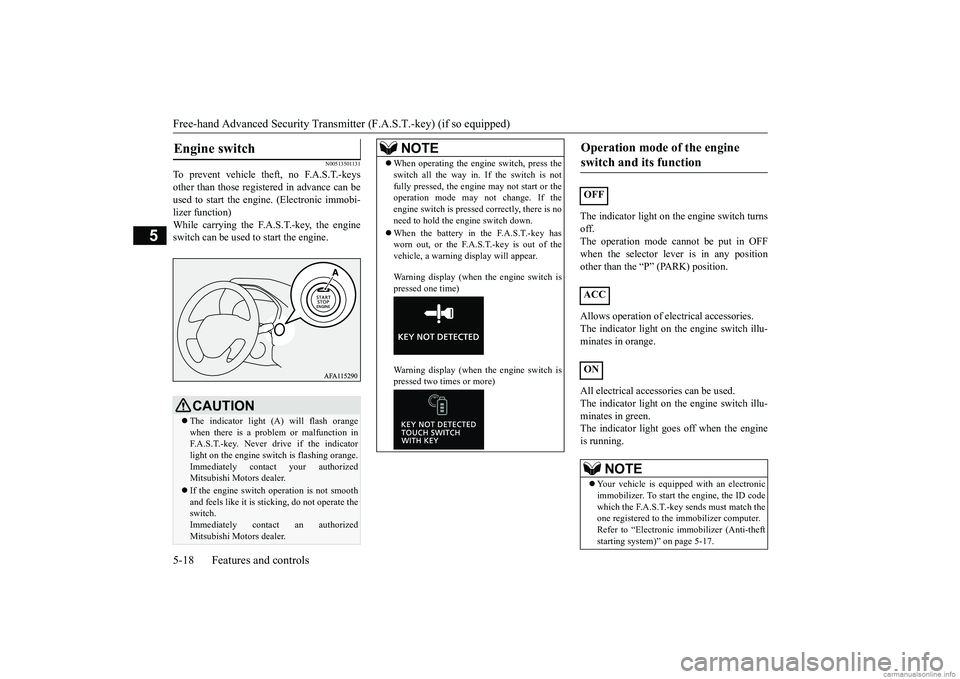

5-18 Features and controls
5
N00513501131
To prevent vehicle theft, no F.A.S.T.-keys
other than those registered in advance can be
used to start the engine. (Electronic immobi-
lizer function)
While carrying the F.A.S.T.-key, the engine
switch can be used to start the engine.The indicator light on the engine switch turns
off.
The operation mode cannot be put in OFF
when the selector lever is in any position
other than the “P” (PARK) position.
Allows operation of electrical accessories.
The indicator light on the engine switch illu-
minates in orange.
All electrical accessories can be used.
The indicator light on the engine switch illu-
minates in green.
The indicator light goes off when the engine
is running.Engine switch

CAUTION
The indicator light (A) will flash orange
when there is a problem or malfunction in
F.A.S.T.-key. Never drive if the indicator
light on the engine switch is flashing orange.
Immediately contact your authorized
Mitsubishi Motors dealer.If the engine switch operation is not smooth
and feels like it is sticking, do not operate the
switch.
Immediately contact an authorized
Mitsubishi Motors dealer.
NOTE
When operating the engine switch, press the
switch all the way in. If the switch is not
fully pressed, the engine may not start or the
operation mode may not change. If the
engine switch is pressed correctly, there is no
need to hold the engine switch down.
 When the battery in the F.A.S.T.-key has
worn out, or the F.A.S.T.-key is out of the
vehicle, a warning display will appear.
Warning display (when the engine switch is
pressed one time)
Warning display (when the engine switch is
pressed two times or more)
Operation mode of the engine
switch and its function

OFF
ACC
ON
NOTE
Your vehicle is equipped with an electronic
immobilizer. To start the engine, the ID code
which the F.A.S.T.-key sends must match the
one registered to the immobilizer computer.
Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 5-17.
BK0252700US.bo ok 18 ページ ２０１７年１０月５日　木曜日　午後６時４９分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
N00568001077
If you press the engine switch without press- ing the brake pedal while the vehicle is sta-tionary, you can change the operation mode in the order of OFF, ACC, ON, OFF.
N00568101078
After approximately 30 minutes has elapsed with the operation mode in ACC, the functionautomatically cuts out the power for the audio system and other electri
c devices that can be
operated with that mode.When the engine switch is pressed while the operation mode is in ACC, the power is sup- plied again to those devices.
Changing the operation mode

CAUTION When the engine is not running, put the oper- ation mode in OFF. Leaving the operationmode in ON or ACC for a long time when the engine is not running may cause the bat- tery to be discharged, making it impossibleto start the engine.
 When the battery is disconnected, the current operation mode is memorized. After recon- necting the battery, the memorized mode is selected automatically. Before disconnect- ing the battery for repair or replacement,make sure to put the operation mode in OFF. Be careful if you are not sure which opera- tion mode the vehicle is in when the batteryis run down. The operation mode cannot be changed from OFF to ACC or ON if the F.A.S.T.-key is not detected to be in the vehicle. Refer to “Oper- ating range for starting the engine andchanging the operation mode” on page 5-14.NOTE
 If the operation mode cannot be changed to OFF, perform the following procedure. 1. Move the selector lever to the “P” (PARK) position, and then change the operation mode to OFF. 2. One of the other causes could be low bat- tery voltage. If this occurs, the keylessentry system and the F.A.S.T.-key opera- tion will also not operate. Contact an authorized Mitsubishi Motors dealer.CAUTION
ACC power auto-cutout function

NOTE
 It is possible to modify functions as follows: • The time until the power cuts out can be changed to approximately 60 minutes. • The ACC power auto-cutout function can be deactivated. For details, we recommend you to consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the SmartphoneLink Display Audio, screen operations can be used to make the adjustment. Refer to the separate owner’s manual fordetails.
BK0252700US.bo
ok 19 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-20 Features and controls
5
N00503501242
With the F.A.S.T.-key, warnings are given through buzzers and disp
lays on the information screen in the multi-information displ
ay in order to pre-
vent mistaken operations or vehicle theft.When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning is also displayed if there is a problem i
n the F.A.S.T.-key.
Warning activation

Item
Display
Buzzer
Solution
Note
Detection of failure Inner buzzer sounds
once
There is a problem in the F. A . S . T. - k e y.
—
Fall of battery voltage Inner buzzer sounds
once
The battery of the F.A.S.T.-key is run down.
The warning is not activated if the battery is completely dead.
BK0252700US.bo
ok 20 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
F.A.S.T.-key not detected
Engine switch is pressed one time
Inner buzzer sounds once
When the engine switch is pressed to change the operation mode from OFF or when the engine is started, the warning is activated, if any of the following conditions has occurred.
—
 Carrying another F.A.S.T.-key with a different code, or the F.A.S.T.-key could be outside the operating range.
Engine switch is pressed two times or
more
 The battery of the F.A.S.T.- key is dead.  Communication is blocked by electric wave environment.
In such case, touch the F.A.S.T.- key to the engine switch to change the operation mode or start the engine.Refer to “If the F.A.S.T.-key is not operating properly” on page 5-25.
Item
Display
Buzzer
Solution
Note
BK0252700US.bo
ok 21 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-22 Features and controls
5
F.A.S.T.-key take-out monitoring system
Inner buzzer sounds once Outer buzzer sounds intermittently
When the vehicle is parked with the operation mode in any mode other than OFF, if you close the door after opening any of the doors and taking the F.A.S.T.-key out of the vehicle, a warning is issued until the F.A.S.T.-key is detected in the vehicle.
 The F.A.S.T.-key take-out moni- toring system does not function if the F.A.S.T.-key is removed through a window without open- ing a door. This setting can be changed.Contact an authorized Mitsubishi Motors dealer for details.  The warning may display even if the F.A.S.T.-key is in the operat-ing range for starting the engine and changing the operation mode. The surrounding environ-ment or electromagnetic waves may make it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
Key lock-in preven- tion system
Inner buzzer sounds once Outer buzzer sounds approximately 3 sec-onds intermittently
When the operation mode is in OFF, the F.A.S.T.-key is left in the passenger compartment, all the doors and the liftgate are closed, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate lock switch, a warning is issued and you cannot lock the doors and liftgate.
Make sure you have the F.A.S.T.-key with you before locking the doors. Even if you leave the F.A.S.T.-key inside the vehicle, it is possible that the doors will lock depending on the surrounding environment and wire-less signal conditions.
Item
Display
Buzzer
Solution
Note
BK0252700US.bo
ok 22 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5
N00514601416
 The operation mode can be in any mode to start the engine.
 The starter motor will be turning for up to approximately 15 seconds if the engine switch is released at once. Pressing theengine switch again while the starter motor is still turning will stop the starter motor.The starter motor will be turning for up to approximately 30 seconds while the engine switch is pressed.
If the engine does not start, wait for a while and then attempt to start the engine again. Trying repeatedly with the engineor starter motor still
turning will damage
the starter mechanism.  If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” on page 8-2 for instructions.
Door ajar prevention system
Inner buzzer sounds once Outer buzzer sounds approximately 3 sec-onds intermittently
When the operation mode is in OFF, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate lock switch while one of the doors or the liftgate is not fully closed, a warning is issued and you cannot lock the doors and liftgate.
—
Operation mode OFF reminder system
Inner buzzer sounds once Outer buzzer sounds approximately 3 sec-onds intermittently
When the operation mode is in any mode other than OFF, all the doors and the liftgate are closed, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate lock switch, a warning is issued and you cannot lock the doors and liftgate.
—
Item
Display
Buzzer
Solution
Note
Starting and stopping the engine

Tips for starting

BK0252700US.bo
ok 23 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-24 Features and controls
5
 A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driv- ing when the bar graph of engine coolanttemperature display starts to move. Refer to “Engine coolant temperature display” on page 5-147.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This system automatically controls fuel injection. There is usually no need to depress the accel-erator pedal when starting the engine.
To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened. 2. Make sure the parking brake is applied.3. Press and hold the brake pedal down firmly with your right foot. 4. Make sure the selector lever is in the “P” (PARK) position. 5. Press the engine switch. 6. Confirm that all warning lights and warn- ing displays are functioning properly.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rearwindow defogger, are turned off. 2. While depressing the brake pedal, press the accelerator pedal halfway and hold itthere, then crank the engine. Release the accelerator pedal, immediately after the engine starts.
WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is neededto move your vehicle out of the area. Car- bon monoxide gas, which is odorless and extremely poisonous, could build up andcause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine
at high rpms or drive
at high speeds until the engine has had a chance to warm up.
Starting the engine

NOTE
 After the engine has not started for a while, the brake pedal effort needed to start the engine may become greater. If this occurs,depress the brake pedal more firmly than usual.NOTE
 The engine can only be started when the selector lever is in the “P” (PARK) or “N” (NEUTRAL) position.For safety reasons, the engine should be started when the selector lever is in the “P” (PARK) position in which the driving wheels lock.
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
BK0252700US.bo
ok 24 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
3. If the engine still will not start, the engine could be flooded with too much gasoline. While depressing the brake pedal, push the accelerator pedal all the way downand hold it there, then press the engine switch to crank the engine. If the engine does not start after 5 to 6 seconds, pushthe engine switch to stop cranking the engine, and release the accelerator pedal. Put the operation mode in OFF. Wait afew seconds, and then press the engineswitch to crank the engine again while depressing the brake pedal, but do not push the accelerator pedal. If the enginefails to start, repeat these procedures. If the engine still will not start, contact your local Mitsubishi Motors dealer or a repairfacility of your choice for assistance.
Startability of the engine with an ambient temperature of -22 °F (-30 °C) or lower When the ambient temperature is -22 °F (-30°C) or lower, it may not be possible to start from a standstill even with the selector lever in the “D” (DRIVE) or “R” (REVERSE)position. This phenomenon occurs because the trans- axle has not warmed up sufficiently; it doesnot indicate a problem. If this occurs, place the selector lever in the “P” (PARK) position and let the engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start normally. Do not leave the vehicle during warm-up operation.
N00568201053
1. Stop the vehicle.2. Fully engage the parking brake while depressing the brake pedal. 3. Move the selector lever to the “P”(PARK) position, and then press the engine switch to stop the engine.
N00568301113
The following operation can be used to start the engine or change the operation mode. 1. Depress the brake pe
dal firmly with your
right foot. 2. While depressing the brake pedal, touch the portion of the F.A.S.T.-key shown inthe illustration to the engine switch.
Stopping the engine

WA R N I N G Do not operate the engine switch while driving except in an emergency. If the engine is stopped while driving, the brake servomechanism will cease to function andbraking efficiency will deteriorate. Also, the power steering system will not func- tion and it will require greater manualeffort to operate the steering. This could result in a serious accident.NOTE
 If you have to bring the engine to an emer- gency stop while driving, press and hold the engine switch for 3 seconds or more, or press it quickly three times or more. The enginewill stop and the operation mode will go to ACC.
 Do not stop the engine with the selector lever in any position other than the “P” (PARK) position. If the engine is stopped with the selector lever in any position other than the “P” (PARK) position, the operation modewill go to ACC rather than OFF. Put the operation mode in OFF after placing the selector lever in the “P” (PARK) posi-tion.
If the F.A.S.T.-key is not operat- ing properly

NOTE
