2018 MERCEDES-BENZ E-CLASS WAGON Owner's Manual

Warning when the maximum permissible
speed is exceeded
The sy stem can warnyouif yo u unin tentional ly
exc eed the maximum permissible speed. Todo
th is, you can specify inthe multimedia sy stem
by how much the maximum permissible speed
can be exceeded before a warning is issued. You
can specify whe ther thewa rning is tobe just a
visual warning or an acoustic one as well.
Display in the Instrument Display
1Pe rm issible speed
2Perm issible speed when there is a restriction
3Ad ditional sign with restriction %
The illu stra tion sho wsthe Instrument Display
in theWi descreen Cockpit
Since Traf fic Sign Assist also usesthe data
st ored in the navigation sy stem, it can update
th e display in thefo llowing situations without
de tecting traf fic signs:
RWhen theve hicle changes roads, e.g. high‐
wa yex it or slip road.
RWhen a village or city boundary is passed
which is stored in the digital map.
Traf fic Sign Assist is notavailable in all coun‐
tries. If it is una vailable, display 1is shown in
th e speedome ter. Sy
stem limitations
The sy stem may be impaired or may not function
in thefo llowing situations:
RIf th ere is poor visibility, e.g. due toinsuf fi‐
cient illumination of thero ad, if there are
highly variable shade conditions or in rain,
sno w,fog or spr ay.
RIfth ere is glare, e.g. from oncoming traf fic,
dire ct sunlight or reflections from other vehi‐
cles.
RIf th e windshield in the area of the multifunc‐
tion camera is dirty, or if the camera is fog‐
ge d up, damaged or co vered.
RIfth e tra ffic signs are hard todetect, e.g. due
to dirt or sno w,or because they are co vered
or because of insuf ficient lighting.
RIf th e information in the navigation sy stem's
digital map is incor rect or out-of-date .
RIfth e signs are ambiguous, e.g. traf fic signs
on construction sites or in adjacent lanes.
Driving and park ing207

SettingTraf fic Sign Assist
Multimedia sy stem:
,9HKLFOH.k $VVLVWDQFH.7UDIILF
6LJQ $VVLVW
Ac tivating /deacti vating automatic adoption
of speed limits
Re quirement:
RAc tive Dis tance Assist DISTRONIC is acti va‐
te d.
#Select /LPLW $GRSWLRQ .
#Activate Oor deacti vate ª the function.
The speed limits de tected byTraf fic Sign
Assist are automatically adop tedby Active
Dis tance Assist DISTRONIC.
Displ aying de tected traf fic signs in the
media display
#Select 'LVSOD\ LQ &20$1'.
#Activate Oor deacti vate ª the function. Ac
tivating/deactivating the warning when a
speed limit is exceeded
The point at which a warning is given once a
speed is exceeded (warning thre shold) can be
set according toindividual preferences.
#Select 6SHHG /LPLW :DUQLQJ.
#Select9LVXDO $XGLEOH ,9LVXDO or1RQH.
Setting a speed
#Select :DUQLQJ 7KUHVKROG.
#Setthe desired speed.
Blind Spot Assist and Active Blind Spot
Assi st
Function of Blind Spot Assist and Active
Blind Spot Assi st
Blind Spot Assist uses two lateral,rear-facing
ra dar sensors tomonitor the area up to130ft
(40 m) behind your vehicle and 10ft(3 m)
directly next to yourvehicle.
If a vehicle is de tected at speeds ab ove appr ox‐
imately 8 mph (12 km/h) and this vehicle subse‐
qu ent lyenters the monitoring range di rectly next to yo
urvehicle, thewa rning lamp in the outside
mir ror lights up red.
If a vehicle is de tected close to yourvehicle in
th e lateral monitoring range and youswit chon
th e turn signal indicator in the cor responding
direction, a warning tone sounds once. The red
wa rning lamp in the outside mir rorflashes. If the
turn signal indica torre mains on, all other de tec‐
te dve hicles are indicated only bytheflashing of
th ere dwa rning lamp.
If yo uove rtake a vehicle quickl y,no warning is
given.
& WARNING Risk of accident despite Blind
Spot Assist
Blind Spot Assist does notreact tovehicles
approaching and overtaking you at a greatly
di fferent speed.
As a result, Blind Spot Assist cannot warn
drivers in this situation.
#Alw ays pay careful attention tothe traf‐
fi c situation and maintain a safe dis‐
ta nce at the side of theve hicle.
208
Driving and parking

Blind Spot AssistandActive Blind Spot Assi st
are only aids. They may failto detect some vehi‐
cles and are no substitute for attentive driving.
Alw ays ensure that there is suf ficient dist anceto
th e side forot her road users and obs tacles.
Sy stem limitations
The de tection capability of Blind Spot Assist can
be restricted in thefo llowing situations:
RIf th e sensors are dirty or obscured.
RWhen there is poor visibility, e.g. due tofog,
heavy rain, snow or spr ay.
RIf nar rowvehicles are within the monitoring
ra nge, e.g. bicycles.
Wa rnings may be issued in er ror when driving
close tocrash barr iers or similar solid lane bor‐
ders. Warnings may be inter rupted when driving
alongside long vehicles, forex ample, truc ks,fo r
a prolonge d period.
Blind Spot Assist is not operational when reve rse
ge ar is engaged. Brake application of
Active Blind Spot Assi st
If Ac tive Blind Spot Assi stdetects a risk of a side
impact in the monitoring range, a cours e-cor‐
re cting brake application is car ried out. This is
designed tohelp youavo id a collision.
The course-cor recting brake application is availa‐
ble in the speed range between appr oximately
20 mph(3 0 km/h) and 125mp h(2 00 km/h).
&
WARNING Risk of accident despite
brake application of Active Blind Spot
Assi st
A cours e-correcting brake application cannot
alw ays pr event a collision.
#Alw aysst eer, brake or accelera teyour‐
self, especially if Active Blind Spot
Assi stwa rnsyo u or makes a course-
co rrecting brake application.
#Alw ays maintain a safe dis tance at the
sides.
& WARNING Risk of accident despite
Ac tive Blind Spot Assi st
Blind Spot Assist does notreact tothefo l‐
lowing:
ROver taking vehicles closely on the side,
placing them in the blind spot area
RVe hicles approaching and overtaking you
at a very differe nt speed
As a result, Active Blind Spot Assi stmay nei‐
th er give warnings nor inter vene in such sit‐
uations.
#Alw ays pay careful attention tothe traf‐
fi c situation and maintain a safe dis‐
ta nce at the side of theve hicle.
Driving and parking 209

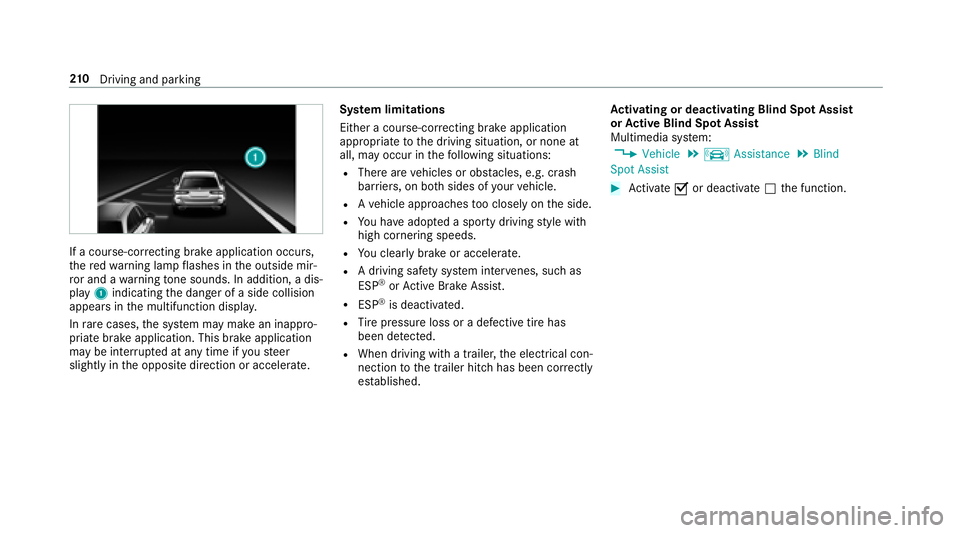

If a course-correcting brake application occurs ,
th ere dwa rning lamp flashes in the outside mir‐
ro r and a warning tone sounds. In addition, a dis‐
pl ay 1 indicating the danger of a side collision
appears in the multifunction displa y.
In rare cases, the sy stem may make an inappro‐
priate brake application. This brake application
may be inter rupte d at any time if yousteer
slightly in the opposite direction or accelera te. Sy
stem limitations
Either a course-cor recting brake application
appropria teto the driving situation, or none at
all, may occur in thefo llowing situations:
RThere are vehicles or obs tacles, e.g. crash
barr iers, on bo thsides of your vehicle.
RAve hicle approaches too closely on the side.
RYo u ha veadop ted a sporty driving style with
high cornering speeds.
RYo u clear lybrake or accelera te.
RA driving safe ty system inter venes, such as
ESP®or Active Brake Assi st.
RESP®is deacti vated.
RTire pressure loss or a defective tire has
been de tected.
RWhen driving wi tha trailer, the electrical con‐
nection tothe trailer hitch has been cor rectly
es tablished. Ac
tivating or deactivating Blind Spot Assi st
or Active Blind Spot Assi st
Multimedia sy stem:
,9HKLFOH.k $VVLVWDQFH.%OLQG
6SRW $VVLVW
#Ac tivate Oor deacti vate ª the function.
21 0
Driving and pa rking

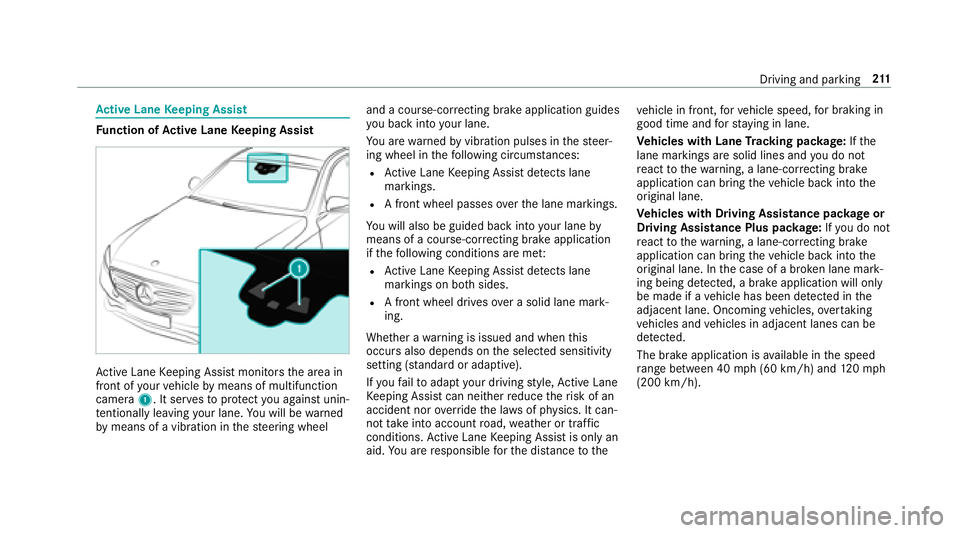

Active Lane Keeping Assist
Function of Active Lane Keeping Assist
Active Lane Keeping Assist monitors the area in
front of your vehicle bymeans of multifunction
camera 1. It ser vesto protect you against unin‐
te ntional lyleaving your lane. Youwill be warned
by means of a vibration in thesteering wheel and a course-cor
recting brake application guides
yo u back into your lane.
Yo u are warned byvibration pulses in thesteer‐
ing wheel in thefo llowing circums tances:
RAc tive Lane Keeping Assist de tects lane
markings.
RA front wheel passes over the lane markings.
Yo u will also be guided back into your lane by
means of a course-cor recting brake application
if th efo llowing conditions are me t:
RActive Lane Keeping Assist de tects lane
markings on bo thsides.
RA front wheel drives over a solid lane mark‐
ing.
Whe ther a warning is issued and when this
occurs also depends on the selected sensitivity
setting (s tanda rdor adaptive).
If yo ufa ilto adapt your dr ivingst yle, Ac tive Lane
Ke eping Assist can neither reduce therisk of an
accident nor override the la wsof ph ysics. It can‐
not take into account road, weather or traf fic
conditions. Active Lane Keeping Assist is only an
aid. You are responsible forth e dis tance tothe ve
hicle in front, forve hicle speed, for bra
king in
good time and forst ay ing in lane.
Ve hicles with Lane Tracking pac kage:If th e
lane markings are solid lines and you do not
re act tothewa rning, a lane-cor recting brake
application can bring theve hicle back into the
original lane.
Ve hicles with Driving Assistance pac kage or
Driving Assistance Plus pa ckage: Ifyo u do not
re act tothewa rning, a lane-cor recting brake
application can bring theve hicle back into the
original lane. In the case of a broken lane mark‐
ing being de tected, a brake application will only
be made if a vehicle has been de tected in the
adjacent lane. Oncoming vehicles, overtaking
ve hicles and vehicles in adjacent lanes can be
de tected.
The brake application is available in the speed
ra nge between 40 mph(6 0 km/h) and 120mp h
(200 km/h).
Driving and parking 21
1

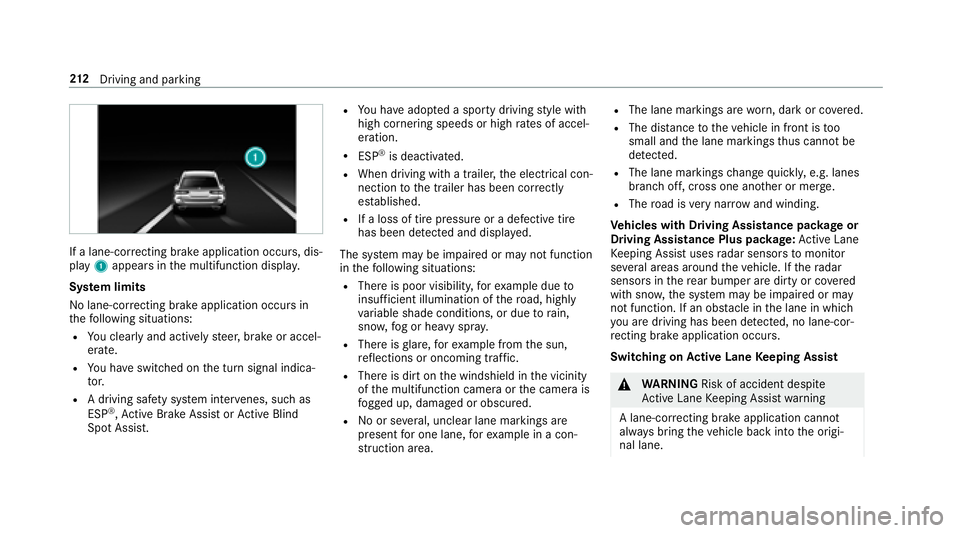

If a lane-correcting brake application occurs , dis‐
play 1appears in the multifunction displa y.
Sy stem limits
No lane-cor recting brake application occurs in
th efo llowing situations:
RYo u clear lyand actively steer, brake or accel‐
erate.
RYo u ha veswitched on the turn signal indica‐
to r.
RA driving safe ty system inter venes, such as
ESP®, Ac tive Brake Assi stor Active Blind
Spot Assi st.
RYo u ha veadop ted a sporty driving style with
high cornering speeds or high rates of accel‐
eration.
RESP®is deactivated.
RWhen driving with a trailer, the electrical con‐
nection tothe trailer has been cor rectly
es tablished.
RIf a loss of tire pressure or a defective tire
has been de tected and displ ayed.
The sy stem may be impaired or may not function
in thefo llowing situations:
RThere is poor visibility, forex ample due to
insuf ficient illumination of thero ad, highly
va riable shade conditions, or due torain,
sno w,fog or heavy spr ay.
RThere is glare, forex ample from the sun,
re flections or oncoming tra ffic.
RThere is dirt on the windshield in the vicinity
of the multifunction camera or the camera is
fo gged up, damaged or obscured.
RNo or se veral, unclear lane markings are
present for one lane, forex ample in a c on‐
st ru ction area.
RThe lane markings are worn, dark or co vered.
RThe dis tance totheve hicle in front is too
small and the lane markings thus cannot be
de tected.
RThe lane markings change quickl y,e.g. lanes
branch off, cross one ano ther or mer ge.
RThe road is very nar row and winding.
Ve hicles with Driving Assistance pac kage or
Driving Assistance Plus pa ckage: Active Lane
Ke eping Assist uses radar sensors tomonitor
se veral areas around theve hicle. If thera dar
sensors in there ar bumper are dirty or co vered
with snow ,th e sy stem may be impaired or may
not function. If an obs tacle in the lane in which
yo u are driving has been de tected, no lane-cor‐
re cting brake application occurs .
Switching on Active Lane Keeping Assist
&
WARNING Risk of accident despite
Ac tive Lane Keeping Assist warning
A lane-cor recting brake application cannot
al wa ys bring theve hicle back into the origi‐
nal lane.
21 2
Driving and pa rking

#Alwaysst eer, brake or accelera teyour‐
self, especially ifAc tive Lane Keeping
Assist warnsyo u or makes a lane-cor‐
re cting brake application.
&
WARNING Risk of accident despite inter‐
ve ntion of Active Lane Keeping Assist
Ac tive Lane Keeping Assist does not de tect
traf fic conditions or road users. In very rare
cases, the sy stem may make an inappropri‐
ate brake application, e.g. af ter intentional ly
driving over a solid lane marking.
The brake application can be inter rupte d at
any time if yousteer slightly in the opposite
direction.
#Alw ays make sure that there is suf fi‐
cient dist ancetothe side forot her traf‐
fi c or obs tacles.
&
WARNING Risk of accident despite Lane
Ke eping Assist
Lane Keeping Assist cannot always clearly
de tect lane markings.
In such cases, Lane Keeping Assist can:
Rgive an unnecessary warning
Rnot give a warning
#Alw ays pay particular attention tothe
traf fic situation and keep within the
lane, especially if Active Lane Keeping
Assist alerts you.
Prerequisi te
The driving speed is at least 40 mph (60 km/h).
#Press button 2.
If indicator lamp 1lights up, Lane Keeping
Assist is activated. When lane markings are
de tected, the lines in the assis tance graphic
are shown in white.
Sensitivity of Active Lane Keeping Assist
Wi th th est andard or adaptive setting, you can
influence when thewa rning vibration of Lane
Ke eping Assist take s place.
Driving and parking 21
3

In both thest andard and adaptive settings, no
wa rning vibration occurs in thefo llowing situa‐
tions:
RYo u ha veswitched on the turn signal indica‐
to r.
RA driving safe ty system inter venes, such as
ABS, BAS or ESP®.
In the adaptive setting, there will also be no
wa rning vibration in thefo llowing situations:
RThe vehicle is accelerated or braked consid‐
erably.
RYo usteer actively, e.g. swer vetoavo id an
obs tacle or change lane quickl y.
RYou cut the corner on a sharp bend.
Setting the sensitivity of Active Lane Keep‐
ing Assist
Multimedia sy stem:
,9HKLFOH.k $VVLVWDQFH.$FW
/DQH .HHS $VVLVW
Selection options
#Select $GDSWLYH or6WDQGDUG.
214
Driving and pa rking
