2018 MERCEDES-BENZ E-CLASS WAGON Owner's Manual

Stow age spaces in theve hicle interior
Overview of the front stowage compa rt‐
ments
1St ow age compartment in the doors
2St ow age/telephone compartment in the
armrest with multimedia connections and
stow age compartment, e.g. for an MP3
pla yer
3Stow age compartment in the front center
console with a USB port (depending on the
ve hicle's equipment)
4Glo vebox Locking/unlocking
thegl ove box
#Turn the mechanical key a quarter turn clock‐
wise 2(to lock) or counter-clockwise 1(to
unlock). Opening
thegl asses co mpartment
#Toopen: press button 1.
Opening thesto wage compa rtment in the
re ar armrest
Observ eth e no tes on loading theve hicle
(
→page 101).
Seats and stowing 10
3

#Toopen: pressrelease cat ch1 and swing
th e co ver of the armrest upwards.
Through-loading feature in there ar ben ch
seat
Fo lding there ar seat backrests forw ard
&
WARNING Risk of injury ifth ere ar
bench seat/rear seat and seat backrest
are not engaged
If th ere ar bench seat/rear seat and seat
backrest are not engaged they could fold for‐
wa rds, e.g. when braking suddenly or in the
ev ent of an accident.
RIfth is is the case, theve hicle occupant
wo uld beforc ed into the seat belt bythe
re ar bench seat/rear seat or bythe seat
backrest. The seat belt cann otprotect as
intended and could result in additional
injur y.
RObjects or loads in the trunk/cargo com‐
partment cannot berestra ined bythe
seat backrest.
#Make sure that the seat backrest and
th ere ar bench seat/rear seat are
engaged before everytrip.
Ifth e seat backrest is not engaged and loc ked,
th is will be shown in the multifunction display in
th e instrument clus ter.
The center and outer seat backrests can be fol‐
ded forw ard separatel y.
The right outer seat backrest can only be folded
fo rw ard toget her with the center seat backrest.
The outer seat backrests are electrically
unloc ked with there lease handles in either the
cargo compart ment or beside the seat backr‐
ests.
#Fu lly inse rtthere ar seat backrest head
re stra ints.
10 4
Seats and stowing

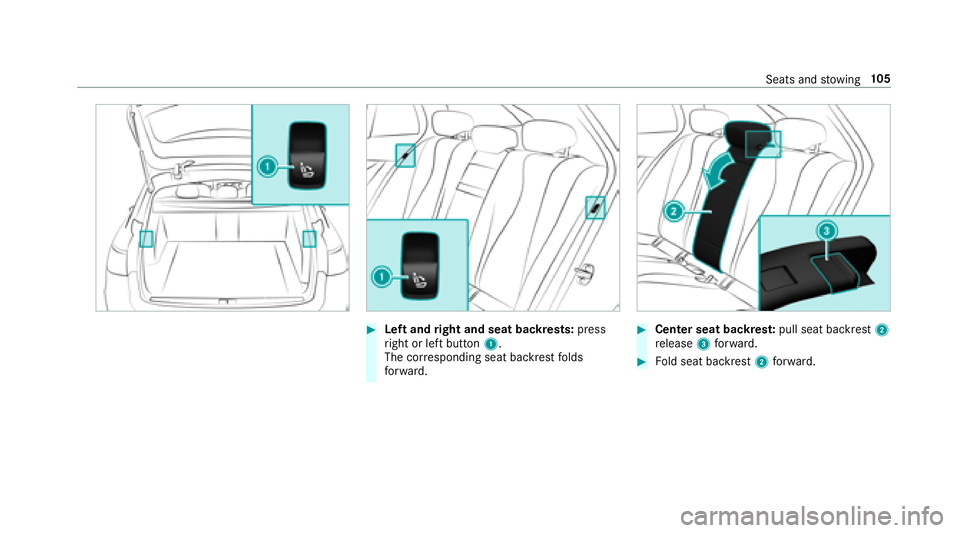

#Left andright and seat backrests: press
ri ght or left button 1.
The cor responding seat backrest folds
fo rw ard.#Center seat backres t:pull seat backrest 2
re lease 3forw ard.
#Fold seat backrest 2forw ard.
Seats and stowing 10
5

Folding there ar seat backrest back
* NO
TEDama getothe seat belt
The seat belt could become trapped and thus
damaged when folding back the seat back‐
re st.
#Make sure that the seat belt is not trap‐
ped when folding back the seat back‐
re st.
If th e seat backrest is not engaged and loc ked,
th is will be shown in the multifunction display in
th e instrument clus ter.
#Mo vethe driver's or front passenger seat for‐
wa rds, if necessar y.
#Fold cor responding seat backrest 1back
until it engages.
Left and right seat backrests: ifth e seat
backrest is not cor rectly engaged, this will be
shown in the multifunction display in the
instrument clus ter.
Center seat backres t:ifth e seat backrest is
not cor rectly engaged, red lock verification
indicator 2will be visible. Lo
cking the center rear seat backrest
Lock the center seat backrest if youwa ntto
secure the cargo compartment from unauthor‐
ized access. The center seat backrest can then
only be folded forw ard toget her with the left seat
backrest.
Bo th seat backrests must be engaged and joined
to ge ther.
10 6
Seats and stowing

#Foldthe center and left seat backrest
fo rw ard.
#To lock: slide catch 1up.
The release mechanism of the center seat
backrest is loc ked.
#To unlock :slide catch 1down.
Ad justing the angle of the rear seat backr‐
ests (cargo position)
To enlar gethe cargo compartment, you can
adjust the seat backrests so that they are 10
degrees steeper (cargo position).
#Fo ldthe seat backrest forw ard (→page 104).
#Mo vebar 1inthe direction of the ar row.
#Push seat backrest 2back tobar 1until
th e backrest engages.
Load compartment co ver with saf ety net
(combined cargo co ver and net)
Note s onthe cargo compa rtment co ver
&
WARNING Risk of injury or death dueto
objects being poorly secured
On its own,the cargo compartment co ver
cannot secure orrestra in heavy objects,
items of luggage and heavy loads.
Yo u could be hit byan unsecured load during
sudden changes in direction, braking or in
th eev ent of an accident.
#Alw aysstow objects in such a wayth at
th ey cannot be thro wn around.
#Secure objects, luggage or loads
against slipping or tipping over,e.g. by
using tie-do wns,eve n if you are using
th e cargo compartment co ver.
Seats and stowing 10
7

*NO

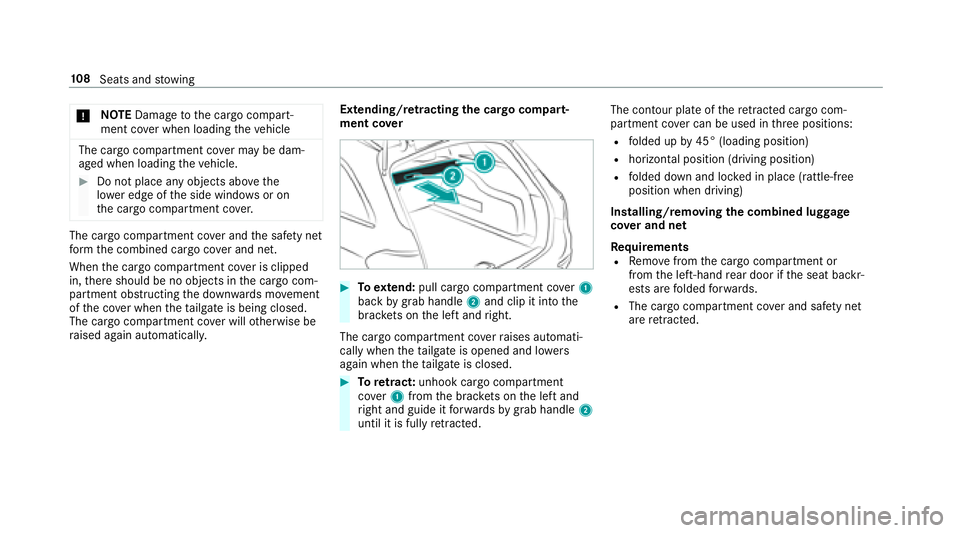

TEDama getothe cargo compart‐
ment co ver when loading theve hicle
The cargo compartment co ver may be dam‐
aged when loading theve hicle.
#Do not place any objects abo vethe
lo we r edge of the side windo wsor on
th e cargo compartment co ver.
The cargo compartment co ver and the saf etyne t
fo rm the combined cargo co ver and net.
When the cargo compartment co ver is clipped
in, there should be no objects in the cargo com‐
partment obstructing the down wards mo vement
of the co ver when theta ilgate is being closed.
The cargo compartment co ver will otherwise be
ra ised again automaticall y. Extending/r
etra cting the cargo compa rt‐
ment co ver
#To extend: pull cargo compartment co ver1
back bygrab handle 2and clip it into the
brac kets on the left and right.
The cargo compartment co verra ises automati‐
cally when theta ilgate is opened and lo wers
again when theta ilgate is closed.
#To retract: unhook cargo compa rtment
co ver1 from the brac kets on the left and
ri ght and guide it forw ards bygrab handle 2
until it is fully retracted. The contour plate of
there tracted cargo com‐
pa rtment co ver can be used in thre e positions:
Rfolded up by45° (loading position)
Rhorizontal position (driving position)
Rfolded down and loc ked in place (rattle-free
position when driving)
Installing/removing the combined luggage
co ver and net
Requ irements
RRemo vefrom the cargo compartment or
from the left-hand rear door if the seat backr‐
ests are folded forw ards.
RThe cargo compartment co ver and saf etyne t
ar ere tracted.
10 8
Seats and stowing

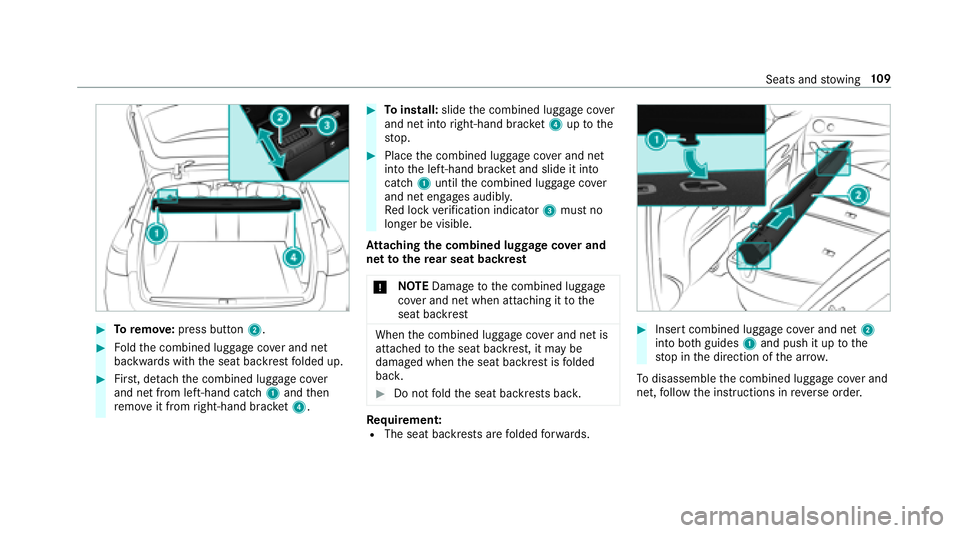

#Toremo ve:press button 2.
#Foldthe combined luggage co ver and net
backwards with the seat backrest folded up.
#Fir st, de tach th e combined luggage co ver
and net from left-hand cat ch1 and then
re mo veit from right-hand brac ket4.
#To install: slidethe combined luggage co ver
and net into right-hand brac ket4 uptothe
st op.
#Place the combined luggage co ver and net
into the left-hand brac ket and slide it into
catch 1until the combined luggage co ver
and net engages audibl y.
Re d lock verification indicator 3must no
longer be visible.
At tachin gth e combined luggage co ver and
net tothere ar seat backrest
* NO
TEDama getothe combined luggage
co ver and net when attaching it tothe
seat backrest
When the combined luggage co ver and net is
attached tothe seat backrest, it may be
damaged when the seat backrest is folded
bac k.
#Do not fold the seat backrests bac k.
Requirement:RThe seat backrests are folded forw ards.
#Insert combined luggage co ver and net 2
into bo thguides 1and push it up tothe
st op in the direction of the ar row.
To disassemble the combined luggage co ver and
net, follow the instructions in reve rse order.
Seats and stowing 10
9

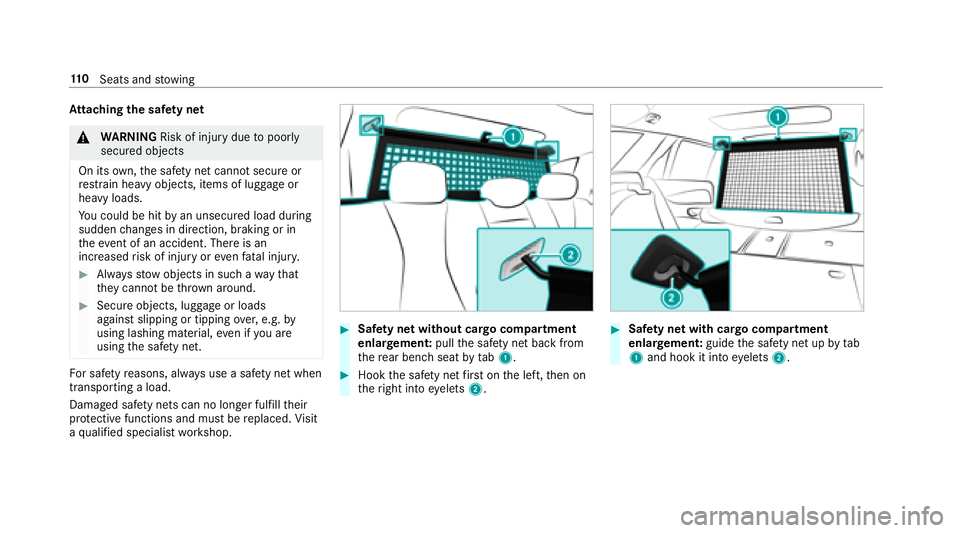

Attachin gth e saf ety net
&
WARNING Risk of injury duetopoorly
secured objects
On its own,the saf etyne tcanno tsecur eor
re stra in heavy objects, items of luggage or
heavy loads.
Yo u could behit byan unsecured load during
sudden changes in direction, braking or in
th eev ent of an accident. There is an
increased risk of injury or even fata l injur y.
#Alwaysstow objects in such a wayth at
th ey cannot be thro wn around.
#Secure objects, luggage or loads
against slipping or tipping over,e.g. by
using lashing mater ial,even if you are
using the saf etynet.
Fo r saf etyre asons, alw ays use a saf etyne twhen
transporting aload.
Damaged saf etynets can no lon ger fulfill their
pr otective functions and must be replaced. Visit
a qu alified specialist workshop.
#Saf ety net without cargo compartment
enlar gement: pullthe saf etyne tbac kfrom
th ere ar bench seatbytab1.
#Hook the saf etyne tfirs t on the left, then on
th eright into eyelets 2.
#Safety net with cargo compartment
enlar gement: guidethe saf etyne tup bytab
1 and hook it into eyelets 2.
110
Seats and stowing
