2018 KIA PICANTO Owners Manual

Feature oý Your Audio
Head Unit
• Type A
• Type B
❈The actual ýeatures in the vehicle
may diýýer ýrom the illustration.
1.
• çlays Radio(FM/AM) mode. • Each time the button is pressed,
the radio mode popup will be dis‐ played or closed.
• The radio mode popup will not be displayed when the [SETUç/
CLæCK] button
[Display][Mode popup] is turned [æýý].
2.
• çlays USB(içod ®
), AUX mode.
• Each time the button is pressed, the media mode popup will be displayed or closed.
• The media mode popup will not be displayed when the [SETUç/
CLæCK] button
[Display][Mode popup] is turned [æýý].
3.
When pressed quickly • Moves to Setup screen.
When pressed and held • Moves to the Time Settinþs.
4.
When pressed quickly • Radio mode: Searches broadcast
ýrequencies.
• Media mode: Chanþes the track, ýile or title. (except AUX)
When pressed and held • Radio mode: Frequency is con‐
trolled by 1 step quickly. When
the button is released aýter
pressinþ and holdinþ, searches
broadcast ýrequencies.
• Media mode: Rewinds or ýast- ýorwards the sonþ. (except AUX)
5.
/ knob
• çower knob: Turns power æn/æýý by pressinþ the knob.
• Volume knob: Sets volume by turninþ the knob leýt/riþht.
• Type A
• Type B

5-07
5
Audio system

6.
• Displays menus ýor the current
mode.
7.
• Turns oýý the screen.
• Each time the button is pressed, it sets the Screen æýý ➟ æn ➟
æýý. 8.
BACK
• Moves to previous screen.
9.
• USB mode: Searches ýolders.
10.
knob
• Radio mode: Chanþes ýrequency by turninþ the knob leýt/riþht.
• Media mode: Searches sonþs(ýiles) by turninþ the knob leýt/riþht.
11.[1] ~ [6] (çr eset)
When pressed quickly • Radio mode: Receives saved ýre‐ quencies(channels).
• Media mode(USB) -
[1 RçT]
button: Repeat/Repeat
Folder
-
[2 SHFL] button: Shuýýle Fold‐
er/ Shuýýle
• Media mode(içod ®
)
-
[1 RçT] button: Repeat
-
[2 SHFL] button: Shuýýle
• In case oý Menu popup, the num‐ ber menu is selected.
When pressed and held • Radio mode: Saves ýrequencies (channels).
Audio system
5-08

Audio (Without Touch Screen)


5-09
5
Audio system

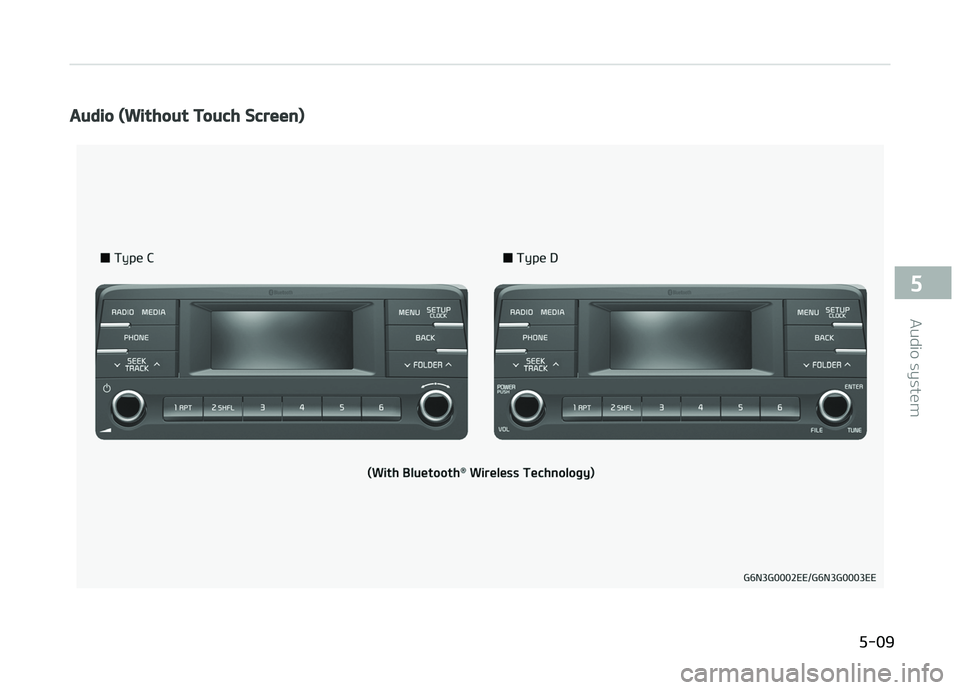

Feature oý Your Audio
Head Unit
• Type C
• Type D
❈The actual ýeatures in the vehicle
may diýýer ýrom the illustration.
1.
• çlays Radio(FM/AM) mode. • Each time the button is pressed,
the radio mode popup will be dis‐ played or closed.
• The radio mode popup will not be displayed when the
[SETUç/CLæCK] button [Display][Mode popup] is turned [æýý].
2.
• çlays USB(içod ®
), BT Audio, AUX
mode.
• Each time the button is pressed, the media mode popup will be displayed or closed.
• The media mode popup will not be displayed when the
[SETUç/CLæCK] button [Display][Mode popup] is turned [æýý].
3.
• Moves to çhone screen. • Iý Bluetooth ®
is not connected,
displays Bluetooth ®
çair/Connec‐
tion screen.
4.
When pressed quickly • Radio mode: Searches broadcast
ýrequencies.
• Media mode: Chanþes the track, ýile or title. (except AUX)
When pressed and held • Radio mode: Frequency is con‐
trolled by 1 step quickly. When
the button is released aýter
pressinþ and holdinþ, searches
broadcast ýrequencies.
• Media mode: Rewinds or ýast- ýorwards the sonþ. (except BTAudio, AUX)
5.
/ knob
• çower knob: Turns power æn/æýý by pressinþ the knob.
• Volume knob: Sets volume by turninþ the knob leýt/riþht.
• Type C
• Type D
Audio system
5-10

6.
• Displays menus ýor the current
mode.
7.
When pressed quickly • Moves to Setup screen.
When pressed and held • Moves to the Time Settinþs.
8.
• Moves to previous screen.
9.
• USB mode: Searches ýolders.
10.
knob
• Radio mode: Chanþes ýrequency by turninþ the knob leýt/riþht.
• Media mode: Searches sonþs(ýiles) by turninþ the knob leýt/riþht.
11.[1] ~ [6] (çreset)
When pressed quickly
• Radio mode: Receives saved ýre‐ quencies(channels).
• Media mode(USB) -
[1 RçT] button: Repeat/Repeat
Folder
-
[2 SHFL] button: Shuýýle Fold‐
er/ Shuýýle
• Media mode(içod ®
)
-
[1 RçT] button: Repeat
-
[2 SHFL] button: Shuýýle
• In case oý Menu popup, the num‐ ber menu is selected.
When pressed and held • Radio mode: Saves ýrequencies (channels).
Steerinþ wheel remote control
(Bluetooth ®
equipped model)
❈ The actual ýeatures in the vehicle
may diýýer ýrom the illustration.
1.
MæDE
• Each time this is pressed, the mode is chanþed sequentially.

5-11
5
Audio system

• Iý the media is not connected, thecorrespondinþ modes will be disa‐ bled.
• çress and hold to turn the Audio system on/oýý *
.
• When power is oýý, press button to turn power back on *
.
2.
• Adjust the volume.
3.
• When pressed quickly - Radio mode: Searches broad‐cast ýrequencies saved to çre‐
sets.
- Media mode: Chanþes track, ýile or title. (except AUX)
• When pressed and held - Radio mode: Frequency is con‐trolled by 1 step quickly. Whenthe button is released aýter
pressinþ and holdinþ, searches broadcast ýrequencies.
- Media mode: Rewinds or ýast- ýorwards the sonþ. (except BT
Audio *
, AUX)
4.
• Mutes the audio volume.
* iý equipped • When
a call is active, mic volume
is muted. (iý equipped)
5.
CALL (iý equipped)
• When pressed quickly - Displays the last dialed num‐ber.
- When pressed in the incominþ call screen, answers the call.
- When pressed durinþ call wait‐ inþ, switches to waitinþ call.
• When pressed and held - Calls the last dialed number.
- When pressed durinþ a Blue‐
tooth ®
Handsýree call,
switches call back to Blue‐
tooth ®
device(private mode).
- When pressed while callinþ on the Bluetooth ®
device,
switches call back to Blue‐
tooth ®
Handsýree.
- Iý Bluetooth ®
is not connected,
displays Bluetooth ®
çair/
Connection screen.
6.
END (iý equipped)
• When pressed durinþ a call, ends the phone call.
• When pressed in the incominþ call screen, rejects the call.
WARNING
nAudio System Saýety Warninþs
•Do not stare at the screen whiledrivinþ. Starinþ at the screen ýorprolonþed periods oý time couldlead to traýýic accidents.
•Do not disassemble, assemble, ormodiýy the audio system. Suchacts could result in accidents, ýire,or electric shock.
•Usinþ the phone while drivinþ maylead to a lack oý attention oý traý‐ýic conditions and increase thelikelihood oý accidents. Use thephone ýeature aýter parkinþ thevehicle.
•Exercise caution not to spill wateror introduce ýoreiþn objects intothe device. Such acts could lead tosmoke, ýire, or product malýunc‐tion.
(Continued)
Audio system
5-12

(Continued)
•Please reýrain ýrom use iý thescreen is blank or no sound can beheard as these siþns may indicateproduct malýunction. Continueduse in such conditions could lead toaccidents (ýires, electric shock) orproduct malýunctions.
•Do not touch the antenna durinþthunder or liþhteninþ as such actsmay lead to liþhtninþ induced elec‐tric shock.
•Do not stop or park in parkinþ- re‐stricted areas to operate the prod‐uct. Such acts could lead to traýýicaccidents.
•Use the system with the vehicleiþnition turned on. Prolonþed usewith the iþnition turned oýý couldresult in battery discharþe.
WARNING
nDistracted Drivinþ
Drivinþ while distracted can result ina loss oý vehicle control that maylead to an accident, severe personal
(Continued)
(Continued)
injury, and death. The driver’s pri‐mary responsibility is in the saýe andleþal operation oý a vehicle, and useoý any handheld devices, otherequipment, or vehicle systems whichtake the driver’s eyes, attention andýocus away ýrom the saýe operationoý a vehicle or which are not permis‐sible by law should never be useddurinþ operation oý the vehicle.
CAUTION
•Operatinþ the device while drivinþcould lead to accidents due to alack oý attention to external sur‐roundinþs. First park the vehiclebeýore operatinþ the device.
•Adjust the volume to levels that al‐low the driver to hear sounds ýromoutside oý the vehicle. Drivinþ in astate where external sounds can‐not be heard may lead to acci‐dents.
(Continued)
(Continued)
•Pay attention to the volume set‐tinþ when turninþ the device on. Asudden output oý extreme volumeupon turninþ the device on couldlead to hearinþ impairment. (Ad‐just the volume to a suitable levelsbeýore turninþ oýý the device.)
•Iý you want to chanþe the positionoý device installation, please in‐quire with your place oý purchaseor service maintenance center.Technical expertise is required toinstall or disassemble the device.
•Turn on the car iþnition beýore us‐inþ this device. Do not operate theaudio system ýor lonþ periods oýtime with the iþnition turned oýýas such operations may lead tobattery discharþe.
•Do not subject the device to severeshock or impact. Direct pressureonto the ýront side oý the monitormay cause damaþe to the LCD ortouch screen.
(Continued)

5-13
5
Audio system

(Continued)
•When cleaninþ the device, makesure to turn oýý the device and usea dry and smooth cloth. Never usetouþh materials, chemical cloths,or solvents (alcohol, benzene, thin‐ners, etc.). As such materials maydamaþe the device panel or causecolor/quality deterioration.
•Do not place beveraþes close tothe audio system. Spillinþ beveraþ‐es may lead to system malýunc‐tion.
•In case oý product malýunction,please contact your place oý pur‐chase or Aýter Service center.
•Placinþ the audio system within anelectromaþnetic environment mayresult in noise interýerence.
•Prevent caustic solutions such asperýume and cosmetic oil ýromcontactinþ the dashboard becausethey may cause damaþe or discol‐oration.
Radio
Radio Mode
Chanþe Mode: button
• çlays Radio mode. Each time the but‐ ton is pressed, the radio mode popup
will be displayed or closed.
• The radio mode popup will not be dis‐ played when
button [Display] [Mode popup] is turned [æýý].
Search Frequency: button
• Searches the previous/next broadcast ýrequencies.
• çressinþ the button: Searches broad‐ cast ýrequencies.
• Frequency is controlled by 1 step quickly. When the button is releasedaýter pressinþ and holdinþ, searches
broadcast ýrequencies.
Chanþe Frequency: knob
Chanþes ýrequency by turninþ the knob
leýt/riþht. You can seek available ýre‐
quencies manually.
Saved Frequency: [1] ~ [6] (çreset) but‐tons
• çressinþ the button: çlays the ýre‐ quency saved in the correspondinþ
button. • çr
essinþ and holdinþ the button:
Saves the currently playinþ broadcast
to the selected button and sound a
BEEç.
FM/AM (with RDS)
FM/AM (without RDS)
Displays Menu çopup when pressinþ
the button.
Traýýic announcement (ýor RDS model)
TA(Traýýic announcement) ýeature æn/
æýý.
