2018 AUDI Q3 Owners Manual

0 co ......
"' ,....
"' ...... 0 0 :::,
00
OFF light comes on and stays on all the time
whenever the ignition is switched on.
A WARNING
- If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after taking the steps described above, make sure the adult is
properly seated and restrained at one of the
rear seating positions .
- Have the airbag system inspected by your
authorized Audi dealer before transporting
anyone on the front passenger seat.
{D) Tips
If the weight -sensing mat in the front passen ­
ger seat detects an empty seat, the front air­
bag on the passenger side will be turned off,
and
PASSENGER AIR BAG OFF will stay on.
Repair, care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing, remov­
ing, servicing or repairing a part in an area of th e
vehicle can damage a part of an airbag system and prevent that system from working properly in a collision .
There are some important things you have to know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
-
- Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way.
- Never attach any objects such as cupholders
or telephone mountings to the surfaces cov­
ering the airbag units.
Airbag system
-For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened with plain water . Solvents or cleaners
could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect
properly.
- Never repair, adjust, or change any parts of
the airbag system.
-All work on the steering wheel, instrument panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios, etc.) must be performed by a qualified technician
who has the training and special equipment
necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify the front bumper or parts of the vehicle body.
- Always make sure that the side airbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi .
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
- The airbag system can be activated only
once. After an airbag has inflated, it must
be replaced by an authorized Audi dealer or
qualified technician who has the technical
information, training and special equipment
necessary.
- The airbag system can be deployed only
once. After an airbag has been deployed, it
must be replaced with new replacement
parts designed and approved especially for
your Audi model version. Replacement of complete airbag systems or airbag compo ­
nents must be performed by qualified work-
shops only. Make sure that any airbag
Ill-
127

Airbag system
service action is entered in your Audi War­
ranty
& Maintenance book let under AIRBAG
REPLACEMENT RECORD.
@ For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Materi­
al -special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­
rate. When the vehicle or parts of the re­
straint system including airbag modules safe­
ty belts with pretens ioners are scrapped, al l
applicable laws and regulat ions must be ob­
served. Your authorized Audi dealer is familiar
with these requ irements and we recommend
that you have your dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System
performs in a crash. For examp le, using t ire-rim
combinations not approved by Audi, lower ing the
veh icle, changing the stiffness of the suspens ion,
including the springs , suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
electronic control unit. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in which it would not deploy if
the changes had not been made . Other kinds of
changes may reduce the force levels measured by
the sensors and prevent the airbag from deploy­
ing when it should .
A WARNING
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in ­
crease the risk of serious personal in jury in a
crash.
- Never install suspension components that
do not have the same performance charac­
teristics as the components originally instal­
led on your veh icle .
128
.
-Never use tire-rim combinations that have
not been approved by Aud i.
A WARNING
Items stored between the safety belt buckle
and the center conso le can cause the sensors
in the buckle to send the wrong information
to the electronic control module and prevent
the Advanced A irbag System from wo rking
p roperly.
-Always make sure that nothing can interfere
w ith the safety belt buckles and that they
are not obstructed.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fig. 116 Sid e a irbag locatio n in the dr ive r's seat
The side airbags are located in the s ides of the
front seat backrests
~ fig . 116 facing the doors .
They are identified by the word "AIRBAG ".
The side airbag system basically consists of:
-the electronic control module and external side
impact sensors
- the two airbags located in the sides of the front
backrests
- the airbag warning light in the instrument clus-
ter.
The airbag system is mon itored electron ically to
make certain that it is functioni ng properly at a ll
times. Each time you turn on the ignition, the air ­
bag system indicator light will come on for a few
seconds (self diagnostics). .,,_

The side airbag system supplements the safety
be lts and can h elp to reduc e th e risk of injury to
the dr iver's and front passenge r's upper torso on
t he side of the vehicle th at is struck in a side col ­
lis ion . The airbag deploys on ly in side impac ts
and only when the vehicle acceleration reg istered
by the control unit is h igh enough. If this rate is
be low the reference va lue programmed into the
control unit, the s ide airbags will not be tr ig ­
gered, even though the car may be badly dam ­
aged as a result of the collision.
It i s not possib le
to define an airbag triggering range that wi ll cov­
er ev ery possible angl e of impact, since th e cir ­
cumstances will vary conside rably between one
coll is ion and another . Important factors include ,
for example , the nature (hard or soft) of the im­
pacting object, the ang le of impact, vehicle
speed , etc .
r::;;, page 130 , Important safety in­
structions on the side airbag system .
Aside from their normal safety function, safety
be lts work to he lp keep the driver or front pas ­
senger in pos it ion in the event of a side collision
so that the s ide a irbags can provide p rotection .
The airbag sys tem is
no t a substitu te for your
safety belt . Rather, it is part of the overall occu ­
pant restraint system i n your veh icle . Always re­
member that the s ide airbag system can only
he lp to p rotect yo u if you a re wea ring your safety
be lt and wea ring it properly. This is another rea­
son why you shou ld always wear your saf ety
be lts, not just because the law requi res you to do
so
r::;;, page 106 , General information.
It is important to remember that while the s up­
p lemental side ai rbag system is designed to re­
duce the like lihood of serious injur ies, oth er inju­
ri es, for example, sw elling , bru is ing, and minor
abrasions can a lso be associated with deployed
side airbags. Remember too , side airbags will de­
ploy only once and only in certain kinds of a cci­
dents -your safety belts are always t here to offer
p rotection .
Vehicle damage , repair costs or even the lack of
vehicle damage are not necessarily an indication
~ of over -sensitive o r failed airbag activation . In
~ some coll is io ns, both front and s ide a irbags may r--.
~ in flate. Remember too, that airbags will deploy 0
g only once and only in ce rtain k inds of coll is ions -(X)
Airb ag sys tem
your safety belts are always there to offer protec­
tion in those accidents in which a irbags are not
s u pposed to deploy or when they have already
deployed .
The side airbag system w ill n ot deploy:
- when t he ignit io n i s t urned off
- in side co llisions whe n the acceleration meas-
ured by the sensor is too low
- in front -end coll is io ns
- in rear-end col lisions
- in rollovers .
In some types of accidents the front airbags, side
curtain airbags and side airbags may be triggered
together .
A WARNING
--Safety belts and the airbag system will only
p rov ide protect ion when occupants are i n
the prope r seat ing pos ition
r::;;, page 130 .
- If the ai rbag ind icator light r::;:, page 14
comes when the veh icle is being used, have
the system inspected immedia tely by your
a uthor ized Audi dealer.
It is possib le th at
t he airbag will inflate when i t is not sup­
posed to, or w ill not inf late w hen it should.
How supplemental side airbags work
Side airbags deploy ins tan tly and can help re­
duce the risk of upper torso injuries for occu­
pants who ore properly restrained.
F ig. 117 In fla ted s ide airba gs on lef t side of ve hicl e
When the system is triggered, the airbag is filled
with prope llant gas and breaks through a seam in
the seat s urface area marked "AIRBAG" .
It ex-
pands between the side trim panel a nd the .,.
129

Airbag syste m

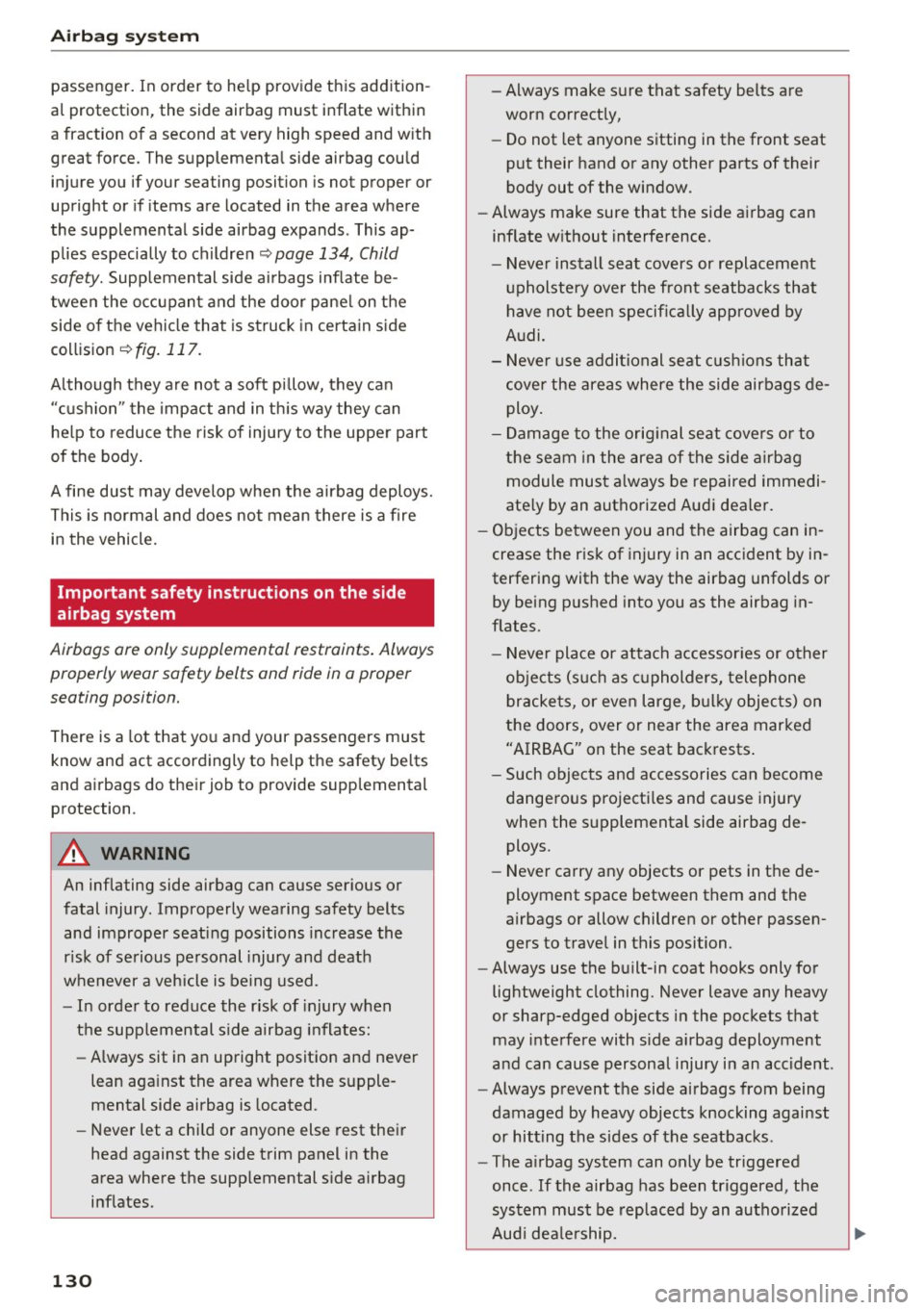

passenger. In order to he lp provide this add ition­
al protection, the side airbag must inflate within
a fraction of a second at very high speed and w ith
great force. The supplemental side airbag could injure you if your seating position is not proper or
upright or if items are located in the area where
the supplemental side airbag expands . This ap­
plies especially to children
q page 134, Child
safety.
Supplemental side ai rbags inf late be ­
tween the occ upan t and the door pane l on the
side of the vehicle that is struck in certa in side
collision
q fig . 117.
Although they are not a sof t pillow, they ca n
"c ushion" the impact and in t his way they can
he lp to reduce the risk of injury to the upper part
of the body .
A fine dust may deve lop when the airbag deploys.
This is normal and does not mean there is a fire
in the vehicle.
Important safety instructions on the side
airbag system
Airbags ore only supplemental restraints . Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that yo u and your passengers must
know and act accord ingly to help the safety be lts
and airbags do the ir job to provide supplemental
protection.
A WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety belts
and improper seating positions increase the
r isk of se rious personal injury and death
w henever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental s ide airbag inflates:
- Always sit in an upright position and never
lean aga inst the area where the s upple-
mental side airbag is located.
- Never let a chi ld or anyone else rest their
head against the side trim panel in the
area where the supp lemental s ide airbag
inflates.
130 -
Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front seat
put their hand or any other parts of their
body out of the window.
- Always make sure that the side airbag can
inflate w ithout interference.
- Never install seat covers or replacement
upholstery ove r the front seatbacks that
have not been specifica lly approved by
A udi.
- Never use addi tional seat cush ions that
cover the areas where the side airbags de­
ploy .
- Damage to the orig inal se at cove rs or to
the seam in the area of the s ide airbag
module must a lways be repaired immedi ­
ate ly by an authorized Audi dealer.
- Objects be tween you and the airbag can in­
crease the r is k of injury in an acc ident by in­
terfering with the way the airbag unfolds or by being p ushed into you as the airbag in­
flates.
- Never place or attach accessor ies or other
obje cts (s uch as cupholders, telephone
bracke ts, or even l arge, bulk y objec ts) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests .
- Such objec ts and accessories can be come
dange rous projecti les and cause injury
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­
ployment space between them and the
airbags or allow children or other passen­
gers to trave l in this position.
- Always use the b uilt-in coat hooks only fo r
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may inte rfere with s ide a irbag deployment
a nd can cause personal injury in an accident .
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The a irbag system can only be triggered
once . If the airbag has been triggered, the
system must be replaced by an autho rized
Aud i dea le rship.
~

a
co
...... N r-,. N .... 0 0 ::, co
-Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side a irbag module must always
be repaired immed iately by an authorized
Audi dealer .
-If children are seated improperly, their risk
of injury increases in the case of an acc ident
¢ page 134, Child safety .
-Never attempt to modify any components of
the a irbag system in any way.
- In a side collision, s ide airbags will not func­
tion properly if sensors cannot correctly
measure increasing air pressure inside the
doo rs when air escapes through larger, un­
closed open ings i n the door panel.
- Never drive with interior door trim pane ls
removed.
- Never drive when parts have been re­
moved from the inside door panel and the
openings they leave have not been proper­
ly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker ho les have been properly closed.
- Always make certain that openings are covered or fi lled if additiona l speakers or
other equ ipment is installed in the inside
door panels.
- Always have work on the doors done by an
author ized Audi dealer or qualified work­
shop.
Airb ag sys tem
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc ­
cupants.
F ig . 118 Side curta in system, driver 's s ide: side curtain a ir­
bag locat ion
T he side curtain airbags are located on both sides
of the inter ior above the front and rear side w in­
dows ~
fig. 118. They a re identified by the word
"A IRBAG" on the windshie ld frame and the cen­
te r roo f pilla r.
The side c urtain airbags contain features that
provide ejection mitigation to help prevent veh i­
cl e occupants or parts o f their bodies from be ing
complete ly or part ially ejected from the veh icle
interior i n certain side impacts and vehicle roll ­
overs.
The side c urtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso on the s ide of the vehicle that is str uck in a side colli­
sion . The side curtain airbag inflates in side im­
pacts and only when the vehicle acce leration reg­
istered by the control unit is high enough. If this
rate is be low the reference va lue programmed in­
to the control unit, the side curtain airbag will not be t riggered, even though the car may be
badly damaged as a resu lt of the co llision .
It is
not possible to define an airbag triggering range
that w ill cover every possible angle of impact,
since the circumstances w ill vary considerably be ­
tween one collision and another. Important fac-
tors include, for example, the nature (hard or ..,.
131

Airbag system
soft) of the impacting object, the angle of im­
pact, vehicle speed, etc .
q page 132, How side
curtain airbags work.
Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in position in the event of a collision so
that the side curtain airbags can provide protec­
tion .
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overa ll occu­
pant restraint system in your vehicle. Always re­ member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is another reason
why you should always wear your safety belts, not just because the law requires you to do so
q page 106, General information.
It is important to remember that while the side
curtain airbag system is des igned to help reduce
the likelihood of serious injuries, other injuries,
for example, swe lling, bruising, and m inor abra­
sions can also be associated with these airbags.
Remember too, these airbags will dep loy o nly
once and only in certain kinds of accidents -your
safety belts are always there to offer protection .
The side curtain airbag system basically
consists of:
- The electronic control module and external side
impact sensors
- The side curtain airbags above the front and
rear side windows with ejection mitigation fea­
tures
- The airbag indicator light in the instrument
panel
The airbag system is monito red electronically to
make certa in it is fun ction ing properly at all
times. Each time you turn on the ignition, the air­
bag system indicator light will come on for a few
seconds (self diagnostics) .
The side curtain airbag is not activated:
-if the ignit ion is tu rned off,
- in s ide collisions when the accelerat io n meas-
ur ed by the sensor is too low,
- in rear-end collisions.
132
A WARNING
-Safety belts and the airbag system will only
provide protect ion when occupants are in
the proper seating position
~ page 42,
Front seats .
-If the airbag ind icator light q page 14
comes when the veh icle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How side curtain airbags work
Side curtain airbags can work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who are properly re­
strained.
Fig. 119 Il lustratio n of pr inciple: I nflated s ide curta in air ­
bags on t he le ft s ide
The side curtain airbags inflate between the oc­
cupant and the w indows on the side of the veh i­
cle that is struck in a side collision
~ fig. 119.
When the system is triggered, the side curta in
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In order
to help provide this additional protection, the
side curtain airbag must inflate within the blink
of an eye at very high speed and with great force .
The side curtain airbag could injure you if your
seat ing position is not prope r or upright or if
i tems a re located in the area where the supple­
mental sid e cu rtain airbag inflates. This applies
especially to children ~
page 134.
Although they are not a soft pillow, side curtain
airbags can "cush ion" the impact and in this way .,.

0 co ......
"' ,....
"' ...... 0 0 :::,
00

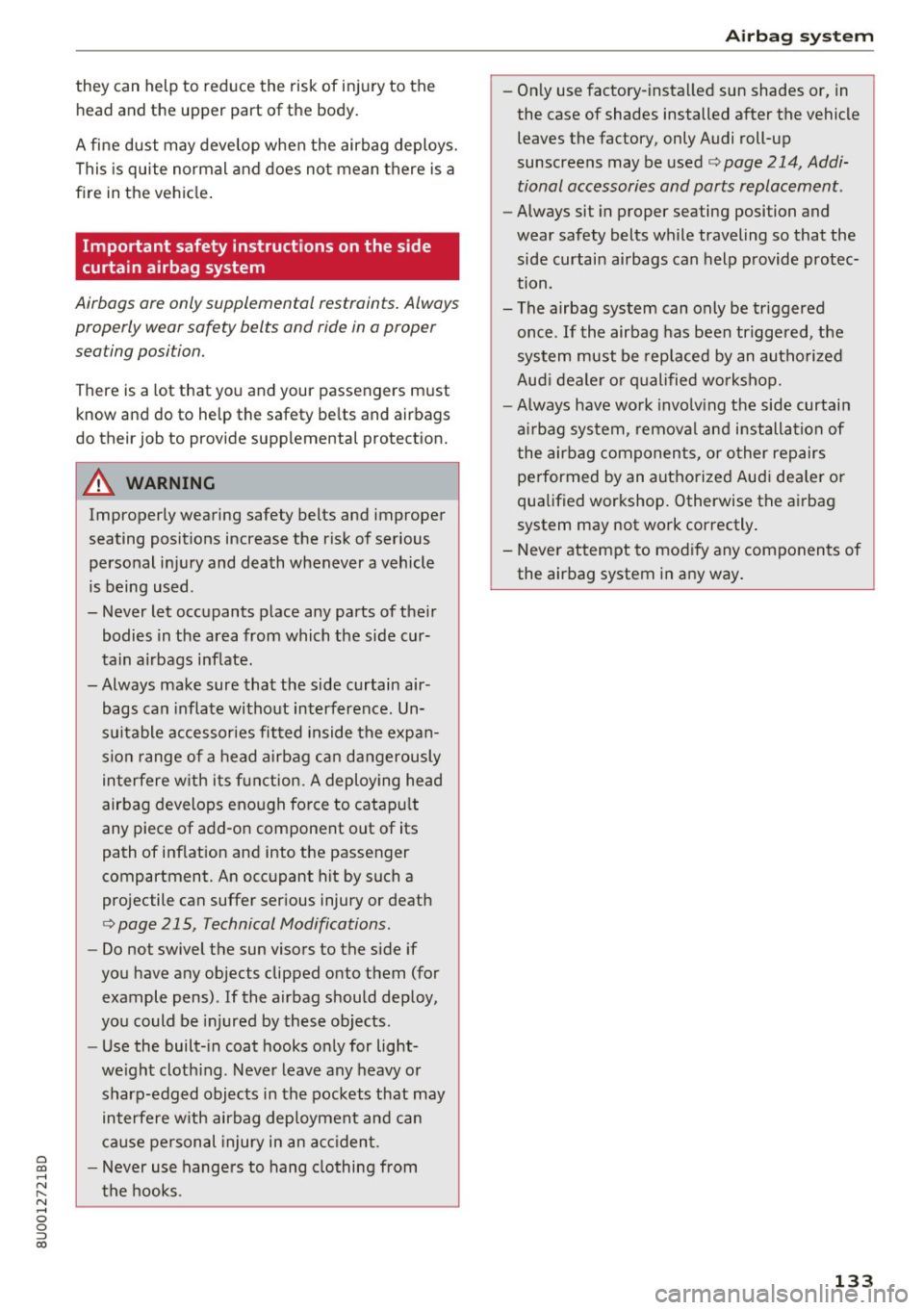

they can help to reduce the risk of injury to the
head and the upper part of the body.
A fine dust may develop when the airbag deploys.
This is quite normal and does not mean there is a
fire in the vehicle.
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
do their job to provide supplemental protection.
A WARNING
Improperly wearing safety belts and improper
seating positions increase the risk of serious
personal injury and death whenever a vehicle
is being used .
- Never let occupants place any parts of their
bodies in the area from which the side cur­
tain airbags inflate.
-Always make sure that the side curtain air­ bags can inflate without interference. Un­
suitable accessories fitted inside the expan­
sion range of a head airbag can dangerously
interfere with its function. A deploying head
airbag develops enough force to catapult
any piece of add-on component out of its
path of inflation and into the passenger
compartment. An occupant hit by such a
projectile can suffer serious injury or death
<=> page 215, Technical Modifications.
- Do not swivel the sun visors to the side if
you have any objects clipped onto them (for
example pens) . If the airbag should deploy,
you could be injured by these objects.
- Use the built-in coat hooks only for light­
weight clothing . Never leave any heavy or
sharp-edged objects in the pockets that may
interfere with airbag deployment and can
cause personal injury in an accident.
- Never use hangers to hang clothing from
the hooks.
Airbag system
-Only use factory-installed sun shades or, in
the case of shades installed after the vehicle
leaves the factory, only Audi roll-up
sunscreens may be used
<=> page 214, Addi­
tional accessories and parts replacement.
- Always sit in proper seating position and
wear safety belts while traveling so that the
side curtain airbags can help provide protec­
tion .
- The airbag system can only be triggered
once .
If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealer or qualified workshop.
-Always have work involving the side curtain
airbag system, removal and installation of
the airbag components, or other repairs performed by an authorized Audi dealer or
qualified workshop. Otherwise the airbag
system may not work correctly.
- Never attempt to modify any components of
the airbag system in any way.
133

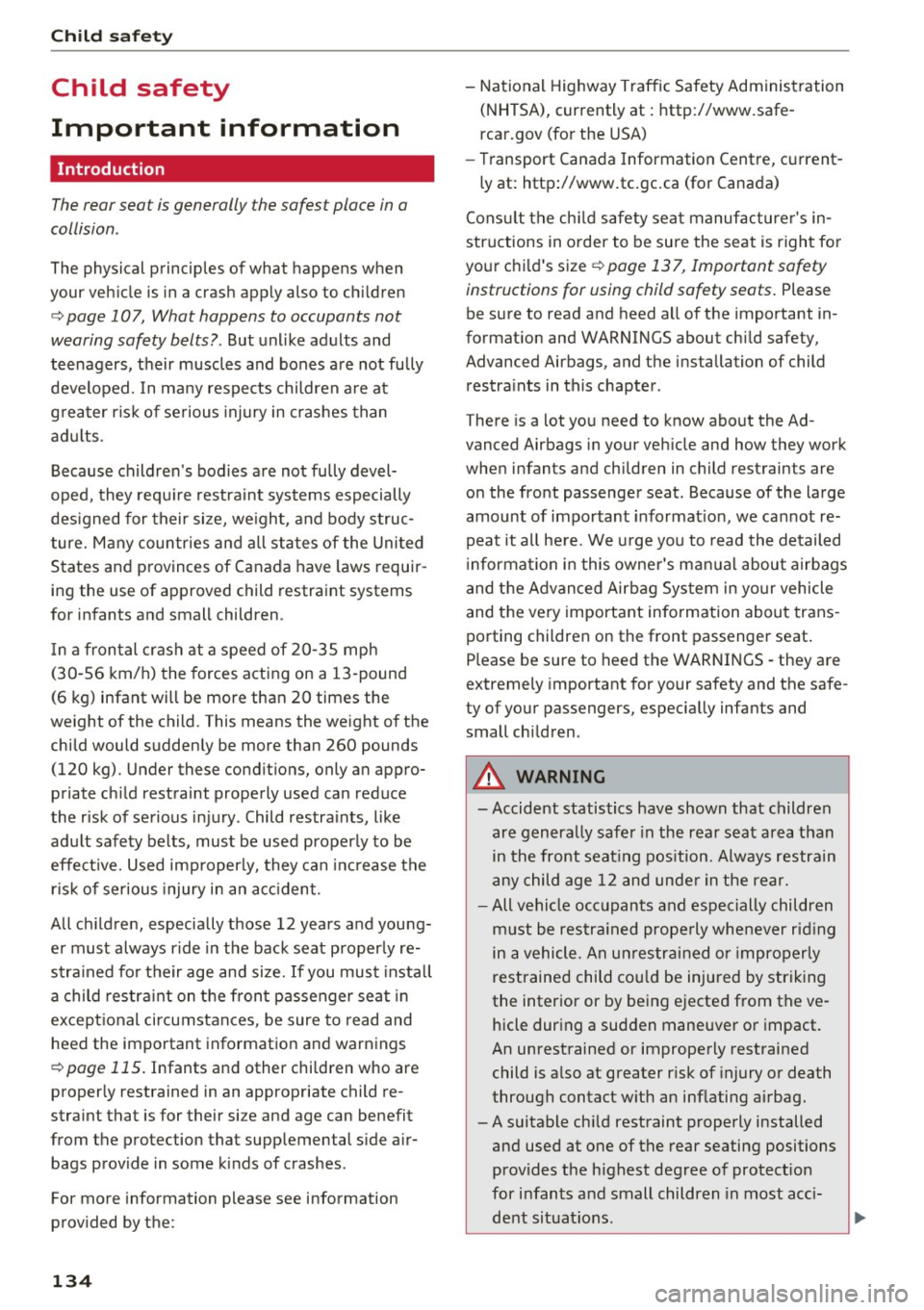

Child safety
Child safety
Important information
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your vehicle is in a crash apply also to children
¢ page 10 7, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not fully
developed. In many respects children are at
g reater r isk of serious injury in crashes than
adults .
Because children's bodies are not fully devel­
oped, they require restraint systems especially
des igned for their size, weight, and body struc­
ture. Many countries and all states of the United
States and provinces of Canada have laws requir­
ing the use of approved child restraint systems
for infants and small children .
I n a frontal crash at a speed of 20-35 mph
(30-56 km/h) the forces acting on a 13 -pound
(6 kg) infant will be more than 20 times the
weight of the child. This means the weight of the child would suddenly be more than 260 pounds
(120 kg) . Under these conditions, only an appro­
priate child restraint properly used can reduce
the risk of serious injury . Child restra ints, like
adu lt safety belts, must be used properly to be
effect ive. Used improperly, they can increase the
risk of serious injury in an acc ident.
All ch ildren, especially those 12 years and young­
er must always ride in the back seat properly re­
stra ined for their age and size. If you must insta ll
a child restraint on the front passenger seat in
exceptional circumstances, be sure to read and
heed the important information and warnings
¢page 115. Infants and other children who are
properly restrained in an appropriate child re­
straint that is for their si ze and age can benefit
from the protection that supplemental side air­
bags provide in some kinds of crashes .
For more information please see information
provided by the:
134
- National Highway Traffic Safety Administration
(NHTSA), currently at: http :/ /www.safe­
rcar.gov (for the USA)
- Transport Canada Information Centre, current-
ly at: http://www.tc.gc.ca (for Canada)
Consult the child safety seat manufacturer's in­
structions in order to be sure the seat is right fo r
your chi ld's size ¢
page 137, Important safety
instructions for using child safety seats .
Please
be sure to read and heed all of the important in­
formation and WARNINGS about child safety,
Advanced Airbags, and the installation of child restra ints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work
when infants and children in child restraints are on the front passenger seat . Because of the large
amount of important informat ion , we cannot re­
peat it all here. We urge you to read the detailed
i nformation in this owner's manual about airbags
and the Advanced Airbag System in your vehicle
and the very important information about trans­
porting children on the front passenger seat.
Please be sure to heed the WARNINGS -they are
extremely important for your safety and the safe­
ty of your passengers, especially infants and
small children .
A WARNING
-Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seat ing pos ition. Always restrain
any child age 12 and under in the rear.
-All vehicle occupants and especially children
must be restra ined prope rly whenever rid ing
in a vehicle. An un restrained or improperly
restrained child could be injured by striking
the interior or by being ejected from the ve­
hicle during a sudden maneuver or impact.
An unrestrained or improperly restrained
child is a lso at greater risk of injury or death
through contact w ith an inflating airbag.
-A suitable ch ild restraint properly installed
and used at one of the rear seating positions
provides the highest degree of protect ion
for infants and small children in most acc i­
dent situat ions.
