Emergency assistance
General information
.. Park the vehicle as far as poss ible from moving
traffic in the event of a breakdown. In the event
of a flat tire, park the vehicle on a leve l surface .
It you are on a steep h ill, be especially careful.
.. Set the parking brake.
.. Switch the emergency flashe rs on .
.. Put on a reflective vest .
.. Set up the warn ing triang le, if available .
.. Have the passengers exi t the veh icle. They
sho uld move to a safe place, for example be­
hind a guard rail.
_& WARNING
Follow the steps given above. This is for your
protection and the for the safety of other d riv ­
ers.
Equipment
Vehicle tool kit
Fig. 1 48 Luggage compartmen t: ca rgo floor cover folded
upward
The vehicle tool kit is located in the luggage com­
partment under the cargo floor cover .
.. Push on the plast ic hand le a nd lift up the cargo
floor.
.. Open the cargo floor.
Completely ret ract the vehicle jac k arm before
sto ring the vehicle jack*.
Em ergen cy a ssis tanc e
_& WARNING
-Applies to: ve hicles with jack
Improper use of the veh icle jack can cause se­
rious pe rsonal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot attain the necessa ry t ightening to rque if yo u
use the hex head, po ten tially causing an ac­
cident .
- The factory-supplied jack is intended only
for your ve hicl e mode l. Under no circum­
s tances shou ld it be used to lift heavy
vehicles o r other loads; you risk i njuring
yourse lf.
- Never start the engine when the vehicle is
raised, which cou ld cause an accident .
- Support the vehicle securely with appropri ­
ate stands if work is to be performed under ­
neath the vehicle; otherwise, there is a po­
tential risk for injury.
- Never use the jack supplied with your Audi
on another vehicle, particularly on a heavier
one. The jack is only su itable for use on the
veh icle it came with .
{!) Tips
The vehicle jack * in your vehicle is mainte ­
nance-free.
Replacing wheels
Preparation
You must complete the preparation before
changing a tire .
.. Read and follow the important safety precau-
tions
<=:> page 191.
.,. Set the park ing brake .
.,. Select the P selector lever posit ion.
.,. W hen tow ing a tra iler: disconnect the trailer
from yo ur vehicle .
.. Lay out the vehi cle too l kit ¢
page 191 and the
spare tire
<=:> page 197.
191

Emergency assistance
& WARNING
You or your passengers could be injured while changing a wheel if you do not follow these
safety precautions :
- If you have a flat ti re, move a safe d ista nee
off the road . Turn off the engine, turn the
emergency flashers on and use other warn·
ing devices to alert other motorists.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipping off the jack,
always fully set the parking brake and block
the front and back of the wheel diagonally
opposite the wheel being changed with the
folding chocks or other objects. When one
front wheel is lifted off the ground, placing
the Automatic Transmission in "P" (Park)
will
not prevent the vehicle from moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack .
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
c:> page 102 .
(D Tips
Obey all laws.
Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Remove the decorative wheel cover* or the
wheel bolt caps*. For more details see also
<=:>page 193.
2. Loosen the wheel bolts c:> page 193.
3. Locate the proper mounting point for the
jack and align the jack below that point
<=:>page 194.
4. Lift the car with the jack c:> page 194 .
5. Remove the wheel with the flat tire and then
install the
spare tire <=:>page 195.
6. Tighten all wheel bolts lightly.
7.
Lower the vehicle with the jack.
192
8. Use the wheel bolt wrench and firmly tighten
all wheel bolts in a crisscross pattern
<=:>page 193.
9. Replace the decorative wheel cover* or the
wheel bolt caps*.
& WARNING
Always read and follow all WARNINGS and in­
formation
c:> .&. in Raising the vehicle on
page 194
and <=:>page 196.
After changing a wheel
A wheel change is not complete without the do·
ing the following .
.,. Always store the vehicle tool kit, the jack* and
the replaced tire in the luggage compartment
c:>page 102.
.,. Check the tire pressure of the spare tire as soon
as possible .
.,. As soon as possible, have the
tightening tor·
ques
on all wheel bolts checked with a torque
wrench. The correct tightening torque is
10S ft lbs (140 Nm).
.,. Have the flat tire
replaced as soon as possible.
(D Tips
- If you notice that the wheel bolts are cor­
roded and difficult to turn while changing a
tire, they should be replaced before you check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked .

a
co
...... N r--. N
'"' 0 0 ::, co
Removing the wheel covers/bolt caps
Fig. 149 Changin g a whee l: remo ving the wheel cover
Fig. 150 Ch an gin g a w hee l: remov ing t he wheel bolt caps
Wheel cover*
.. Insert the hook provided with the vehicle tool
kit in the hole in the hub¢
fig. 149.
.. Pull off the decorative wheel cover .
Wheel bolt caps*
.. Push the plastic clip provided with the vehicle
tool kit over the wheel bolt cap until it engages
¢fig . 150.
.. Pull on the plastic clip to remove the cap.
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising
the vehicle.
Fig. 151 Ch ang ing a whee l: loose ning the w heel bolts
Emergency assistance
Loosening
.. Inst all the wheel bolt wrench over the wheel
bolt and push it down as far as it wi ll go .
.. Take tight hold of the
end of the wrench hand le
and turn the wheel bolts
counter-clockwise
about one single turn in the direction of arrow
¢fig. 151.
Tightening
.. Insta ll the wheel bolt wrench over the wheel
bolt and push it down as far as it w ill go.
.. Take tight hold of the
end of the wrench hand le
and turn each wheel bolt
clockwise until it is
seated.
A WARNING
-- Do not use force or hurry when changing a
wheel -you can cause the vehicle to slip off
the jack and cause serious personal injuries .
-Do not loosen the wheel bolts more than
on e turn
befo re you raise the vehicle with
the jack. -You risk an injury.
(0 Tips
-Never use the hexagonal socket in the han­
dle of the screwdr iver to loosen or tighten
the whee l bolts.
- If a wheel bolt is very tight, you may find it
easier to loosen by ca refully pushing down
on the end of the whee l bolt wrench with
one foot only. As you do so, hold on to the
car to keep yo ur balance and take care not
to slip.
193

Emerg ency assis ta nce
Raising the vehicle
The vehicle must be li~ed with the jack first be­
fore the wheel can be removed .
Fig. 152 Sill panels : mark in gs
Fig. 153 Sill : pos itio nin g th e ve hicle jack
The location of the jack point is indicated by an
indentation on the underside of the vehicle
¢ fig. 152 .
,.. Activate the pa rking brake to prevent the vehi­
cle from rolling unintentionally .
,.. Move the selector lever to the P position.
,.. Find the
m arki ng (imprint) on the sill that is
nearest the wheel that will be changed
c> fig . 152. Behind the marking, there is a li ft ­
ing po int
on the sill for the vehicle jack.
• Turn the
veh icle jack located under the lifting
point on the s ill to ra ise the jack until the
jaw @¢
fig. 153 covers the notch on the veh i­
cle ¢
.&_, ¢(D .
,.. Align the vehicle jack so the jaw @covers the
notch and the base plate @ is flat on the floor .
The base plate @ must be
vertical under the
lifting point @.
,.. Install the rod on the vehicle jack : Insert the
rod into the opening on the handwheel. Turn
the rod left or right to secure it .
194
• Continue raising the jack with the rod until the
wheel lifts off the ground slight ly.
Position the vehicle jack
only under the designat ­
ed lifting points on the sill
c> fig. 152. There is ex­
actly
one l ocation fo r each wheel. The jack must
not be positioned at any other location
c> & ,
¢(I) .
So ft ground
under the jack can cause the vehicle
to slip off the jack . Always place the jack on firm
ground . Use a flat, stable support if necessary.
Use a non-slip surface such as a rubber mat on a
sl ippery su rf ace such as tile.
A WARNING
-
- You or your passengers could be injured
while changing a wheel if you do not follow
these safety precautions:
- Position the vehicle jack only at the desig ­
nated lifting points and align the jack .
Otherwise, the veh icle jack could slip and
cause an injury if it does not have suffi­
cient hold on the vehicle.
- Use only the jack* supplied with your vehi­ cle to raise the vehicle. If you use a jack
from a different vehicle, your vehicle may
slip off the jack - risk of injury!
- Do not use the jack* supplied with your ve­
hicle to raise other vehicles, as these may
slip off the jack - risk of injury!
- A soft or unstab le surface under the jack
may cause the vehicle to slip off the jack .
Always provide a firm base for the jack on
the gro und .
If necessary, use a sturdy
board unde r th e jack .
- On hard, slippe ry surface (such as t iles)
use a rubber mat or s imilar to prevent the
jac k from slipping.
- To he lp prevent injury to yourself and your
passengers:
- Do not raise the vehicle until you are sure
the jack is securely engaged.
- Passengers must not remain i n the vehicle
when it is jacked up .
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic. .,,.

-Make sure jack posit ion is correct , adjust
as necessary and then cont inue to raise
the jack.
- If work has to be done under the vehicle,
ensure that it is safely supported on su ita­
ble stands -risk of injury!
- Never start the engine when the vehicle is
on the jack -risk of accident!
CD Note
Do not lift the vehicle by the sill. Position the
vehicle jack on ly at the designated lifting
points on the sill. Otherwise, your vehicle will
be damaged.
Taking the wheel off/installing the spare
tire
F ollow these instructions step-by-step for chang­
ing the wheel .
Fig. 154 C hangin g a w heel: using th e hexagonal s oc ket
(w it h the blade removed ) to turn t he bolt s
Fig. 155 Chan gin g a w hee l: a lig nm ent pin in side the to p
h ol e
After you have loosened all wheel bolts and
~ raised the vehicle off the ground, remove and re-....
~ place the whee l as follows:
N .... 0 0 ::, (X)
Em ergen cy a ssis tanc e
Removing the whe el
.,. Remove the topmost wheel bolt completely
with the
he xagona l s oc ket in the screwdriver
handle (vehicle too l kit) ¢
fig. 154 and set it
aside on a
clean surface.
.,. Screw the threaded end of the
alignment pin
from the tool kit hand-tight into the empty bolt
hole ¢
fig. 155 .
.,. Then remove the other wheel bolts as described
above .
.,. Take off the whee l leaving the alignment p in in
the bolt hole
r=.> G) .
Putting on the spare tire
.,. Push the spare tire over the alignment pi n
¢(D .
.,. Screw on the whee l bolts and tighten them
slightly u sing the hexagona l socket .
.,. Remove the alignment pin and insert and t ight­
en the remaining wheel bo lt s lightly like the
rest .
.,. Turn the jack hand le count er-clockw ise to lower
the vehicle unti l the jack is fully released .
.,. Use the wheel bo lt wrench to tighten all wheel
bolts firmly . Tighten them
in a crisscross pa t­
tern,
from one bolt to the (approx imately) op ­
posite one, to keep the wheel centered .
.,. Perform the steps required after chang ing the
wheel ¢
page 192, A~er changing a wheel.
_& WARNING
Do not use the hexagon al soc ket in the screw­
driver handle to tighten the wheel bo lts. It is
not possible to tighten the bolts to the re­
qu ired torque using the hexagonal socket -
risk of acc ident!
CD Note
When removing or installing the wheel, the
rim could h it the brake rotor and damage t he
rotor. Work carefully and have a second per­
son to he lp you.
@ Tips
- When mounting tires with un idirectional
tread de sign
make sure the tread pattern is
pointed the right way
r=.> page 196. 1JJ,,
195

Emergency assistance
- The wheel bolts should be clean and easy to
turn. Check for di rt and cor ros ion on the
mating s urfaces o f both the whee l an d the
h ub. Remove all dirt from t hese surfaces be­
fo re remo unt ing t he wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction.
Using a spare tire with a tread pattern intended for use in a specific direction
W hen us ing a spare ti re with a tread patte rn in­
tended for use in a specific d irection, please note
the following:
- The direct ion o f rotat ion is marked by an
arrow
on the s ide of the t ire .
-If the spare tire has to be installed in the incor ­
rect d irection, use the spare tire only tempora­
rily s ince the tire w ill not be ab le to achieve its
optimum pe rformance c haracter istics with re­
gard to aq uaplaning, noise and wear .
- We recommend that you pay particular atten­
tion to this fact during wet weathe r and that
yo u ad just yo ur speed to match road condi­
t ions.
- Replace t he flat t ire with a new one and have it
i ns ta lled on yo ur vehicle as soon as possible to
r esto re t he handling advantages of a unidi re c­
t ion al ti re.
Notes on wheel changing
Please read the info rm ation ¢ page 173, New
tires or wheels
i f you are goin g to use a s pare tire
which is d ifferent from the tires on yo ur vehicle.
Afte r you change a tire:
-Check the tire pressure on the spare immedi­
ately after installation .
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or quali ­
fied workshop .
196
-With steel and alloy wheel rims, the wheel
bolts are cor rectly tightened at a torque of
105 ft lbs (140 Nm).
- If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire,
they should be replaced before you check the
t ightening torque.
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as poss i­
ble. Remount the wheel cover.
Until then , drive with extra care and at reduced
speeds.
A WARNING
- If you are going to equip yo ur vehicle with
tires or r ims which diffe r from those which
we re facto ry insta lled, the n be su re to read
t he informa tion ¢
page 173, New tires or
wheels.
-Always make sure the damag ed wheel or
eve n a flat tire and t he jack and tool kit ar e
prope rly se cured in t he lu ggage comp art­
me nt an d ar e no t loose in the passenge r
compa rtment.
- In an accide nt or sudde n maneuver they
co uld fly forw ard, i njuring an yon e in t he ve­
h icle.
- Always s to re d amaged w hee l, jack a nd to ols
secure ly i n t he lug gage co m pa rtm ent. O th­
erwise, in an a cci den t or sudden maneuve r
they cou ld fly forwar d, causing injury to pas ­
senge rs in the ve hicle.
(D Note
D o no t use co mm ercia lly availabl e tire se al­
a nts . Ot herwise, t he e lectr ic al components of
the tire p ress ure monitor ing system * will no
l onge r wor k properly and t he sensor for t he
tire pressure monitoring system * w ill have to
be replaced by qualifie d wo rks hop.
-

a
co
...... N r--. N .... 0 0 ::, co
Spare tire
Space-saving spare tire (compact spare
tire)
Applies to: vehicles with spare tire/space-saving spa re tire
(compact spare tire)
Fig. 156 Luggage co mpa rtment : spa ce-s a v in g spare t ire
( compac t spa re t ire)
The spare tire is intended for short -term use on­
l y . Have the damaged t ire checked and replaced,
if necessary, by an author ized Audi dealer or au­
thorized Audi Serv ice Facility as soon as possib le .
There are some restrict ions on the use of the
compact spare tire. The compact spare tire has
been designed specifica lly for yo ur type of vehi­
cle. Do not replace it with the spare tire from an­
other type of vehicl e.
Removing the spare tire
.,. Remove the ca rgo floor.
.,. Remove the wing bolt¢
fig. 156 and then re-
move the retainer underneath it.
.,. Remove th e subwoofer*
¢ page 198 .
.,. Remove th e spare tire.
Snow cha ins
F or technica l reasons, the use of snow chains on
the compact spare t ire is not permitted .
If you have to drive with snow chains and a front
tire fa ils, mount the spa re t ire in place of a rea r
tire. Insta ll the snow chains on the rear tire that
you removed, and insta ll that in place of the
front tire that failed.
A WARNING
- Never use the spare tire if it is damaged or if
it is worn down to the tread wear indicators.
Em ergen cy a ssis tanc e
-If the spa re ti re is more than 6 years old,
use it only in an emergency and with ex­
treme caution and careful driving.
- The spare tire is intended only for tempora­
ry and short-term use. It should be replaced
as soon as poss ible with the normal wheel
a nd tire .
- After mounting the compact spare tire, the
tire pressure must be checked as soon as
possible . The tire pressure of the compact
spare ti re must be 4 .2 ba r; otherwise, you
risk hav ing an accident.
- Do not dr ive faste r than SO mph (80 km/h).
You risk having an acc ident.
-Avoid full -th rottle acceleration, heavy brak­
i n g, and fast co rnering . You r isk having an
accident.
- Never d rive using more than one spare
wheel and ti re. You r isk having an accident.
- Normal summer or winter t ires must not be
mounted on the compact spare whee l rim .
- For technical reasons, the use of tire cha ins
on the spare t ire is not permitted .
If it is
necessa ry to drive w it h tire cha ins, the spare
wheel mus t be mou nted on the front axle in
the event of a flat in a rear t ire. The newly
ava ilable fron t wheel must the n be installed
in place of the rear wheel with the flat tire .
Insta lling the tire chain before mounting
the wheel and tire is recommended .
- Loose items in the passenger compartment
can cause serious personal injury during
hard braking or in an accident . Never store
the spare tire or jack and tools in the pas­
senger compartment.
197

Emergency assistance

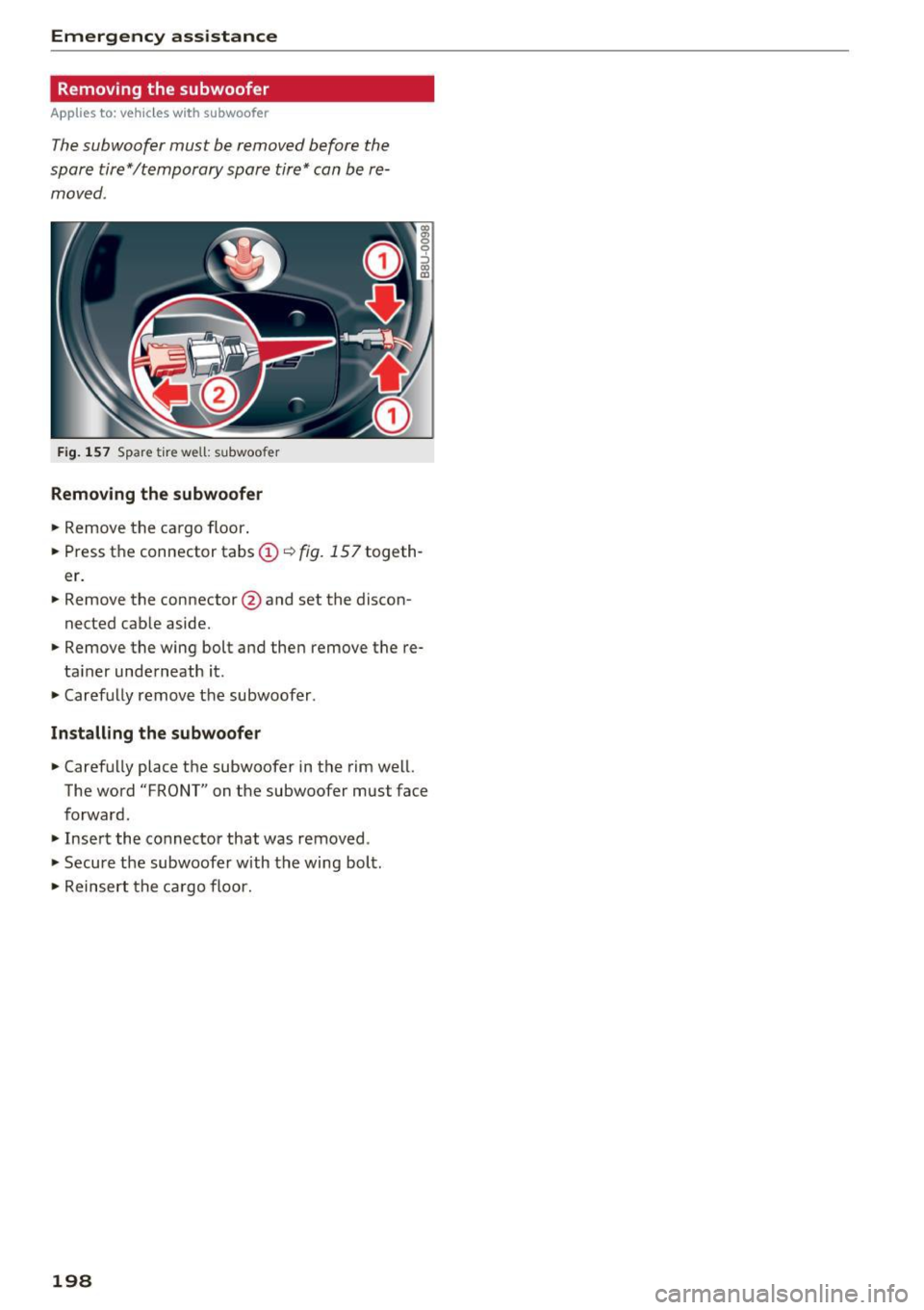

Removing the subwoofer
Applies to: vehicles w ith s ubwoofer
The subwoofer must be removed before the
spare tire*ltemporary spare tire* can be re­ moved .
Fig. 15 7 Spare tire well: subwoofer
Removing the subwoofer
., Remove the ca rgo floor .
• Press the connector tabs
(D ¢ fig. 157 togeth ­
er.
• Remove the connector @and set the discon­
nected cab le aside.
• Remove the wing bolt and then remove the re-
ta iner unde rneath it .
• Carefully remove t he subwoofer.
Installing the subwoofer
• Carefu lly place t he subwoofer in the rim well.
The word "FRONT" on the subwoofer must face
forward .
., Inse rt the connector that was removed .
• Secure the subwoofer with the wing bolt .
• Reinsert the ca rgo floor.
198
