2017 VOLVO V90 Owners Manual

INSTRUMENTS AND CONTROLS
}}
175
2.
Press
Profile.
> The same list as for Option 1 is shown.
3. Select the driver profile required. 4. Press
Confirm.
> The driver profile is selected and the sys- tem loads the settings for the new driver profile.
Related information
• Driver profiles (p. 174)
• Editing a driver profile (p. 175)
• Linking remote control key to driver profile(p. 176)
Editing a driver profile
It is possible to change the name of the different driver profiles used in the car.
All types of changes to driver profiles are made from the top view in the centre display - Settings
SystemDriver Profiles.
Renaming a driver profileRename a driver profile starting from the Driver
Profile window:
1. Press
Edit Profile.
> A menu opens, where the profile can be edited.
2. Tap in the box
Profile Name.
> A keyboard appears, and it is possible to change the name. Tap on
to close
the keyboard. 3.
Save the name change by tapping on
Back/Close.
> The name has now been changed.
NOTE
A profile name cannot start with a space, as the profile name will not then be saved.
Resetting settings in the driver profilesSettings that have been saved to one or more driver profiles can be reset if the car is stationary.
NOTE
Factory reset is only possible when the car
is stationary.
1. Press Settings in the top view.
2. Press
SystemFactory ResetReset
Personal Settings.
3. Select one of the options
Reset for the
active profile, Reset for all profiles orCancel.
Related information
• Driver profiles (p. 174)
• Resetting settings in the settings view (p. 173)

INSTRUMENTS AND CONTROLS
176•
Using the keyboard in the centre display (p. 49)
• Selecting driver profile (p. 174)
Linking remote control key to driver profile It is possible to link your key to a driver profile. The driver profile along with all of its settings willthen be automatically selected every time the caris used with that specific remote control key.
The first time the remote control key is used, it is not linked to any specific driver profile. When the car is started, the
Guest profile will automatically
be activated. A driver profile can be selected manually without linking it to the key. When the car is unlocked,the last active driver profile is activated. Once thekey has been linked to a driver profile, a driverprofile does not need to be selected when thatspecific key is used.
Linking a remote control key to a driver
profile
First select the profile to be linked to the key, ifthe profile to be linked is not already active. Theactive profile can then be linked to the key. 1. Press
Settings in the top view in the centre
display.
2. Press
SystemDriver Profiles.
3. Select the desired profile. The
Guest profile
cannot be linked to a key. 4.
Drag down the top view and tap on
Settings
SystemDriver ProfilesEdit
Profile.
5. Select
Connect key to link the profile with
the key. It is not possible to link a driver pro- file to a different key than the one currentlybeing used in the car. If there are multiple keys in the car, the message
More than one
key is found, put the key you want to connect on backup reader
will be dis-
played.
Backup reader's location in the tunnel console.> When the message Profile connected
to key is shown, the key and the driver
profile are linked.
6. Press
OK.
> This key is now linked to the driver profile and will remain linked as long as the
Connect key box is not unticked.

INSTRUMENTS AND CONTROLS
}}
177
Related information
•Driver profiles (p. 174)
• Editing a driver profile (p. 175)
• Remote control key (p. 236)
Importing/exporting a driver profile from/to USB
The personal settings saved in the driver profiles can be exported/imported to other cars via USB.
Follow these steps in order to import/export a driver profile from/to a USB memory: 1. Press
Settings in the top view in the centre
display.
2. Press
SystemDriver Profiles.
USB socket in tunnel console.
3. Insert a USB memory in the tunnel console. 4.
Select
Import profile from USB/Export
profile to USB.
NOTE
Only one USB memory can remain inserted in the port while profiles are being imported andexported. If there is more than one then thereis the risk that the profile is saved to thewrong USB memory or that the car cannotfind a profile to import.
NOTE
A number of profiles can be exported to a USB memory, but only one profile can beimported at a time. When a profile is importedit overwrites the car

||
INSTRUMENTS AND CONTROLS
178If the import fails, it may be due to the following:
• The USB memory is incorrectly inserted or was pulled out during the import.
• There is no driver profile saved on the USBmemory.
• The file for the driver profile on the USBmemory is corrupt.
Related information
• Driver profiles (p. 174)
Changing settings for apps
All of the car's apps are listed in the app view. The app settings that relate to the car's embed-ded functions can be changed from the centredisplay's top view.
Apps for embedded functions - basic
apps
The apps installed in the car from the beginning, e.g. FM radio and USB, are a part of Sensus and
are part of the car's embedded functions. Set- tings for these apps can be changed directly inthe top view in the centre display.
Change the settings for a basic app
1. Tap on the app, e.g. FM radio.
2. Drag down the top view. 3. Press
FM Radio Settings.
4. Change settings as desired and confirm the selections.
5. Press either the physical home button or the virtual close button.
Most of the car's basic apps have this contextual setting option, but not all. Refer to the section"Categories in the settings view" for more infor-mation on how settings are changed.
Third party appsThird party apps are not included in the car's sys-tem from the beginning, but are the type that can be downloaded e.g.
Volvo ID. Here the settings are always made inside the app and not from the top view.
Related information
•
Navigating in the centre display's views(p. 40)
• Settings view (p. 169)
• Downloading, updating and uninstalling apps(p. 468)
• Categories in the settings view (p. 170)

INSTRUMENTS AND CONTROLS
* Option/accessory.179

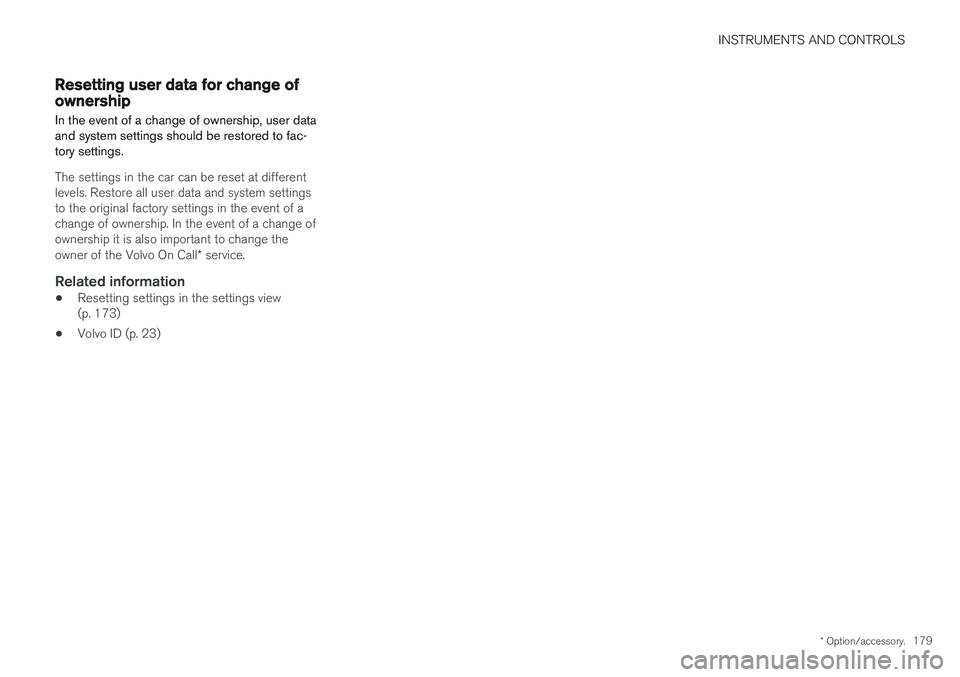

Resetting user data for change of ownership
In the event of a change of ownership, user data and system settings should be restored to fac-tory settings.
The settings in the car can be reset at different levels. Restore all user data and system settingsto the original factory settings in the event of achange of ownership. In the event of a change ofownership it is also important to change the owner of the Volvo On Call * service.
Related information
• Resetting settings in the settings view (p. 173)
• Volvo ID (p. 23)

C L I M A T E C O N T R O L

CLIMATE CONTROL
* Option/accessory.
182
Climate control
The car is equipped with electronic climate con- trol. The climate control system cools or heats aswell as dehumidifies the air in the passengercompartment.
2-zone climate
Climate zones with 2-zone climate.
With 2-zone climate, the temperature in the pas- senger compartment can be set separately forthe left and right-hand sides. All climate control system functions are con- trolled from the centre display and physical but-tons in the centre console.
4-zone climate *
Climate zones with 4-zone climate.
With 4-zone climate the temperature in the pas- senger compartment can be set separately forthe left and right-hand sides in both the front andrear seat. All climate control system functions are con- trolled from the centre display and physical but-tons in the centre console. The functions for therear seat can also be controlled from the climatepanel at the rear of the tunnel console.
Related information
•Climate control - sensors (p. 183)
• Perceived temperature (p. 183)
• Air quality (p. 184)
• Climate controls (p. 186)
• Air distribution (p. 197) •
Parking climate
* (p. 206)
• Voice recognition control of climate control(p. 119)
