S A F E T Y

SAFETY
56
Safety
The vehicle is equipped with several safety sys- tems that work together to protect the vehicle'sdriver and passengers in the event of an acci-dent.
The car is equipped with a number of sensors that react in the event of an accident and activatedifferent safety systems, such as different typesof airbags and seatbelt tensioners. Depending onthe specific accident situation, such as collisionsat different angles, rollover or driving off the road,the systems react in different ways to provide thebest protection. There are also mechanical safety systems such as Whiplash Protection System. The car is alsoconstructed so that a large part of the force of acollision is distributed to beams, pillars, floor, roofand other parts of the body. The car's safety mode may be activated after a collision if an important function in the car hasbeen damaged.
Warning symbol in driver displayThe warning symbol is illuminated inthe driver display when the car's elec-trical system is set in ignition position II . The symbol is extinguished after
approx. 6 seconds if the car's safety system is fault-free.
WARNING
If the warning symbol remains illuminated or is switched on during driving and the mes- sage
SRS airbag Service urgent Drive to
workshop is shown in the driver display, it
means that part of one of the safety systems does not have full functionality. Volvo recom-mends that an authorised Volvo workshopshould be contacted as soon as possible.
If the specific warning symbol is broken then the general warning symbol is illu-minated instead and the driver displayshows the same message.
Related information
•Safety during pregnancy (p. 56)
• Seatbelt (p. 59)
• Airbags (p. 63)
• Whiplash Protection System (p. 57)
• Pedestrian Protection System (p. 58)
• Safety mode (p. 69)
• Child safety (p. 71)
Safety during pregnancy It is important that the seatbelt is used correctly during pregnancy, and that pregnant driversadjust their seating position.
Seatbelt
The diagonal section should wrap over the shoul- der then be routed between the breasts and tothe side of the abdomen. The lap section should lay flat over the thighs and as low as possible under the abdomen. – It mustnever be allowed to ride upward. Remove theslack from the seatbelt and ensure that it fits asclose to the body as possible. In addition, checkthat there are no twists in the seatbelt.
Seating positionAs the pregnancy progresses, pregnant driversmust adjust the seat and steering wheel suchthat they can easily maintain control of the vehi-

SAFETY
}}
* Option/accessory.57
cle as they drive (which means that they must be able to easily operate the foot pedals and steer-ing wheel). The aim should be to position theseat with as large a distance as possible betweenabdomen and steering wheel.
Related information
•
Safety (p. 56)
• Seatbelt (p. 59)
• Manual front seat (p. 121)
• Power front seat
* (p. 121)
Whiplash Protection System Whiplash Protection System (WHIPS) is a pro- tection against whiplash injuries. The systemconsists of energy-absorbing backrests and seatcushions, and specially designed head restraintsin the front seats.
WHIPS is deployed in the event of a rear-end collision, where the angle and speed of the colli-sion and the nature of the colliding vehicle allhave an influence. When WHIPS is deployed, the front seat back- rests are lowered backward and the seat cush-ions move downward to change the seating posi-tion of the driver and front seat passenger. Thisreduces the risk of whiplash injury.
WARNING
WHIPS is a supplement to the seatbelts. Always use a seatbelt.
WARNING
Never modify or repair the seat or WHIPS yourself. Volvo recommends that an author-ised Volvo workshop should be contacted. If the front seats have been subjected to a major load, such as in conjunction with a colli-sion, the seats must be replaced. Some of theseats' protective properties may have beenlost even if they do not appear damaged.
Do not leave any objects on the floor behind or under the front seats or in the rear seat that may preventWHIPS from functioning.
WARNING
Do not squeeze rigid objects between the rear seat cushion and the front seat's back-rest.
WARNING
If a rear seat backrest is folded down, the cor- responding front seat must be moved forwardso that it does not make contact with thefolded backrest.
Seating positionFor optimum protection from WHIPS the driver and passenger must have the correct seatingposition and make sure that the system's func-tion is not obstructed.

||
SAFETY
* Option/accessory.
58 Set the correct seating position in the front seat before driving starts. Driver and front seat passenger should sit in the centre of the seat with as little space as possiblebetween the head and the head restraint.
WHIPS and child seatsThe protection provided by the car to childrenseated in a child seat or on a booster cushion isnot diminished by WHIPS.
Related information
•
Safety (p. 56)
• Manual front seat (p. 121)
• Power front seat
* (p. 121)
• Rear Collision Warning (p. 340)
• Child seats (p. 71)
Pedestrian Protection System
The Pedestrian Protection System (PPS) is a system which, in certain frontal collisions, con-tributes to mitigating a pedestrian's impact withthe car.
In certain frontal collisions with a pedestrian, the sensors in the front of the car react and the sys-tem is activated. When PPS is activated, the following occur:
• The rear section of the bonnet is raised.
• An automatic alarm is sent via Volvo On Call
*.
The sensors are active at a speed of approx. 25-50 km/h (15-30 mph). The sensors are designed to detect a collision with an object that has similar properties to thoseof the human leg.
NOTE
There may be objects in the traffic environ- ment that prompt a signal to the sensors thatis similar to a collision with a pedestrian. It ispossible that the system will be activated inthe event of a collision with such an object.
WARNING
Do not fit any accessories or change anything in the front. Incorrect intervention at the frontmay cause incorrect function in the systemand lead to serious injury and damage to thecar. Volvo recommends that genuine wiper arms are used and that only genuine parts are usedfor them.
WARNING
Volvo recommends contacting an authorised Volvo workshop in the event of any damage tothe front of the car in order to ensure that thesystem is intact.
Symbols in the driver display
Symbol Specification
PPS has been activated, or a fault has occurred in the system. Followthe recommendation given.
Related information
•Safety (p. 56)

SAFETY
}}
59

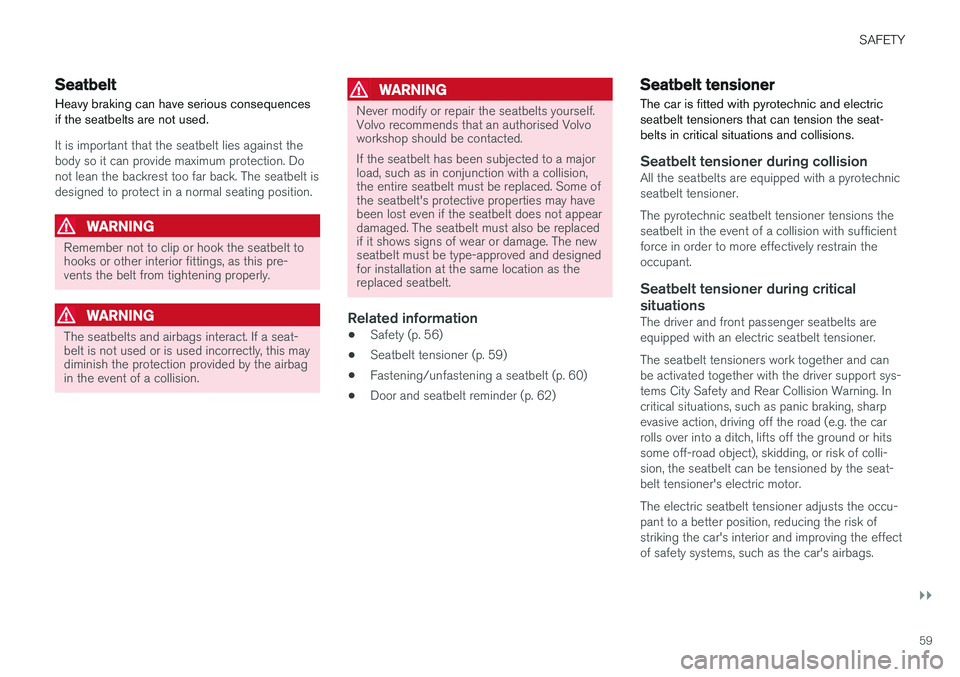

Seatbelt
Heavy braking can have serious consequences if the seatbelts are not used.
It is important that the seatbelt lies against the body so it can provide maximum protection. Donot lean the backrest too far back. The seatbelt isdesigned to protect in a normal seating position.
WARNING
Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this pre-vents the belt from tightening properly.
WARNING
The seatbelts and airbags interact. If a seat- belt is not used or is used incorrectly, this maydiminish the protection provided by the airbagin the event of a collision.
WARNING
Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvoworkshop should be contacted. If the seatbelt has been subjected to a major load, such as in conjunction with a collision,the entire seatbelt must be replaced. Some ofthe seatbelt's protective properties may havebeen lost even if the seatbelt does not appeardamaged. The seatbelt must also be replacedif it shows signs of wear or damage. The newseatbelt must be type-approved and designedfor installation at the same location as thereplaced seatbelt.
Related information
• Safety (p. 56)
• Seatbelt tensioner (p. 59)
• Fastening/unfastening a seatbelt (p. 60)
• Door and seatbelt reminder (p. 62)
Seatbelt tensioner
The car is fitted with pyrotechnic and electric seatbelt tensioners that can tension the seat-belts in critical situations and collisions.
Seatbelt tensioner during collisionAll the seatbelts are equipped with a pyrotechnic seatbelt tensioner. The pyrotechnic seatbelt tensioner tensions the seatbelt in the event of a collision with sufficientforce in order to more effectively restrain theoccupant.
Seatbelt tensioner during critical
situations
The driver and front passenger seatbelts areequipped with an electric seatbelt tensioner. The seatbelt tensioners work together and can be activated together with the driver support sys-tems City Safety and Rear Collision Warning. Incritical situations, such as panic braking, sharpevasive action, driving off the road (e.g. the carrolls over into a ditch, lifts off the ground or hitssome off-road object), skidding, or risk of colli-sion, the seatbelt can be tensioned by the seat-belt tensioner's electric motor. The electric seatbelt tensioner adjusts the occu- pant to a better position, reducing the risk ofstriking the car's interior and improving the effectof safety systems, such as the car's airbags.

||
SAFETY
* Option/accessory.
60
IMPORTANT
If the passenger airbag is deactivated, the electric seatbelt tensioner on the passengerside will also be deactivated.
Resetting the electric seatbelt tensioner
Once the critical situation has passed, the seat- belt and electric seatbelt tensioner are resetautomatically. If the belt still remains tensioned:
1. Stop the car at a safe place.
2. Unfasten the seatbelt and then refasten it.
> The seatbelt and electric seatbelt ten-sioner are reset.
WARNING
Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvoworkshop should be contacted. If the seatbelt has been subjected to a major load, such as in conjunction with a collision,the entire seatbelt must be replaced. Some ofthe seatbelt's protective properties may havebeen lost even if the seatbelt does not appeardamaged. The seatbelt must also be replacedif it shows signs of wear or damage. The newseatbelt must be type-approved and designedfor installation at the same location as thereplaced seatbelt.
Related information
• Seatbelt (p. 59)
• Fastening/unfastening a seatbelt (p. 60)
• Door and seatbelt reminder (p. 62)
• City Safety (p. 330)
• Rear Collision Warning (p. 340)
• Activating/deactivating the passenger air- bag
* (p. 66)
Fastening/unfastening a seatbelt
Make sure that all passengers have fastened their seatbelts before starting to drive.
Fastening a seatbelt1. Pull out the seatbelt slowly and make sure it is not twisted or damaged.
NOTE
The seatbelt locks and cannot be withdrawn:
• if it is pulled out too quickly
• during braking and acceleration
• if the car leans heavily.
2. Lock the belt by inserting the locking tab in
the intended buckle.
> A loud "click" indicates that the belt haslocked.
WARNING
Always insert the tongue of the seatbelt into the buckle on the correct side. The seatbeltsand buckles would otherwise possibly notfunction as intended in the event of a colli-sion. There is a risk of serous injury.

SAFETY
61
3. In the front seats the seatbelt can be
adjusted for height.
Press together the seat mounting and move the seatbelt up or down. Position the belt as high as possible without it chafing against your throat.
The seatbelt must pass over the shoulder (not down over the arm).
4. Tension the hip strap over the lap by pullingthe diagonal shoulder belt up towards the shoulder.
The hip strap must be positioned low down (not over the abdomen).
WARNING
Each seatbelt is designed for only one person.
WARNING
Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this pre-vents the belt from tightening properly.
WARNING
Do not make any damages on seatbelts nor insert any foreign objects into a buckle. Theseatbelts and buckles would then possibly notfunction as intended in the event of a colli-sion. There is a risk of serous injury.
Unfastening a seatbelt1. Press the red button on the seatbelt buckle and then let the belt retract.
2. If the seatbelt does not retract fully, feed it in by hand so that it does not hang loose.
Related information
• Seatbelt (p. 59)
• Seatbelt tensioner (p. 59)
• Door and seatbelt reminder (p. 62)

SAFETY
62
Door and seatbelt reminderThe system reminds unbelted occupants to wear a seatbelt, and also warns about an open door,bonnet, tailgate or fuel filler flap.
Driver display graphics
Graphics in the driver display with different types of warnings. The warning colour on the door and tailgate isdependent on the vehicle's speed.
The driver display's graphics show which seats in the car are occupied by belted and unbelted pas-sengers. The same graphic also shows if the bonnet, tail- gate, fuel filler flap or any door is open. The graphics are cleared automatically after approximately 30 seconds of driving, or by press-ing on the right-hand the steering wheel keypad's O button.
Seatbelt reminder
Visual reminder in the roof console.
A visual reminder is given in the roof console and by means of the warning symbol in the driver dis-play. The acoustic reminder is dependent on speed, driving time and distance. The belt status of the driver and passengers is shown in the driver display graphics when a beltis buckled or unbuckled. Child seats are not covered by the seatbelt reminder system.
Front seat
A visual and acoustic reminder remind the driver and front seat passenger to use a seatbelt ifeither of them is not wearing one.
Rear seat
The seatbelt reminder in the rear seat has two subfunctions: • Provides information on which seatbelts are being used in the rear seat. The driver dis-play's graphics are shown when the seatbeltsare in use.
• Reminding that a seatbelt in the rear seat isunfastened during a journey by means of avisual and acoustic reminder. The reminderstops when the seatbelt is refastened, or itcan be acknowledged manually by pressing the
O button on the right-hand steering
wheel keypad.
Reminder for doors, bonnet, tailgate
and fuel filler flap
If the bonnet, tailgate, fuel filler flap or a door is not closed properly, the driver display's graphicsshow what is open. Stop the car in a safe placeas soon as possible and close the source of thewarning.
If the car is driven at a speed lowerthan approx. 10 km/h (6 mph) then thedriver display's information symbol illu-minates.
If the car is driven at a speed higher than approx. 10 km/h (6 mph) then thedriver display's warning symbol illumi-nates.
