2017 VOLVO V90 Owners Manual

DRIVER SUPPORT
* Option/accessory.351
Activating/deactivating Road Sign Information
The Road Sign Information (Road Sign Information - RSI) function can be activated/deactivated.
Activating/deactivating Road Sign
Information
The function is activated/deac- tivated in function view in thecentre display.
–Tap on the Road Sign Information button
in function view.
> RSI is activated and the button shows a green indicator - a grey indicator means that RSI is deactivated.
Activating/deactivating speed warningsThe speed warning function warns the driverwhen the applicable speed limit is exceeded. Aspeed warning is always given if the speed limit isexceeded in connection with speed camera infor-mation. The driver can choose to have the func-tion activated or deactivated. The speed warning is given bythe driver display symbol show-ing the applicable maximumpermitted speed temporarilyflashing when this speed isexceeded.
1.
Press Settings in the centre display's top
view.
2. Press
My CarIntelliSafeRoad Sign
Information.
3. Select
Speed Limit Warning to activate/
deactivate speed warnings.
> A speed selector is shown if the function is activated.
4. Adjust the limit for when a speed warning is to be given, either up or down, by pressing the up/down arrows. Note that no consideration is given to any boundary adjustment made when the driverdisplay shows the speed camera symbol.
Activating/deactivating the acoustic warning.
It is also possible to have an acoustic warning in connection with a speed warning: 1.Press
Settings in the centre display's top
view. 2.
Press
My CarIntelliSafeRoad Sign
Information.
3. Select
Audio Warning to activate/deacti-
vate the acoustic warning.
With the
Audio Warning function activated, the
driver is also warned when driving towards a no- entry entrance.
Related information
• Road Sign Information
* (p. 348)
• Speed camera information
* (p. 350)
• Sign display with Road Sign Information(p. 348)

DRIVER SUPPORT
* Option/accessory.
352

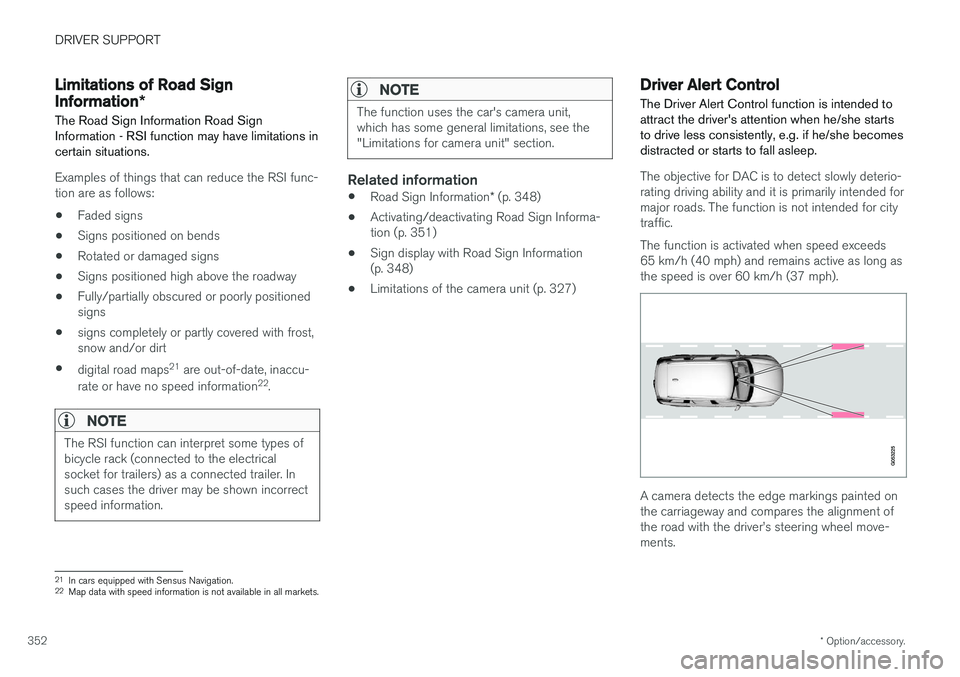

Limitations of Road Sign Information *
The Road Sign Information Road Sign Information - RSI function may have limitations incertain situations.
Examples of things that can reduce the RSI func- tion are as follows:
• Faded signs
• Signs positioned on bends
• Rotated or damaged signs
• Signs positioned high above the roadway
• Fully/partially obscured or poorly positionedsigns
• signs completely or partly covered with frost,snow and/or dirt
• digital road maps 21
are out-of-date, inaccu-
rate or have no speed information 22
.
NOTE
The RSI function can interpret some types of bicycle rack (connected to the electricalsocket for trailers) as a connected trailer. Insuch cases the driver may be shown incorrectspeed information.
NOTE
The function uses the car's camera unit, which has some general limitations, see the"Limitations for camera unit" section.
Related information
• Road Sign Information
* (p. 348)
• Activating/deactivating Road Sign Informa- tion (p. 351)
• Sign display with Road Sign Information(p. 348)
• Limitations of the camera unit (p. 327)
Driver Alert Control
The Driver Alert Control function is intended to attract the driver's attention when he/she startsto drive less consistently, e.g. if he/she becomesdistracted or starts to fall asleep.
The objective for DAC is to detect slowly deterio- rating driving ability and it is primarily intended formajor roads. The function is not intended for citytraffic. The function is activated when speed exceeds 65 km/h (40 mph) and remains active as long asthe speed is over 60 km/h (37 mph).
A camera detects the edge markings painted on the carriageway and compares the alignment ofthe road with the driver

DRIVER SUPPORT
}}
353

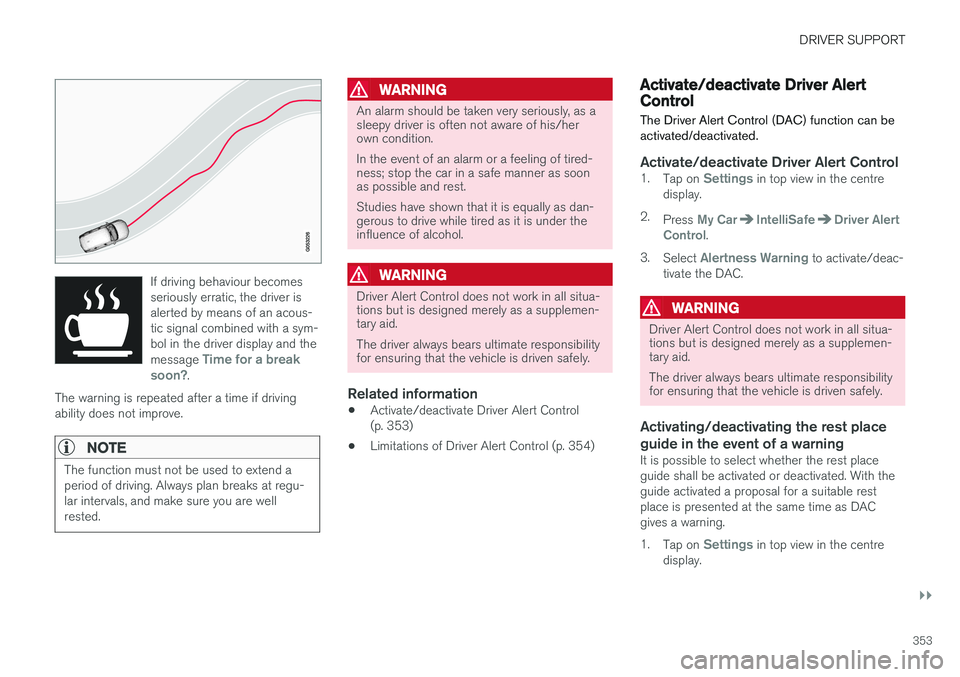

If driving behaviour becomes seriously erratic, the driver isalerted by means of an acous-tic signal combined with a sym-bol in the driver display and the message
Time for a break
soon?.
The warning is repeated after a time if driving ability does not improve.
NOTE
The function must not be used to extend a period of driving. Always plan breaks at regu-lar intervals, and make sure you are wellrested.
WARNING
An alarm should be taken very seriously, as a sleepy driver is often not aware of his/herown condition. In the event of an alarm or a feeling of tired- ness; stop the car in a safe manner as soonas possible and rest. Studies have shown that it is equally as dan- gerous to drive while tired as it is under theinfluence of alcohol.
WARNING
Driver Alert Control does not work in all situa- tions but is designed merely as a supplemen-tary aid. The driver always bears ultimate responsibility for ensuring that the vehicle is driven safely.
Related information
• Activate/deactivate Driver Alert Control (p. 353)
• Limitations of Driver Alert Control (p. 354)
Activate/deactivate Driver Alert Control
The Driver Alert Control (DAC) function can be activated/deactivated.
Activate/deactivate Driver Alert Control1. Tap on Settings in top view in the centre
display.
2. Press
My CarIntelliSafeDriver Alert
Control.
3. Select
Alertness Warning to activate/deac-
tivate the DAC.
WARNING
Driver Alert Control does not work in all situa- tions but is designed merely as a supplemen-tary aid. The driver always bears ultimate responsibility for ensuring that the vehicle is driven safely.
Activating/deactivating the rest place guide in the event of a warning
It is possible to select whether the rest place guide shall be activated or deactivated. With theguide activated a proposal for a suitable restplace is presented at the same time as DACgives a warning. 1. Tap on
Settings in top view in the centre
display.

||
DRIVER SUPPORT
* Option/accessory.
354 2.
Press
My CarIntelliSafeDriver Alert
Control.
3. Select
Rest Stop Guidance to activate/
deactivate the rest place guide.
Related information
• Driver Alert Control (p. 352)
• Limitations of Driver Alert Control (p. 354)
Limitations of Driver Alert Control
The Driver Alert Control (DAC) function may have limitations in certain situations.
In some cases, driving behaviour may not be affected, despite the driver being tired - e.g. whenusing the Pilot Assist function - with the resultthat the driver is then not given a warning fromDAC. For this reason, it is always very importantto stop and take a break in the event of theslightest sign of driver fatigue, regardless ofwhether DAC has given a warning. In some cases the system may issue a warning despite driving ability not deteriorating, for exam-ple:
• in strong side winds
• on rutted road surfaces.
NOTE
The function uses the car's camera unit, which has some general limitations, see the"Limitations for camera unit" section.
Related information
•
Driver Alert Control (p. 352)
• Activate/deactivate Driver Alert Control (p. 353)
• Limitations of the camera unit (p. 327)
• Pilot Assist
* (p. 304)
Lane Keeping Aid
The function of lane assistance is to help the driver to reduce the risk of the car accidentallyleaving its own lane on motorways and similarmajor routes.
Lane assistance steers the car back into its lane and/or warns the driver with an acoustic signal orsteering wheel vibration. Lane Keeping Aid is active within the speed range 65-200 km/h (40-125 mph) on roads withclearly visible side lines. On narrow roads the function may be unavailable, in which case it goes into standby mode. Thefunction becomes available again when the roadis wide enough.
A camera reads the side lines of the road/lane.

DRIVER SUPPORT
}}
355
Lane assistance steers the car back into its lane.
Lane assistance warns with steering wheel vibrations23
.
Depending on settings, lane assistance acts in accordance with the following:
1. Steering assistance activated: When the car
is approaching a lane line, LKA will actively steer the car back into its lane by applying a slight torque to the steering wheel.
2. Warning activated: If the car is about to cross a lane line, the driver is warned by means ofan acoustic signal or vibration in the steeringwheel.
NOTE
When a direction indicator is switched on, there are no steering corrections or alertsfrom Lane assistance.
WARNING
Lane assistance is merely a driver aid and does not engage in all driving situations ortraffic, weather or road conditions. The driver always bears ultimate responsibility for ensuring that the vehicle is driven safelyand that applicable laws and road traffic regu-lations are followed.
Steering assistanceA precondition for the functioning of the LKA steering assistance is that the driver

||
DRIVER SUPPORT
356
Lane assistance does not intervene
Lane assistance does not engage on sharp inside curves.
In some situations, lane assistance allows lane lines to be crossed without intervening with eithersteering assistance or a warning - e.g. whenusing the direction indicators or cutting bends.
LimitationsIn certain demanding conditions lane assistancemay have difficulty helping the driver correctly. Insuch cases it is recommended to switch off thisfunction. Examples of such conditions are:• road works
• winter road conditions
• poor road surface
• a very “sporty” driving style •
poor weather with reduced visibility
• sharp edges or lines other than the lane lines
• roads with unclear or non-existent line mark- ings.
NOTE
The function uses the car's camera unit, which has some general limitations, see the"Limitations for camera unit" section.
Related information
•
Activate/deactivate Lane Keeping Aid (p. 356)
• Run-off Mitigation (p. 360)
• Symbols and messages for lane assistance(p. 358)
• Limitations of the camera unit (p. 327)
Activate/deactivate Lane Keeping Aid Lane assistance Lane Keeping Aid (LKA) can be activated/deactivated and some subfunctionscan be selected.
The function is activated/deac- tivated in function view in thecentre display.
–Tap on the Lane Keeping Aid button in
function view.
> LKA is activated (GREEN button indica- tion is shown) or deactivated (GREY but- ton indication is shown).
Select the type of warning for the Lane Keeping Aid
It is possible to select how LKA shall warn the driver if the car leaves its lane. 1. Press
Settings in the centre display's top
view.
2. Press
My CarIntelliSafeLane
Assistance.

DRIVER SUPPORT
357
3.
Under
Lane Keeping Aid Warning
Feedback, select type of warning:
•
Sound - the driver is warned by an
acoustic signal.
•
Vibration — the driver is warned with
steering wheel vibrations.
Assistance options for Lane Keeping Aid
It is possible to select how LKA shall react if the driver if the car leaves its lane. 1. Press
Settings in the centre display's top
view.
2. Press
My CarIntelliSafeLane
Assistance.
3. Under
Lane Keeping Aid Mode, select how
LKA shall react
•
Assist - the driver is given steering assis-
tance without a warning.
•
Both - the driver is given both a warning
and steering assistance.
•
Warning — warning to driver only.
Related information
• Lane Keeping Aid (p. 354)
• Symbols and messages for lane assistance (p. 358)

DRIVER SUPPORT
358
Symbols and messages for lane assistance
A number of symbols and messages regarding lane assistance can be shown on the driver dis-play.
Symbol in the driver displayLane assistance is visualised by symbols in the driver displaydepending on the situation. Here are some examples of symbols and the situations inwhich they are shown:
Available
Available — the lane lines in the symbol are white.
Lane assistance is scanning one or both lane lines.
Unavailable
Unavailable — the lane lines in the symbol are grey.
The lane assistance cannot detect the lane lines, the speed is too low or the road is too narrow.
Indication of steering assistance/warning
Steering assistance/warning - the lane lines in the sym- bol are in colour.
Lane assistance indicates that the system is giv- ing a warning and/or attempting to steer the carback into the lane.
Symbols and messagesThe following table shows some examples.
