2017 RENAULT ALASKAN Owners Manual

WARNING
• The supplemental front air bags ordinarily will
not inflate in the event of aside impact, rear
impact, rollover, or lower severity frontal col-
lision. Always wear your seat belts to help re-
duce the risk or severity of injury in various
kinds of accidents. •
The seat belts and the supplemental front-im-
pact air bags are most effective when you are
sitting well back and upright in the seat. The
front-impact air bags inflate with great force.
If you and your passengers are unrestrained,
leaning forward, sitting sideways, or out of
position in any way, you and your passengers
are at greater risk of injury or death in an acci-
dent. You and your passengers may also re-
ceive serious or fatal injuries from the supple- mental front-impact air bag if you are up
against it when it inflates. Always sit back against the seatback and as far away as prac-
tical from the steering wheel or instrument
panel. Always use the seat belts.
• Keep hands on the outside of the steering
wheel. Placing them inside the steering wheel
rim could increase the risk of injury if the
supplemental front air bag inflates. SSS0131AZ
SSS0132AZ
Safety —seats, seat belts and supplemental restraint system
1-31

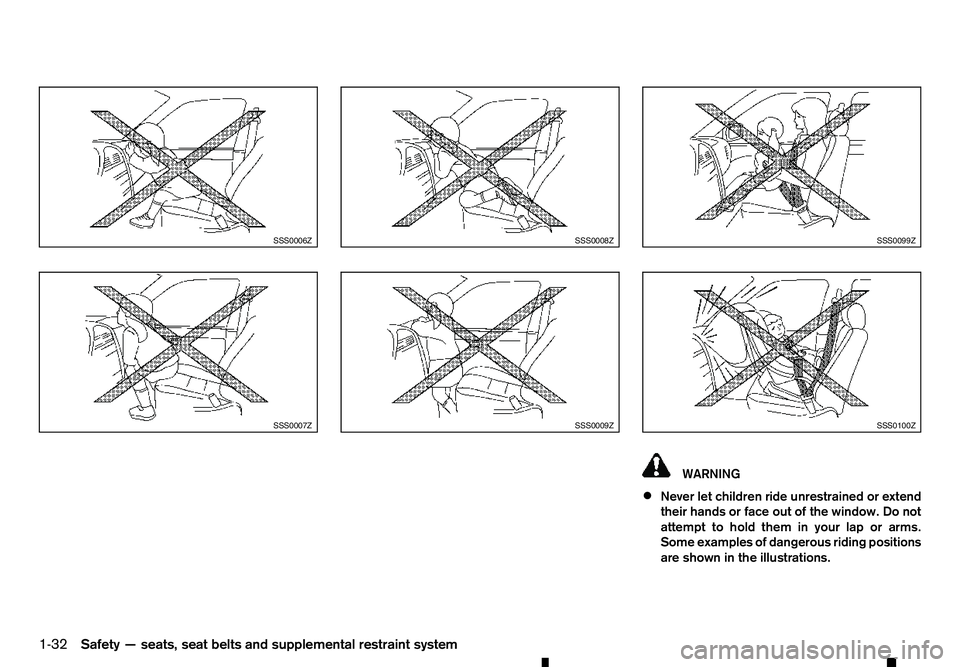

WARNING
• Never let children ride unrestrained or extend
their hands or face out of the window. Do not
attempt to hold them in your lap or arms.
Some examples of dangerous riding positions
are shown in the illustrations. SSS0006Z
SSS0007Z SSS0008Z
SSS0009Z SSS0099Z
SSS0100Z
1-32 Safety —seats, seat belts and supplemental restraint system

•
Children may be severely injured or killed
when the air bags inflate if they are not prop-
erly restrained.
• Never install
arear-facing child restraint sys-
tem in the front seat. An inflating supplemen-
tal front-impact air bag could seriously injure
or kill your child. (See “Child restraints” ear-
lier in this section.) WARNING
• The supplemental side-impact air bags
(where fitted) and supplemental curtain side-
impact air bags (where fitted) ordinarily will
not inflate in the event of afront impact, rear
impact, rollover, or lower severity side colli-
sion. Always wear the seat belts to help re-
duce the risk or severity of injury in accidents. SSS0059AZ
SSS0140Z SSS0159Z
SSS0162Z
Safety —seats, seat belts and supplemental restraint system
1-33

•
The seat belts and the supplemental side-im-
pact air bags and supplemental curtain side-
impact air bags are most effective when you are sitting well back and upright in the seat.
The supplemental side-impact air bags and
supplemental curtain side-impact air bags in-
flate with great force. If you and your passen-
gers are unrestrained, leaning forward, sitting
sideways, or out of position in any way, you
and your passengers are at greater risk of
injury or death in an accident.
• Do not allow anyone to place their hands, legs
or face near the supplemental side-impact air
bags and supplemental curtain side-impact
air bags located on the sides of the seatback
of the front seats or near the side roof rails.
Do not allow anyone sitting in the front seats
or rear outboard seats to extend their hands
out of the windows or lean against the doors.
Some examples of dangerous riding positions
are shown in the illustrations.
• When sitting in the rear seats, do not hold
onto the seatback of the front seats. If the
supplemental side-impact air bags and
supplemental curtain side-impact air bags in-
flate, you may be seriously injured. Be espe-
cially careful with children, who should always
be properly restrained.
• Do not use seat covers on the front seatbacks.
They may interfere with the supplemental
side-impact air bag inflations. •
Do not attach the key with heavy objects, hard
objects or objects with sharp edges. This may
cause injury if the supplemental knee air bag
inflates.
Pre-tensioner seat belt system
(where fitted)
The pre-tensioner seat belt system may activate with the supplemental air bag system in certain types of
collisions. Working with the front seat belt retrac-
tors and anchors, it helps tighten the seat belt the
instant the vehicle becomes involved in certain types
of collisions, helping to restrain front seat occupants.
(See “Seat belts” earlier in this section.)
Air bag warning labels
➀ SRS air bag warning label: The warning label
is located on the surface of the front pas-
senger sun visor.
➁ SRS front passenger air bag warning label:
The warning label is located on the outer side
of the instrument panel (passenger side). ➂
SRS side air bag warning label: The warning
label is located on the side of the passenger
side centre pillar. Tags are also sewn into the
front seat covers.
SRS front-impact passenger air bag:
The warning label ➀is located on the sun visor.
“NEVER use arearward facing child restraint on
as eat protected by an ACTIVE AIR BAG in front
of it, DEATH or SERIOUS INJURY to the CHILD
can occur.”
The BACK SEAT is the SAFEST place for children
aged 12 and under. Always use seat belts and
child restraints. For maximum safety protection
in all types of crashes, you must always wear
your safety belt. Do not sit or lean unnecessarily
close to the air bag. Do not place any objects
over the air bag or between the air bag and your-
self. If the air bag warning light stays on or is
flashing when the ignition is placed in the ON
position, go to an approved dealer or qualified
workshop. Air bags can only be removed or dis-
posed of by an approved dealer or qualified work-
shop.
Be sure to read the “AIR BAG LABEL” description
at the end of this manual.
In vehicles equipped with afront-impact passenger
air bag system, use arear-facing child restraint sys-
tem only on the rear seats. NP A1155
1-34 Safety —seats, seat belts and supplemental restraint system

When installing
achild restraint system in your ve-
hicle, always follow the child restraint system manu-
facturer’s instructions for installation. For additional
information, see “Child restraints” earlier in this sec-
tion.
SRS air bag warning light
The supplemental air bag warning light, displaying in the instrument panel, monitors the circuits
for the air bag systems, pre-tensioner seat belt sys-
tem (where fitted) and all related wiring.
When the ignition switch is in the “ON” position, the
SRS air bag warning light illuminates for about 7
seconds and then turns off. This indicates that the
SRS air bag systems are operational.
Have the air bag systems and/or pre-tensioner seat
belt systems serviced at the nearest approved dealer
or qualified workshop if any of the following condi-
tions occur:
• The SRS air bag warning light remains on after
approximately
7seconds. •
The SRS air bag warning light flashes intermit-
tently.
• The SRS air bag warning light does not illumi-
nate at all.
Under these conditions, the air bag and/or pre-
tensioner seat belt system may not operate prop-
erly. They must be checked and repaired. Contact
an approved dealer or qualified workshop immedi-
ately. SP A1097Z
Safety—seats, seat belts and supplemental restraint system 1-35

SUPPLEMENTAL AIR BAG SYSTEMS
1. Crush zone sensor
2. Supplemental driver’s knee air bag module
(where fitted)
3. Supplemental front air bag modules
4. Supplemental curtain side-impact air bag infla-
tors (where fitted) 5.
Supplemental curtain side-impact air bag
modules (where fitted)
6. Air bag Control Unit (ACU)
7. Satellite sensors (where fitted)
8. Seat belt pre-tensioner retractors (where fit-
ted) 9.
Supplemental side-impact air bag modules
(where fitted) WARNING
• Do not place any objects on the steering wheel
pad, on the instrument panel, under the steer-
ing column and near the front door finishers
and the front seats. Do not place any objects
between any occupants and the steering
wheel pad, on the instrument panel, and near
the front door finishers and the front seats.
Such objects may become dangerous projec-
tiles and cause injury if asupplemental air
bag inflates.
• Immediately after inflation, several supple-
mental air bag system components will be hot.
Do not touch them: you may severely burn
yourself.
• No unauthorised changes should be made to
any components or wiring of the supplemen-
tal air bag systems. This is to prevent acci-
dental inflation of the supplemental air bags
or damage to the supplemental air bag sys-
tems.
• Do not make unauthorised changes to your
vehicle’s electrical system, suspension sys-
tem, front end structure, and side panels. This
could affect proper operation of the supple-
mental air bag systems. NP A1527
1-36 Safety —seats, seat belts and supplemental restraint system

•
Tampering with the supplemental air bag sys-
tems may result in serious personal injury.
Tampering includes changes to the steering
wheel and the instrument panel by placing
materials over the steering wheel pad and
above, around or on the instrument panel or
by installing additional trim materials around
the supplemental air bag systems.
• Work on and around the supplemental air bag
systems should be done by an approved
dealer or qualified workshop. The SRS wiring
should not be modified or disconnected. Un-
authorised electrical test equipment and
probing devices should not be used on the
supplemental air bag systems.
• The SRS wiring harness connectors are yel-
low for easy identification.
• Never install
arear-facing child restraint sys-
tem on the front passenger seat without first
deactivating the passenger air bag with the
front passenger air bag switch. In afrontal
collision, supplemental front-impact air bags
inflate with great force. An inflating supple-
mental front-impact air bag could seriously
injure or kill your child.
When the air bags inflate, afairly loud noise may be
heard, followed by the release of smoke. This smoke
is not harmful and does not indicate afire. Care
should be taken not to inhale it, as it may cause irri-
tation and choking. Those with ahistory of abreath-
ing condition should get fresh air promptly. Supplemental front-impact air bag
system
The driver’s supplemental front-impact air bag is
located at the centre of the steering wheel. The pas-
senger’s supplemental front-impact air bag is lo-
cated at the instrument panel above the glove box.
The supplemental front-impact air bag system is de-
signed to inflate in higher severity frontal collisions,
although it may inflate if the forces in another type of
collision are similar to those of
ahigher severity fron-
tal impact. It may not inflate in certain frontal colli-
sions. Vehicle damage (or lack of it) is not always an
indication of proper supplemental front-impact air
bag system operation. WARNING
Never install
arear-facing child restraint system
on the front passenger seat without first deacti-
vating the passenger air bag with the front pas-
senger air bag switch (where fitted), see “Front
passenger air bag switch (where fitted)” later in
this section. In afrontal collision, supplemental
front-impact air bags inflate with great force. An
inflating supplemental front-impact air bag could
seriously injure or kill your child. Front passenger air bag status light (where fit-
ted):
WARNING
• Since your vehicle is equipped with
af
ront
passenger air bag, it is not permitted to install
ar earward facing child restraint on the front
passenger seat unless the front passenger air
bag has been deactivated first. NP A1531
JVR0264XZ
Safety —seats, seat belts and supplemental restraint system
1-37

•
Do not fit
arearward facing child seat on the
front passenger seat if the air bag activation/
deactivation system (where fitted) is malfunc-
tioning. Your vehicle must immediately be
taken to an approved dealer or qualified work-
shop in such asituation.
The front passenger air bag status lights and
are located on the instrument panel between
the centre vents.
When the ignition switch is placed in the ON posi-
tion, the front passenger air bag status ON and
OFF lights illuminate and then turn off or remain on
depending on the front passenger air bag status.
• When the ignition switch is placed in the ON
position and the front passenger air bag is ac-
tive, both the front passenger air bag status OFF
light ,a
nd the Supplemental Restraint Sys-
tem (SRS) air bag warning light in the com-
bination meter ➀will turn off after about
7sec-
onds.
The front passenger air bag status ON light will illuminate and then turn off after
aperiod of
time when the front passenger air bag switch is
in the ON position.
• When the ignition switch is placed in the ON
position and the front passenger air bag is inac-
tive, both the front passenger air bag status ON
light ,a
nd the Supplemental Restraint Sys-
tem (SRS) air bag warning light in the com-
bination meter ➀will turn off after about
7sec-
onds. The front passenger air bag status OFF light will illuminate and remain on as long as the
front passenger air bag switch is in the OFF
position.
If the front passenger air bag status light operates in
aw ay other than described above, the front passen-
ger air bag may not function properly. Have the sys-
tem checked, and if necessary repaired, by an ap-
proved dealer or qualified workshop promptly.
Front passenger air bag switch (where fitted):
The front passenger air bag can be turned off with
the front passenger air bag switch j
Al ocated in-
side the glove box.
j A Air bag switch (where fitted)
j B Left Hand Drive models
j C Right Hand Drive models
To turn off the front passenger air bag:
1. Place the ignition switch in the OFFposition. 2. Open the glove box and insert the key into the
front passenger air bag switch. For Remote Con-
trol Key equipped models, see “Keys” in the
“3. Pre-driving checks and adjustments” section
for mechanical key usage.
3. Push and turn the key to the position.
4. Place the ignition switch in the ONposition. The
front passenger air bag status OFF light will illuminate and remain on.
To turn on the front passenger air bag:
1. Place the ignition switch in the OFFposition.
2. Open the glove box and insert the key into the front passenger air bag switch.
3. Push and turn the key to the position.
4. Place the ignition switch in the ONposition. The
front passenger air bag status ON light will
illuminate, and after
aperiod of time, will then
turn off.
Supplemental driver’s knee air bag
system (where fitted)
The supplemental driver’s knee air bag is located
under the steering column.
The supplemental driver’s knee air bag system is
designed to inflate in higher severity frontal colli-
sions, although it may inflate if the forces in another
type of collision are similar to those of ahigher se-
verity impact. It may not inflate in certain collisions. NP A1296
1-38 Safety —seats, seat belts and supplemental restraint system
