Never mount more than
1temporary spare tyre
at atime to the same vehicle.
• For tyre inflation pressure, apply same pressure
as specified for the axle the tyre is mounted on,
unless there is another indication on the tyre
placard. See, “Tyre placard” in the “9. Technical
information” section.
• Disable ESP when
atemporary spare wheel is
mounted. See, “Electronic Stability Programme
(ESP) system (where fitted)” in the “5. Starting
and driving” section.
• Never tow
atrailer when atemporary use only
spare tyre is mounted.
Maintenance and do-it-yourself8-29

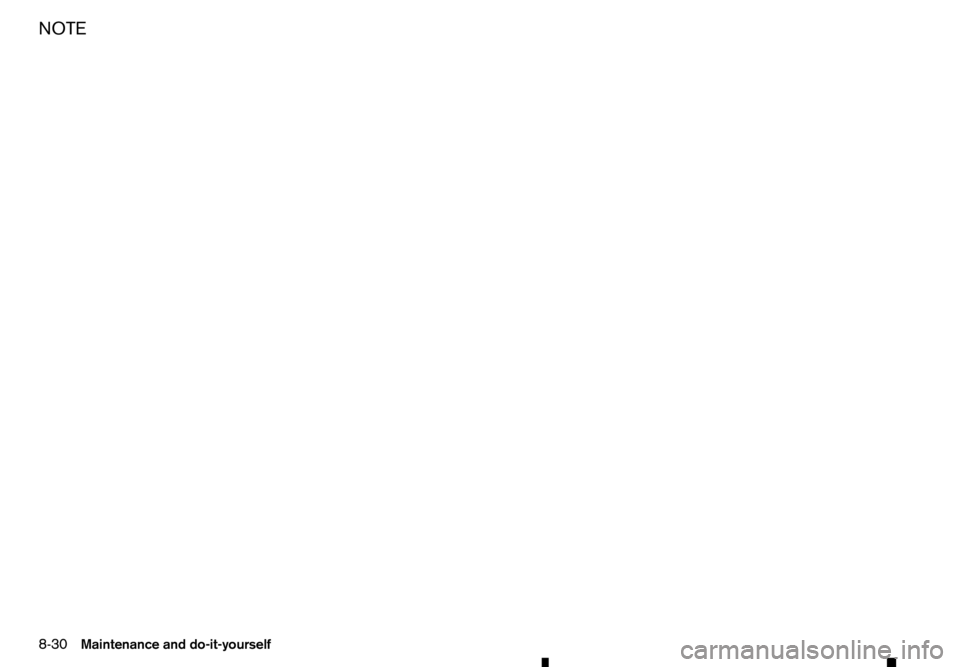

NOTE
8-30
Maintenance and do-it-yourself

9
Technical information
Technical information
Recommended fluids/lubricants and capacities ........ 9-2 Fuel information .................................................. 9-2
Automatic Transmission Fluid (ATF) .................... 9-2
Air conditioner system refrigerant and lubricant ... 9-2
Engine ..................................................................... 9-3
Tyres and wheels ..................................................... 9-4
Dimensions .............................................................. 9-5 Double Cab ........................................................ 9-5
King Cab ............................................................ 9-6
When travelling or registering in another country ...... 9-7
Vehicle identification ................................................ 9-7 Vehicle identification label ................................... 9-7
Vehicle Identification Number (VIN) plate ............ 9-7
Vehicle Identification Number (VIN) ..................... 9-7
Engine serial number .......................................... 9-7
Tyre placard ....................................................... 9-8
Air conditioner specification label ........................ 9-8
Installation of an RF transmitter ................................ 9-8
Radio approval number and information ................... 9-9 Anti-Theft System (ATS), Remote Control Key
or remote keyless system.................................... 9-9

Refer to the maintenance service booklet for your
vehicle for details of recommended fluids/lubricants
and capacities.
FUEL INFORMATION
Diesel engine*
M9T 2.3DCI engine:
Diesel fuel above 50 cetane and with less than 10
ppm of sulphur (EN590) must be used.
* If two types of diesel fuel are available, use
summer or winter fuel properly according to
the following temperature conditions.
• Above –7°C (20°F) ... Summer type diesel fuel.
• Below –7°C (20°F) ... Winter type diesel fuel.
CAUTION
• Do not use home heating oil, petrol or other
alternate fuels in your diesel engine. The use
of those or adding those to diesel fuel can
cause engine damage.
• Do not use summer fuel at temperatures be-
low –7°C (20°F). The cold temperatures will
cause wax to form in the fuel. As
aresult, it
may prevent the engine from running
smoothly. AUTOMATIC TRANSMISSION FLUID
(ATF)
Contact an approved dealer or qualified workshop if
checking or replacement is required.
CAUTION
• Use only ATF that is recommended in the
Maintenance Service Booklet. Do not mix with
other fluids.
• Using automatic transmission fluid other than
the ATF that is recommended in the Mainte-
nance Service Booklet may cause deteriora-
tion in driveability and automatic transmission
durability and may damage the automatic
transmission. Such damage is not covered by
the warranty.
AIR CONDITIONER SYSTEM
REFRIGERANT AND LUBRICANT
The air conditioner system of your vehicle must be
charged with the refrigerant HFC-134a (R134a) and the lubricant specified in the maintenance service
booklet for your vehicle..
CAUTION
Use of any other refrigerants or lubricants will
cause severe damage, and you may need to re-
place your vehicle’s entire air conditioner sys-
tem. The release of refrigerants into the atmosphere is
prohibited in many countries and regions. The re-
frigerant HFC-134a (R-134a) in your vehicle will not
harm the Earth’s ozone layer. However, it may con-
tribute in asmall part to the global warming effect.
RENAULT recommends that the refrigerant be ap-
propriately recovered and recycled. Contact an ap-
proved dealer or qualified workshop when servicing
the air conditioner system.
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2
Technical information

Engine Model
M9T 2.3DCI
Type Diesel, 4-cycle
Cylinder arrangement 4-cylinder, in-line
Bore ×Stroke mm (in) 85×101.3 (3.346 ×3.988)
Displacement cm
3(cu in) 2,298 (140.22)
Idle speed at the “N” (Neutral) posi-
tion rpm
750±50
Ignition timing (B.T.D.C.) at the “N” (Neutral) position -
Spark plugs Type Standard
-
Gap mm (in)
Camshaft operation Timing chain
ENGINE
Technical information9-3

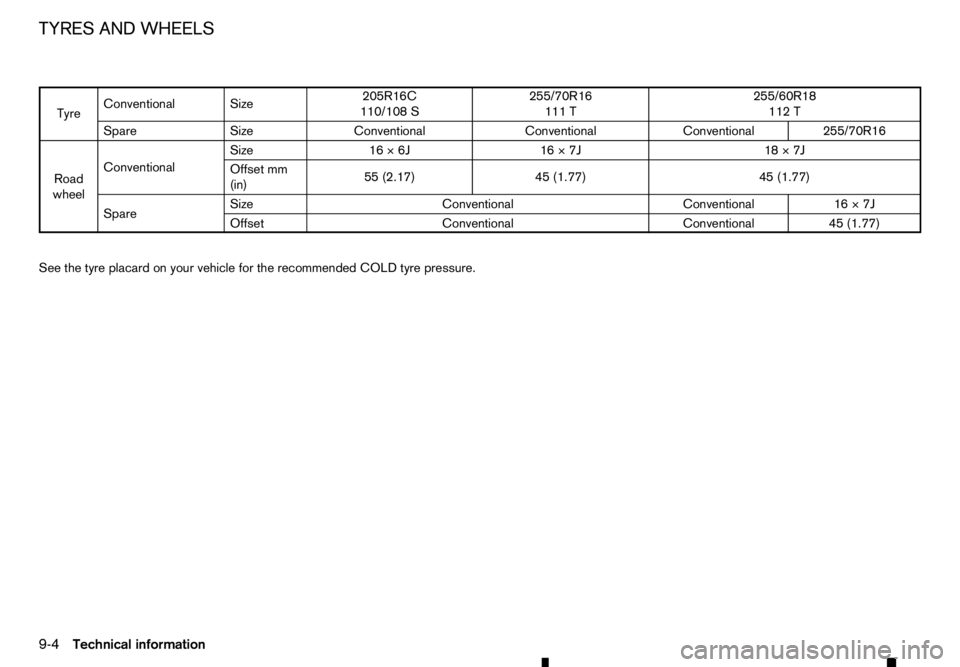

Tyre
Conventional Size
205R16C
110/108 S 255/70R16
111 T 255/60R18
112 T
Spare SizeConventional ConventionalConventional255/70R16
Road
wheel Conventional
Size
16×6 J1 6×7J1 8×7J
Offset mm
(in) 55 (2.17)
45 (1.77) 45 (1.77)
Spare Size
Conventional Conventional16×7J
Offset Conventional Conventional45 (1.77)
See the tyre placard on your vehicle for the recommended COLD tyre pressure.
TYRES AND WHEELS
9-4
Technical information

DOUBLE CAB
mm (in)Body type
Double Cab
Overall length Models without bed and rear bumper
5,120 (201.6)
Models with bed and without rear bumper 5,300 (208.6)
Models with bed and rear bumper 5,330 (209.8)
Overall width Wide body models 1,850 (72.8)
Overall height Four-Wheel Drive (4WD) models 1,805 (71.1)*2*3*4
1,810 (71.3)*2*4
1,840 (72.4)*1
Front tread 1,570 (61.8)
Rear tread 1,570 (61.8)
Wheelbase 3,150 (124.0)
*1: Models with roof rail
*2: Models without roof rail
*3: 255/70R16 tyre equipped models
*4: 255/60R18 tyre equipped models DIMENSIONS
Technical information9-5

KING CAB
mm (in)Body type
King Cab
Overall length Models without bed and rear bumper
5,120 (201.6)
Models with bed and without rear bumper 5,225 (205.7)
Models with bed and rear bumper 5,255 (206.9)
Overall width Narrow body models
1,790 (70.5)
Wide body models 1,850 (72.8)
Overall height Two-Wheel Drive (2WD) models
1,780 (70.1)*1
Four-Wheel Drive (4WD) models 1,780 (70.1)*1
1,785 (70.3)*2
1,790 (70.5)*3
Front tread Two-Wheel Drive (2WD) models
1,550 (61.0)*1
Four-Wheel Drive (4WD) models 1,550 (61.0)*1
1,570 (61.8)*2*3
Rear tread Two-Wheel Drive (2WD) models
1,550 (61.0)*1
Four-Wheel Drive (4WD) models 1,550 (61.0)*1
1,570 (61.8)*2*3
Wheelbase 3,150 (124.0)
*1: 205R16C tyre equipped models
*2: 255/70R16 tyre equipped models
*3: 255/60R18 tyre equipped models
9-6 Technical information
