2017 MITSUBISHI L200 Owner's Manual (in English)

Older children
E00406701418
Children who have outgrown the child re-
straint system should be seated in the seat
and wear combination lap shoulder belt.
The lap portion of the belt should be snug
and positioned low on the abdomen so that it is below the top of the hip-bone. Otherwise,the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
4-13OKTE17E1Seat and seat belts4

Suitability for various ISOFIX positions (Double cab)
E00411401989Mass groupSize classFixture
Vehicle ISO-
FIX positions
Recommended Child Restraint Systems* 1UN-R44 Approval
No.Rear outboardCarrycotFISO/L1X——GISO/L2X——0 - Up to 10 kgEISO/R1X——0+ - Up to 13 kgEISO/R1ILBABY-SAFE plus: MZ314393
BABY-SAFE ISOFIX BASE: MZ314394E1-04301146DISO/R2ILG 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Cen- tral- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
RWF ISOFIX platform (Rearward facing ISO- FIX base for ALL area): MZ314840 (Type D)E4-04443718CISO/R3ILI -9 kg to 18 kgDISO/R2ILCISO/R3ILBISO/F2IUF——B1ISO/F2XIUF, ILDUO plus: MZ313045E1-04301133AISO/F3IUF, ILG 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
FWF ISOFIX platform (Frontward facing ISO- FIX base for ALL area): MZ314841 (Type A)E4-04443718
Child restraint
4-14OKTE17E1Seat and seat belts4

Mass groupSize classFixture
Vehicle ISO-
FIX positions
Recommended Child Restraint Systems* 1UN-R44 Approval
No.Rear outboardII & III -15 kg to
36 kg ILKIDFIX: MZ314804E1-04301198
* 1
: MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When attaching a child restraint system to the rear seat, adjust the front seat to prevent the front seatbacks from touching the child’s feet and child restraint
system.Definition of characters to be inserted in the table above:
l IUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems. See the above table of “Recommended Child Restraint Systems”.
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.

i-Size child restraint system
E00464700037
Seating positionSecond outboardi-Size child restraint systemi-UDefinition of characters to be inserted in the table above:
l i-U- Suitable for i-Size “universal” child restraint system forward and rearward facing.

Child restraint
4-15OKTE17E1Seat and seat belts4

Suitability for various seating positions
E00406802751
Single cabMass groupSeating positionRecommended Child Restraint Systems*1UN-R44
Approval No.Front passenger0 - Up to 10 kgX——0+ - Up to 13 kgX——
I -9 kg to 18 kgUF, L
G 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgUF, LKID plus: MZ314250E1-04301169KIDFIX: MZ314804E1-04301198*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system on the front passenger seat, please move the seatback position 1 step rearward from the upright position.
Child restraint
4-16OKTE17E1Seat and seat belts4

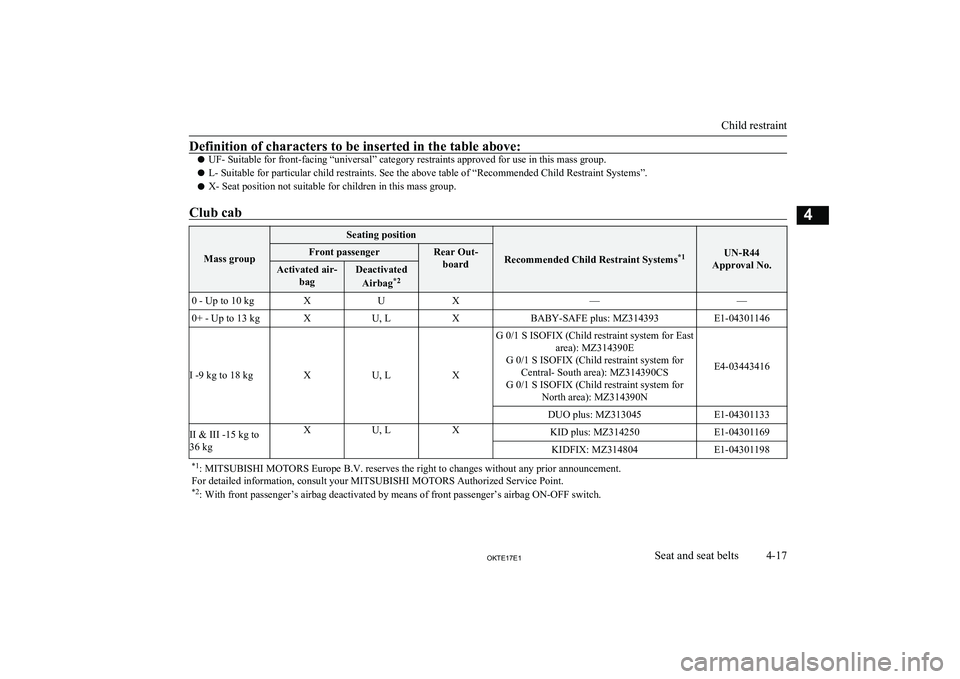

Definition of characters to be inserted in the table above:
lUF- Suitable for front-facing “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
Club cab
Mass group
Seating position
Recommended Child Restraint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardActivated air- bagDeactivated
Airbag *20 - Up to 10 kgXUX——0+ - Up to 13 kgXU, LXBABY-SAFE plus: MZ314393E1-04301146
I -9 kg to 18 kgXU, LX
G 0/1 S ISOFIX (Child restraint system for East
area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgXU, LXKID plus: MZ314250E1-04301169KIDFIX: MZ314804E1-04301198*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. *2 : With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
Child restraint
4-17OKTE17E1Seat and seat belts4

CAUTIONlWhen installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system (Mass group II & III) on the front passenger seat, please move the seatbacks position to 2 steps rearward from
upright position.Definition of characters to be inserted in the table above:
l U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
Double cab
Mass group
Seating position
Recommended Child Re-
straint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardRear centreActivated air- bagDeactivated
Airbag *20 -Up to 10 kgXUUU——0+ -Up to 13 kgXU, LU, LU, LBABY-SAFE plus:
MZ314393E1-04301146*1: MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. *2 : With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
Child restraint
4-18OKTE17E1Seat and seat belts4

Mass group
Seating position
Recommended Child Re-straint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardRear centreActivated air- bagDeactivated
Airbag *2
I -9 kg to 18 kgXU, LU, LU, L
G 0/1 S ISOFIX (Child re-
straint system for East area): MZ314390E
G 0/1 S ISOFIX (Child re- straint system for Central-
South area): MZ314390CS G 0/1 S ISOFIX (Child re-
straint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgXU, LU, LXKID plus: MZ314250E1-04301169KIDFIX: MZ314804E1-04301198*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. *2 : With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
Child restraint
4-19OKTE17E1Seat and seat belts4

CAUTIONlWhen installing a child restraint system, remove the head restraint from the seat.
l Child restraint system with support leg can not be suitable on the rear centre seat.
l When installing a child restraint system (Mass group II & III) on the front passenger seat, please move the seatbacks position to 2 steps rearward from
upright position.
l When attaching a child restraint system to the rear seat, adjust the front seat to prevent the front seatbacks from touching the child’s feet and child restraint
system.
l Pull down the head restraint of the child restraint after the child gets down from the child restraint when you use the “KID-FIX” or “KID PLUS” in the rear
seat to prevent the head restraint of the child restraint from touching the rear glass.
And make sure the head restraint is adjusted and properly positioned when the child sits in the child restraint system.Definition of characters to be inserted in the table above:
l U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
