2017 MITSUBISHI L200 Owner's Manual (in English)

Quick guideE08500500010Locking and unlocking the
doors
E08500601454
Keyless entry system*
Press the key switch, and all doors will be
locked or unlocked as desired.
It is also possible to operate the outside rear-
view mirrors. (Vehicles equipped with the mirror retractor switch)
The key switch will operate within approxi-
mately 4 m from the vehicle.
1. LOCK switch
2. UNLOCK switch
3. Indication lamp
Refer to “Keyless entry system*” on page
3-03.
For vehicles equipped with the mirror retrac- tor switch, the outside rear-view mirrors can
be folded and extended automatically if you press the LOCK switch (1) or UNLOCK
switch (2).
Refer to “Operation of the outside rear- view mirrors” on page 3-04.
Keyless operation system*
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door switch (A), the doors are locked/unlocked.The operating range is approximately 70 cm from the driver’s or front passenger’s door
lock/unlock switch.
Refer to “Keyless operation system*” on page 3-07.
Around the driver’s seat
E08500801531
Quick guide
1-15OKTE17E1Overview/Quick guide1Keyless entry key Keyless operation key

1-Electric remote-controlled
outside rear-view mirrors* To adjust the mirror position
L- Left outside mirror adjustment
R- Right outside mirror adjustment 1- Up
2- Down
3- Right
4- Left
5- Mirror retractor switch* Refer to “Outside rear-view mirrors” on
page 6-09.
2-Engine switch* [For vehicles equipped with keyless opera-
tion system]
If

you are carrying the keyless operation key,
you can start the engine. If you press the en- gine switch without depressing the brakepedal (A/T) or the clutch pedal (M/T), you
can change the operation mode in the order
of OFF, ACC, ON, OFF. OFF- The indication lamp on the en-
gine switch turns off.
ACC- The indication lamp on the en- gine switch illuminates orange.
ON- The indication lamp on the en- gine switch illuminates green. Refer to “Engine switch” on page 6-14.
3-Combination headlamps Rotate the switch to turn on the lamps.
Type 1
OFF All lamps off
Position, tail, licence plate and
instrument panel lamps on Headlamps and other lamps go
on Quick guide
1-16
OKTE17E1
Overview/Quick guide 1Except for vehicles
e
quipped with the mirror
retractor switch
V
the mirror retractor
switch

Type 2
OFF All lamps off
AUTO With the ignition switch or the
operation mode is in
ON, head-
lamps, position, tail, licence plate and instrument panellamps turn on and off automati-
cally in accordance with outside
light level. All lamps turn off automatically when the ignition
switch is turned to “OFF” posi-
tion or the operation mode is put in OFF. Position, tail, licence plate and
instrument panel lamps on Headlamps and other lamps go
on Refer to “Combination headlamps and
dipper switch” on page 5-17. 3-Turn-signal lever The turn-signal lamps flash when the lever is
operated. 1. Turn-signals
2.
Lane-change signals
Refer to
“Turn-signal
lever” on page
5-20.
4-Steering wheel height and
reach adjustment 1. Release the lever while holding the
steering wheel up.
2. Adjust the

steering wheel to the desired
position. 3. Securely lock the steering wheel by pull-
ing the lever fully upward. A- Locked
B- Release *: Vehicles equipped with the reach adjustment Quick guide
1-17
OKTE17E1 Overview/Quick guide 1
* *

Refer to “Steering wheel height and reach
adjustment” on page 6-07.
5-Wiper and washer switch Except for vehicles equipped with rain
sensor MIST- Misting function
The wipers will operate
once.
OFF- Off INT- Intermittent (Speed sensi- tive)
LO- Slow HI- Fast Vehicles with rain sensor
MIST- Misting function
The
wipers will operate
once.
OFF- Off
AUTO- Auto-wiper control Rain sensor
The

wipers will automati-
cally operate depending on
the degree of wetness on
the windscreen.
LO- Slow HI- Fast
The
washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on page 5-23. 6-Electric window control* Press the switch down for opening the win-
dow, and pull the switch for closing. 1. Driver’s door window
2.

Front passenger’s door window
3. Rear left door window (Double cab)
4. Rear right door window (Double cab)
5. Lock switch
Lock switch
If you press the switch (5), the passenger’s switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control*” on
page 3-21.
Quick guide
1-18
OKTE17E1
Overview/Quick guide 1 Driver’s switch
L
HD Driver’s switch
RHD

7-Fuel tank filler door release
lever*
Open the fuel tank filler door.
The fuel tank filler is located on the rear left side of your vehicle.
Refer to “Filling the fuel tank” on page 2-02.
Automatic transmission Sports
Mode 5A/T
E08501001325
Selector lever operation
The transmission selects an optimum gear ra- tio automatically, depending on the speed of the vehicle and the position of the acceleratorpedal.
While depressing the brake ped-
al, move the selector lever through the gate.Move the selector lever through
the gate.
Selector lever positions
“P” PARK
This position locks the transmission to pre-
vent the vehicle from moving. The engine
can be started in this position.
“R” REVERSE
This position is to back up.
“N” NEUTRAL
At this position the transmission is disengag- ed.
“D” DRIVE
This position is for normal driving.

Refer to “Automatic transmission Sports Mode 5A/T” on page 6-28.
Multi information display
E08501201226
Always stop the vehicle in a safe place before
operating.
Quick guide
1-19OKTE17E1Overview/Quick guide1Type 1 Type 2 LHD RHD

The following information is included on themulti information display: odometer, tripme-
ter, average fuel consumption etc.
1- Engine coolant temperature display
® p. 5-06
2- Selector lever position display*
® p. 6-31
3- Speed limiter display* ® p. 6-71
4- Gearshift indicator* ® p. 6-26
5- Fuel remaining display ® p. 5-07
6- Frozen road warning* ® p. 5-06
7- Information display ® p. 5-03
8- Service reminder ® p. 5-07

Refer to “Multi-information display” on page 5-02.
Quick guide
1-20OKTE17E1Overview/Quick guide1

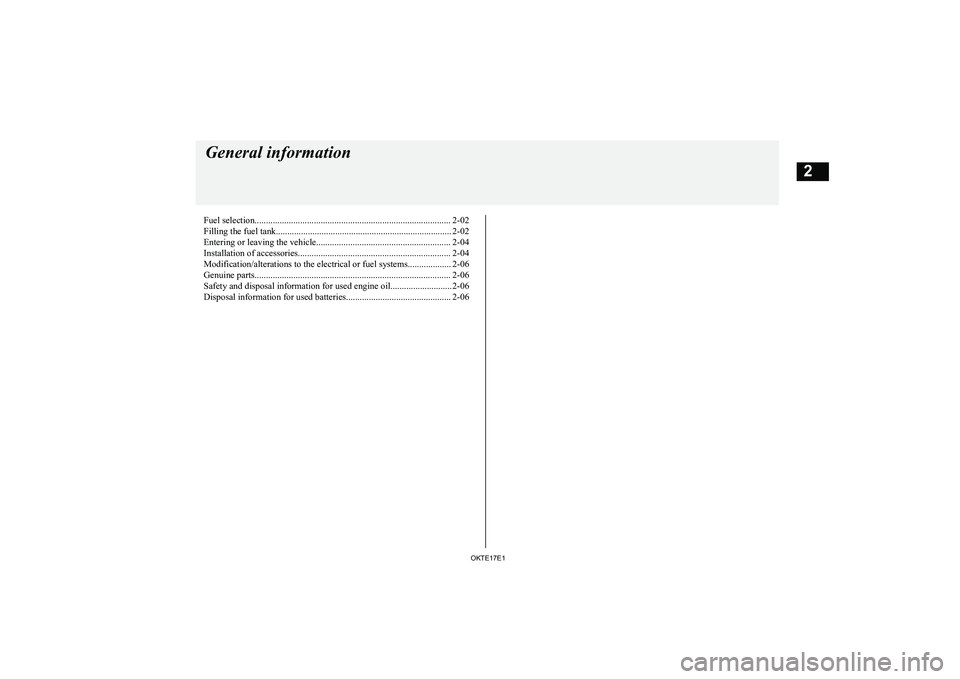

Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-02Entering or leaving the vehicle........................................................... 2-04Installation of accessories................................................................... 2-04
Modification/alterations to the electrical or fuel systems................... 2-06
Genuine parts...................................................................................... 2-06
Safety and disposal information for used engine oil........................... 2-06
Disposal information for used batteries.............................................. 2-06General information
OKTE17E12

Fuel selectionE00200104813Recommended fuel
Cetane number (EN
590) 51 or higherCAUTIONlYour vehicle is designed to use only diesel
fuel that meets the EN590 standard.
Use of any other type of diesel fuel would
adversely affect the engine’s performance and durability.
l If proper “winter” fuel is not used in winter,
the diesel preheat indication lamp may blink
and the engine speed may not rise above the idling speed because of fuel freezing. In thiscase, keep the engine idling for approxi-
mately 10 minutes, then turn off the ignition switch or put the operation mode in OFF and
immediately turn it on or put in ON again to confirm that the diesel preheat indication
lamp is off. (Refer to “Diesel preheat indica- tion lamp” on page 5-14)NOTEl For diesel fuel, due to the separation of par-
affin, the fluidity of the fuel decreases con- siderably as the temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac- cordance with ambient temperature. Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta- tions.
l Poor-quality diesel fuel can cause deposits to
form in the injector, resulting in black smoke and rough idling.
If these problems occur, you are advised to
add a cleaning additive to the diesel fuel when you refuel the vehicle.
The additive will break up and remove the
deposits, thereby returning the engine to a normal condition.
Be sure to use a MITSUBISHI MOTORS
GENUINE DIESEL FUEL SYSTEM
CLEANER. Using an unsuitable additive could make the engine malfunction. For de-
tails, please contact your MITSUBISHI
MOTORS Authorized Service Point.Filling the fuel tank
E00200204322WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and filling stations.
l Fuel is highly flammable and explosive.
You could be burned or seriously injured
when handling it. When refueling your
vehicle, always turn the engine off and keep away from flames, sparks and smok-
ing materials. Always handle fuel in well-
ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by touching a metal part of the vehicle or
fuel pump. Any static electricity on your
body could create a spark that ignites fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel
tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapour could be ignited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you moved
away and did something else (for exam- ple, sitting on a seat) part-way through
the refueling process, you could pick up a fresh charge of static electricity.
l Be careful not to inhale fuel vapour. Fuel
contains toxic substances.
Fuel selection
2-02OKTE17E1General information2
