Installing a child restraint sys-tem to the lower anchorage (ISOFIX child restraint mount-ings) and tether anchorage (Double cab)
E00408902147
Lower anchorage location
Your vehicle’s rear seat is fitted with lower anchorages for attaching a child restraint sys-tem with ISOFIX mountings.
Tether anchorage location
There are 2 child restraint anchorage points on the vertical panel, located behind the rear
seat.
These are for securing a child restraint sys- tem tether strap to each of the 2 rear seating
positions in your vehicle.
*: Front of the vehicle
WARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehi- cle.Child restraint system with
ISOFIX mountings (Doublecab)
E00409001614
The child restraint system is designed only
for seats that incorporate lower anchorages. Retain the child restraint system using the
lower anchorages.
It is not necessary to retain the child restraint system using the vehicle’s seat belts.
A- Child restraint system connectors
Child restraint
4-21OKTE17E1Seat and seat belts4Type 1 (ISOFIX marking) Type 2 (i-size marking)

To install
1.Remove any foreign material in or
around the connectors and ensure the ve-
hicle seat belt is in its normal storage po-
sition.
2. Remove the head restraint from the loca-
tion in which you wish to install a child
restraint.
Refer to “Head restraints*” on page
4-05.
3. Push the child restraint system’s connec-
tors (A) into the lower anchorages (B) inaccordance with the instructions provi-
ded by the child restraint system’s man-
ufacturer.
A- Connector B- Lower anchorage
If your child restraint system has a sup- port leg, make sure that there is a sup-
port leg at the stable position on the
floor.
If your child restraint system with a teth- er strap, perform the step 4 through 8.
If your child restraint system without a
tether strap, perform the step 8.
4. Drop the child restraint’s tether strap (C)
down from the clearance between the rear seatback and back panel trim.5. Tip the armrest forward. Open the two
fasteners (D) that are located in the space where the armrest are stowed.
6. Open the inner cover.
7. Put your hand in the opening of the two
fasteners, attach the tether strap hook (E)
to the tether anchorage (F), and securely tighten the tether strap.
Child restraint
4-22OKTE17E1Seat and seat belts4

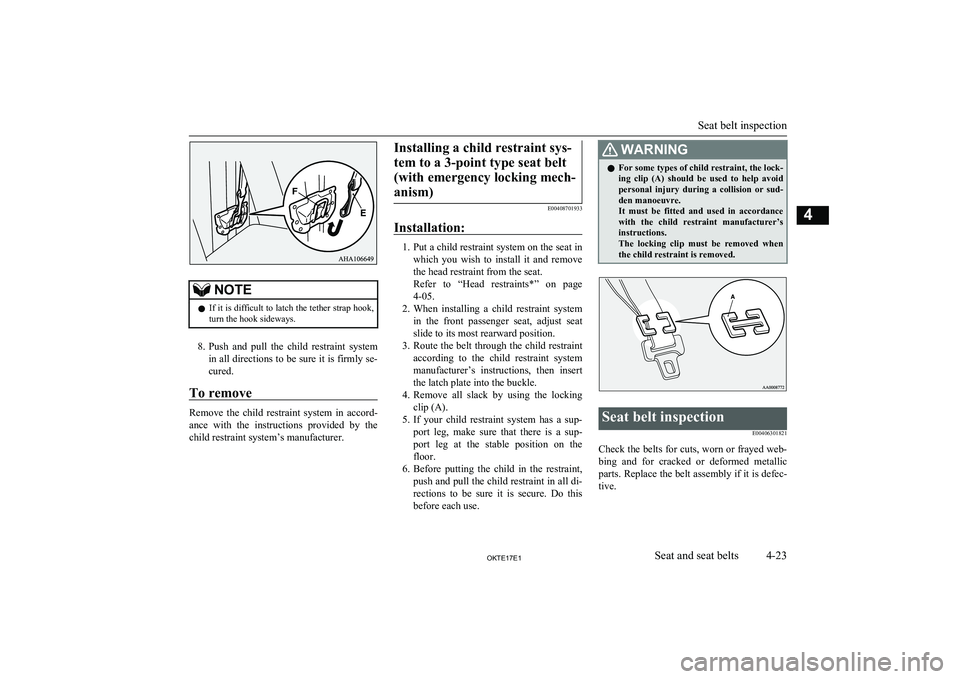

NOTElIf it is difficult to latch the tether strap hook,
turn the hook sideways.
8. Push and pull the child restraint system
in all directions to be sure it is firmly se- cured.
To remove
Remove the child restraint system in accord- ance with the instructions provided by the
child restraint system’s manufacturer.
Installing a child restraint sys-
tem to a 3-point type seat belt (with emergency locking mech-anism)
E00408701933
Installation:
1. Put a child restraint system on the seat in
which you wish to install it and remove
the head restraint from the seat.
Refer to “Head restraints*” on page 4-05.
2. When installing a child restraint system
in the front passenger seat, adjust seat slide to its most rearward position.
3. Route the belt through the child restraint
according to the child restraint system manufacturer’s instructions, then insert
the latch plate into the buckle.
4. Remove all slack by using the locking
clip (A).
5. If your child restraint system has a sup-
port leg, make sure that there is a sup- port leg at the stable position on the
floor.
6. Before putting the child in the restraint,
push and pull the child restraint in all di-
rections to be sure it is secure. Do this before each use.
WARNINGl For some types of child restraint, the lock-
ing clip (A) should be used to help avoid personal injury during a collision or sud-den manoeuvre.
It must be fitted and used in accordance with the child restraint manufacturer’s
instructions.
The locking clip must be removed when the child restraint is removed.Seat belt inspection
E00406301821
Check the belts for cuts, worn or frayed web-bing and for cracked or deformed metallic
parts. Replace the belt assembly if it is defec-
tive.
Seat belt inspection
4-23OKTE17E1Seat and seat belts4

WARNINGlWe recommend you to have all seat belt
assemblies including retractors and at-
taching hardware inspected after any col- lision. We recommend that seat belt as- semblies in use during a collision be re-
placed unless the collision was minor and
the belts show no damage and continue to operate properly.
l Do not attempt to repair or replace any
part of the seat belt assemblies; we recom-
mend you to have this work done by a MITSUBISHI MOTORS Authorized
Service Point. Incorrect repair or replace-
ment could reduce the effectiveness of the
belts and could result in serious injury in
the event of a collision.
l Once the pretensioner has been activated,
it cannot be re-used.
It must be replaced together with the re- tractor.WARNINGl Do not insert any foreign objects (pieces
of plastic, paper clips, buttons, etc.) in the
buckle or retractor mechanism. In addi- tion, do not modify, remove or install the
seat belt. Otherwise, the seat belt may not be able to provide adequate protection in a collision or other situation.
l A dirty belt should be cleaned with neu-
tral detergent in warm water. After rins-
ing in water, let it dry in the shade. Do not
attempt to bleach or re-dye the belts be-
cause this will affect their characteristics.
Supplemental restraint
system (SRS)-airbag* E00407203573
The information for SRS airbags includes im-
portant information concerning the driver’s and front passenger’s airbags, the driver’s knee airbag, the side airbags and the curtain
airbags.

The SRS driver’s and front passenger’s air- bags are designed to supplement the primary
protection of the driver and front passenger
side seat belt systems by providing those oc- cupants with protection against head and
chest injuries in certain moderate-to-severe frontal collisions.

The SRS driver airbag employ a dual stage
airbag system (if so equipped). The SRS
driver and front passenger airbag is control- led by the impact sensors (at the front of the
vehicle) and the control unit (near the centre of the vehicle at floor level).

The SRS driver’s knee airbag (if so equip-
ped) is designed to supplement the primary
protection of the driver’s seat belt system. It can reduce the forward movement of the
driver’s lower legs and provide increased overall body protection in certain moderate-
to-severe frontal collisions.

The SRS side airbags (if so equipped) are de- signed to supplement properly worn seat belts and provide the driver and front passen-
ger with protection against chest injuries in certain moderate-to-severe side impact colli- sions.

Supplemental restraint system (SRS)-airbag*
4-24OKTE17E1Seat and seat belts4

The SRS curtain airbags (if so equipped) aredesigned to supplement properly worn seat
belts and provide the driver and passengers on the front seat and rear outboard seat with
protection against head injuries by deploying the curtain airbag on the side impacted in
moderate-to-severe side impact collisions.

The SRS is NOT a substitute for the seat belts. To ensure the maximum protection dur-
ing all types of collisions and accidents, all
occupants, including the passengers as well as the driver, must wear their seat belts.NOTEl The ERA-GLONASS (if so equipped) is de-
signed to operate when any of the airbags deploy.
Refer to “ERA-GLONASS*” on page 8-02How the Supplemental Re-
straint System works
E00407303284

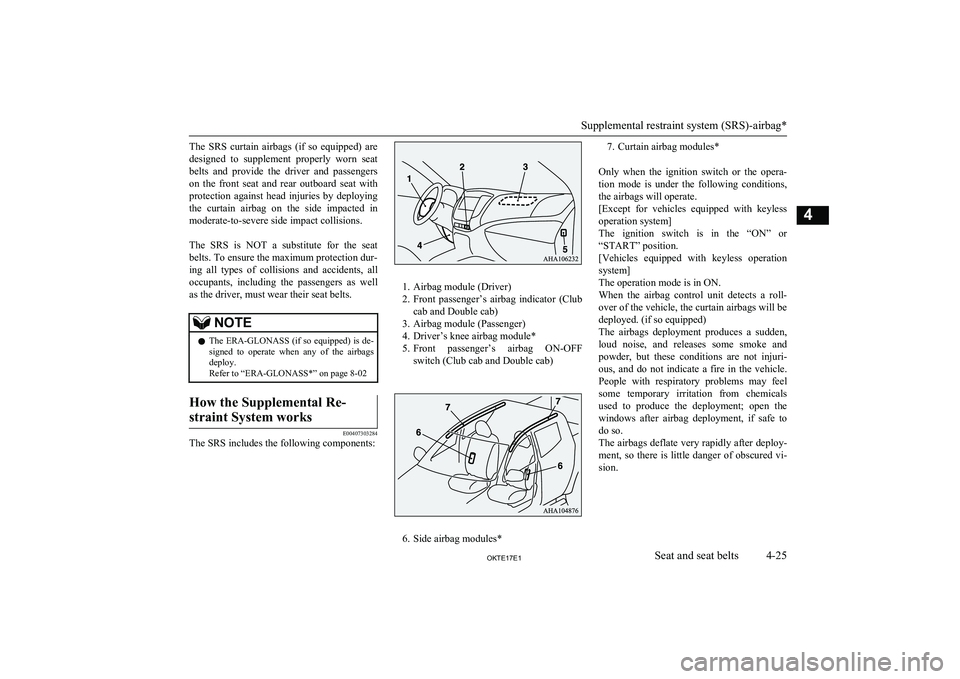

The SRS includes the following components:
1. Airbag module (Driver)
2. Front passenger’s airbag indicator (Club
cab and Double cab)
3. Airbag module (Passenger)
4. Driver’s knee airbag module*
5. Front passenger’s airbag ON-OFF
switch (Club cab and Double cab)

6. Side airbag modules*
7. Curtain airbag modules*
Only when the ignition switch or the opera- tion mode is under the following conditions,
the airbags will operate.
[Except for vehicles equipped with keyless
operation system]
The ignition switch is in the “ON” or “START” position.
[Vehicles equipped with keyless operation
system]
The operation mode is in ON.
When the airbag control unit detects a roll- over of the vehicle, the curtain airbags will bedeployed. (if so equipped)
The airbags deployment produces a sudden,
loud noise, and releases some smoke and powder, but these conditions are not injuri-
ous, and do not indicate a fire in the vehicle. People with respiratory problems may feel
some temporary irritation from chemicals used to produce the deployment; open the
windows after airbag deployment, if safe to
do so.
The airbags deflate very rapidly after deploy- ment, so there is little danger of obscured vi-
sion.
Supplemental restraint system (SRS)-airbag*
4-25OKTE17E1Seat and seat belts4

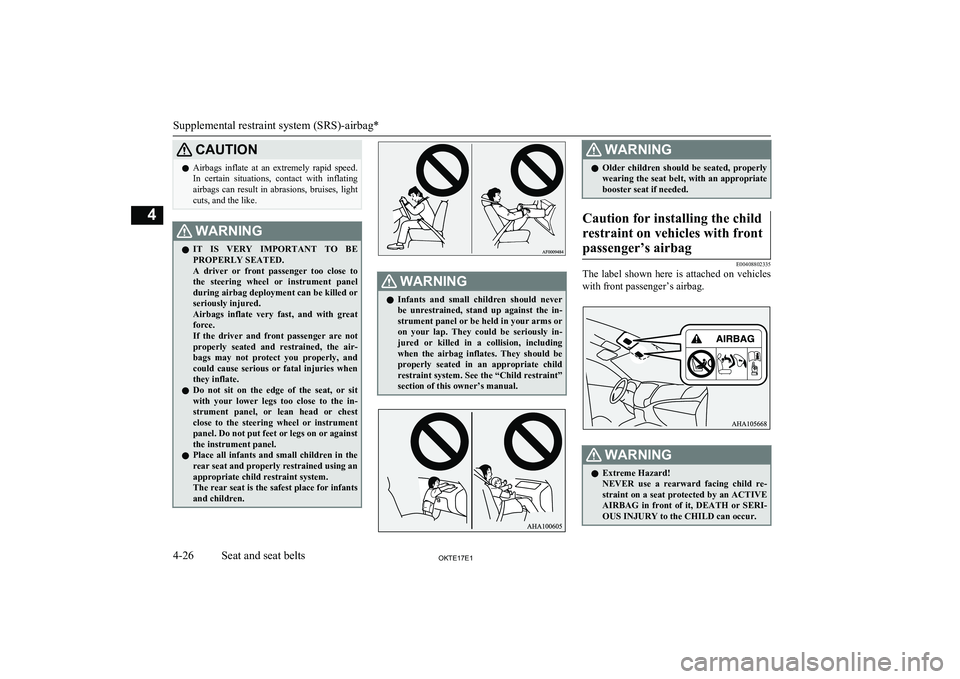

CAUTIONlAirbags inflate at an extremely rapid speed.
In certain situations, contact with inflatingairbags can result in abrasions, bruises, light
cuts, and the like.WARNINGl IT IS VERY IMPORTANT TO BE
PROPERLY SEATED.
A driver or front passenger too close to the steering wheel or instrument panel
during airbag deployment can be killed or seriously injured.
Airbags inflate very fast, and with great force.
If the driver and front passenger are not
properly seated and restrained, the air-
bags may not protect you properly, and could cause serious or fatal injuries whenthey inflate.
l Do not sit on the edge of the seat, or sit
with your lower legs too close to the in-
strument panel, or lean head or chest close to the steering wheel or instrument
panel. Do not put feet or legs on or against
the instrument panel.
l Place all infants and small children in the
rear seat and properly restrained using an
appropriate child restraint system.
The rear seat is the safest place for infants
and children.WARNINGl Infants and small children should never
be unrestrained, stand up against the in-strument panel or be held in your arms or on your lap. They could be seriously in-jured or killed in a collision, including when the airbag inflates. They should be
properly seated in an appropriate child restraint system. See the “Child restraint”
section of this owner’s manual.WARNINGl Older children should be seated, properly
wearing the seat belt, with an appropriatebooster seat if needed.Caution for installing the child
restraint on vehicles with frontpassenger’s airbag
E00408802335
The label shown here is attached on vehicles with front passenger’s airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.
Supplemental restraint system (SRS)-airbag*
4-26OKTE17E1Seat and seat belts4

NOTElThe labels may be in different positions de-
pending on the vehicle model.Front passenger’s airbag ON-
OFF switch (Club cab and Double cab)
E00410101455
The front passenger’s airbag ON-OFF switch
can be used to disable the front passenger’s airbag. If you have a child restraint system
that cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger’s airbag ON-OFF switch be-
fore using it.
(Refer to “To turn an airbag off (Club cab
and Double cab)” on page 4-27)
The front passenger’s airbag ON-OFF switch
is located as shown in the illustration.
Front passenger’s airbag indi-
cator (Club cab and Doublecab)
E00410201430
The front passenger’s airbag indicator is lo-
cated in the instrument panel.
The both indicator normally comes on when
the ignition switch is turned to the “ON” po-
sition or the operation mode is put in ON, and goes off a few seconds later.
When the front passenger’s airbag ON-OFF switch is turned OFF, the OFF indicator will
stay on to show that the front passenger’s air-
bag is not operational. When the front pas- senger’s airbag ON-OFF switch is turned
ON, the OFF indicator goes off, and the ON indicator comes on for approximately 1 mi-
nute to show that the front passenger’s airbag is operational.
WARNINGl Do not fit any accessory that makes the
indication lamp impossible to see, and do
not cover the indication lamp with a stick- er. You would not be able to verify thestatus of the passenger airbag system.To turn an airbag off (Club cab
and Double cab)
E00412301190
WARNINGl To reduce risk of serious or fatal injury:
• Always turn the ignition switch to the
“LOCK” position or put the operation mode in OFF, before operating the front passenger’s airbag ON-OFF
switch. Failure to do so could adversely affect the airbag performance.
• Wait at least 60 seconds to operate the
front passenger’s airbag ON-OFF switch after turning the ignition switch
to the “LOCK” position or putting the
operation mode in OFF.
The SRS airbag system is designed to
retain enough voltage to deploy the air- bag.
Supplemental restraint system (SRS)-airbag*
4-27OKTE17E1Seat and seat belts4 Type 1
Type 2

WARNING•Always remove the key from the front
passenger’s airbag ON-OFF switch af-
ter operating that switch. Failure to do so could lead to improper position ofthe front passenger’s airbag ON-OFF
switch.
• Do not turn OFF the front passenger’s
airbag ON-OFF switch except when a child restraint system is fitted to the
front passenger seat.
• If the OFF indicator does not come on
when the front passenger’s airbag ON-
OFF switch is turned OFF, do not fit a child restraint system to the front pas-
senger seat. We recommend you to
have the system inspected by a MITSUBISHI MOTORS Authorized
Service Point.
• If the OFF indicator remains on when
the front passenger’s airbag ON-OFF switch is turned ON, do not allow any- one to sit on the front passenger seat.
We recommend you to have the system inspected by a MITSUBISHI
MOTORS Authorized Service Point.
To turn an airbag off, follow these steps:
1. Insert the key into the front passenger’s
airbag ON-OFF switch, and turn it to the “OFF” position.
2. Remove the key from the front passen-
ger’s airbag ON-OFF switch.
3. Turn the ignition switch to the “ON” po-
sition or put the operation mode in ON. The front passenger’s airbag OFF indi-
cation lamp will stay on.
The front passenger’s airbag is now deactiva- ted and will not deploy until switched on
again.
Driver’s and front passenger’s
airbag system
E00407402015
The driver’s airbag is located under the pad- ded cover in the middle of the steering wheel. The front passenger’s airbag is contained in
the instrument panel above the glove box.
The driver’s airbag inflates at two different rates according to the severity of the impact
(if so equipped).
The driver’s airbag and the front passenger’s
airbag are designed to inflate at the same time even if the passenger seat is not occu-pied.
Supplemental restraint system (SRS)-airbag*
4-28OKTE17E1Seat and seat belts4 AHA109190
Type 1
Type 2
