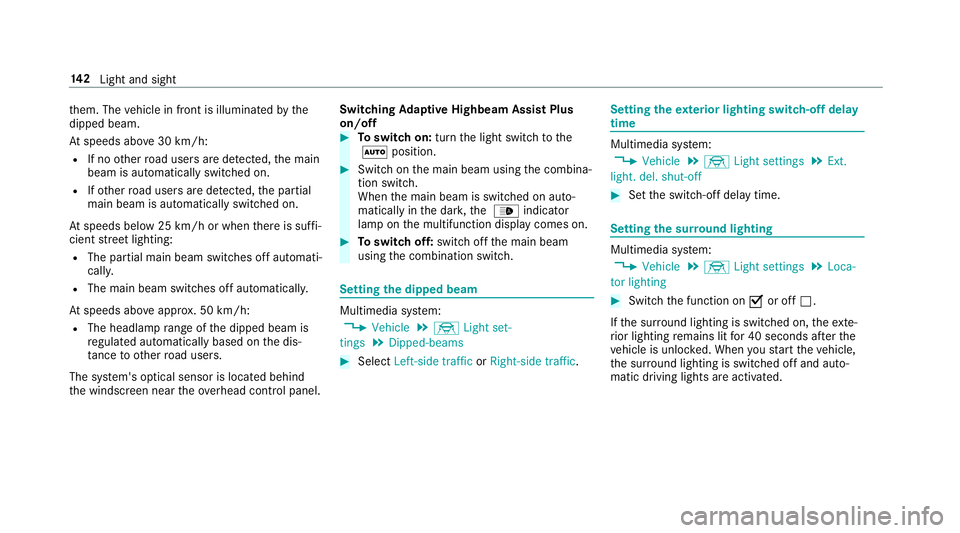

em. The vehicle in front is illuminated bythe
dipped beam.
At speeds abo ve30 km/h:
R If no other road user saredetected, them ain
beam is automaticall yswitched on.
R Ifot her road user saredetected, thep artial
main beam is automaticall yswitched on.
At speeds belo w25km/h or when ther eiss uffi‐
cient stre et lighting:
R The partial main beam switches of fautomati‐
call y.
R The main beam switches of fautomatically.
At speeds abo veappr ox.50k m/h:
R The headlamp rang eoft he dipped beam is
re gulated automatically based on thed is‐
ta nce to ot herroad users.
The sy stem's optical sensor is located behind
th ew indscreen near theo verhead control panel. Switching
Adaptiv eHighbeam Assis tPlus
on/off #
Toswitc hon:tur nthe light switc htothe
à position. #
Switc hont he main beam using thec ombina‐
tion switch.
When them ain beam is switched on auto‐
maticall yinthe dar k,the _ indicator
lam pont he multifunction displa ycomes on. #
Toswitc hoff:switc hoffthem ain beam
using thec ombination switch. Setting
thed ipped beam Multimedia sy
stem:
, Vehicle .
÷ Light set-
tings .
Dipped-beams #
Select Left-side traffic orRight-side traffic. Setting
thee xterior ligh ting switch-of fdelay
time Multimedia sy
stem:
, Vehicle .
÷ Light settings .
Ext.
light. del. shut-off #
Setthe switch-of fdela ytime. Setting
thes urround lighting Multimedi
asystem:
, Vehicle .
÷ Light settings .
Loca-
tor lighting #
Switc hthe function on Oor off ª.
If th es urround lighting is swit ched on, thee xte‐
ri or lighting remains lit for40s econds af tert he
ve hicle is unloc ked. When yous tart thev ehicle,
th es urround lighting is swit ched of fand auto‐
matic driving lights ar eactivated. 14 2
Light and sight

Interior lighting
Ad
justin gthe in terior lighting Fr
ont overhead control panel 1
p Front lef treading lamp
2 | Automatic interior lighting control
3 c Front interior lighting
4 u Rear interior lighting
5 p Front right readin glamp #
Toswitc honoro ff:press the1-5 but‐
to n. Control pane
linthegrab handle 1
p Rear readin glamp #
Toswitc honoro ff:press the1button. Ad
justin gthe ambien tlighting Multimedia sy
stem:
, Vehicle .
÷ Light settings .
Ambi-
ent light
Setting thec olour #
Select Colour. #
Setac olour. Ad
justin gthe brightness #
Select Brightness . #
Setab righ tness value.
Ac tivatin gthe brightness forz ones #
Select Brightness zones . #
Activate Oor deacti vate ª thef unction.
The Display ,Front andRear zones can be set
separately.
% Setting brightness zones is no tavailable for
th eR ear Seat Ente rtainment Sy stem.
Ac tivatin gmulti-coloured lighting #
Select Multi-colour. #
Activate Oor deacti vate ª thef unction.
Ther earetenp rese tc olou rcombinations
av ailable.
Ac tivatin gmulti-coloured animation #
Select Multi-colou ranimat.. #
Activate Oor deacti vate ª thef unction.
The chosen colour combination changes in a
predefine drhythm. Light and sight
14 3

Ac

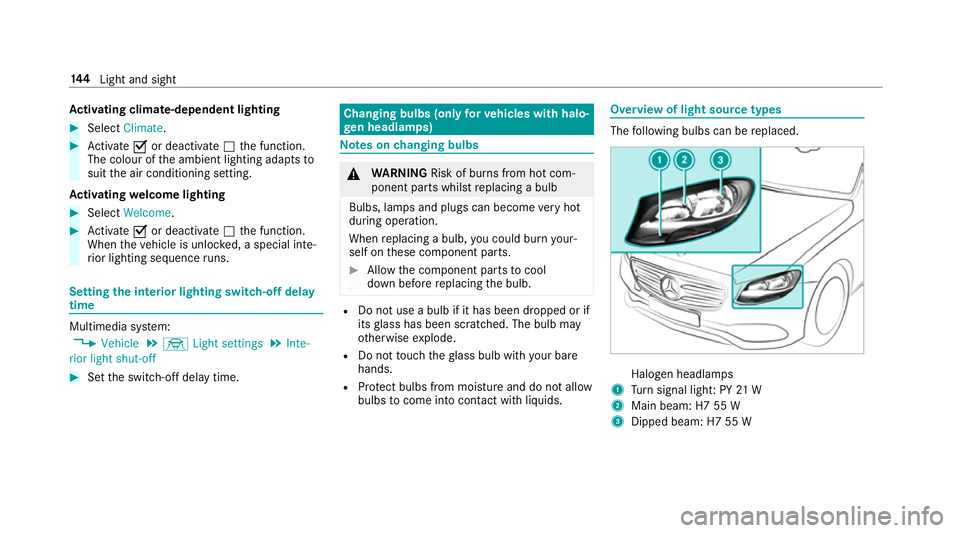

tivatin gclimate-dependen tlighting #
Select Climate. #
Activate Oor deacti vate ª thef unction.
The colour of thea mbient lighting adapts to
suit thea ir conditionin gsetting.
Ac tivatin gwelcome lighting #
Select Welcome. #
Activate Oor deacti vate ª thef unction.
When thev ehicle is unloc ked, as pecial inte‐
ri or lighting sequence runs. Settin
gthe in terior lighting switch-of fdelay
time Multimedia sy
stem:
, Vehicle .
÷ Light settings .
Inte-
rior light shut-off #
Setthe switch-of fdela ytime. Changing bulbs (onl
yfor vehicles with halo‐
ge nh eadla mps) Note
sonc hanging bulbs &
WARNING Risk of bu rnsf romh otcom‐
ponent parts whils treplacing abulb
Bulbs, lamps and plugs can become very hot
during operation.
When replacing abulb, youc ould bur nyour‐
self on these componen tparts. #
Allo wthe component parts tocool
down befor ereplacing theb ulb. R
Do no tuse ab ulb if it has been dropped or if
its glass has been sc ratched. The bulb may
ot herwise explode.
R Do no ttouc hthe glass bulb wit hyour bare
hands.
R Protect bulbs from moistur eand do no tallow
bulbs tocome int ocontact wi thliquids. Overvie
woflight source types The
following bulbs can be replaced. Halogen headlamps
1 Turn signal light :PY21W
2 Main beam: H7 55 W
3 Dipped beam: H7 55 W 14 4
Light and sight

Changing
thef ront bulbs (vehicles wit hhalo‐

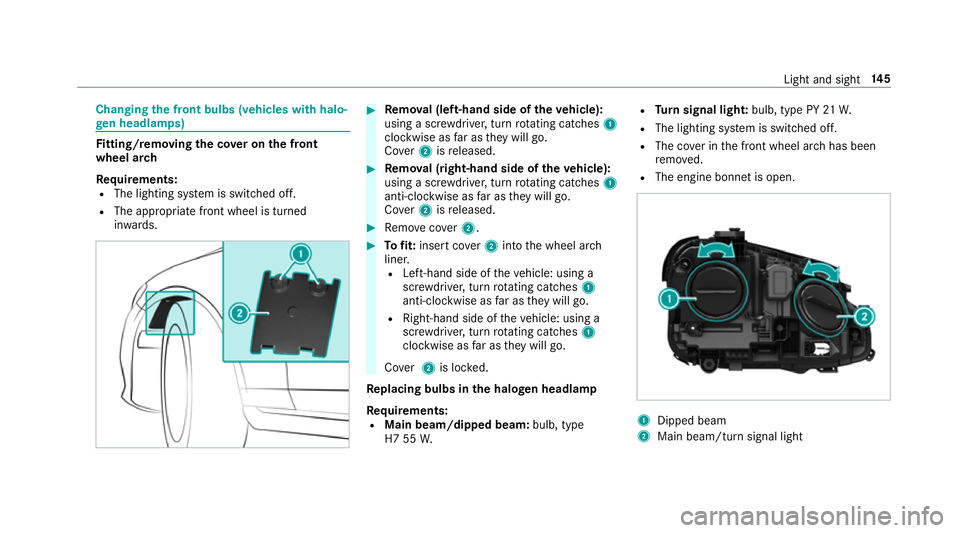

ge nh eadla mps) Fi
tting/ removing the co vero nthe front
whee larch
Re quirements:
R The lightin gsystemiss witched off.
R The appropriat efront wheel is turned
in wa rds. #
Remo val(left-hand side of thev ehicle):
using ascrew driver ,tur nr otating catches 1
clockwise as farast heyw ill go.
Co ver 2isreleased. #
Remo val(right-hand side of thev ehicle):
using ascrew driver ,tur nr otating catches 1
anti-clockwise as farast heyw ill go.
Co ver 2isreleased. #
Remo vecover 2. #
Tofit: inse rtco ver 2intot he wheel ar ch
liner.
R Left-hand side of thev ehicle: using a
scr ewdriver ,tur nr otating catches 1
anti-clockwise as farast heyw ill go.
R Right-han dside of thev ehicle: using a
scr ewdriver ,tur nr otating catches 1
clockwise as farast heyw ill go.
Co ver 2is loc ked.
Re placing bulbs in the halo genh eadla mp
Requ irements:
R Main beam/dipped beam: bulb, type
H7 55 W. R
Turn signal light: bulb, type PY 21W.
R The lighting sy stem is switched off.
R The co verint he front wheel ar chhas been
re mo ved.
R The engin ebonn etis open. 1
Dipped beam
2 Main beam/tur nsignal light Light and sight
14 5

#
Turn ther ele vant housing co vera nti-clock‐
wise and remo veit. #
Main beam/dipped beam: turnthe soc ket
anti-clockwis eand remo veit. #
Turn signal light: turnthe soc keta nti-clo ck‐
wise, unloc kand remo veit. #
Pull theb ulb out of thes ocket. #
Inse rtthen ew bulb int othe soc ketsot hat
th ee ntir ebase of theb ulb is resting on the
bottom of thes ocket. #
Inse rtsoc keta nd tur nitclock wise. #
Press on theh ousing co vera nd tur nitclock‐
wise. #
Replace thec over in thef ront wheel ar ch. Wi

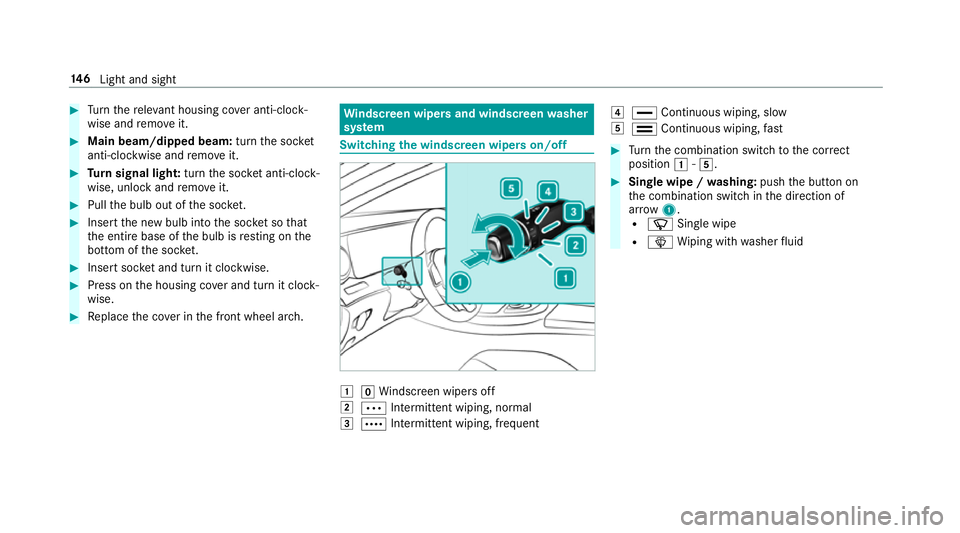

ndscreen wiper sand windscreen washer
sy stem Switching
thew indscreen wiper son/off 1
gWindsc reen wiper soff
2 Ä Intermittent wiping, normal
3 Å Intermittent wiping, frequent 4
° Continuous wiping, slow
5 ¯ Continuous wiping, fast #
Turn thec ombination switc htothe cor rect
position 1-5. #
Singlew ipe /washing: pushtheb utton on
th ec ombination switc hinthe direction of
ar row 1.
R í Single wipe
R î Wiping wit hwashe rfluid 14 6
Light and sight

Switching

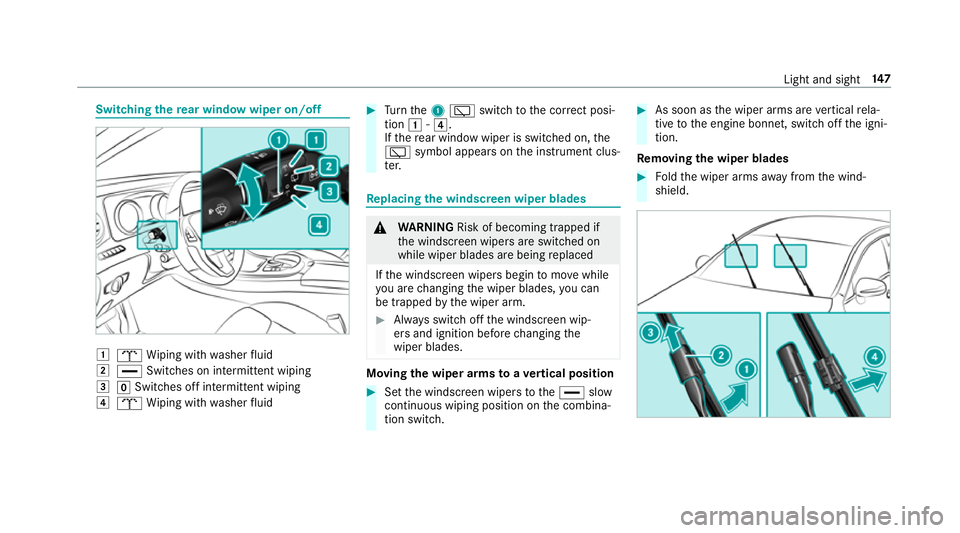

ther ear windo wwiper on/off 1
b Wiping wit hwashe rfluid
2 ° Switches on intermittent wiping
3 gSwitches of fintermittent wiping
4 b Wiping wit hwashe rfluid #
Turn the 1è switchtot he cor rect posi‐
tion 1-4.
If th er ear windo wwiper is swit ched on, the
è symbol appears onthei nstrument clus‐
te r. Re
placing the windsc reen wiper blades &
WARNING Risk of becoming trapped if
th ew indscreen wiper sareswitched on
while wiper blades ar ebeing replaced
If th ew indscreen wiper sbegin tomo vewhile
yo ua rechanging thew iper blades, youc an
be trapped bythew iper arm. #
Alw ayss witc hoffthew indscreen wip‐
er sa nd ignition befor echanging the
wiper blades. Moving
thew iper arms toav ertical position #
Setthe windscreen wiper stothe° slow
continuous wiping position on thec ombina‐
tion switch. #
As soon as thew iper arms ar evertical rela‐
tiv etot he engine bonnet, switc hoffthei gni‐
tion.

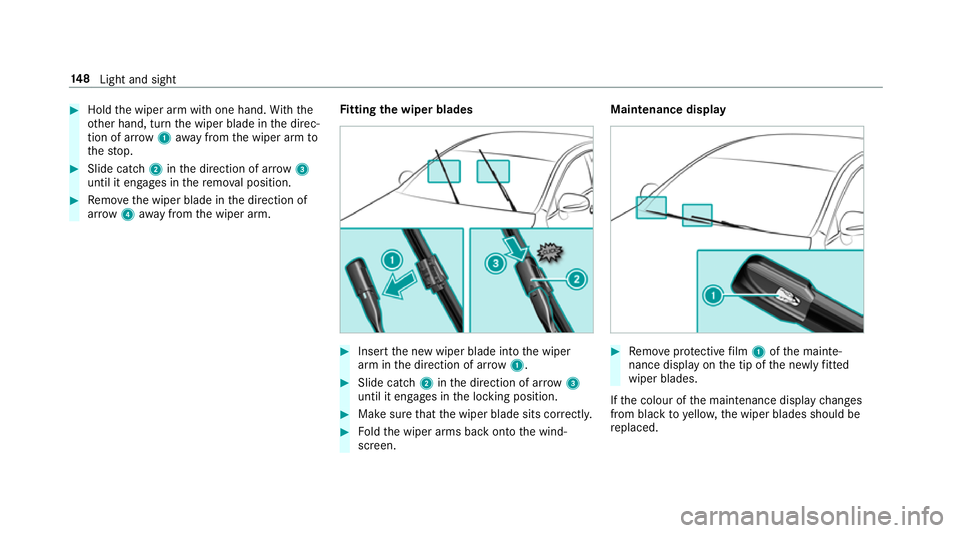

Re moving the wiper blades #
Foldthew iper arms away from thew ind‐
shield. Light and sight
147

#
Hold thew iper ar mwitho ne hand. With the
ot her hand, tur nthe wiper blade in thed irec‐
tion of ar row1away from thew iper ar mto
th es top. #
Slide catch 2inthed irection of ar row3
until it engages in ther emo valp osition. #
Remo vethew iper blade in thed irection of
ar row 4away from thew iper arm. Fi
ttin gthe wiper blades #
Inse rtthen ew wiper blade int othe wiper
ar mint he direction of ar row1. #
Slide catch 2inthed irection of ar row3
until it engages in thel ocking position. #
Mak esuret hat thew iper blade sits cor rectly. #
Foldthew iper arms bac kontot he wind‐
screen. Maintenance display
#
Remo veprotectiv efilm 1ofthem ainte‐
nanc edispla yont he tip of then ewlyfitted
wipe rblades.
If th ec olour of them aintenanc edispla ychanges
from blac ktoyello w, thew iper blades should be
re placed. 14 8
Light and sight

%
The duration of thec olour chang evaries
depending on theu sag econditions. Re

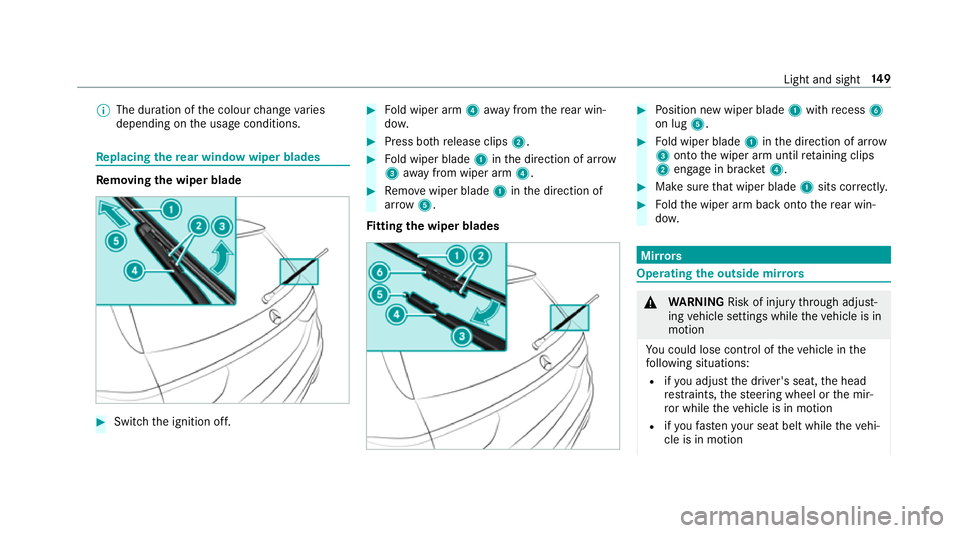

placing the rear windo wwiper blades Re
moving the wiper blade #
Switc hthe ignition off. #
Fold wiper arm 4away from ther ear win‐
do w. #
Press bo threlease clips 2. #
Fold wiper blade 1inthed irection of ar row
3 away from wiper arm 4. #
Remo vewiper blade 1inthed irection of
ar row 5.
Fi ttin gthe wiper blades #
Position ne wwiper blade 1withrecess 6
on lug 5. #
Fold wiper blade 1inthed irection of ar row
3 ontothe wiper ar muntilretainin gclips
2 engag einbrack et 4 . #
Makesur ethat wiperb lade1sitsc orrectl y. #
Foldthew iper ar mbacko ntot he rear win‐
do w. Mir
rors Operating
theo utside mir rors &
WARNING Risk of inju rythro ugh adjust‐
ing vehicle settings while thev ehicle is in
motion
Yo uc ould lose cont roloft hevehicle in the
fo llowing situations:
R ifyo ua djus tthe driver's seat, theh ead
re stra ints, thes teering wheel or them ir‐
ro rw hile thev ehicle is in motion
R ifyo uf asteny our seat belt whilet hevehi‐
cle is in motion Light and sight
