2017 MERCEDES-BENZ E-CLASS ESTATE Owners Manual

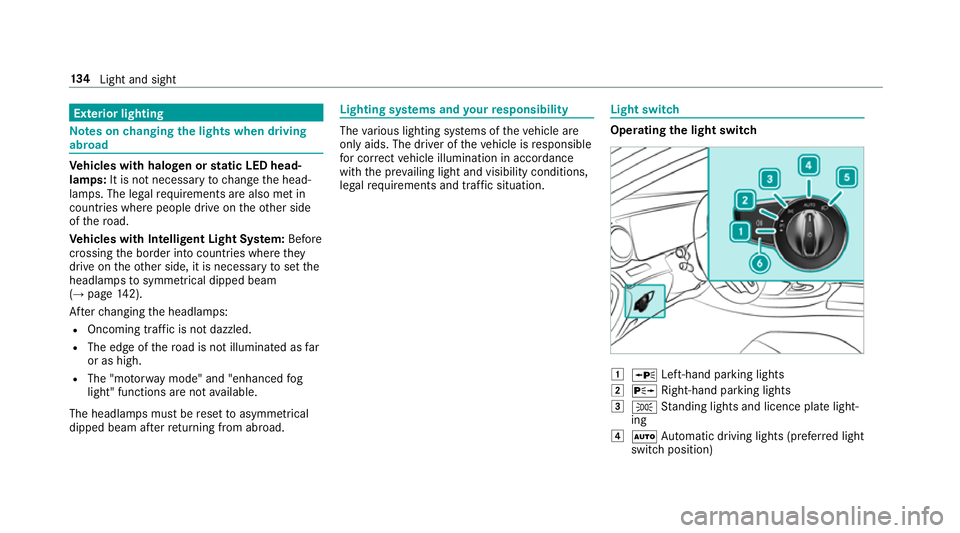

Exterior lighting
Note
sonc hanging thel ight swhen driving
abroad Ve
hicles with halogen or static LEDh ead‐
lamps: It is notnecessa ryto chang ethe head‐
lamps. The legal requ irements ar ealso me tin
countries wher epeople driv eontheother side
of ther oad.
Ve hicles with Intelligent Light Sy stem: Before
crossin gthe border int ocount ries wher ethey
driv eont heother side, it is necessar ytosetthe
headlamp stosymmetrical dipped beam
(→ pag e142).
Af terc hanging theh eadlamps:
R Oncoming tra ffic is no tdazzled.
R The edg eoftheroad is no tilluminated as far
or as high.
R The "mo torw ay mode" and "enhanced fog
light "function sarenota vailable.
The headlamps mus tberesettoa symm etrical
dippe dbeama fter returning from ab road. Lighting sy
stems and your responsibility The
various lighting sy stems of thev ehicle are
onl yaids. The driver of thev ehicle is responsible
fo rc orrect vehicle illumination in accordance
wit hthe pr evailing light and visibilit yconditions,
legal requirements and traf fics ituation. Light switch
Ope
ratin gthe light switch 1
W Left-hand pa rking lights
2 X Right-hand parkin glights
3 T Standing light sand licenc eplatelight‐
ing
4 Ã Automatic driving lights (prefer redl ight
switc hposition) 134
Light and sight

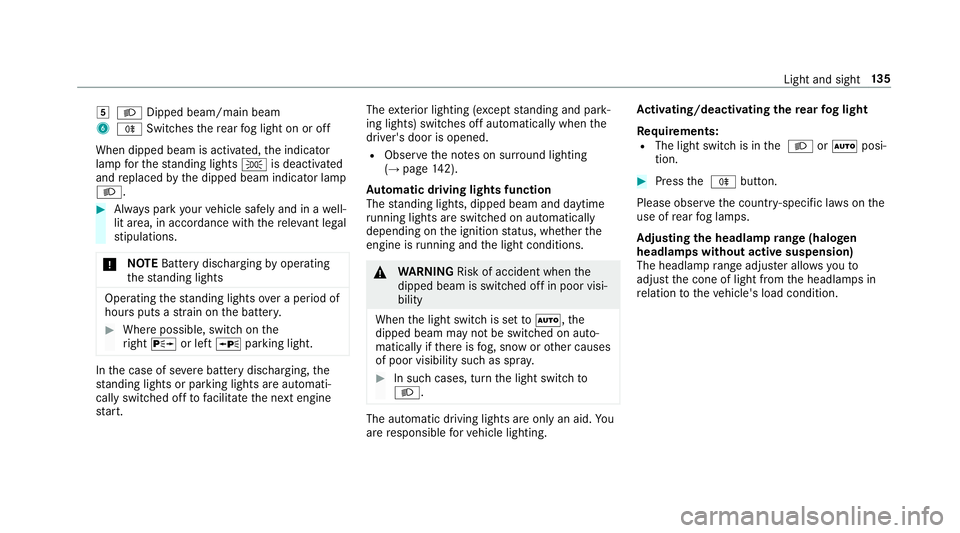

5
L Dippe dbeam/ main beam
6 R Switche sthe rear fogl ight on or off
When dipped beam is activated, thei ndicator
lam pfor thes tanding lights Tis deactivated
and replaced bythed ipped beam indicator lamp
L. #
Alw aysp arky our vehicle safely and in awell-
lit area, in accordance wit hthe releva nt le gal
st ipulations.
* NO
TEBatter ydisch arging byoperating
th es tanding lights Operatin
gthe standing light soverap eriod of
hour sputs astrai nont he batter y. #
Wher epossible, switc honthe
ri ght X or left Wparking light. In
thec ase of se vere batter ydischarging, the
st anding light sorparkinglight sareautomati‐
call yswit ched of ftofacilitat ethe next engine
st art. The
exterior lighting (e xcep ts tanding and park‐
ing lights) swit ches of fautomaticall ywhen the
driver's door is opened.
R Obser vethen otes on sur round lighting
(→ pag e142).
Au tomatic drivin glights function
The standing lights, dipped beam and daytime
ru nning lights ar eswitched on au tomatical ly
dependin gonthe ignition status ,whether the
engine is running and thel ight conditions. &
WARNING Risk of accident whe nthe
dipped beam is switched of finpoor visi‐
bility
When thel ight switc hissetto à ,the
dipped beam ma ynotbe switched on auto‐
matically if ther eisf og, sno worother causes
of poor visibility suc hasspray. #
In suc hcases, tur nthe light switc hto
L . The automatic driving lights ar
eonlyana id.Yo u
ar er esponsibl efor vehicle lighting. Ac
tivating/deactivatin gthe rear fogl ight
Re quirements:
R The light switc hisintheL orà posi‐
tion. #
Press theR button.
Please obser vethec ount ry-specific la wsonthe
use of rear fogl amps.
Ad justin gthe headlam prang e(halogen
headla mpsw ithout activ esuspension)
The headlam prang eadjus tera llows youto
adjus tthe cone of light from theh eadlamps in
re lation tothev ehicle's load condition. Light and sight
13 5

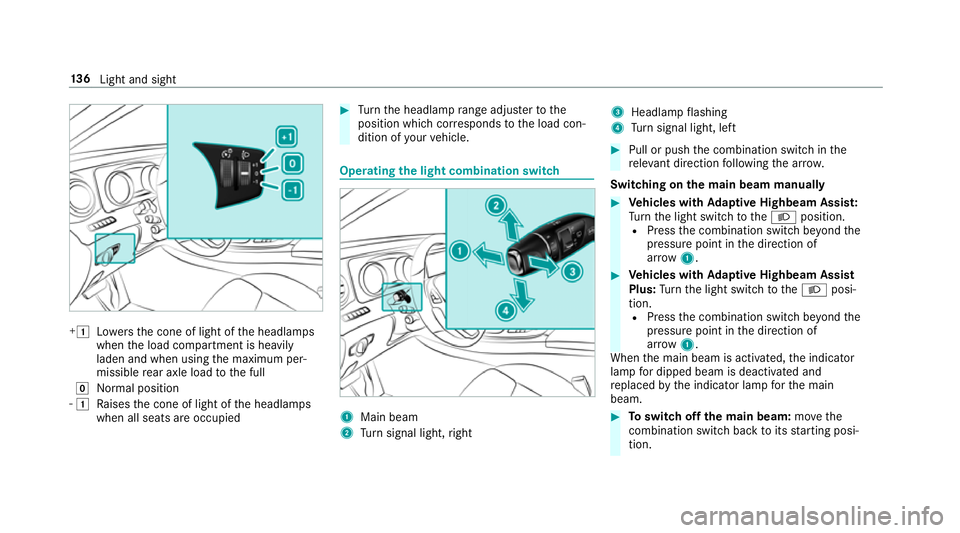

+1
Lowe rsthec oneofl ight of theh eadlamps
when thel oad compartmen tisheavily
laden and when using them aximum per‐
missible rear axle load tothef ull
g Normal position
- 1
Raises thec oneofl ight of theh eadlamps
when all seats ar eoccupied #
Turn theh eadlam prang eadjus tertot he
position whic hcorresponds tothel oad con‐
dition of your vehicle. Operating
thel ight combination switch 1
Main beam
2 Turn signal light, right 3
Headlam pflashing
4 Turn signal light, left #
Pull or push thec ombination switc hinthe
re leva nt di rection following thea rrow.
Switching on them ainb eam manually #
Vehicles with Adaptiv eHighbeam Assis t:
Tu rn thel ight switc htotheL position.
R Press thec ombination switc hbeyond the
pressur epoint in thed irection of
ar row 1. #
Vehicles with Adaptiv eHighbeam Assist
Plus: Turn thel ight switc htotheL posi‐
tion. R Press thec ombination switc hbeyo ndthe
pressur epoint in thed irection of
ar row 1.
When them ain beam is activated, thei ndicator
lam pfor dipped beam is deactivated and
re placed bythei ndicator lam pfor them ain
beam. #
Toswitc hoffthem ainb eam: movethe
combination switc hbacktoi tsstartin gposi‐
tion. 13 6
Light and sight

#

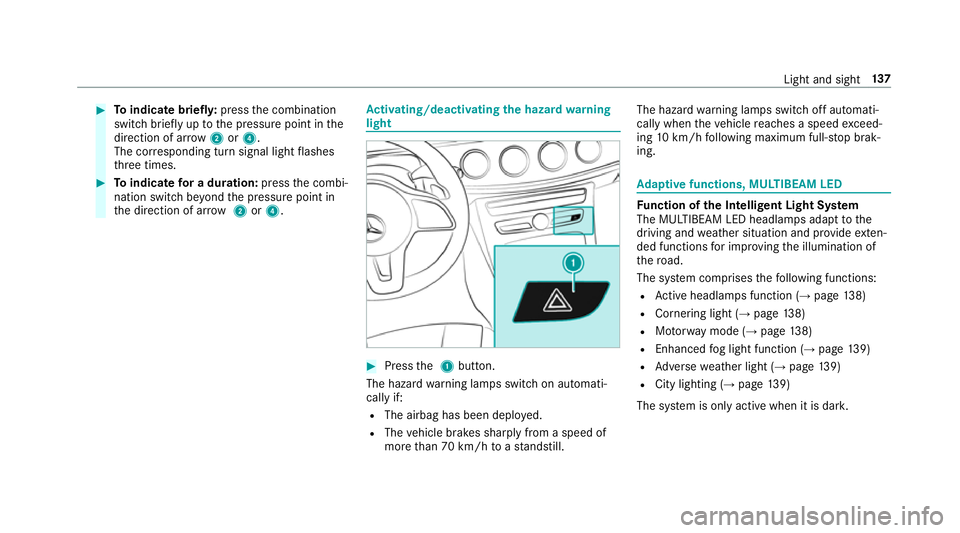

Toindicat ebriefl y:press thec ombination
switc hbriefly up tothep ressur epoint in the
direction of ar row2or4.
The cor responding tur nsignal light flashes
th re et imes. #
Toindicat efor ad uration: pressthec ombi‐
nation switc hbeyond thep ressur epoint in
th ed irection of ar row2or4. Ac
tivating/deactivatin gthe hazardw arning
light #
Press the1button.
The hazar dwarning lamps switc honautomati‐
call yif:
R The airbag has been deplo yed.
R The vehicle brakes sharply from aspeed of
mor ethan 70 km/h toas tandstill. The hazar
dwarning lamps switc hoffautomati‐
call ywhen thev ehicle reaches aspee dexceed‐
ing 10km/h following maximum full-s topb rak‐
ing. Ad
aptiv efunctions ,MULTIBEA MLED Fu
nction of theI ntelligent Light Sy stem
The MULTIBEA MLEDheadlamps adap ttothe
driving and weather situatio nand pr ovide exten‐
de df unctions fori mp roving thei llumination of
th er oad.
The sy stem comprises thef ollowing functions:
R Activeh eadlamps function (→ page 138)
R Cornering light (→ page138)
R Motorw ay mode (→ page138)
R Enhanced fogl ight function (→ page139)
R Adversew eather light (→ page139)
R City lighting (→ page139)
The sy stem is onl yactiv ewhen it is dar k. Light and sight
137

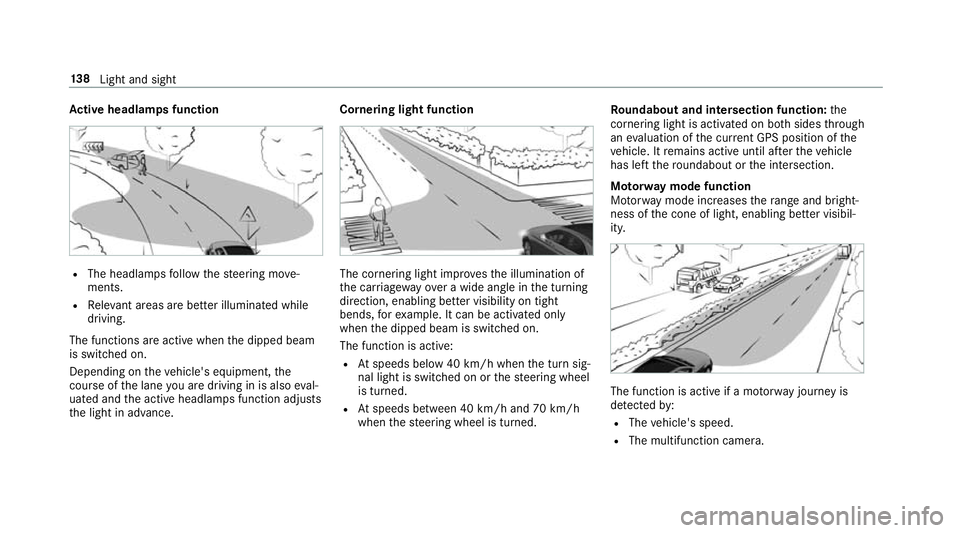

Ac
tiv eh eadlamps function R
The headlamps follo wt he steering mo ve‐
ments.
R Releva nt areas ar ebette ri llum inatedw hile
driving.
The function sareactiv ewhen thed ipped beam
is switched on.
Depending on thev ehicle's equipment, the
cou rseoft he lane youa redrivin ginisa lsoeval‐
uated and thea ctiv eheadlamps function adjusts
th el ight in advance. Cornering light function
The cornering light impr
ovesthe illumination of
th ec arriag ewa yoveraw idea ngle in thet urning
direction, enabling better visibility on tight
bends, fore xamp le. It can be activated on ly
when thed ipped beam is switched on.
The function is active:
R Atspeeds belo w40km/h when thet urns ig‐
nal light is switched on or thes teering wheel
is turned.
R Atspeeds between 40 km/h and 70 km/h
when thes teering wheel is turned. Ro
undabout and intersection function: the
cornering light is acti vatedonb oths ides thro ugh
an evaluatio nofthe cur rent GP Sposition ofthe
ve hicle. It remains activ euntil af tert he vehicle
has lef tthe roundabout or thei ntersection.
Mo torw ay mode function
Mo torw ay mode increase sthe rang ea nd bright‐
ness of thec oneofl ight, enabling better visibil‐
ity. The function is activ
eifamotorway jou rney is
de tected by:
R The vehicle's speed.
R The multifunction camera. 13 8
Light and sight

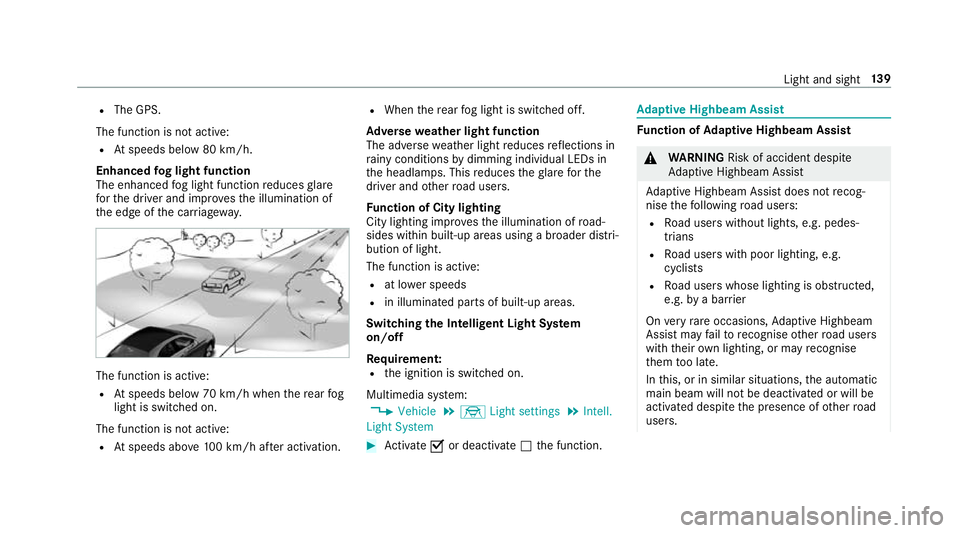

R
The GPS.
The function is no tactive:
R Atspeeds belo w80km/h.
Enhanced fogl ight function
The enhanced fogl ight function reduces glare
fo rt he driver and impr ovesthe illumination of
th ee dgeoft he car riag ewa y. The function is active:
R Atspeeds belo w70km/h when ther ear fog
light is switched on.
The function is no tactive:
R Atspeeds abo ve100k m/h af tera ctivation. R
When ther ear fogl ight is switched off.
Ad versew eathe rlight function
The adverse weather light reduces reflections in
ra inyc ondition sbydimming individual LED sin
th eh eadlamps. This reduces theg larefor the
driver and other road users.
Fu nction of City lighting
City lighting impr ovesthe illumination of road‐
sides within built-up areas usin gabroader distri‐
bution of light.
The function is active:
R at lo werspeeds
R in illumina tedp arts of built-up areas.
Switching theI ntelligent Light Sy stem
on/off
Requ irement:
R thei gnition is switched on.
Multimedia sy stem:
, Vehicle .
÷ Light settings .
Intell.
Light System #
Activate Oor deacti vate ª thef unction. Ad
aptiv eHighbeam Assist Fu
nction of Adaptiv eHighbeam Assist &
WARNING Risk of accident despi te
Ad aptiv eHighbeam Assist
Ad aptiv eHighbeam Assis tdoes no trecog‐
nis ethe following road users:
R Road user swithout lights, e.g .pedes‐
trians
R Road user swithp oor lighting ,e.g.
cyclists
R Road user swhos elighting is obstructed,
e.g .bya barrier
On very rare occasions, Adaptiv eHighbeam
Assis tmayfailto recognise other road users
wit htheir ownlighting, or ma yrecognise
th em tool ate.
In this, or in similar situations ,the automatic
main beam will no tbedeactivated or will be
activated despit ethe presence of other road
users. Ligh
tand sight 13 9

#

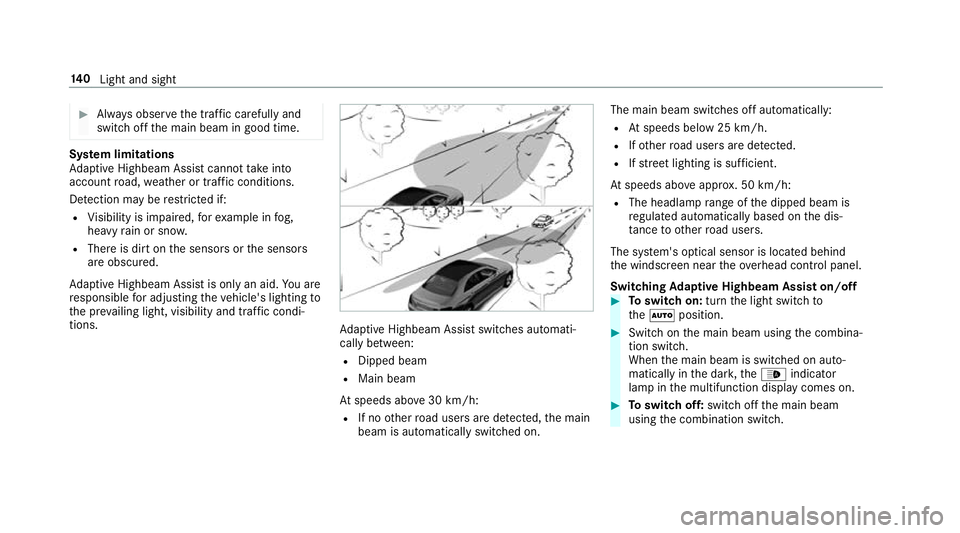

Alw ayso bser vethet raffic carefull yand
switc hoffthem ain beam in good time. Sy
stem limitations
Ad aptiv eHighbeam Assis tcanno ttak ei nto
account road, weather or traf ficc onditions.
De tection ma yberestricted if:
R Visibility is impaired, fore xamp le in fog,
heavy rain or sno w.
R Ther eisd irtont he sensor sorthe sensors
ar eo bscured.
Ad aptiv eHighbeam Assis tisonlyan aid. Youa re
re sponsible fora dju sting thev ehicle's lighting to
th ep reva ilin glight ,visibilit yand traf ficc ondi‐
tions. Ad
aptiv eHighbeam Assis tswit ches automati‐
cally between:
R Dipped beam
R Main beam
At speeds abo ve30 km/h:
R If no other road user saredetected, them ain
beam is automaticall yswitched on. The main beam switches of
fautomatically:
R Atspeeds belo w25km/h.
R Ifot her road user saredetected.
R Ifstre et lighting is suf ficient.
At speeds abo veappr ox.50k m/h:
R The headlamp rang eoft he dipped beam is
re gulated automaticall ybased on thed is‐
ta nce to ot herroad users.
The sy stem's optical sensor is located behind
th ew indscreen near theo verhead control panel.
Switching Adaptiv eHighbeam Assis ton/off #
Toswitc hon:tur nthe light switc hto
the à position. #
Switc hont he main beam using thec ombina‐
tion switch.
When them ain beam is switched on auto‐
maticall yinthe dar k,the _ indicator
lam pint he multifunction displa ycomes on. #
Toswitc hoff:switc hoffthem ain beam
using thec ombination switch. 14 0
Light and sight

Ad
aptiv eHighbeam Assis tPlus Ad
aptiv eHighbeam Assis tPlus function &
WARNING Risk of accident despi te
Ad aptiv eHighbeam Assis tPlus
Ad aptiv eHighbeam Assis tPlus does no trec‐
ognise thef ollowing road users:
R Road user swithout lights, e.g .pedes‐
trians
R Road user swithp oor lighting ,e.g.
cyclists
R Road user swhos elighting is obstructed,
e.g .bya barrier
On very rare occasions, Adaptiv eHighbeam
Assis tPlus ma yfail torecognise other road
user sthat ha velights, or ma yrecognise
th em tool ate.
In this, or in similar situations ,the automatic
main beam will no tbedeactivated or will be
activated despit ethe presence of other road
users. #
Alw ayso bser vethet raffic carefull yand
switc hoffthem ain beam in good time. Sy
stem limitations
Ad aptiv eHighbeam Assis tPlus canno ttak ei nto
account road, weather or traf ficc onditions.
De tection ma yberestricted if:
R Visibility is impaired, fore xamp le in fog,
heavy rain or sno w.
R Ther eisd irtont he sensor sorthe sensors
ar eo bscured.
Ad aptiv eHighbeam Assis tPlus is on lyan aid.
Yo ua re re sponsible fora dju sting thev ehicle's
lighting tothep reva ilin glight ,visibilit yand traf‐
fi cc onditions. Ad
aptiv eHighbeam Assis tPlus swit ches auto‐
maticall ybetwe en:
R Dipped beam
R Partial main beam
R Main beam
The partial main beam uses them ain beam to
shine pas tother road user srather than dazzling Ligh
tand sight 141
