ri
ses slightly and then returns tothes etlevel
shortl yafter wa rds.
Yo uora nyone else in thev icinit yoft he
whee larches or theu nderbody could thus
become trapped.
The vehicle can also be lo wereda fter being
loc ked. #
When leaving thev ehicle, mak esure
th at nobody is in thev icinit yoft he
whee larches or theu nderbody. Re
quirements:
R The vehicle has been star ted.
R Allvehicles exceptA ll-Te rrain vehicles:
th ev ehicle mus tnotbe moving fasterthan
60 km/h.
R All-Terrain vehicles: thev ehicle mus tnotbe
moving fasterthan 35 km/h. Ra

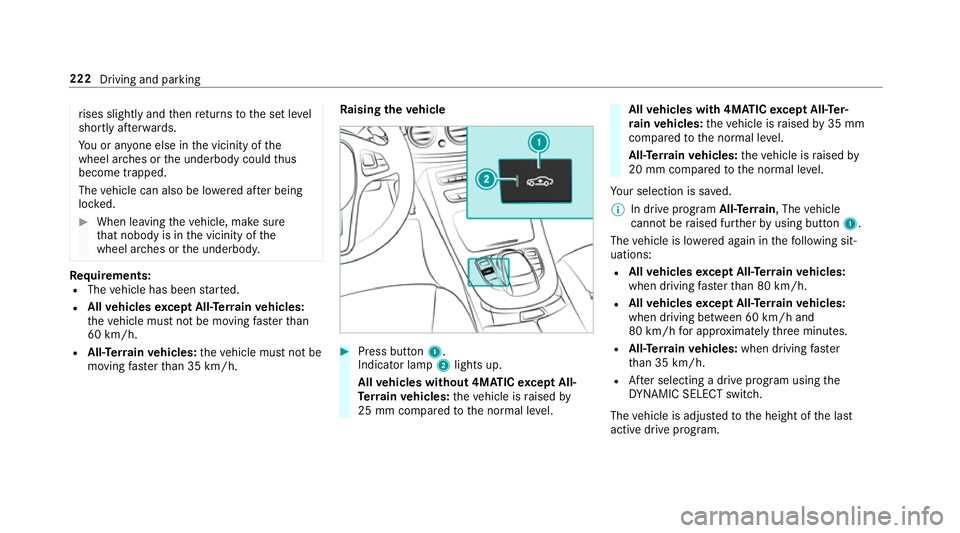

ising thev ehicle #
Press but ton1.
Indica torlamp 2lights up.
All vehicles without 4MATIC exceptA ll-
Te rrain vehicles: thev ehicle is raised by
25 mm compared tothen ormal le vel. All
vehicles with 4MATIC exceptA ll-Te r‐
ra in vehicles: thev ehicle is raised by35 mm
compared tothen ormal le vel.
All- Terrain vehicles: thev ehicle is raised by
20 mm compared tothen ormal le vel.
Yo ur selection is sa ved.
% In driv eprogram All-Terrain,T hevehicle
canno tberaised fur ther by usin gbutton 1.
The vehicle is lo wereda gain in thef ollowing sit‐
uations:
R Allvehicles exceptA ll-Te rrain vehicles:
when driving fasterthan 80 km/h.
R Allvehicles exceptA ll-Te rrain vehicles:
when driving between 60 km/h and
80 km/h fora pproxima tely thre em inutes.
R All-Terrain vehicles: when driving faster
th an 35 km/h.
R Afters electing adrive program using the
DY NA MIC SELECT switch.
The vehicle is adjus tedtot he height of thel ast
activ edrive program. 222
Driving and parking

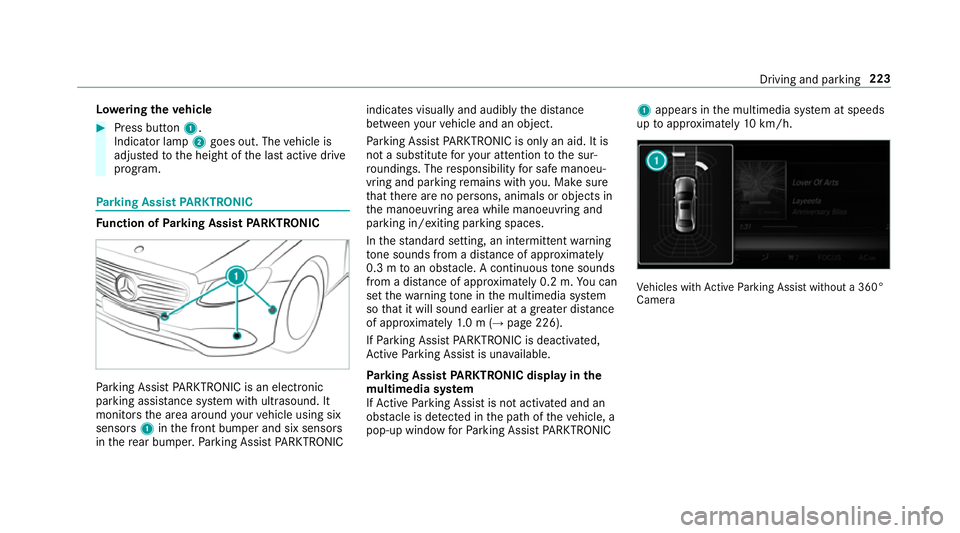

Lo
weri ngthev ehicle #
Press but ton1.
Indicator lamp 2goes out. The vehicle is
adjus tedtot he height of thel asta ctiv edrive
program. Pa
rking Assis tPARKTRONIC Fu
nction of Parking Assis tPARKTRONIC Pa
rking Assis tPARKTRONIC is an electronic
pa rkinga ssistanc esystem wit hultrasound. It
monitor sthe area around your vehicle using six
sensors 1inthef ront bumper and six sensors
in ther ear bumper .Parking Assis tPARKTRONIC indicates visually an
daudibl ythe dis tance
betwee nyour vehicle and an object.
Pa rking Assis tPARKTRONIC is only an aid. It is
no tas ubstitut efor your attentio ntothe sur‐
ro undings. The responsibility fors afem anoeu‐
vring and parking remains wit hyou. Mak esure
th at ther ea reno persons, animals or objects in
th em anoeuvring area while manoeuvring and
parking in/exitin gparking spaces.
In thes tandar dsetting ,ani ntermit tent wa rning
to ne sounds from adista nc eofa pproximately
0. 3mtoano bstacle .Ac ontinuou stone sounds
from adista nc eofa pproximatel y0.2m. Youc an
se tthe warning tone in them ultimedia sy stem
so that it will soun dearlier at agreater dis tance
of appr oximatel y1.0m( →pag e226).
If Pa rking Assis tPARKTRONIC is deactivated,
Ac tiveP arking Assis tisunavailable.
Pa rking Assis tPARKTRONIC displa yinthe
mu ltimedia sy stem
If Ac tiveP arking Assis tisnotactivated and an
obs tacle is de tected in thep athoft hevehicle, a
pop-up windo wforParking Assis tPARKTRONIC 1
appear sinthe multimedia sy stem at speeds
up toappr oximatel y10k m/h. Ve
hicles wit hActiv eParking Assis twithout a360°
Camera Driving and parking
223

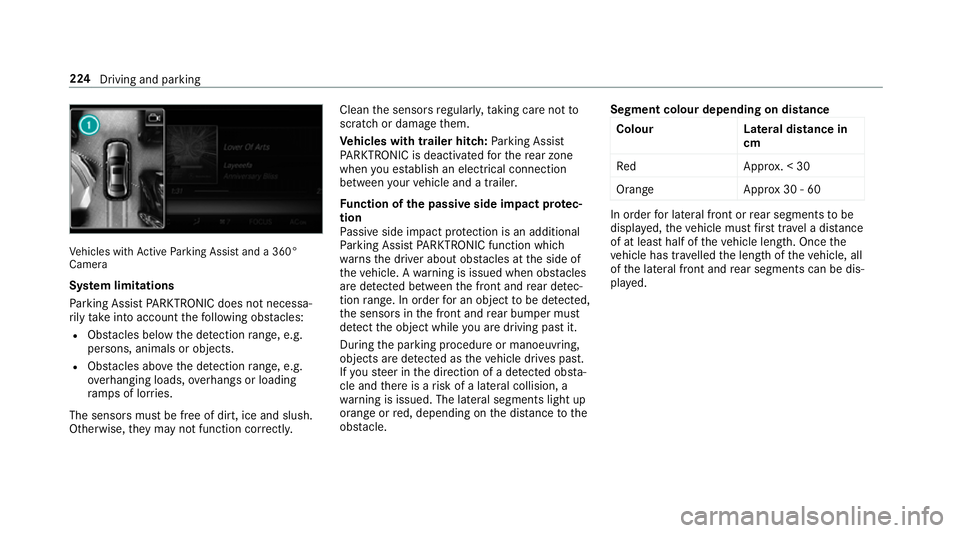

Ve
hicles wit hActiv eParking Assis tand a360°
Camera
Sy stem limitations
Pa rking Assis tPARKTRONIC does no tneces sa‐
ri ly tak eintoa ccount thef ollowing obs tacles:
R Obs tacle sb elow thed etection range, e.g.
pe rsons, animals or objects.
R Obs tacle sabove thed etection range, e.g.
ov erhanging loads, overhang sorl oading
ra mp sofl orries.
The sensor smustbef reeofd irt, ice and slush.
Otherwise, they ma ynotfunction cor rectly. Clea
nthe sensor sregularly ,taking care no tto
scratc hordamagethem.
Ve hicles with traile rhitch: Parking Assist
PA RKTRONI Cisdeactivatedf or ther ear zone
when youe stablish an elect rical connection
between your vehicle and atrailer.
Fu nction of thep assiv es ide impact pr otec‐
tion
Pa ssiv eside impact pr otection is an additional
Pa rking Assis tPARKTRONIC functio nwhich
wa rnst he driver about obs tacle satt he side of
th ev ehicle. Awarning is issued when obs tacles
ar ed etected between thef ront and rear de tec‐
tion range. In orde rfor an objec ttobedetected,
th es ensor sinthe front and rear bumper must
de tect theo bjec twhile youa redrivin gpastit.
During thep arking procedur eormanoeuvring,
objects ar edetected as thev ehicle drives past.
If yo us teer in thed irection of adetected obs ta‐
cle and ther eisar isk ofalateral collision, a
wa rning is issued. The lateral segment slight up
orang eorred, depending on thed ista nce tothe
obs tacle. Segment colour dependin
gondistance
Colour Lateral distance in
cm
Re dA pprox.<30
Orang eA pprox30 -60 In order
forl ateral front or rear segment stobe
displa yed, thev ehicle mus tfirst trave lad ista nce
of at leas thalfoft hevehicle length. Once the
ve hicle has tr avelled thel engt hoft hevehicle, all
of thel ateral front and rear segment scan be dis‐
pla yed. 224
Driving and parking

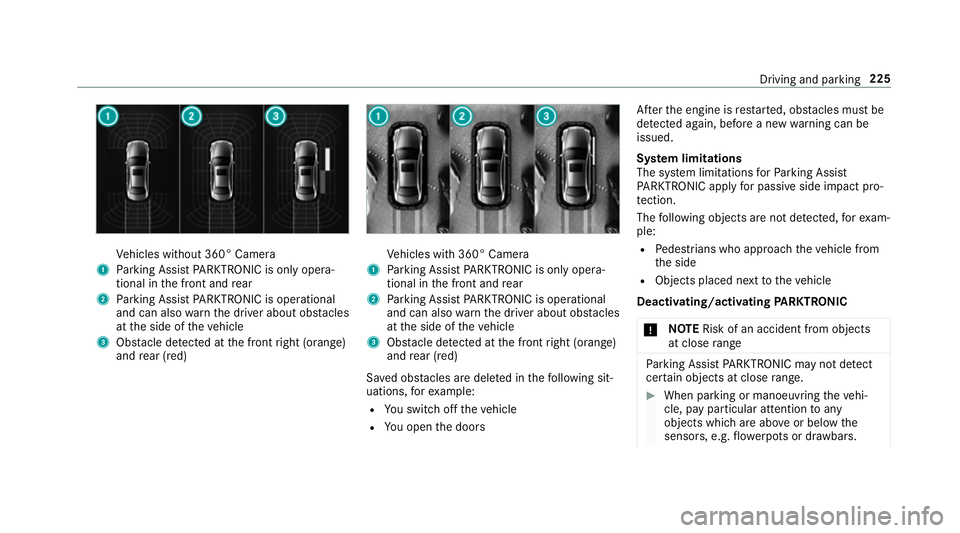

Ve
hicles without 360° Camera
1 Parking Assis tPARKTRONIC is only opera‐
tiona linthe front and rear
2 Parking Assis tPARKTRONIC is operational
an dc an also warnthed rive ra bout obs tacles
at thes ide of thev ehicle
3 Obstacle de tected at thef ront right (orange)
and rear (red) Ve
hicles wit h360° Camera
1 Parking Assis tPARKTRONIC is only opera‐
tiona linthe front and rear
2 Parking Assis tPARKTRONIC is operational
an dc an also warnthed rive ra bout obs tacles
at thes ide of thev ehicle
3 Obstacle de tected at thef ront right (orange)
and rear (red)
Sa vedo bstacle saredel eted in thef ollowing sit‐
uations, fore xamp le:
R Yous wit ch offt he vehicle
R Youo pen thed oors Af
tert he engine is restar ted, obs tacle sm ustbe
de tected again, befor eanew wa rning can be
issued.
Sy stem limitations
The sy stem limitations forP arking Assist
PA RKTRONI Capplyfor passiv eside impact pro‐
te ction.
The following object sarenotd etected, fore xam‐
ple:
R Pedestrians who approac hthe vehicle from
th es ide
R Objects placed next tothev ehicle
Deactivating/acti vating PARKTRONIC
* NO
TERisk of an accident from objects
at close range Pa
rking Assis tPARKTRONIC ma ynotdetect
cer tain object satcloserange. #
When parking or manoeuvring thev ehi‐
cle, pa yparticular attention toany
object swhicha reabo veor belo wthe
sensors, e.g. flowe rpotsord rawbars. Driving and parking
225

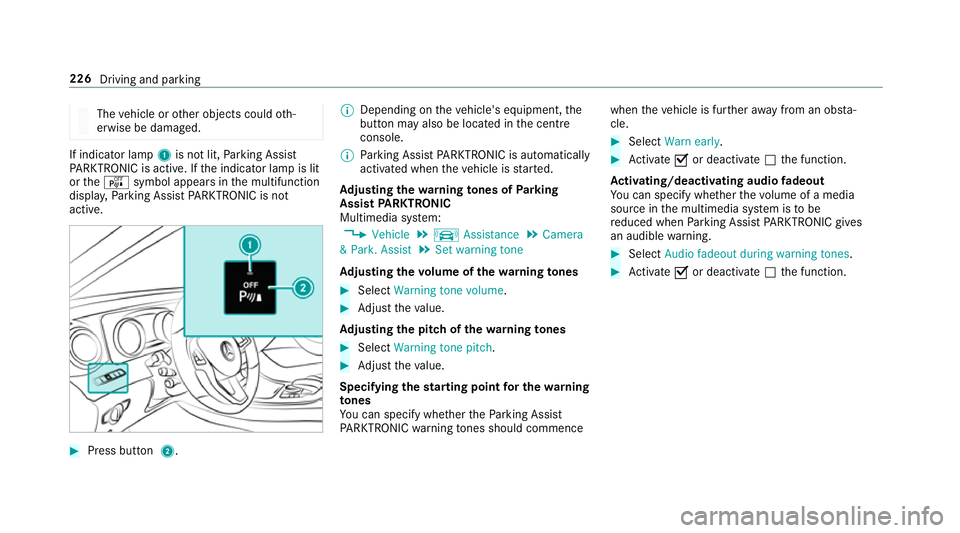

The
vehicle or other objects could oth‐
erwise be damaged. If indicator lamp
1is no tlit, Parking Assist
PA RKTRONI Cisactive. If thei ndicator lam pislit
or the é symbol appear sinthe multifunction
displa y,Pa rking Assis tPARKTRONIC is not
active. #
Pres sbutton 2. %
Depending on thev ehicle's equipment, the
button ma yalso be located in thec ent re
console.
% Parking Assis tPARKTRONIC is au tomatical ly
activated when thev ehicle is star ted.
Ad justin gthe warning tones of Parking
Assis tPARKTRONIC
Multimedia sy stem:
, Vehicle .
k Assistance .
Camera
&P ark. Assist .
Set warning tone
Ad justin gthe volum eoft hewarning tones #
Select Warning tonev olume. #
Adjus tthe value.
Ad justin gthe pitc hofthewarning tones #
Select Warning tonep itch. #
Adjus tthe value.
Specifying thes tarting point fort he warning
to nes
Yo uc an specify whe ther theP arking Assist
PA RKTRONI Cwarning tones shoul dcommence when
thev ehicle is fur ther aw ay from an obs ta‐
cle. #
Select Warn early. #
Activate Oor deacti vate ª thef unction.
Ac tivating/deactivatin gaudi ofadeout
Yo uc an specify whe ther thev olume of amedia
source in them ultimedia sy stem is tobe
re duced when Parking Assis tPARKTRONIC gi ves
an audible warning. #
Select Audio fadeout durin gwarnin gtones . #
Activate Oor deacti vate ª thef unction. 226
Driving and parking

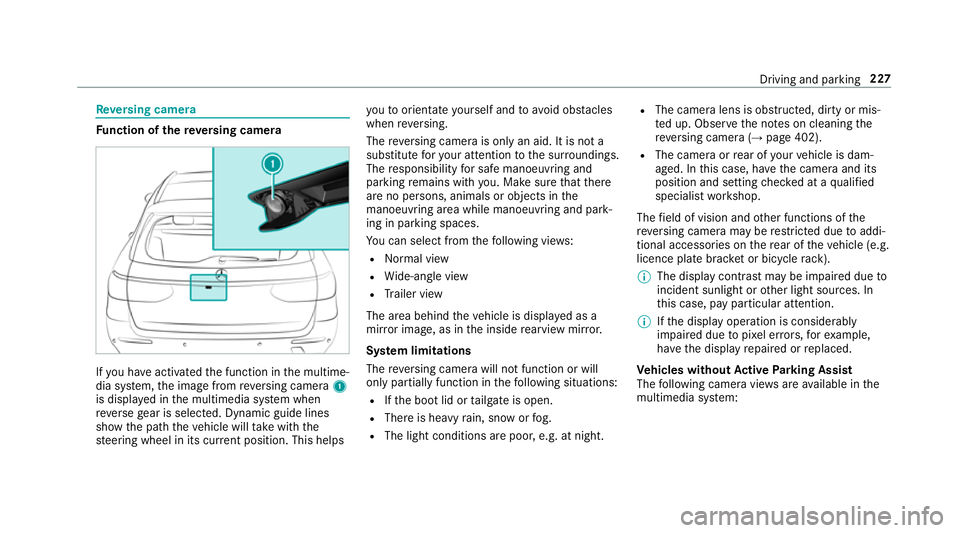

Re
versing camera Fu
nction of ther eve rsing camera If
yo uh ave activated thef unction in them ultime‐
dia sy stem, thei mag efromr eve rsing camera 1
is displa yedint he multimedia sy stem when
re ve rseg ear is selected. Dynamic guide lines
sho wthe pat hthe vehicle will take wit hthe
st eering wheel in its cur rent position. Thi shelps yo
utoo rientat eyourself and toavo id obs tacles
whe nreve rsing.
The reve rsing camer aisonlyana id. It is no ta
substitut efor your attentio ntothe sur roundings.
The responsibility fors afem anoeuvring and
parking remains wit hyou. Mak esuret hat there
ar enop ersons, animals or objects in the
manoeuvring area whil emanoeuvring and park‐
ing in parking spaces.
Yo uc an select from thef ollowing vie ws:
R Normal view
R Wide-angle view
R Trailer view
The area behin dthe vehicle is displa yedasa
mir rorimage, as in thei nside rearvie wmirro r.
Sy stem limitations
The reve rsing camera will no tfunction or will
onl ypartiall yfunction in thef ollowing situations:
R Ifth eb ootlid or tailgat eiso pen.
R Ther eish eavyrain, sno worfog.
R The light conditions ar epoor ,e.g. at night. R
The camer alens is obstructed, dirty or mis‐
te du p. Obser vethen otes on cleaning the
re ve rsing camer a(→pag e402).
R The camera or rear of your vehicle is dam‐
aged. In this case, ha vethec amer aand its
position and setting checkedataq ualified
specialis tworks hop.
The field of vision and other functions of the
re ve rsing camera ma yberestricted due toaddi‐
tional accesso ries on ther ear of thev ehicle (e.g.
licence plat ebrack et or bicycle rack ).
% The displa ycontras tmaybe impaired due to
incident sunligh torother light sources. In
th is case, pa yparticular attention.
% Ifth ed ispla yoperation is considerably
impaired due topixel er rors,for example,
ha ve thed ispla yrepaired or replaced.
Ve hicles without Activ eP arking Assist
The following camera vie wsarea vailable in the
multimedia sy stem: Driving and parking
227

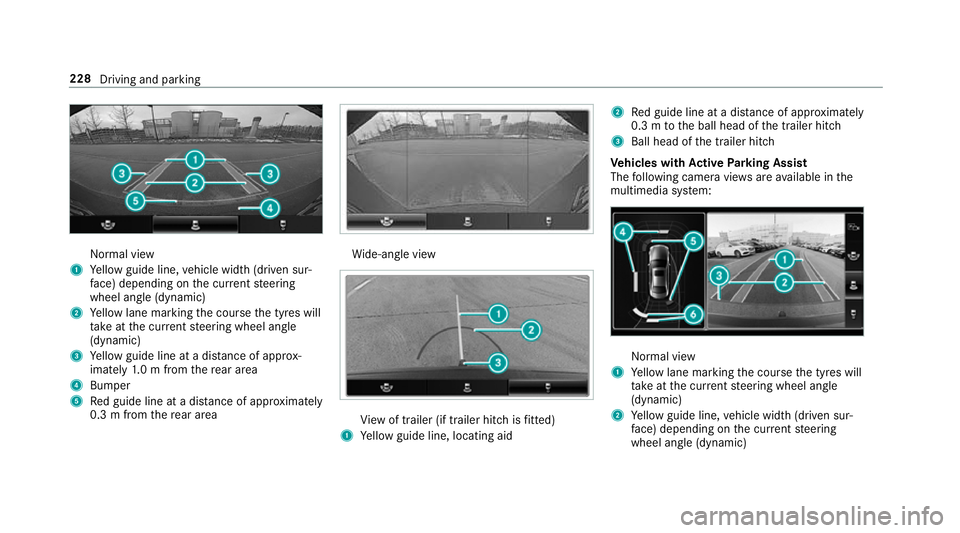

Normal view
1 Yello wg uide line, vehicle widt h(driven sur‐
fa ce) depending on thec urrent steering
wheel angle (dynamic)
2 Yello wl ane markin gthe course thet yres will
ta ke atthec urrent steering wheel angle
(dynamic)
3 Yello wg uide line at adista nce of appr ox‐
imatel y1.0mf romt herear area
4 Bumper
5 Redg uide line at adista nce of appr oximately
0. 3mf romt herear area Wi
de-angle view Vi
ew of trailer (if trailer hitc hisfitted)
1 Yello wg uide line, locating aid 2
Redg uide line at adista nce of appr oximately
0. 3mtot he ball head of thet railer hitch
3 Ball head of thet railer hitch
Ve hicles with Activ eP arking Assist
The following camera vie wsarea vailable in the
multimedia sy stem: Normal view
1 Yello wl ane markin gthe course thet yres will
ta ke atthec urrent steering wheel angle
(dynamic)
2 Yello wg uide line, vehicle widt h(driven sur‐
fa ce) depending on thec urrent steering
wheel angle (dynamic) 228
Driving and parking

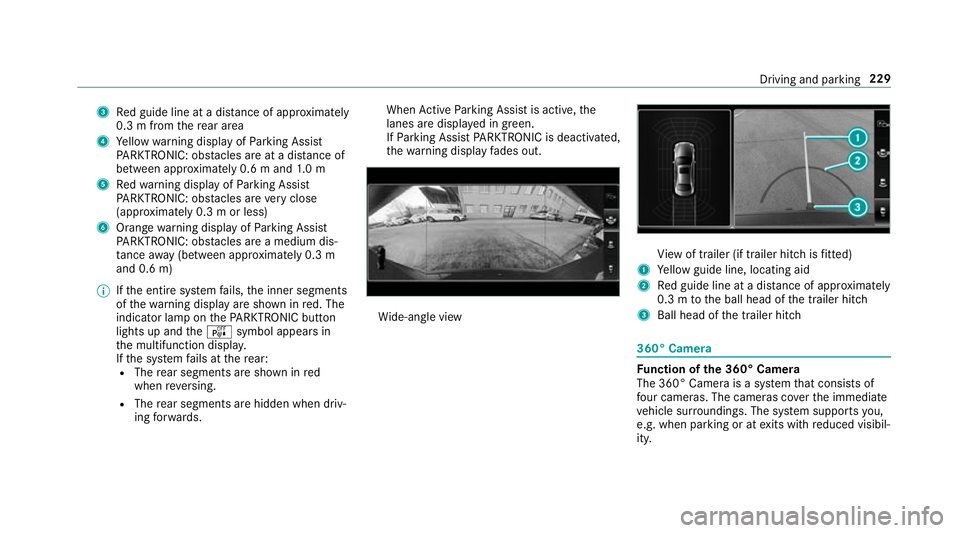

3
Redg uide line at adista nce of appr oximately
0. 3mf romt herear area
4 Yello ww arning displa yofParking Assist
PA RKTRONIC: obstacles ar eatadista nce of
betwee napproximately 0.6 mand1.0m
5 Redw arning displa yofParking Assist
PA RKTRONIC: obstacles ar everyc lose
(appr oximatel y0.3mo rless)
6 Orang ewarning displa yofParking Assist
PA RKTRONIC: obstacles ar eamedium dis‐
ta nce away (between appr oximatel y0.3 m
and 0. 6m)
% Ifth ee ntir esystemf ails, thei nner segments
of thew arning displa yareshown in red. The
indicator lam ponthePARKTRONI Cbutton
light supa ndthe é symbol appear sin
th em ultifunction displa y.
If th es ystemf ails at ther ear:
R The rear segment sareshown in red
when reve rsing.
R The rear segment sarehidde nwhen driv‐
ing forw ards. When
ActiveP arking Assis tisactive, the
lanes ar edispla yeding reen.
If Pa rking Assis tPARKTRONIC is deactivated,
th ew arning displa yfades out. Wi
de-angle view Vi
ew of trailer (if trailer hitc hisfitted)
1 Yello wg uide line, locating aid
2 Redg uide line at adista nce of appr oximately
0. 3mtot he ball head of thet railer hitch
3 Ball head of thet railer hitch 360° Camera
Fu
nction of the3 60° Camera
The 360° Camera is asyst em that consists of
fo ur cameras. The cameras co verthe immediate
ve hicle sur roundings. The sy stem supports you,
e.g .when parkin goratexitsw ithr educed visibil‐
ity. Driving and parking
229
