2017 MERCEDES-BENZ E-CLASS ESTATE Owners Manual

*
NO

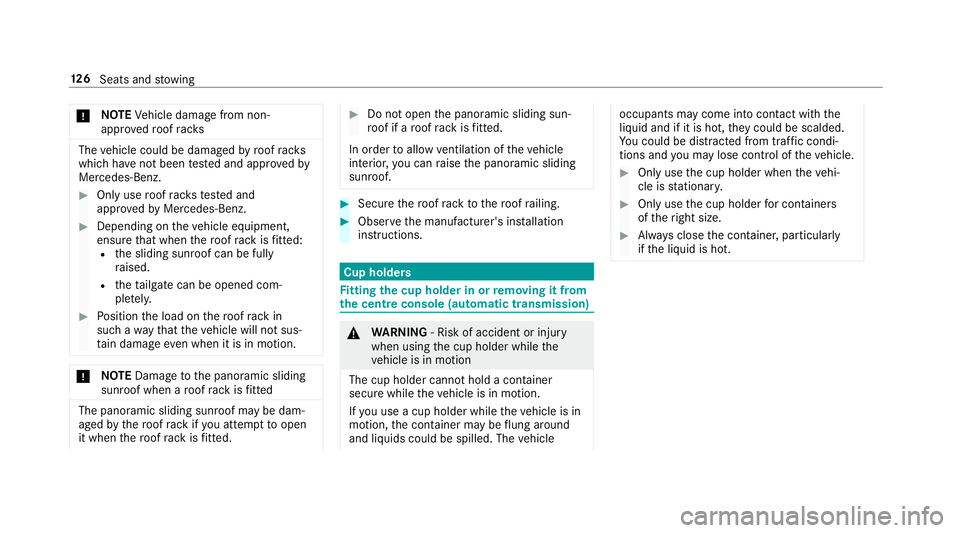

TEVehicle damag efromn on-
appr ovedroof racks The
vehicle could be damaged byroof racks
whic hhave notb eent esteda nd appr ovedby
Mercedes-Benz. #
Onlyuseroof rack st esteda nd
appr ovedbyM ercedes-Benz. #
Depending on thev ehicle equipment,
ensur ethat when ther oof rack isfitted:
R thes liding sunroof can be fully
ra ised.
R thet ailgat ecan be opened com‐
ple tely. #
Position thel oad on ther oof rack in
suc haw aythat thev ehicle will no tsus‐
ta in damag eevenw hen it is in motion. *
NO
TEDama getothep anoramic sliding
sunroof when aroof rack isfitted The panoramic sliding sunroo
fmaybe dam‐
aged byther oof rack ifyo ua ttem pttoopen
it when ther oof rack isfitted. #
Do no topent he panoramic sliding sun‐
ro of if aroof rack isfitted.
In order toallo wventilation of thev ehicle
interior ,you can raise thep anoramic sliding
sunroof. #
Secur ethe roof rack tother oof railing. #
Obser vethem anufacturer's ins tallation
instructions. Cup holders
Fi
ttin gthe cup holder in or removing it from
the centr econsole (automatic transmission) &
WARNING ‑Riskofa ccident or inju ry
when using thec up holder while the
ve hicle is in motion
The cup holder canno thold acontainer
secur ewhile thev ehicle is in motion.
If yo uu seac up holder while thev ehicle is in
motion, thec ontainer ma ybeflung around
and liquids could be spilled. The vehicle occupants ma
ycome int ocontact wit hthe
liquid and if it is hot, they could be scalded.
Yo uc ould be distracted from traf ficc ondi‐
tions and youm aylose cont roloft hevehicle. #
Onlyusethec up holder when thev ehi‐
cle is stationar y. #
Onlyusethec up holder forc ontainers
of ther ight size. #
Alw aysc lose thec ontainer ,particularly
if th el iquid is hot. 12 6
Seats and stowing

#

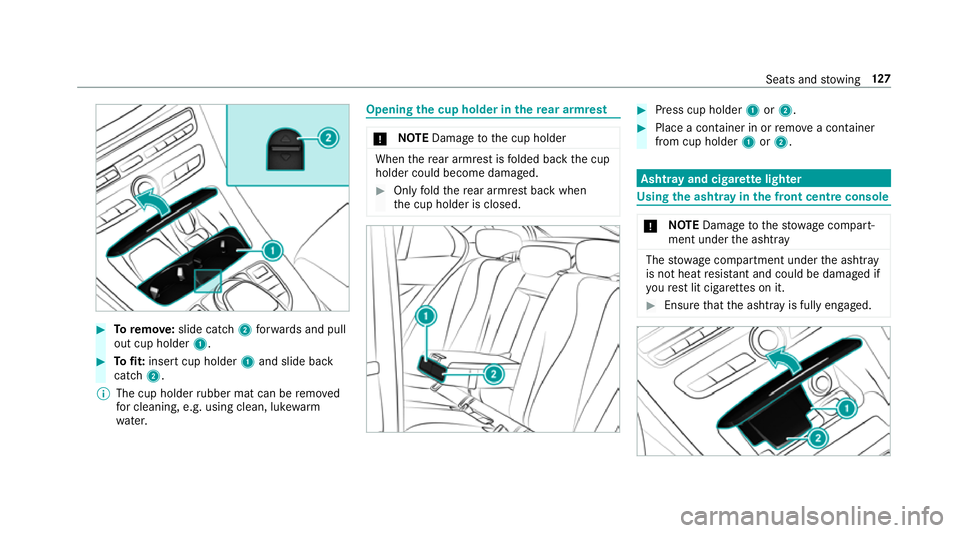

Toremo ve: slidecatch 2forw ards and pull
out cup holder 1. #
Tofit: inse rtcup holder 1and slide ba ck
catch 2.
% The cup holder rubber mat can be remo ved
fo rc leaning, e.g. using clean, luk ewarm
wate r. Opening
thec up holder in ther ear armrest *
NO
TEDama getothec up holder When
ther ear armres tisfolded bac kthe cup
holder could become damaged. #
Onlyfold ther ear armres tbackw hen
th ec up holder is closed. #
Press cup holder 1or2. #
Place acontainer in or remo veac ontainer
from cup holder 1or2. Asht
raya nd cigar ette lighter Using
thea shtr ayinthef ront centr econsole *
NO
TEDama getothes towa ge compart‐
men tunde rthe ashtr ay The
stow agec ompartment unde rthe ashtray
is no theat resis tant and could be dama gedif
yo ur estlit cigar ette soni t. #
Ensur ethat thea shtr ayis full yengaged. Seat
sand stow ing 127

#
Toopen: push up thec over 2 ofthea sh‐
tra yoni tsright or lef tside. #
Toremo vethei nser t:press insert 1
upwards slightl yand pull it out upwards. #
Torefitt he inse rt:press insert 1intot he
holder until it engages. Using
ther ear asht ray #
Toopen: pull co ver2out byits toph andle
edge. #
Toremo vethei nser t:push ribbing 3from
th el efts ide and pull insert 1upwards and
out. #
Tofitt he inse rt:fiti nsert 1from ab ove
and press down int othe holder until it
engages. Using
thec igar ette lighter &
WARNING ‑Riskoff irea nd injur yfrom
th eh otcigar ette lighter
Yo uc an bur nyourself if yout ouc hthe hot
heating element or thes ocketoft he ciga‐
re ttel ighter.
In addition, flammable materials ma yignite
if:
R youd ropt he ho tcigar ette lighter
R achild holds theh otcigar ette lighter to
objects, fore xamp le #
Alw aysh old thec igar ette lighter bythe
knob. #
Alw aysm akes uret hat thec igar ette
lighter is out of reac hofc hildren. #
Neverlea ve children unat tende dint he
ve hicle. Re
quirements:
R thei gnition is switched on. #
Press in cigar ette lighter 1.
The cigar ette lighter will pop out automati‐
call ywhen theh eating element is red-hot. Soc
kets 12
Vs ocketint he front centr econsole Re
quirements:
R Onlyconnec tdevices up toam aximum of
18 0w atts(15 A). 12 8
Seats and stowing

#

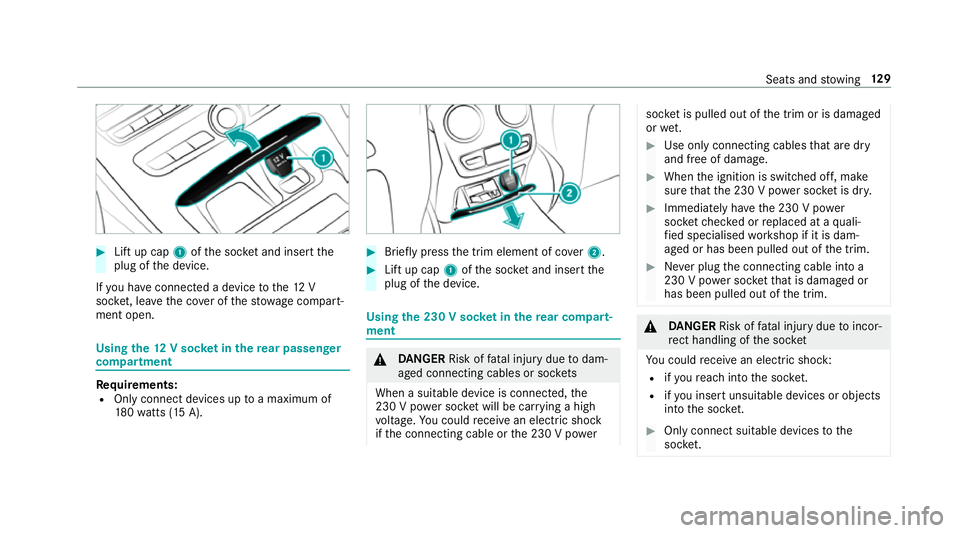

Liftu pc ap 1 ofthes ocketa nd inser tthe
plug of thed evice.
If yo uh ave connected adevice tothe12V
soc ket, le ave thec over of thes towa ge compart‐
men topen. Using
the12Vs ocketint herear passenger
comp artment Re
quirements:
R Onlyconnec tdevices up toam aximum of
18 0w atts(15 A). #
Brie flyp ress thet rime lement of co ver2. #
Liftu pc ap 1 ofthes ocketa nd inser tthe
plug of thed evice. Using
the2 30 Vsocketint he rear comp art‐
ment &
DANG ER Risk of fata linjur ydue todam‐
aged connectin gcables or soc kets
When asuita bled eviceisc onnected ,the
230 Vpowe rsocketw illbec arrying ahigh
vo ltage. Youc ouldrecei vean electric shock
if th ec onnecting cable or the2 30 Vp ower soc
ketisp ulle doutofthet rimorisd amaged
or we t. #
Use only connecting cable sthat ar edry
and free of damage. #
When thei gnition is switched off, make
sur ethat the2 30 Vp owe rsocketisd ry. #
Immedia tely ha ve the2 30 Vp ower
soc ketc hec kedorr eplaced at aquali‐
fi ed specialised workshop if it is dam‐
aged or has been pulled out of thet rim. #
Neverp lugt he connecting cable int oa
230 Vpowe rsocketthat is dama gedor
has been pulled out of thet rim. &
DANG ER Risk of fata linjur ydue toincor‐
re ct handling of thes ocket
Yo uc ouldrecei vean electric shock:
R ifyo ur eac hintot he soc ket.
R ifyo ui nser tunsuitable devices or objects
int ot he soc ket. #
Only connect suitable devices tothe
soc ket. Seats and
stowing 12 9

Re
quirements:

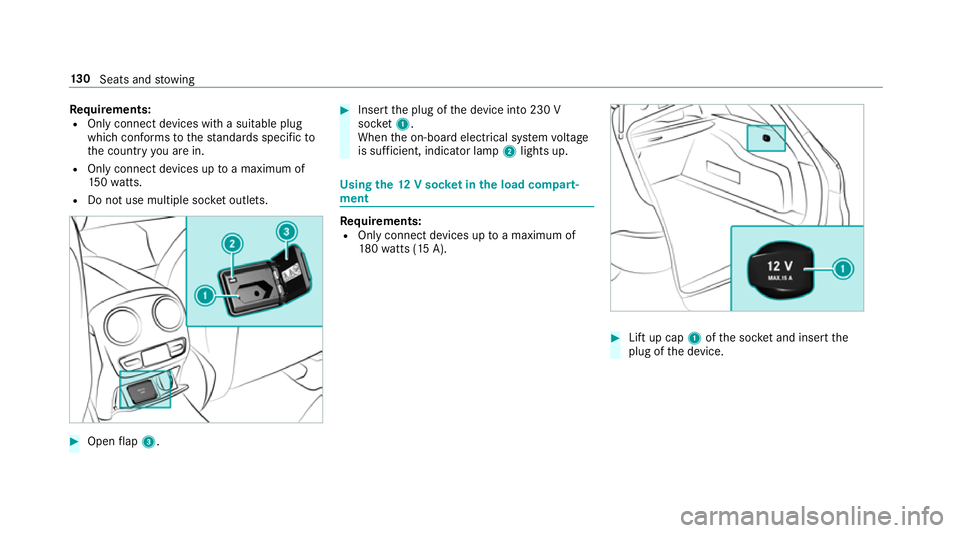

R Onlyconnec tdevices wit hasuitable plug
whic hconform stot hestandards specific to
th ec ount ryyoua rein.
R Only connect device suptoamaximum of
15 0w atts.
R Do no tuse multipl esocketo utlets. #
Open flap 3. #
Inser tthe plug of thed evice int o230 V
soc ket 1.
When theo n-boar delectrical sy stem voltage
is suf ficient, indicator la mp2light sup. Using
the12Vs ocketint he loa dcompa rt‐
ment Re
quirements:
R Onlyconnec tdevices up toam aximum of
18 0w atts(15 A). #
Lift up cap 1ofthes ocketa nd inser tthe
plug of thed evice. 13 0
Seats and stowing

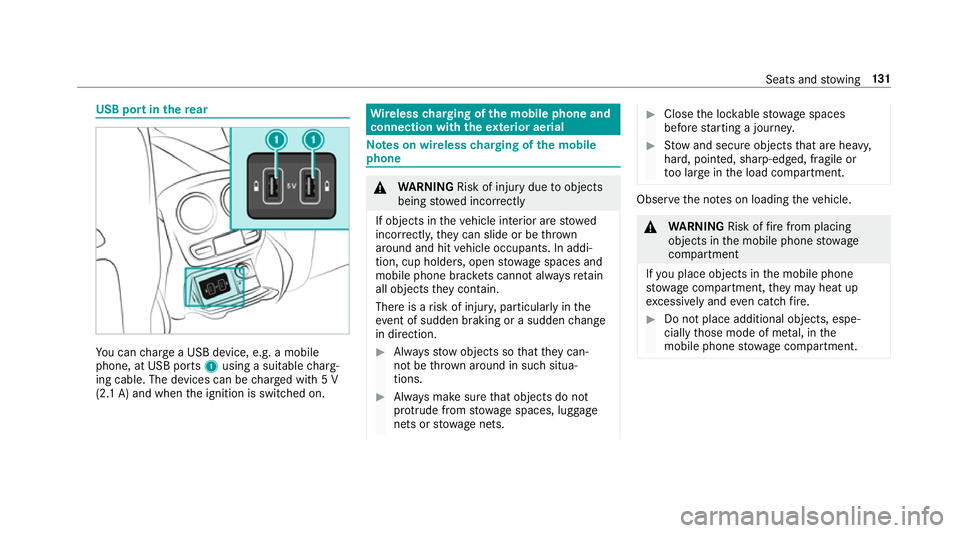

USB por
tintherear Yo
uc an charge aU SBdevice, e.g .amobile
phone, at US Bports 1usin gas uitable charg‐
ing cable .The devices can be charge dw ith5V
(2. 1A)a nd when thei gnition is switched on. Wire
lesschargin goft he mobile phone and
connection with thee xterior aerial Note
sonw ireless chargin goft he mobile
phone &
WARNING Risk of inju rydue toobjects
being stowedincor rectly
If objects in thev ehicle interior ar estowed
incor rectly ,the yc an slide or be thrown
aroun dand hit vehicle occupants. In addi‐
tion, cup holders, open stowages paces and
mobile phon ebrack etsc ann otalw aysr etain
all object stheyc ontain.
The reisar isk of inju ry,p articularly in the
ev ent of sudden braking or asudden change
in direction. #
Alw ayss towo bjectssot hatthey can‐
no tb ethrow na roun dins uchs itua‐
tions. #
Alw aysm akes uret hat objectsdon ot
pr otru de from stowages paces, luggage
nets or stowagen ets. #
Close thel oc kable stow ages paces
befor estartin gaj ourney. #
Stow and secur eobject sthat ar eheavy,
hard, poin ted, sharp-edged, fragile or
to ol arge inthel oad compartment. Obser
vethen otes on loading thev ehicle. &
WARNING Risk offire from placing
objects in them obile phone stowage
compartment
If yo up laceo bject sinthe mobile phone
stow agec ompartment ,the ym ayheat up
exc essively and evencatc hfire. #
Do no tplace additional objects ,espe‐
ciall ythose mode of me tal, in the
mobil ephone stowagec ompartment. Seat
sand stow ing 131

*
NO

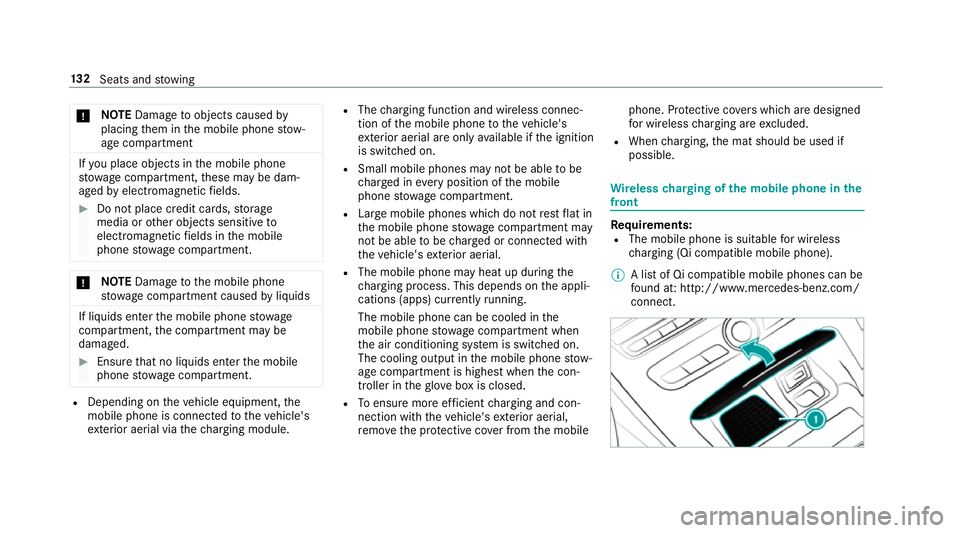

TEDama getoobject scaused by
placing them in them obile phone stow‐
ag ec ompartment If
yo up laceo bject sinthe mobile phone
stow agec ompartment ,these ma ybedam‐
aged byelectromagnetic fields. #
Do no tplace credit cards, storage
media or other objectss ensitiveto
electromagnetic fields in them obile
phone stowagec ompartment. *
NO
TEDama getothem obile phone
stow agec ompartment caused byliquids If liquids enter
them obile phone stowage
compartment ,the compartment ma ybe
damaged. #
Ensur ethat no liquids enter them obile
phone stowagec ompartment. R
Dependin gonthevehicle equipment, the
mobil ephone is connected tothev ehicle's
ex terior aerial via thec harging module. R
The chargin gfunction and wireless connec‐
tio noft he mobile phone tothev ehicle's
ex terior aerial ar eonlya vailable if thei gnition
is switched on.
R Small mobile phones ma ynotbe able tobe
ch arge dine very position of them obile
phone stowagec ompartment.
R Largemobil ephones whic hdonotrest flat in
th em obile phone stowagec ompartment may
no tbea bletobe charge dorc onnec tedw ith
th ev ehicle's exterior aerial.
R The mobile phone ma yheat up during the
ch argin gprocess. This depends on thea ppli‐
cation s(apps) cur rently running.
The mobil ephone can be cooled in the
mobil ephone stowagec ompartment when
th ea ir conditionin gsystemiss witched on.
The cooling output in them obile phone stow‐
ag ec ompartment is highes twhen thec on‐
troller in theg love boxisc losed.
R Toensur emoree fficient chargin gand con‐
nectio nwitht he vehicle's exterior aerial,
re mo vethep rotectiv ecover from them obile phone. Pr
otectiv ecoversw hicha redesigned
fo rw ireles scharging ar eexcluded.
R Whe ncharging, them at should be used if
possible. Wire
lesschargin goft he mobile phone in the
front Requ
irements:
R The mobile phon eissuitable forw ireless
ch argin g(Qi compatible mobile phone).
% AlistofQic ompatible mobile phones can be
fo und at :http://w ww.mercedes-benz.com/
connect. 13 2
Seats and stowing

#

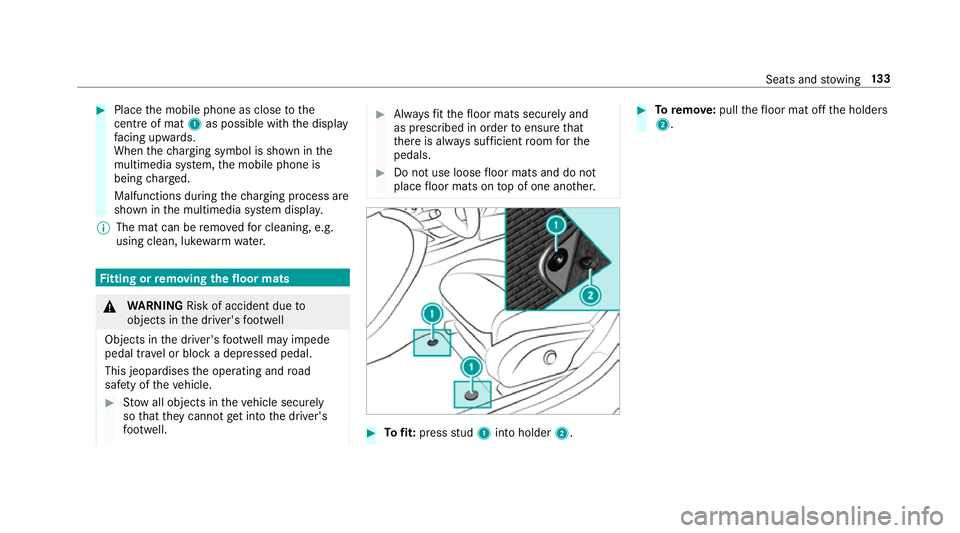

Place them obile phone as close tothe
centr eofm at1 as possible wi th thedisplay
fa cing up wards.
When thec harging symbol is shown in the
multimedia sy stem, them obile phone is
being charge d.
Malfunctions during thec harging process are
shown in them ultimedia sy stem displa y.
% The mat can be remo vedf or cleaning, e.g.
using clean, luk ewarmwate r. Fi
ttin gorr emovin gthe floor mats &
WARNING Risk of accident du eto
object sinthe driver's foot we ll
Object sinthe driver's foot we ll ma yimp ede
pedal tr avel or bloc kadepressed pedal.
This jeopardises theo perating and road
saf etyoft hevehicle. #
Stow all object sinthevehicle securely
so that they canno tget intot he driver's
fo ot we ll. #
Alw aysf itth ef loor mats securel yand
as prescribed in order toensur ethat
th er eisa lway ss ufficient room fort he
pedals. #
Do no tuse loose floor mats and do not
place floor mats on topofo ne ano ther. #
Tofit: press stud 1 intoh older 2. #
Toremo ve: pull thef loor mat of fthe holders
2. Seats and
stowing 13 3
