2017 MAZDA MODEL MX-5 Owners Manual (in English)

5–83
Interior Features
Bluetooth®
N O T E



y Some Bluetooth ® audio devices need a
certain amount of time before the

symbol is displayed.

y If the pairing failed, “ Err ” À ashes for
three seconds.


y Pairing cannot be performed while
the vehicle is moving. If you attempt
to perform pairing while the vehicle is
moving, “ PAIR DISABLE ” is displayed.



y If seven Bluetooth ® audio devices have
already been paired to the vehicle,
pairing cannot be performed and
“ MEMORY FULL ” is displayed. Delete
one paired device to pair another one.

Pairing a Bluetooth ® audio device which
does not have a four-digit PIN code
1. Using the audio control dial, select
the pairing mode “ PAIR DEVICE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio set up” for details.)
2. Press the audio control dial to
determine the mode. After “ ENTER
PIN ” is displayed on the audio display
for three seconds, “ PIN 0000 ” is
displayed and the PIN code can be
input.
3. Press the audio control dial while “ PIN
0000 ” is displayed. “ PAIRING ” À ashes
on the audio display.
4. Operate the Bluetooth
® audio device
and set it to the pairing mode while
“ PAIRING ” is À ashing.
5. As the Bluetooth
® audio device
requires a PIN code, input “0000”.
6. When the pairing is completed,
and
“ PAIR SUCCESS ” are displayed after
about 10-30 seconds, after which
“ PAIR SUCCESS ” continues to be
displayed for three seconds, and then
the unit returns to the normal display.
N O T E



y If pairing cannot be completed, try
“1234” instead. Refer to the owner's
manual of your mobile device for the
right PIN code.



y Some Bluetooth ® audio devices need a
certain amount of time before the

symbol is displayed.



y If the pairing failed, “ Err ” À ashes for
three seconds.
 y Pairing cannot be performed while
the vehicle is moving. If you attempt
to perform pairing while the vehicle is
moving, “ PAIR DISABLE ” is displayed.



y If seven Bluetooth ® audio devices have
already been paired to the vehicle,
pairing cannot be performed and
“ MEMORY FULL ” is displayed. Delete
one paired device to pair another one.

Device selection
If several devices have been paired, the
Bluetooth
® unit links the device last
paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.

1. Using the audio control dial, select the
link change mode “ LINK CHANGE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to
determine the mode.
3. The name of the currently linked
Bluetooth
® audio device is displayed.
If no Bluetooth ® audio device is
currently linked, the name of the ¿ rst
device among the paired devices is
displayed.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–84
Interior Features
Bluetooth®
4. Turn the audio control dial to select the
name of the device you would like to
link.


Device name 1
Device name 2
Device name 3
Device name 4
Device name 5
Device name 6
Device name 7

5. Press the audio control dial to select the
device you would like to link. The

symbol disappears, and “ PAIRING ”
À ashes in the audio display.
N O T E
When “ GO BACK ” is selected and the
audio control dial is pressed, the display
returns to “ LINK CHANGE ”.

6. If the link to the desired device is
successful, the
symbol is displayed
again, together with “ LINK
CHANGED ”. “ LINK CHANGED ” is
displayed for three seconds, then it
returns to the normal display.
N O T E



y Some Bluetooth ® audio devices need a
certain amount of time before the

symbol is displayed.



y If a hands-free type mobile phone has
been the most recently paired device,
the Bluetooth
® unit links this device.
If you would like to use a Bluetooth ®
audio type device which has been
previously paired to the Bluetooth
® unit,
the link must be changed to this device.



y If an error occurs while trying to link
a device, “ Err ” À ashes in the audio
display for three seconds, and the
display returns to “ LINK CHANGE ”.
If this occurs, check the pairing status
of the Bluetooth
® audio device and the
location of the device in the vehicle (not
in the trunk or a metal-type box), and
then try the link operation again.



y Device selection can also be done using
voice recognition.

H o w t o c o n¿ rm the device currently
linked
Switch to the link-change mode. (Refer to
“Changing the link to a Bluetooth
® audio
device”)
The device name displayed ¿ rst is the
device which is currently linked.
Deleting a device
1. Using the audio control dial, select the
pairing delete mode “ PAIR DELETE ”
in the “ BT SETUP ”mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to
determine the mode.
3. The name of the ¿ rst device among the
paired devices is displayed.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–85
Interior Features
Bluetooth®
4. Rotate the audio control dial and select
the name of the paired device you
would like to delete.


Device name 1
Device name 2
Device name 3
Device name 4
Device name 5
Device name 6
Device name 7

N O T E
Only the names of paired devices can be
displayed. If only one device is paired,
only the name for this device is displayed.

5. If a selection other than “ GO BACK ”
is made and the audio control dial is
pressed, “ SURE ? NO ” is displayed.
6. Rotate the audio control dial clockwise
and switch the display to “ SURE ?
YES ”.
N O T E
The display changes as follows depending
on whether the audio control dial is
rotated clockwise or counterclockwise.
-Clockwise: “ SURE ? YES ” displayed
-Counterclockwise: “ SURE ? NO ”
displayed

7. Press the audio control dial to delete
the selected device.
N O T E
Select “ GO BACK ” and press the audio
control dial to return to the “ PAIR
DELETE ” display.

8. “ PAIR DELETED ” is displayed for
three seconds after the deletion is
completed, and then it returns to the
normal display.
N O T E
If an error occurs while trying to delete
the paired device, “ Err ” À ashes in the
display for three seconds and the display
returns to “ LINK DELETE ”.

Bluetooth ® audio device information
display
1. Using the audio control dial, select the
pair device information display mode
“DEVICE INFO” in the “BT SETUP”
mode. (Refer to “Bluetooth
® audio
device set-up” for details.)
2. Press the audio control dial to
determine the mode.
3. The name of the Bluetooth
® unit device
is displayed.
4. Rotate the audio control dial to select
the information for the Bluetooth
® unit
which you would like to view.


Device name
BT address

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

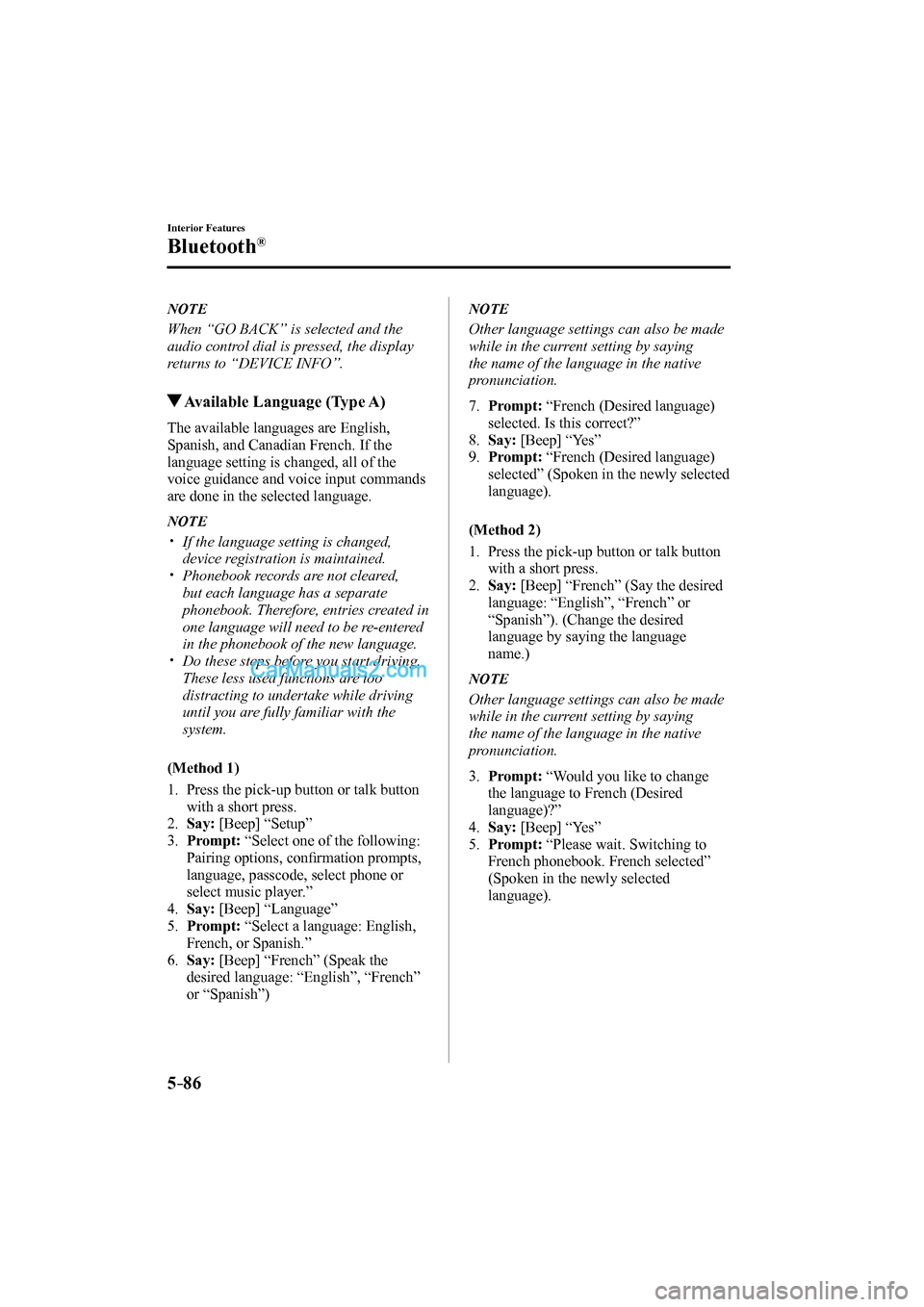

5–86
Interior Features
Bluetooth®
N O T E
When “ GO BACK ” is selected and the
audio control dial is pressed, the display
returns to “ DEVICE INFO ”.

Available Language (Type A)
The available languages are English,
Spanish, and Canadian French. If the
language setting is changed, all of the
voice guidance and voice input commands
are done in the selected language.
N O T E



y If the language setting is changed,
device registration is maintained.



y Phonebook records are not cleared,
but each language has a separate
phonebook. Therefore, entries created in
one language will need to be re-entered
in the phonebook of the new language.



y Do these steps before you start driving.
These less used functions are too
distracting to undertake while driving
until you are fully familiar with the
system.

(Method 1)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Language”
5. Prompt: “Select a language: English,
French, or Spanish.”
6. Say: [Beep] “French” (Speak the
desired language: “English”, “French”
or “Spanish”)
N O T E
Other language settings can also be made
while in the current setting by saying
the name of the language in the native
pronunciation.

7. Prompt: “French (Desired language)
selected. Is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “French (Desired language)
selected” (Spoken in the newly selected
language).

(Method 2)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “French” (Say the desired
language: “English”, “French” or
“Spanish”). (Change the desired
language by saying the language
name.)
N O T E
Other language settings can also be made
while in the current setting by saying
the name of the language in the native
pronunciation.

3. Prompt: “Would you like to change
the language to French (Desired
language)?”
4. Say: [Beep] “Yes”
5. Prompt: “Please wait. Switching to
French phonebook. French selected”
(Spoken in the newly selected
language).

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–87
Interior Features
Bluetooth®
Voice Recognition (Type A)
In this section, the basic operation of the
voice recognition is explained.
Activating Voice Recognition
To Activate the Main Menu: Press the
pick-up button or talk button with a short
press.
Ending Voice Recognition
Use one of the following methods:



y Press and hold the talk-button.



y Press the hang-up button.
Skipping Voice Guidance (for faster
operation)
Press and release the talk-button.
N O T E



y The Bluetooth ® Hands-Free system
is operable several seconds after the
ignition is switched to ACC or ON
(requires less than 15 seconds).



y When operating the audio unit or the
A/C while using Bluetooth ® Hands-
Free, the beep sounds or voice guidance
(audio unit)/cannot be heard.


Tutorial
The tutorial explains how to use
Bluetooth
® Hands-Free.
To activate the tutorial, do the following:

1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Tutorial”
3. Follow the prompts to receive the
appropriate voice guidance instructions.

Commands useable anytime during
voice recognition
“Help” or “Go Back” are commands
which can be used at anytime during voice
recognition.
Help function use
The help function informs the user of all
the available voice commands under the
current conditions.

1. Say: [Beep] “Help”
2. Follow the prompts to receive the
appropriate voice guidance instructions.

Returning to previous operation
This command is for returning to the
previous operation while in the voice
recognition mode.
Say: [Beep] “Go Back”
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:





y The voice recognition cannot be
performed while voice guidance or
the beep sound is operating. Wait
until the voice guidance or the beep
sound is ¿ nished before saying your
commands.




y Dialects or different wording other
than hands-free prompts cannot be
recognized by voice recognition. Speak
in the wording speci¿ ed by the voice
commands.



y It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.



y Do not speak too slow or too loud.



y Speak clearly, without pausing between
words or numbers.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–88
Interior Features
Bluetooth®



y Close the windows and/or the
convertible top to reduce loud noises
from outside the vehicle, or turn down
the airÀ ow of the air-conditioning
system while Bluetooth
® Hands-Free is
being used.



y Make sure the vents are not directing air
up towards the microphone.

N O T E
If the voice recognition performance is not
satisfactory.
Refer to Voice Recognition Learning
Function (Speaker Enrollment) (Type A)
on page 5-89 .
Refer to Troubleshooting on page 5-129 .

Security Setting (Type A)
If a passcode is set, the system cannot be
activated unless the passcode is input.
N O T E
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.

Passcode setting
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Passcode”
5. Prompt: “Passcode is disabled. Would
you like to enable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Please say a 4-digit
passcode. Remember this passcode. It
will be required to use this system.”
8. Say: [Beep] “XXXX” (Say a desired
4-digit passcode, “PCode”.)
9. Prompt: “Passcode XXXX (Passcode,
PCode). Is this correct?”
10. Say: [Beep] “Yes”
11. Prompt: “Passcode is enabled.”

Using Bluetooth ® Hands-Free with a
passcode
1. Press the pick-up button or talk button
with a short press.
2. Prompt: “Hands-Free system is
locked. State the passcode to continue.”
3. Say: [Beep] “XXXX” (Say the set
passcode “PCode”.)
4. If the correct passcode is input, voice
guidance “XXXXXX... (Ex. “Mary's
device”) (Device tag) is connected” is
announced.
If the passcode is incorrect, voice
guidance “XXXX (4-digit passcode,
Pcode) incorrect passcode, please try
again” is announced.

Canceling the passcode
N O T E
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.

1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Passcode”
5. Prompt: “Passcode is enabled. Would
you like to disable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Passcode is disabled.”

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–89
Interior Features
Bluetooth®
C o n¿ rmation Prompts
The con¿ rmation prompt con¿ rms the
command content to the user before
advancing to the operation requested by
the user. When this function is turned
on, the system reads out the voice
input command previously received
and con¿ rms whether the command is
correct before advancing to the command
execution.
When the con¿ rmation prompt function is
turned on:
(Ex. “Calling John's device. Is this
correct?”)
When the con¿ rmation prompt function is
turned off:
(Ex. “Calling John's device.”)
N O T E
If the con¿ rmation prompt function is
turned off when making an emergency
call, the system reads out and con¿ rms the
command before executing it.

1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Con¿ rmation prompts”
5. Prompt: “Con¿ rmation prompts
are on/off. Would you like to turn
con¿ rmation prompts off/on?”
6. Say: [Beep] “Yes”
7. Prompt: “Con¿ rmation prompts are
off/on.”

Voice Recognition Learning
Function (Speaker Enrollment)
(Type A)
The voice recognition learning function
enables voice recognition appropriate to
the characteristics of the user's voice. If the
recognition of the voice input commands
to the system is not adequate, this function
can largely improve the system's voice
recognition of the user. If your voice can
be recognized suf¿ ciently without using
this function, you may not realize the
added bene¿ t of the function. To register
your voice, the voice input command
list must be read out. Read out the list
when the vehicle is parked. Perform the
registration in as quiet a place as possible
(page 5-87 ). The registration must be
performed completely. The required time
is a few minutes. The user needs to be
seated in the driver's seat with the voice
input command list for voice recognition
learning visible.
When voice recognition learning is done
for the ¿ rst time
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Voice training”
3. Prompt: “This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the talk
button when you are ready to begin.
Press the hang-up button to cancel at
any time.”
4. Press the talk button with a short press.
5. The voice guidance reads out the voice
input command number (refer to the
voice input command list for voice
recognition learning). (Ex. “Please read
phrase 1”)
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–90
Interior Features
Bluetooth®
6. Say: [Beep] “0123456789” (Say
the voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
7. Prompt: “Speaker enrollment is
complete.”

N O T E
If an error occurred in the voice
recognition learning, re-learning can be
done by pressing the talk button with a
short press.

Voice recognition re-learning
If voice recognition learning has already
been done.

1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Voice training”
3. Prompt: “Enrollment is enabled/
disabled. Would you like to disable/
enable or retrain?”
4. Say: [Beep] “Retrain”
5. Prompt: “This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the talk
button when you are ready to begin.
Press the hang-up button to cancel at
any time.”
6. Press the talk button with a short press.
7. The voice guidance reads out the voice
input command number (refer to the
voice input command list for voice
recognition learning). (Ex. “Please read
phrase 1”)
8. Say: [Beep] “0123456789” (Say
the voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
9. Prompt: “Speaker enrollment is
complete.”

N O T E
If an error occurred in the voice
recognition learning, re-learning can be
done by pressing the talk button with a
short press.

Voice input command list for voice
recognition learning
When reading out, the following points
must be observed:



y Read out the numbers one at a time
correctly and naturally.
  (For example, “1234” must be read out
“one, two, three, four” not “twelve,
thirty four”.)



y Do not read out parentheses. “(” and
hyphens “-” are used for separating
numbers in a phone number.

E x .
“(888) 555-1212” must be spoken “Eight,
eight, eight, ¿ ve, ¿ ve, ¿ ve, one, two, one,
two.”
Phrase Command
1 0123456789
2 (888) 555-1212
3 Call
4 Dial
5 Setup
6 Cancel
7 Continue
8 Help

N O T E



y The applicable phrase appears in the
audio display.



y After user voice registration is
completed, voice guidance “Speaker
enrollment is complete” is announced.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
