Maintenance and Care
Owner Maintenance
5. Disconnect the bulb from the socket.



6. Install the new bulb in the reverse order
of the removal procedure.

Front side-marker lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.


Removal
Installation

4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.



6. Install the new bulb in the reverse order
of the removal procedure.

Front turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.


Removal
Installation

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–48
Maintenance and Care
Owner Maintenance
4. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector rearward.



5. Turn the socket and bulb assembly
counterclockwise and remove it.
6. Disconnect the bulb from the socket.


7. Install the new bulb in the reverse order
of the removal procedure.

Side turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left. 3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.


Removal
Installation

4. Remove the unit by pressing the tab on
the unit with your ¿ nger and pulling the
unit forward.



5. Detach the electrical connector from
the unit by pulling it to the rear.



6. Install the new side turn signal unit
in the reverse order of the removal
procedure.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–49
Maintenance and Care
Owner Maintenance
Rear turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.


Removal
Installation

3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.


4. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the trunk side trim.


Removal
Installation

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–50
Maintenance and Care
Owner Maintenance

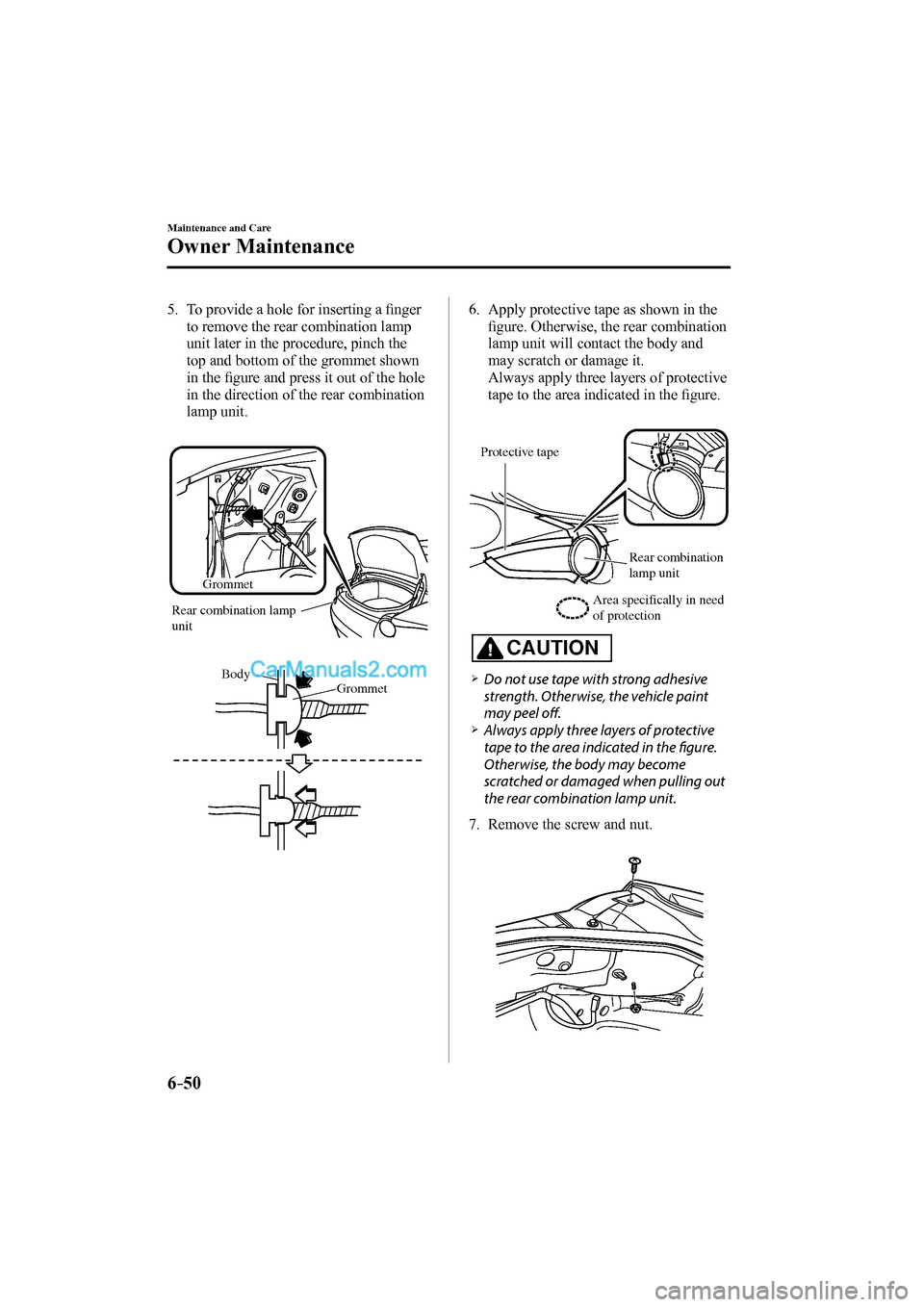

5. To provide a hole for inserting a ¿ nger
to remove the rear combination lamp
unit later in the procedure, pinch the
top and bottom of the grommet shown
in the ¿ gure and press it out of the hole
in the direction of the rear combination
lamp unit.


Grommet
Rear combination lamp
unit



Grommet Body
6. Apply protective tape as shown in the
¿ gure. Otherwise, the rear combination
lamp unit will contact the body and
may scratch or damage it.
Always apply three layers of protective
tape to the area indicated in the ¿ gure.


Protective tape
Rear combination
lamp unit
Area specifically in need
of protection

CAUTION



¾ Do not use tape with strong adhesive
strength. Otherwise, the vehicle paint
may peel off .




¾ Always apply three layers of protective
tape to the area indicated in the fi gure.
Otherwise, the body may become
scratched or damaged when pulling out
the rear combination lamp unit.

7. Remove the screw and nut.



/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–51
Maintenance and Care
Owner Maintenance
8. To remove the rear combination lamp
unit, insert your ¿ nger from inside the
trunk and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
part) of the rear combination lamp with
your hand, press the rear combination
lamp unit until the hook detaches from
the clip.


Rear combination lamp unit Hook
Grommet installation
hole

9. After the hook is detached, pull out
the rear combination lamp unit in the
direction of the arrow and remove it.


Grommet installation hole Clip
HookRear combination
lamp unit
CAUTION
Carefully pull out the rear combination
lamp unit when removing it from the
body.
The wiring may become damaged
if the rear combination lamp unit is
forcefully pulled out.

10. Turn the socket and bulb assembly
counterclockwise and remove it.
11. Disconnect the bulb from the socket.



12. Install the new bulb in the reverse order
of the removal procedure.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–52
Maintenance and Care
Owner Maintenance
Rear side-marker lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.



4. Install the new bulb in the reverse order
of the removal procedure.

Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.



4. Install the new bulb in the reverse order
of the removal procedure.

License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the unit by pressing the tab on
the unit with your ¿ nger and pulling the
unit downward.



3. Turn the socket and bulb assembly
counterclockwise and remove it.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–53
Maintenance and Care
Owner Maintenance
4. Disconnect the bulb from the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Replacing Interior Light Bulbs
Overhead light
1. Wrap a small À athead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the À athead screwdriver.
2. Disconnect the bulb by pulling it out.



3. Install the new bulb in the reverse order
of the removal procedure.

Trunk light
1. Wrap a small À athead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the À athead screwdriver.



2. Disconnect the connector from the unit.
3. Disconnect the bulb by pulling it out.



4. Install the new bulb in the reverse order
of the removal procedure.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–54
Maintenance and Care
Owner Maintenance
Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, ¿ rst
inspect the fuses on the vehicle's left side.


1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.

3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.


4. Inspect the fuse and replace it if it is
blown.

NormalBlown

5. Insert a new fuse of the same amperage
rating, and make sure it ¿ ts tightly. If
it does not ¿ t tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.

6. Reinstall the cover and make sure that
it is securely installed.
