2017 MAZDA MODEL MX-5 Owners Manual (in English)

6–55
Maintenance and Care
Owner Maintenance
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:


1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
N O T E
If the lock is forcefully opened, the fuse
block cover may come in contact with the
frame when it is removed and become
scratched.
When removing the cover, remove it slowly
according to the following procedure.

1. Disengage the rear lock by pressing
down on the front tab with your
¿ ngers.
2. Remove the front tab while slightly
lifting the front of the cover.

3. Remove the cover while lifting it and
sliding it to the rear.


3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating .

Normal
Blown

WARNING
Do not replace the main fuse and
multiplex slow blow fuse by yourself.
Have an Authorized Mazda Dealer
perform the replacement:
Replacing these fuses by yourself is
dangerous because they are high
current fuses. Incorrect replacement
could cause an electrical shock or a
short circuit resulting in a fi re.

4. Reinstall the cover and make sure that
it is securely installed.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–56
Maintenance and Care
Owner Maintenance
Fuse Panel Description
Fuse block (Engine compartment)


DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 ENG IG3 5 A —
2 ENG IG2 5 A —
3 HORN2 7.5 A Horn
4 C/U IG1 15 A For protection of various circuits
5 ENG IG1 7.5 A Engine control system
6 — — —
7 INTERIOR 15 A Overhead light
8 ENG
B
7.5 A Engine control system
9 AUDIO2 15 A Audio system
10 METER1 10 A Instrument cluster
11 SRS1 7.5 A Air bag
12 — — —
13 RADIO 7.5 A Audio system
14 ENGINE3 20 A Engine control system
15 ENGINE1 10 A Engine control system
16 ENGINE2 15 A Engine control system
17 AUDIO1 25 A Audio system
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–57
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
18 A/C MAG 7.5 A Air conditioner
19 AT PUMP
H/L HI 20 A Transmission control system
*
20 AT 15 A Transmission control system
*
21 D LOCK 25 A Power door locks
22 H/L RH 20 A Headlight (RH)
23
ENG
B2 7.5 A Engine control system
24 TAIL 20 A Taillights, License plate lights, Parking lights
25 DRL 15 A —
26 ROOM 25 A Overhead light
27 FOG 15 A —
28 H/CLEAN 20 A —
29 STOP 10 A Brake lights
30 HORN 15 A Horn
31 H/L LH 20 A Headlight (LH)
32 ABS/DSC S 30 A ABS, Dynamic stability control system
33 HAZARD 15 A Hazard warning À ashers, Turn signal lights
34 FUEL PUMP 15 A Fuel system
35
ENG
B3 5 A —
36 WIPER 20 A Windshield wipers
37
CABIN
B 50 A For protection of various circuits
38 — — —
39 — — —
40 ABS/DSC M 50 A ABS, Dynamic stability control system
41 EVVT
A/R PUMP 20 A Engine control system
42 EVPS 30 A Brake control system
43 FAN1 30 A Cooling fan
44 FAN2 40 A —
45 ENG.MAIN 40 A Engine control system
46 EPS 60 A Power steering system
47 DEFOG 30 A Rear window defogger
48 IG2 30 A For protection of various circuits
49 INJECTOR 30 A Engine control system
50 HEATER 40 A Air conditioner
51 — — —
52 — — —

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–58
Maintenance and Care
Owner Maintenance
*Some models.
Fuse block (Left side)


DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 RHT R 30 A Retractable fastback (RH)
*
2 RHT L 30 A Retractable fastback (LH) *
3 — — —
4 — — —
5 F.OUTLET 15 A Accessory sockets
6 — — —
7 AT IND 7.5 A AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A Retractable fastback (RH)
*
10 R_DECK L 30 A Retractable fastback (LH) *
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 — — —
14 SRS2/ESCL 15 A —
15 SEAT WARM 20 A Seat warmer
*
16 M.DEF 7.5 A Mirror defogger *

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–59
Maintenance and Care
Appearance Care
Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's ¿ nish. As the water evaporates,
the acid becomes concentrated and can
damage the ¿ nish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its ¿ nish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's ¿ nish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
are not removed they can eat away the
clear and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.

Tree sap will harden and adhere
permanently to the paint ¿ nish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda washed
and waxed to preserve its ¿ nish according
to the instructions in this section. This
should be done as soon as possible.

Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

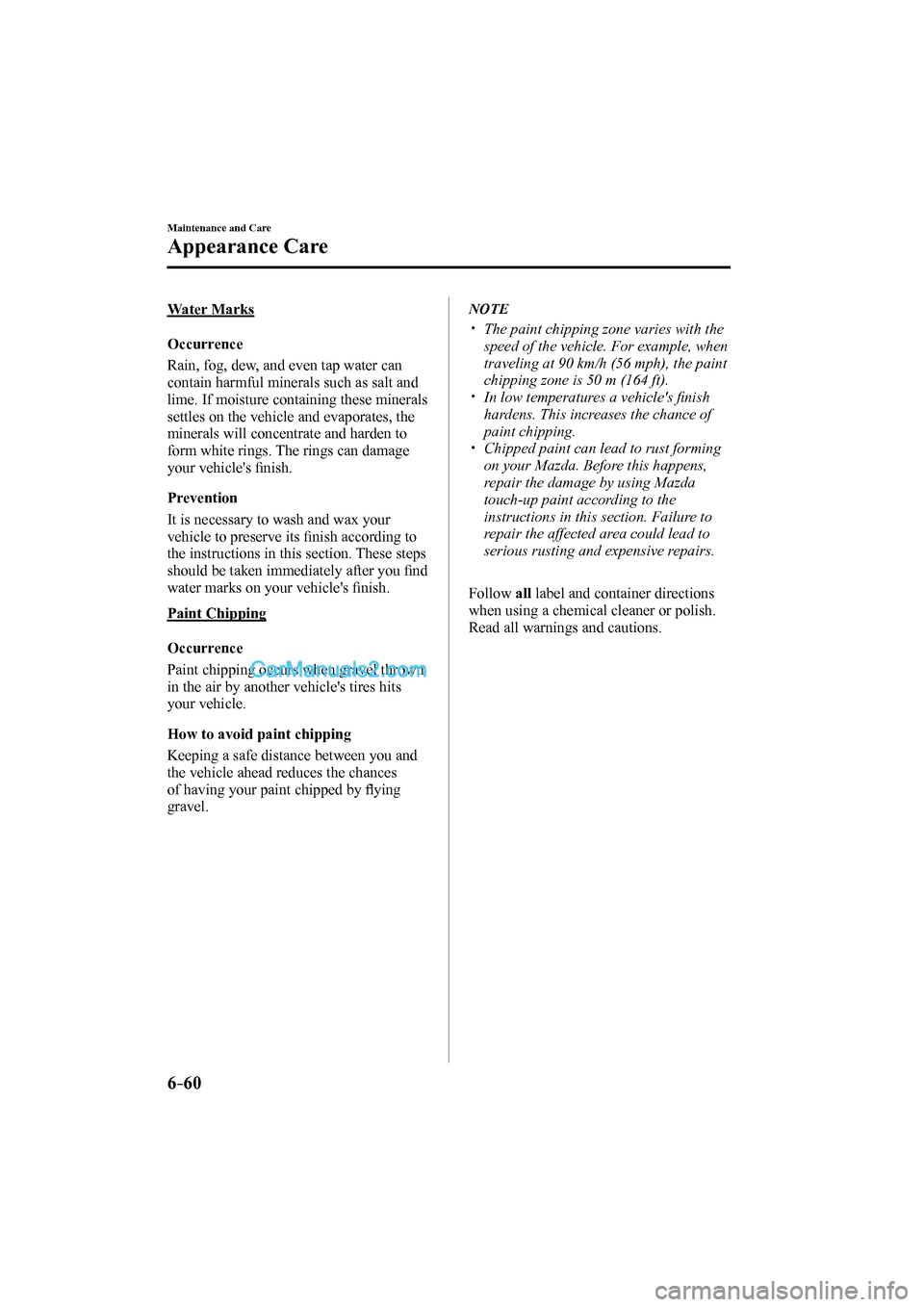

6–60
Maintenance and Care
Appearance Care
Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's ¿ nish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its ¿ nish according to
the instructions in this section. These steps
should be taken immediately after you ¿ nd
water marks on your vehicle's ¿ nish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances
of having your paint chipped by À ying
gravel. N O T E



y The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).



y In low temperatures a vehicle's ¿ nish
hardens. This increases the chance of
paint chipping.



y Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.


Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–61
Maintenance and Care
Appearance Care
Maintaining the Finish
W a s h i n g
CAUTION



¾ When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:



¾ If the windshield above the rain
sensor is touched or wiped with a
cloth.



¾ If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
  Keep hands and scrapers clear of the
windshield when the wiper lever is in the

position and the ignition is
switched ON as fi ngers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
  If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.



¾ Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.



¾ When washing and waxing the vehicle,
be careful not to apply excessive force
to any single area of the vehicle hood.
Otherwise, you could dent the vehicle.



¾ Do not use automatic car washing
machines and car washing devices using
high water pressure.



¾ Make sure that the fuel lid is closed
and lock the doors. Otherwise, the fuel
lid may be forcefully opened by water
pressure causing damage to the vehicle
or fuel lid.

To help protect the ¿ nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface when:



y The vehicle is washed without ¿ rst
rinsing off dirt and other foreign matter.



y The vehicle is washed with a rough, dry,
or dirty cloth.



y The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.



y Cleansers or wax containing abrasives
are used.

N O T E



y Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.



y Scratches are more noticeable on
vehicles with darker paint ¿ nishes.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–62
Maintenance and Care
Appearance Care
To minimize scratches on the vehicle's
paint ¿ nish:




y Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.



y Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.



y Rub gently when washing or drying the
vehicle.



y Take your vehicle only to a car wash
that keeps its brushes well maintained.



y Do not use abrasive cleansers or wax
that contain abrasives.

CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage the
protective coating; also, cleaners and
detergents may discolor or deteriorate
the paint.

Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits
can damage the ¿ nish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the ¿ nish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.

Waxing
Your vehicle needs to be waxed when
water no longer beads on the ¿ nish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.


1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.

N O T E
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas even if the rest
of the vehicle does not need it.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
