2017 MAZDA MODEL MX-5 Owners Manual (in English)

5–107
Interior Features
Bluetooth®
Receiving an Incoming Call
When an incoming call is received, the incoming call noti¿ cation screen is displayed. The
“Incoming Call Noti¿ cations” setting must be on.
Refer to Communication Settings on page 5-112 .
To accept the call, press the pick-up button on the audio control switch or select
on
the screen.
To reject the call, press the hang-up button on the audio control switch or select
on the
screen.
The following icons are displayed on the screen during a call. Icons which can be used differ
depending on use conditions.

Icon Function

Displays the Communication menu.

Ends the call.

Transferring a call from hands-free to a mobile phone
Communication between the Bluetooth ® unit and a device (mobile phone) is canceled, and
an incoming call will be received by the device (mobile phone) like a standard call.

Transferring a call from a device (mobile phone) to hands-free
Communication between devices (mobile phone) can be switched to Bluetooth ® Hands-
Free.

Mute
The microphone can be muted during a call.
When selected again, the mute is canceled.

To make a 3-way call, select the contacts from the following:

: Call History is displayed.

: The phonebook is displayed.

: The dial pad is displayed. Input the phone number.
The device may be unusable depending on the contractual content.

The call on hold is made to make a 3-way call.
The device may be unusable depending on the contractual content.

Switches the call on hold.

DTMF (Dual Tone Multi-Frequency Signal) Transmission
This function is used when transmitting DTMF via the dial pad. The receiver of a DTMF
transmission is generally a home telephone answering machine or a company's automated
guidance call center.
Input the number using a dial pad.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–10 8
Interior Features
Bluetooth®
N O T E



y If the ignition is switched off during a
hands-free call, the line is transferred
to the device (Mobile phone)
automatically.



y If the DTMF code has two or more
digits or symbols, each one must be
transmitted individually.

Call Interrupt
A call can be interrupted to receive an
incoming call from a third party.
When
is selected or the pick-
up button on the steering wheel is pressed,
the current call is held and the system
switches to the new incoming call.
When
is selected, the current
call is ended and the system switches to
the new incoming call (GSM network
only).
When
is selected or the hang-up
button on the steering wheel is pressed, an
incoming call is refused.
N O T E



y The function may not be available
depending on the contractual content of
the mobile device.



y The function may not be operable
depending on the type of the telephone
network and the mobile device.

Receiving and Replying to
Messages (available only with
E-mail/SMS compatible phones)
SMS (Short Message Service) messages,
and E-mail received by connected devices
can be downloaded, displayed, and played
(read by the system).
Additionally, replies can also be made
to calls and messages in the received
messages.
Downloading messages
Up to 20 new messages can be
downloaded and displayed from a
connected device.
N O T E
For E-mail, 20 messages for each account
can be downloaded.

(Automatic downloading)
The “Auto Download Email” (E-mail)
or “Auto Download Text Message”
(SMS) setting must be on. A message
is downloaded automatically when the
Bluetooth
® unit is connected to the device.
Refer to Communication Settings on page
5-112 .
(Manually downloading)
When the “Auto Download Email”
(E-mail) or “Auto Download Text
Message” (SMS) setting is off, the
message is downloaded using the
following procedure.

1. Select the icon on the home screen
to display the Communication screen.
2. Select
or to display
the Inbox.
3. Select
.
4. Download will be started from the
mobile phone.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

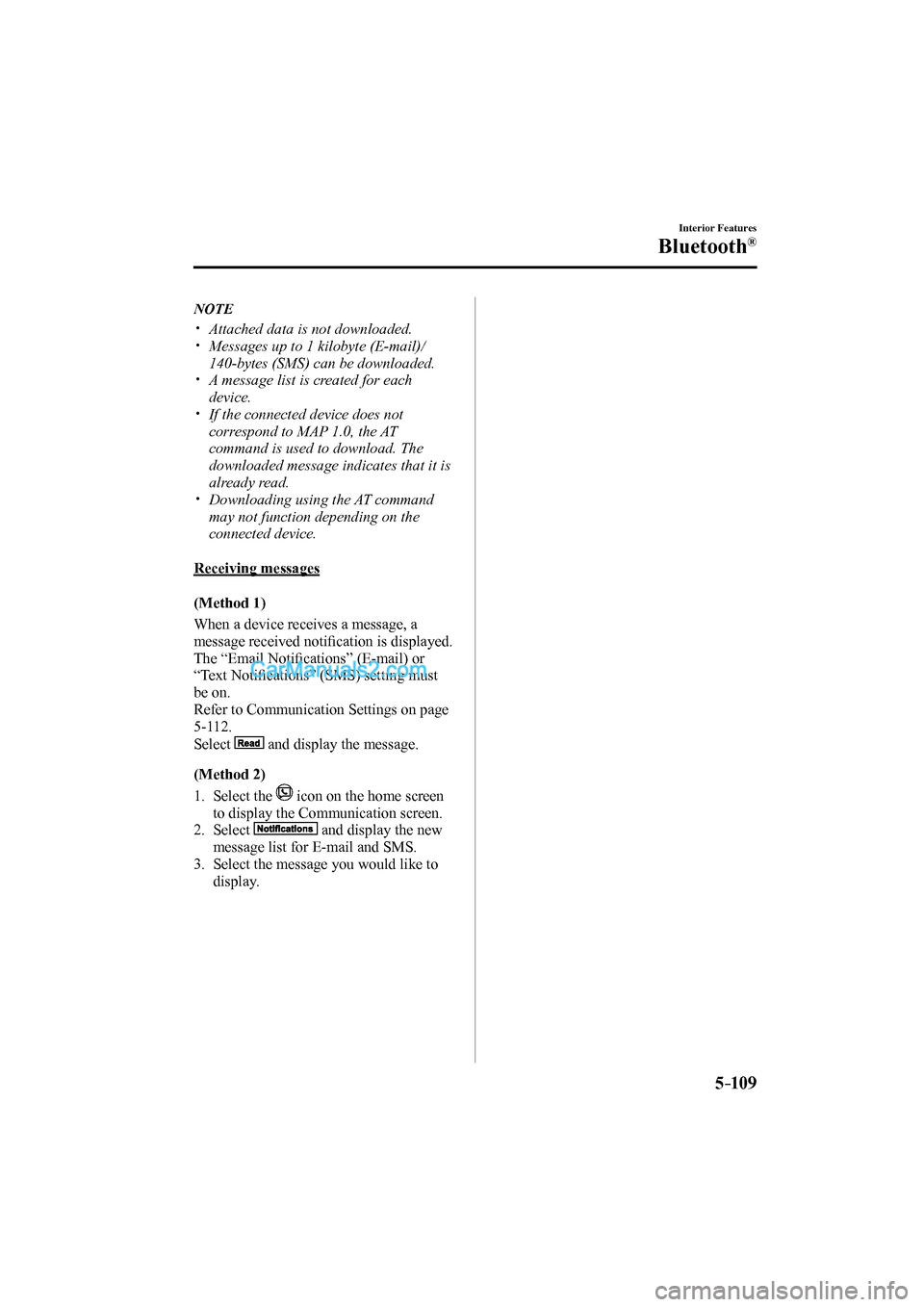

5–109
Interior Features
Bluetooth®
N O T E



y Attached data is not downloaded.



y Messages up to 1 kilobyte (E-mail)/
140-bytes (SMS) can be downloaded.



y A message list is created for each
device.



y If the connected device does not
correspond to MAP 1.0, the AT
command is used to download. The
downloaded message indicates that it is
already read.



y Downloading using the AT command
may not function depending on the
connected device.

Receiving messages
( M e t h o d 1 )
When a device receives a message, a
message received noti¿ cation is displayed.
The “Email Noti¿ cations” (E-mail) or
“Text Noti¿ cations” (SMS) setting must
be on.
Refer to Communication Settings on page
5-112 .
Select
and display the message.
(Method 2)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
and display the new
message list for E-mail and SMS.
3. Select the message you would like to
display.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–110
Interior Features
Bluetooth®
The following icons are displayed in the lower part of the details on the message. Icons
which can be used differ depending on use conditions.

Icon Function

Displays the Communication menu.

Displays the inbox.

Plays back a message.
When selected again, playback is temporarily stopped.

Displays the previous message.

Displays the next message.

Only replies to the sender of the currently displayed message.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select .

(Only E-mail)
Replies to all members including CC.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select
.

Makes a call to a person who sent a message.
For E-mail, this function may not work depending on the device.

Deletes a message.
The messages stored in a device is also deleted.

N O T E
Up to three preset messages can be selected.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–111
Interior Features
Bluetooth®
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.



3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.

Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.

Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.

N O T E



y Select the icon to change the
language.



y Select the icon to switch between
capitalized and lower-case characters.



y Select the icon to return to the
previous screen without storing the edit.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–112
Interior Features
Bluetooth®
Communication Settings
Select the icon on the home screen to display the Communication screen.
Select
to change the setting.

Item Setting Function
Bluetooth
® — Go to Bluetooth ® setting menu.
Refer to Bluetooth ® Preparation (Type B) on page 5-91 .
Incoming Call
Noti¿ cations On/Off Noti¿ es when an incoming call is received.
Auto Download Text
Message On/Off Downloads SMS automatically when the Bluetooth
® unit is connected
to the device.
Text Noti¿ cations On/Off Noti¿ es when a new SMS is received.
Auto Download
Email
*1 On/Off Downloads E-mail automatically when the Bluetooth
® unit is connected
to the device.
Email Noti¿ cations On/Off Noti¿ es when a new Email is received.
Auto Download Call
History On/Off Downloads Call History automatically when the Bluetooth
® unit is
connected to the device.
Auto Download
Contacts
*1 On/Off Downloads the phonebook automatically when the Bluetooth
® unit is
connected to the device.
Ringtone Car/Phone/Off Changes the ringtone setting.
Phone Volume Adjusts using
the slider. Adjusts the conversation volume.
VR and Ringtone Adjusts using
the slider. Adjusts the voice guidance and ringtone volume.
Contacts Display
Order First Name,
Last Name Displays the contact information in alphabetical order of the ¿ rst name.
Last Name,
First Name Displays the contact information in alphabetical order of the last name.
Edit Preset Messages — Edits the preset message.
Refer to Receiving and Replying to Messages (available only with
E-mail/SMS compatible phones) on page 5-108 .
Emergency Assistance
Call On/Off Mobile Utilizes the Mobile 911 function.
Restore Factory
settings — Initializes all Communication Settings.
*1 Depending on the device, it may be necessary to acquire download permission on the device side.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–113
Interior Features
Bluetooth®
Bluetooth ® Audio (Type A)
Applicable Bluetooth ® speci¿ cation
(Recommended)
Ver. 2.0

Response pro¿ le




y A2DP (Advanced Audio Distribution
Pro¿ le) Ver. 1.0/1.2




y AVRCP (Audio/Video Remote Control
Pro¿ le) Ver. 1.0/1.3


A2DP is a pro¿ le which transmits only
audio to the Bluetooth
® unit. If your
Bluetooth ® audio device corresponds
only to A2DP, but not AVRCP, you
cannot operate it using the control panel
of the vehicle's audio system. In this
case, only the operations on the mobile
device are available the same as when a
portable audio device for a non-compliant
Bluetooth
® device is connected to the
AUX terminal.

Function A2DP AVRCP
Ver. 1.0 Ver. 1.3
Playback — X X
Pause — X X
File (Track) up/down — X X
Reverse — — X
Fast-forward — — X
Text display — — X
X: Available
—: Not available

N O T E



y The battery consumption of Bluetooth ®
audio devices increases while
Bluetooth
® is connected.


y If a general mobile phone device is
USB connected during music playback
over the Bluetooth
® connection, the
Bluetooth ® connection is disconnected.
For this reason, you cannot have music
playback over a Bluetooth
® connection
and music playback using a USB
connection at the same time.



y The system may not operate normally
depending on the Bluetooth ® audio
device.

How to Use the Bluetooth ® Audio
System
Switching to Bluetooth ® audio mode
To listen to music or voice audio recorded
to a Bluetooth
® audio device, switch to
the Bluetooth ® audio mode to operate
the audio device using the audio system
control panel. Any Bluetooth
® audio
device must be paired to the vehicle's
Bluetooth
® unit before it can be used.
Refer to Bluetooth ® Preparation (Type A)
on page 5-77 .

1. Turn on the Bluetooth ® audio device's
power.
2. Switch the ignition to ACC or ON.
Make sure that the “
” symbol is
displayed in the audio display. The
symbol is not displayed if an un-paired
Bluetooth
® audio device is being used
or the vehicle's Bluetooth ® unit has a
malfunction.
N O T E
Some Bluetooth ® audio devices need a
certain amount of time before the “
”
symbol is displayed.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

5–114
Interior Features
Bluetooth®
3. Press the media button ( ) to
switch to the Bluetooth ® audio mode
and start playback.

If the current device version is lower
than AVRCP Ver. 1.3: “ BT Audio ” is
displayed.
If the current device is AVRCP Ver. 1.3:
The playback time is displayed.
N O T E



y If the Bluetooth ® audio device does not
begin playback, press the Play/Pause
button (4).



y If a call is received on a hands-free
mobile phone during playback from the
Bluetooth
® audio device, the playback is
stopped. Playback from the Bluetooth ®
audio device resumes after the call
ends.

Playback
1. To listen to a Bluetooth
® audio device
over the vehicle's speaker system,
switch the mode to Bluetooth
®
audio mode. (Refer to “Switching to
Bluetooth
® audio mode”)
2. To stop playback, press the Play/Pause
button (4).
3. Press the button again to resume
playback.

Selecting a ¿ le (track)
Selects the next ¿ le (track)
Short-press the track up button (
).
Selects the beginning of the current ¿ le
(track)
Short-press the track down button (
).
Fast-forward/Reverse (AVRCP Ver. 1.3)
Fast-forward
Press and hold the fast-forward button
(
).
Reverse
Press and hold the reverse down button
(
).

Switching the display (only AVRCP Ver.
1.3)
The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

Button Information displayed
on audio display

Elapsed time
Album name
Song name
Artist name

N O T E



y If title information is not available, “ NO
TITLE ” is displayed.



y This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(
).
Display scroll
Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button (3). The display scrolls the next 13
characters. Press and hold the text button
(3) again after the last 13 characters have
been displayed to return to the beginning
of the title.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
