Before Driving
Convertible Top (Retractable Fastback)
CAUTION



¾ When getting in or out of the vehicle with the roof open, be careful not to hit your head or
body on the corner of the windshield glass. It may cause an injury.



¾ Do not drive with the roof partially opened; this could damage the roof or cause an
unexpected accident.



¾ Children should not be allowed to play with the retractable fastback switch.



¾ Do not place objects or cargo around the rear roof, rear glass, or the front roof storage area.
Even small objects may interfere and cause damage.



¾ Remove leaves that accumulate on and around the roof. If the leaves are not removed, they
may block the water drainage outlets.



¾ Before opening the roof, make sure the rear window defogger switch (Defroster) is turned
off . Otherwise the heat generated from the defogger could damage the roof and the
internal material.



¾ When opening/closing the roof, verify that there is no obstruction above the roof
(about 1.6 m (5 ft 2 in) from the ground) so as not to damage the roof or the obstruction.



¾ When opening/closing the roof, do not apply any load to the front roof or the rear roof. The
opening/closing mechanism of the roof may be damaged.



¾ Do not spray water directly near the seam of the window and roof when washing off dirt on
the roof with water. Otherwise, water may enter the cabin.
  Refer to Retractable Fastback Maintenance on page 6-66 .



¾ Open/close the roof with the vehicle parked on a hard, level ground in a safe place where
the vehicle does not obstruct traffi c. If the roof is opened/closed on a slope or bump, the
opening/closing mechanism of the roof may be damaged.



¾ Do not drive through an automatic car wash as it may damage the roof.



¾ Do not open or close the roof forcefully when the ambient temperature is low and the roof
or the surrounding area is frozen as it could damage the roof.



¾ Opening the roof while it is wet can also cause water to drip into the passenger
compartment.



¾ Do not open or close the roof in a strong wind as it could damage the roof.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–42
Before Driving
Convertible Top (Retractable Fastback)
N O T E



y When opening the roof, make sure objects inside the vehicle are not blown away by the
wind.



y Secure all loose objects inside before driving with the roof down.



y To help prevent burglary or vandalism and to ensure that the passenger compartment
stays dry, close the roof securely and lock both doors when leaving the vehicle.



y The power windows lower automatically in conjunction with the roof opening/closing.
This is a function for improving the operability and it does not indicate a problem.
  If the vehicle battery is disconnected for vehicle maintenance or other reasons, the power
windows will not lower automatically. If the power windows do not lower, reset the power
window automatic open/close function.
  Refer to Operating the Power Windows on page 3-31 .



y The windblocker reduces the amount of wind coming into the cabin from behind when
driving with the roof opened.
  Refer to Windblocker on page 5-140 .
Operation Indication
Operation Indicator Light


When illuminated
This indicates that the roof is only partially open.
When À ashing
This indicates that the roof is being open/closed. (During switch operation)
When not illuminated
This indicates that the roof is open/closed fully.
N O T E
If the operation indicator light À ashes quickly, there may be a system malfunction. Consult
an Authorized Mazda Dealer.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–43
Before Driving
Convertible Top (Retractable Fastback)
Roof operation display
The roof operation status is indicated on the multi-information display.
The following table shows display examples when opening the roof:

Operation Roof status Indication
Before operation Roof closed


During operation Rear roof opened


Rear roof opened
Front roof opened


Rear roof opened
Front roof stored


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–44
Before Driving
Convertible Top (Retractable Fastback)
Operation Roof status Indication
Operation complete Rear roof closed



Operation Conditions
If the following conditions have been
satis¿ ed, the roof can be opened/closed.




y The ignition is switched ON.



y Shift/selector lever is in a position other
than R (reverse).
 y Vehicle speed is 10 km/h (6.2 mph) or
less.



y The trunk lid is closed.
CAUTION
If the vehicle speed exceeds 10 km/h
(6.2 mph) during the opening/closing
operation, the opening/closing
operation of the roof stops midstream.
If the roof stops midstream, visibility at
the rear may be impaired or damage
to the roof may occur which could
lead to an accident. Operate the
switch again with the vehicle stopped,
depending on the road and traffi c
conditions, to complete opening/
closing operation of the roof.


N O T E
If the roof cannot be closed even after the
operation conditions are all met, have it
checked at an Authorized Mazda Dealer.
The roof can be closed manually as an
emergency measure.
Refer to When the Roof Cannot be Closed
on page 7-57 .

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–45
Before Driving
Convertible Top (Retractable Fastback)
Opening the Roof
1. Park on a hard, level surface off the
right-of-way and ¿ rmly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake
pedal depressed.
4. Start the Engine.
N O T E
Do not open/close the roof with the engine
stopped. Otherwise the vehicle's battery
power could be depleted.

5. Continue pressing the retractable
fastback switch in the open direction
until the roof is completely open.


N O T E

y If the retractable fastback switch is
pressed in the open direction, a warning
beep sounds.



y If the windows are closed, the windows
automatically open partially when the
rear roof opens.
  After the rear roof is opened and
the retractable fastback switch is
continuously pressed in the open
direction, the power windows close
completely.
  Once you remove your hand from the
switch, the power windows do not
close even if it is operated again. If this
happens, completely close the power
windows using the power window
switch.


y The roof keeps opening and the
operation indicator light À ashes while
the retractable fastback switch is
pressed in the open direction.



y If the switch is released while the roof is
opening, the roof stops opening. If the
switch is pressed in the open direction
again, the roof resumes opening.



y When the operation is ¿ nished, a beep
sound is heard and the operation
indicator light turns off.



y When the roof is half-open, the front
roof resumes opening after the rear roof
is completely open.

Closing the Roof
1. Park on a hard, level surface off the
right-of-way and ¿ rmly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake
pedal depressed.
4. Start the Engine.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–46
Before Driving
Convertible Top (Retractable Fastback)
N O T E
Do not open/close the roof with the engine
stopped. Otherwise the vehicle's battery
power could be depleted.

5. Slightly slide the seats back if they are
in the foremost position.
6. Continue pressing the retractable
fastback switch in the close direction
until the rear roof is completely closed.


N O T E

y If the retractable fastback switch is
pressed in the close direction, a warning
beep sounds.



y If the windows are closed, the windows
automatically open partially when the
rear roof opens.


y The roof keeps closing and the
operation indicator light À ashes while
the retractable fastback switch is
pressed in the close direction.



y If the switch is released while the roof
is closing, the roof stops closing. If the
switch is pressed in the close direction
again, the roof resumes closing.



y When the operation is ¿ nished, a beep
sound is heard and the operation
indicator light turns off.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–47
Before Driving

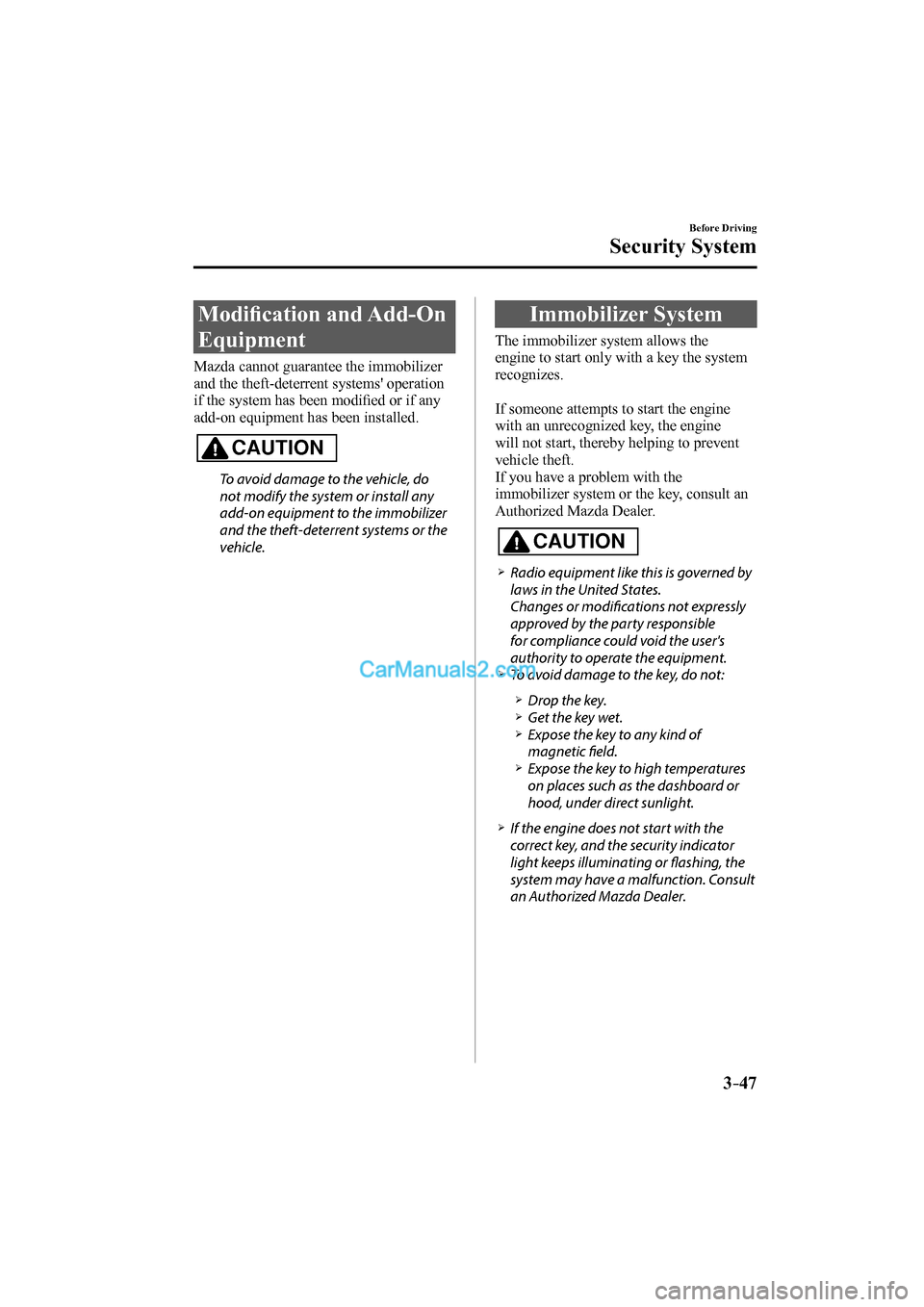

Security System
M o d i¿ cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modi¿ ed or if any
add-on equipment has been installed.

CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.

Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION



¾ Radio equipment like this is governed by
laws in the United States.
  Changes or modifi cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.



¾ To avoid damage to the key, do not:



¾ Drop the key.



¾ Get the key wet.



¾ Expose the key to any kind of
magnetic fi eld.



¾ Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.



¾ If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or fl ashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

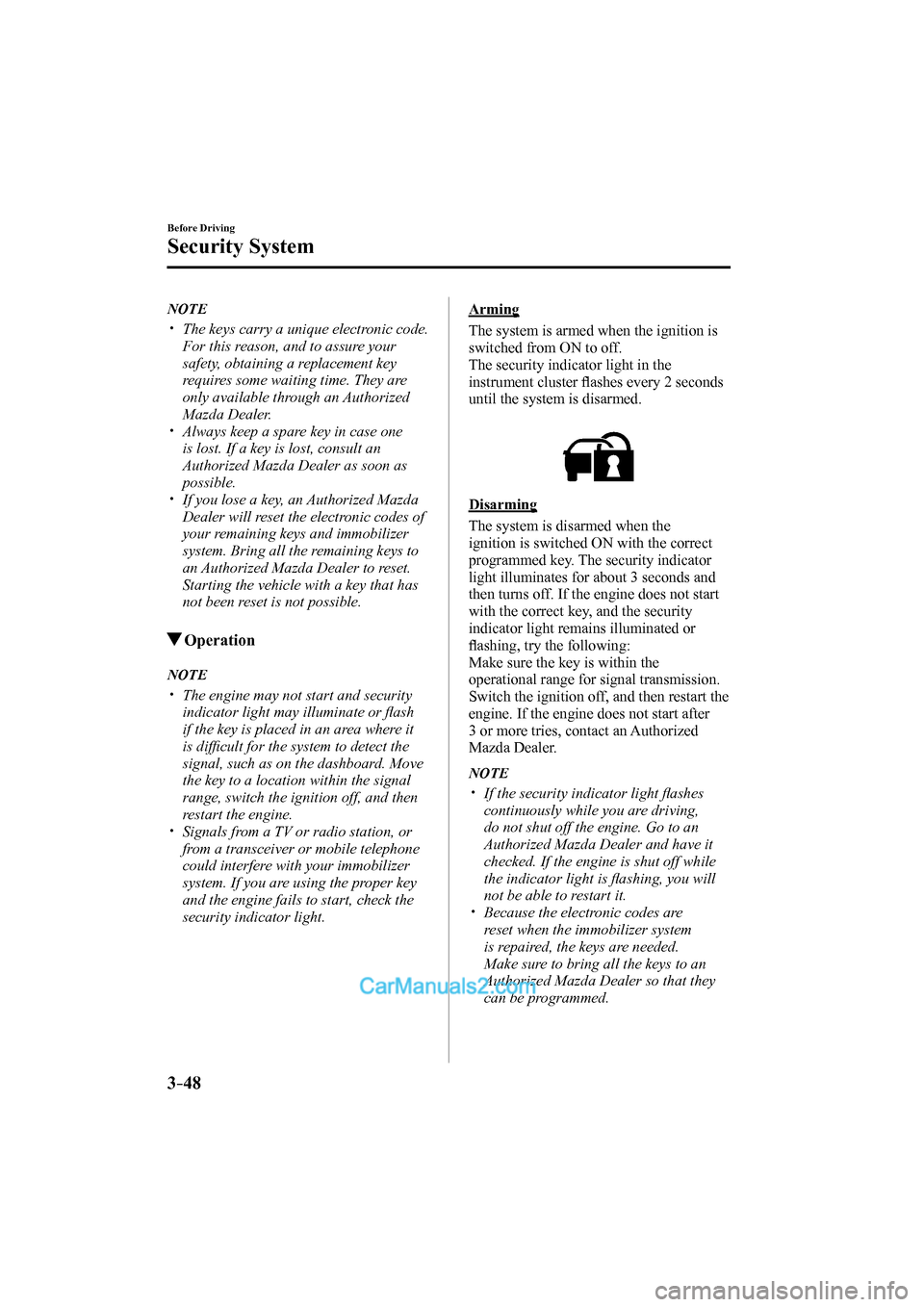

3–48
Before Driving
Security System
N O T E



y The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.



y Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.



y If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
  Starting the vehicle with a key that has
not been reset is not possible.

Operation
N O T E



y The engine may not start and security
indicator light may illuminate or À ash
if the key is placed in an area where it
is dif¿ cult for the system to detect the
signal, such as on the dashboard. Move
the key to a location within the signal
range, switch the ignition off, and then
restart the engine.



y Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.

Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster À ashes every 2 seconds
until the system is disarmed.



Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
À ashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
N O T E



y If the security indicator light À ashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is À ashing, you will
not be able to restart it.



y Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
