Maintenance and Care
Scheduled Maintenance
Schedule 1
U.S.A. and Puerto Rico residents - Engine oil À exible maintenance interval
Use when the maintenance monitor for “Oil Change” is set to “Flexible”. For details,
see maintenance monitor. (page 6-20 )
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 12 24 36 48 60 72 84 96
×1000 km 16 32 48 64 80 96 112 128
×1000 miles 10 20 30 40 50 60 70 80
ENGINE
Drive belts I I
Engine oil & ¿ lter
*1 Replace when wrench indicator light is ON. (Max interval: 12
months/16,000 km (10,000 miles))
COOLING SYSTEM
Engine coolant
*2 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
FUEL SYSTEM
Air ¿ lter Replace when any equivalent timing of replacing engine oil.
(Max interval: 36 months/60,000 km (37,500 miles))
Fuel lines and hoses
*3 I I I I
Hoses and tubes for emission
*3 I I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
CHASSIS and BODY
Brake lines, hoses and connections I I I I
Disc brakes I I I I I I I I
Manual transmission oil Replace every 96,000 km (60,000 miles) or 4 years.
Tire (Rotation)
*4 Rotate when any equivalent timing of replacing engine oil.
(Max interval: 8,000 km (5,000 miles))
Steering operation and linkages I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I I
Rear differential oil
*5
Driveshaft dust boots I I I I
Bolts and nuts on chassis and body T T T T
Exhaust system and heat shields I I
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–7
Maintenance and Care
Scheduled Maintenance
U.S.A. and Puerto Rico residents - Fixed maintenance interval
Use when the maintenance monitor for “Oil Change” is set to “Fixed”. For details, see
maintenance monitor. (page 6-20 )
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Drive belts I
Engine oil & ¿ lter R R R R R R R R
COOLING SYSTEM
Engine coolant
*1 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
FUEL SYSTEM
Air ¿ lter R
Fuel lines and hoses
*2 I I
Hoses and tubes for emission
*2 I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakes I I I I
Manual transmission oil R
Tire (Rotation)
*3*4 Rotate every 12,000 km (7,500 miles).
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial play I I
Rear differential oil
*5
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
T : Tighten
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–9
Maintenance and Care
Scheduled Maintenance
Schedule 2
U.S.A. and Puerto Rico residents - Severe driving conditions maintenance interval
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I I
Engine oil & ¿ lter Flexible
*1 Replace when wrench indicator light is ON. (Max interval: 12
months/16,000 km (10,000 miles))
Fixed R R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*2 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter
*3 Replace when any equivalent timing of replacing engine oil.
(Max interval: 36 months or 60,000 km (37,500 miles))
Fuel lines and hoses
*4 I I I
Hoses and tubes for emission
*4 I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I I I I I I I I I I I I
Disc brakes I I I I I I
Manual transmission oil Replace every 48,000 km (30,000 miles) or 2 years.
Tire (Rotation)
*5 Rotate when any equivalent timing of replacing engine oil.
(Max interval: 8,000 km (5,000 miles))
Tire inÀ ation pressure and tire wear
*5 I I I I I I I I I I I I
Steering operation and linkages I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*6
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–11
Maintenance and Care
Scheduled Maintenance
Canada residents
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I I
Engine oil & ¿ lter R R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*1 Replace at ¿ rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter I I I I I I I I I I I I
Replace every 56,000 km (35,000 miles) or 3 years.
Fuel lines and hoses
*2 I I I
Hoses and tubes for emission
*2 I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I I I I I I I I I I I I
Disc brakes Inspect every 24,000 km (15,000 miles) or 1 years.
Manual transmission oil Replace every 48,000 km (30,000 miles) or 2 years.
Tire (Rotation)
*3 Rotate every 8,000 km (5,000 miles).
Tire inÀ ation pressure and tire wear *3 I I I I I I I I I I I I
Steering operation and linkages I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
A l l l o c k s a n d h i n g e s L L L L L L L L L L L L
Wa s h e r À uid level I I I I I I I I I I I I
Emergency À at tire repair kit (if installed)
*5 Inspect annually.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

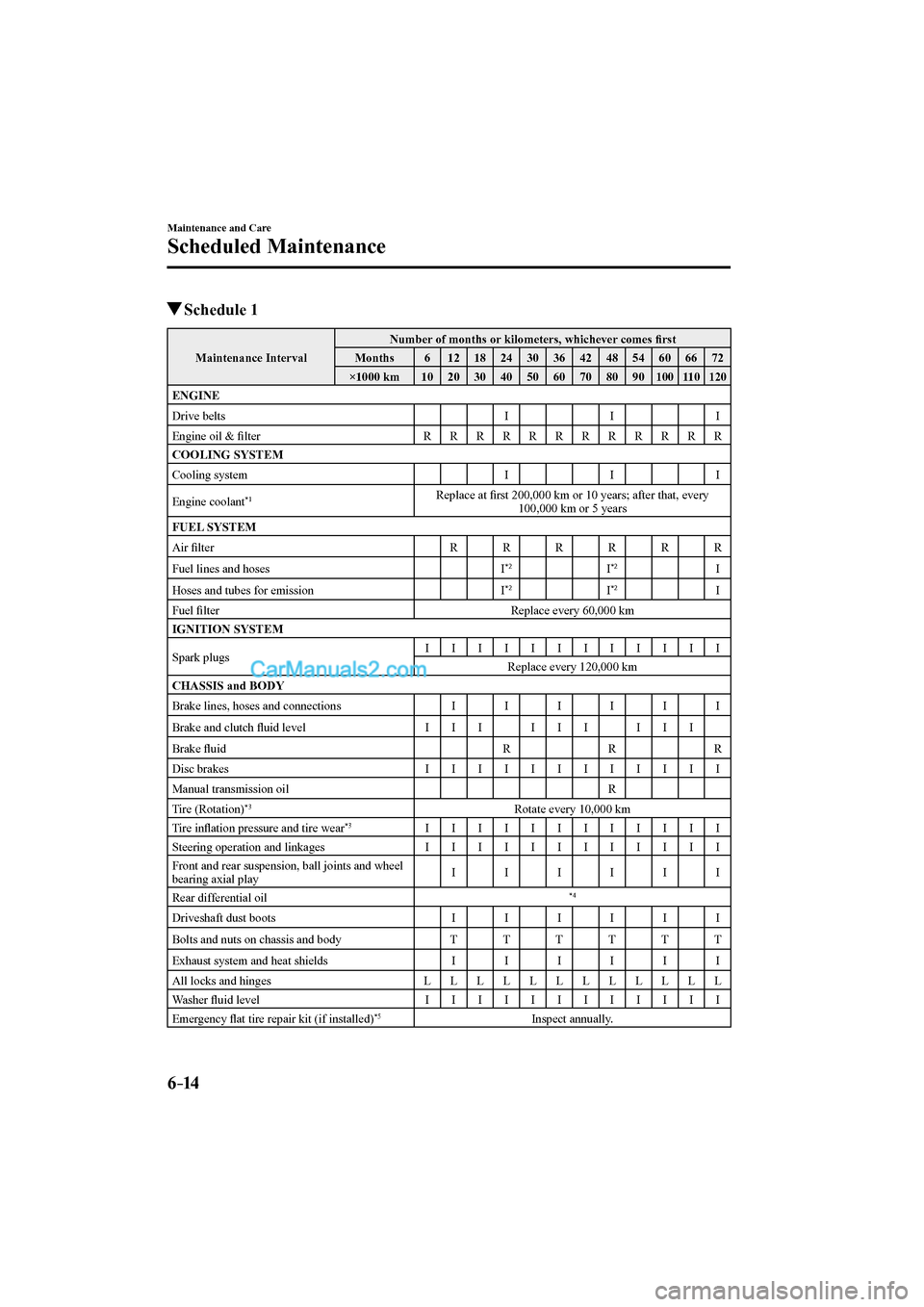

6–14
Maintenance and Care
Scheduled Maintenance
Schedule 1
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10 20 30 40 50 60 70 80 90
100 110 120
ENGINE
Drive belts I I I
Engine oil & ¿ lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I I
Engine coolant
*1 Replace at ¿ rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
FUEL SYSTEM
Air ¿ lter R R R R R R
Fuel lines and hoses I
*2 I *2 I
Hoses and tubes for emission I
*2 I *2 I
Fuel ¿ lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I I I I I I I I I I I I
Replace every 120,000 km
CHASSIS and BODY
Brake lines, hoses and connections I I I I I I
Brake and clutch À uid level I I I I I I I I I
Brake À uid R R R
Disc brakes I I I I I I I I I I I I
Manual transmission oil R
Tire (Rotation)
*3 Rotate every 10,000 km
Tire inÀ ation pressure and tire wear *3 I I I I I I I I I I I I
Steering operation and linkages I I I I I I I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I I I I
Rear differential oil
*4
Driveshaft dust boots I I I I I I
Bolts and nuts on chassis and body T T T T T T
Exhaust system and heat shields I I I I I I
A l l l o c k s a n d h i n g e s L L L L L L L L L L L L
Wa s h e r À uid level I I I I I I I I I I I I
Emergency À at tire repair kit (if installed)
*5 Inspect annually.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–16
Maintenance and Care
Scheduled Maintenance
Schedule 2
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oil & ¿ lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I
Engine coolant
*1 Replace at ¿ rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter C R C R C R
Fuel lines and hoses I
*2
Hoses and tubes for emission I
*2
Fuel ¿ lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I I I I I I
Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I I I I I
Brake À uid R
Disc brakes I I I I I I
Manual transmission oil R
Tire (Rotation)
*3 Rotate every 10,000 km
Tire inÀ ation pressure and tire wear
*3 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
A l l l o c k s a n d h i n g e s L L L L L L
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–18
Maintenance and Care
Scheduled Maintenance
(Cont.)
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95
100 105 110 115 120
ENGINE
Drive belts I I
Engine oil & ¿ lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I
Engine coolant
*1 Replace at ¿ rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter C R C R C R
Fuel lines and hoses I
*2 I
Hoses and tubes for emission I
*2 I
Fuel ¿ lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I I I I I I
Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I I I I
Brake À uid R R
Disc brakes I I I I I I
Manual transmission oil R R
Tire (Rotation)
*3 Rotate every 10,000 km
Tire inÀ ation pressure and tire wear
*3 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
A l l l o c k s a n d h i n g e s L L L L L L
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

9–4
Speci¿ cations
Speci¿ cations
S p e c i¿ cations
Engine
Item Speci¿ cation
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0

Electrical System
Item Classi¿ cation
Battery 12V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1 PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for
details.


CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fi ne particulate coating on
the iridium alloy and platinum tips could be damaged.

Lubricant Quality
Lubricant Classi¿ cation
Engine oil Refer to Recommended Oil on page 6-27 .
Coolant FL-22 type
Manual transmission oil Mazda Original Long Life Gear Oil IS
*1
Automatic transmission À uid Mazda Genuine JWS3309
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch À uid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life
Gear Oil IS is recommended.
If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-
90)). However, shifting in very low temperatures may become dif¿ cult.


N O T E
Refer to Introduction on (page 6-2 ) for owner's responsibility in protecting your
investment.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
