Warning light What it means

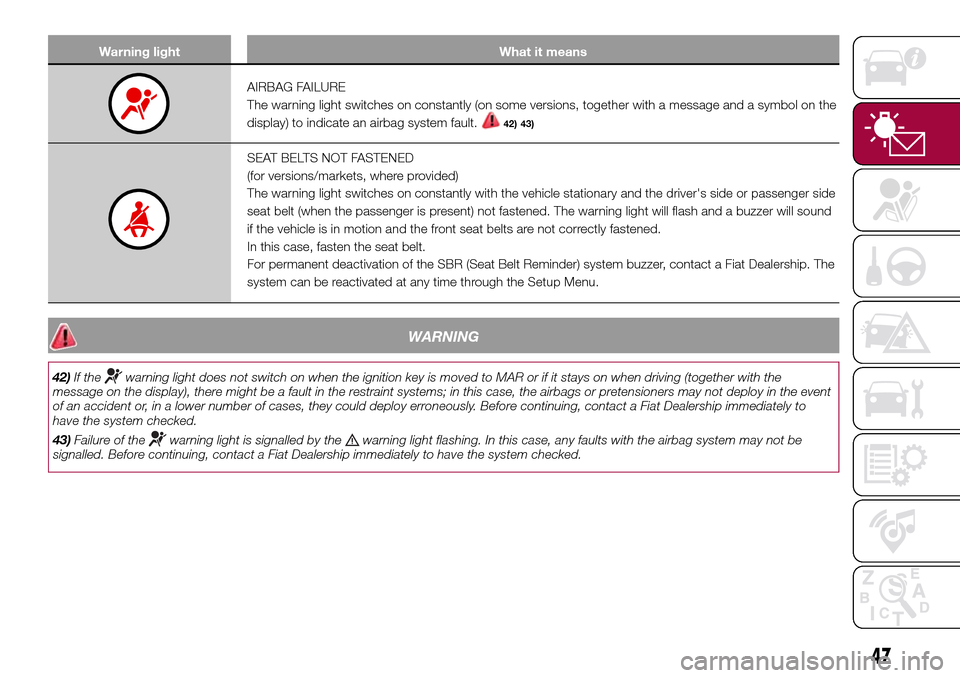

AIRBAG FAILURE
The warning light switches on constantly (on some versions, together with a message and a symbol on the
display) to indicate an airbag system fault.
42) 43)
SEAT BELTS NOT FASTENED
(for versions/markets, where provided)
The warning light switches on constantly with the vehicle stationary and the driver's side or passenger side
seat belt (when the passenger is present) not fastened. The warning light will flash and a buzzer will sound
if the vehicle is in motion and the front seat belts are not correctly fastened.
In this case, fasten the seat belt.
For permanent deactivation of the SBR (Seat Belt Reminder) system buzzer, contact a Fiat Dealership. The
system can be reactivated at any time through the Setup Menu.
WARNING
42)If thewarning light does not switch on when the ignition key is moved to MAR or if it stays on when driving (together with the
message on the display), there might be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the event
of an accident or, in a lower number of cases, they could deploy erroneously. Before continuing, contact a Fiat Dealership immediately to
have the system checked.
43)Failure of the
warning light is signalled by thewarning light flashing. In this case, any faults with the airbag system may not be
signalled. Before continuing, contact a Fiat Dealership immediately to have the system checked.
47

Warning light What it means
ENGINE COOLANT TEMPERATURE TOO HIGH
The warning light switches on (on some versions together with a message and a symbol on the display)
when the engine is overheated. The display shows the dedicated message.
When driving normally: stop the vehicle, switch off the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait for the engine to cool down, then slowly and carefully open
the cap, top up with coolant and check that the level is between the MIN and MAX marks on the reservoir.
Also check visually for any fluid leaks. If, when restarting, the warning light switches on (or the symbol is
displayed) again, contact a Fiat Dealership.
If the vehicle is used under demanding conditions(e.g. in high-performance driving): slow down and,
if the warning light stays on, stop the vehicle. Stop for 2 or 3 minutes with the engine running and slightly
accelerated to promote a better coolant circulation. Then stop the engine. Check that the coolant level is
correct as described above.
IMPORTANT Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a
few minutes before switching it off.
48
KNOWING THE INSTRUMENT PANEL

Warning light What it means
CONTINUOUSLY ON: LOW ENGINE OIL PRESSURE
The warning light turns on constantly, on some versions along with a message and a symbol on the
display, when the system detects that engine oil pressure is insufficient.
28)
FLASHING: EXHAUSTED ENGINE OIL (only Diesel versions with DPF)
The warning light switches on and flashes, on some versions with the displaying of a message. Depending
on the versions, the warning light will continue to flash in cycles for 1 minute every two hours or for 3
minute cycles with the warning light off for 5 seconds until the oil is changed.
After the first indication, at each engine start up the warning light will continue flashing as described above
until the oil is changed. On some versions, the display shows a dedicated message.
If the warning light flashes, this does not mean that there is a fault, but simply informs that it is now
necessary to change the oil as a result of regular use of the vehicle.
Engine oil degradation is accelerated by a predominant town use of the vehicle, which makes DPF
regeneration process more frequent, and also by use of the vehicle for short trips, preventing the engine to
reach the operating temperature, repeated interruptions of the regeneration process reported by the
switching on of the
warning light.29)
WARNING
28)If the warning light comes on when the vehicle is travelling, stop the engine immediately and contact a Fiat Dealership.
29)If the warning light switches on, the degraded engine oil must be changed as soon as possible, and never more than 500 km from the
first time that the warning light has switched on. Failure to observe the above indications may result in severe damage to the engine and
invalidate the warranty. The activation of this warning light is not related to the amount of oil in the engine. Therefore, never top up with oil
when the warning light starts flashing.
49

Warning light What it means

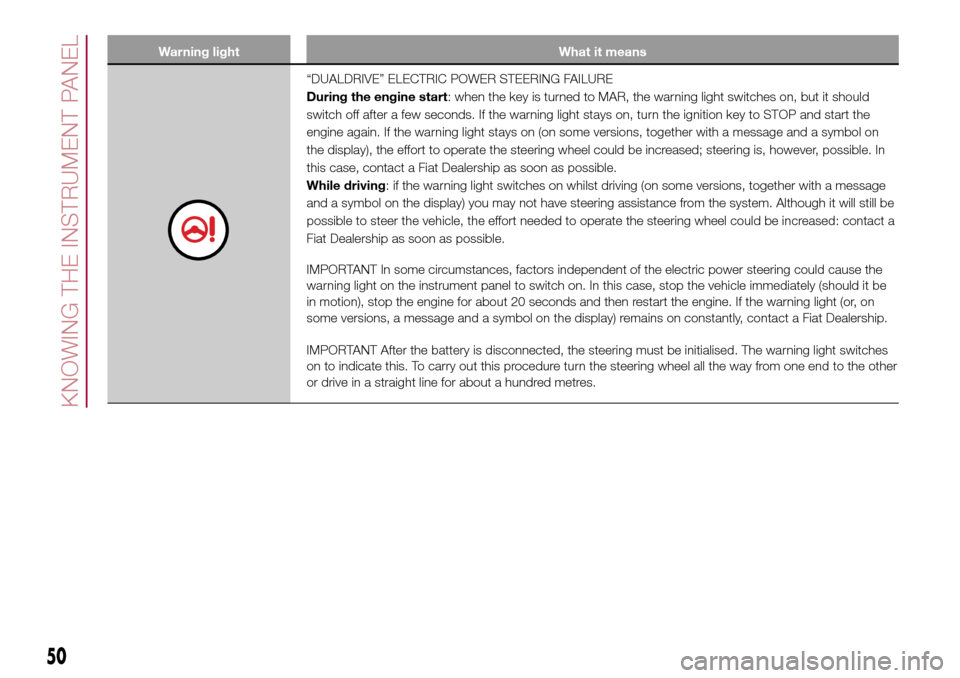

“DUALDRIVE” ELECTRIC POWER STEERING FAILURE
During the engine start: when the key is turned to MAR, the warning light switches on, but it should
switch off after a few seconds. If the warning light stays on, turn the ignition key to STOP and start the
engine again. If the warning light stays on (on some versions, together with a message and a symbol on
the display), the effort to operate the steering wheel could be increased; steering is, however, possible. In
this case, contact a Fiat Dealership as soon as possible.
While driving: if the warning light switches on whilst driving (on some versions, together with a message
and a symbol on the display) you may not have steering assistance from the system. Although it will still be
possible to steer the vehicle, the effort needed to operate the steering wheel could be increased: contact a
Fiat Dealership as soon as possible.
IMPORTANT In some circumstances, factors independent of the electric power steering could cause the
warning light on the instrument panel to switch on. In this case, stop the vehicle immediately (should it be
in motion), stop the engine for about 20 seconds and then restart the engine. If the warning light (or, on
some versions, a message and a symbol on the display) remains on constantly, contact a Fiat Dealership.
IMPORTANT After the battery is disconnected, the steering must be initialised. The warning light switches
on to indicate this. To carry out this procedure turn the steering wheel all the way from one end to the other
or drive in a straight line for about a hundred metres.
50
KNOWING THE INSTRUMENT PANEL

Amber warning lights
Warning light What it means
iTPMS
(for versions/markets, where provided)
iTPMS failure/iTPMS temporarily deactivated
The warning light flashes for about 75 seconds and then stays on constantly (together with a message on
the display) to indicate that the system is temporarily deactivated or faulty. The system goes back to normal
operation when the operating conditions allow it. If this is not the case, carry out the "Reset" procedure
after restoring the normal operating conditions.
If the malfunction warning persists, contact a Fiat Dealership as soon as possible.
Tyre pressure low
The warning light switches on continuously to indicate that the tyre pressure is lower than the
recommended value and/or that slow pressure loss is occurring. In these cases, optimal tyre duration and
fuel consumption may not be guaranteed. It is advisable to restore the correct pressure value (see the
"Wheels" paragraph in the "Technical specifications" section).
Once the normal operating conditions of the vehicle are restored, carry out the "Reset" procedure.
IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised. Stop
the vehicle, avoiding sharp braking and steering.
City Brake Control - "Collision Mitigation" SYSTEM DEACTIVATED
(for versions/markets, where provided)
The warning light comes on when the City Brake Control - "Collision Mitigation" system is deactivated
through the Setup menu. On some versions, the activation/deactivation of the system is indicated by a
message shown on the display.
51

Warning light What it means

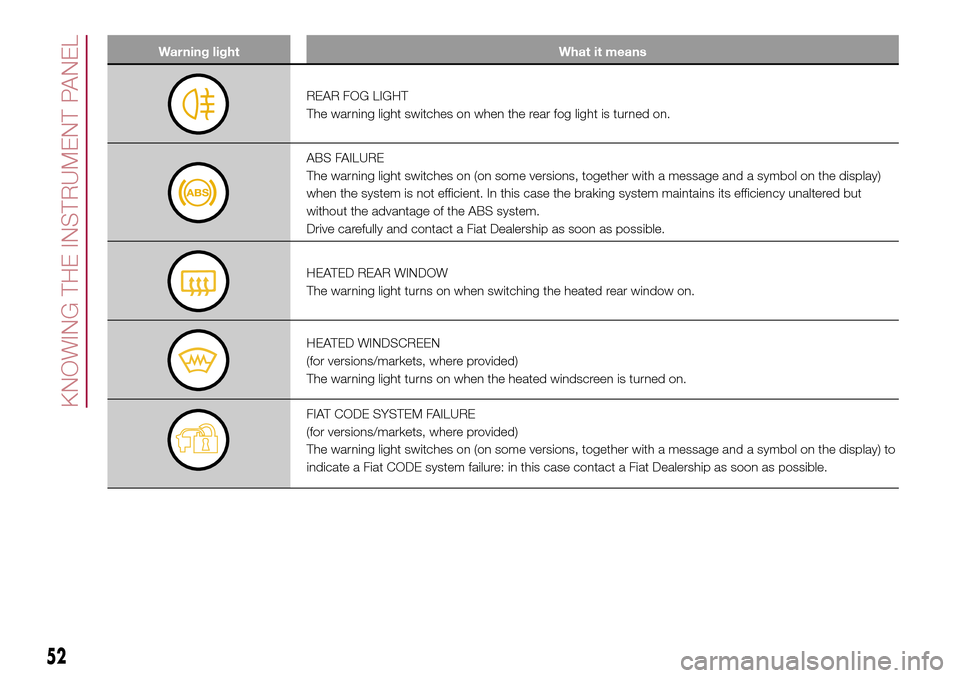

REAR FOG LIGHT
The warning light switches on when the rear fog light is turned on.
ABS FAILURE
The warning light switches on (on some versions, together with a message and a symbol on the display)
when the system is not efficient. In this case the braking system maintains its efficiency unaltered but
without the advantage of the ABS system.
Drive carefully and contact a Fiat Dealership as soon as possible.
HEATED REAR WINDOW
The warning light turns on when switching the heated rear window on.
HEATED WINDSCREEN
(for versions/markets, where provided)
The warning light turns on when the heated windscreen is turned on.
FIAT CODE SYSTEM FAILURE
(for versions/markets, where provided)
The warning light switches on (on some versions, together with a message and a symbol on the display) to
indicate a Fiat CODE system failure: in this case contact a Fiat Dealership as soon as possible.
52
KNOWING THE INSTRUMENT PANEL

Warning light What it means

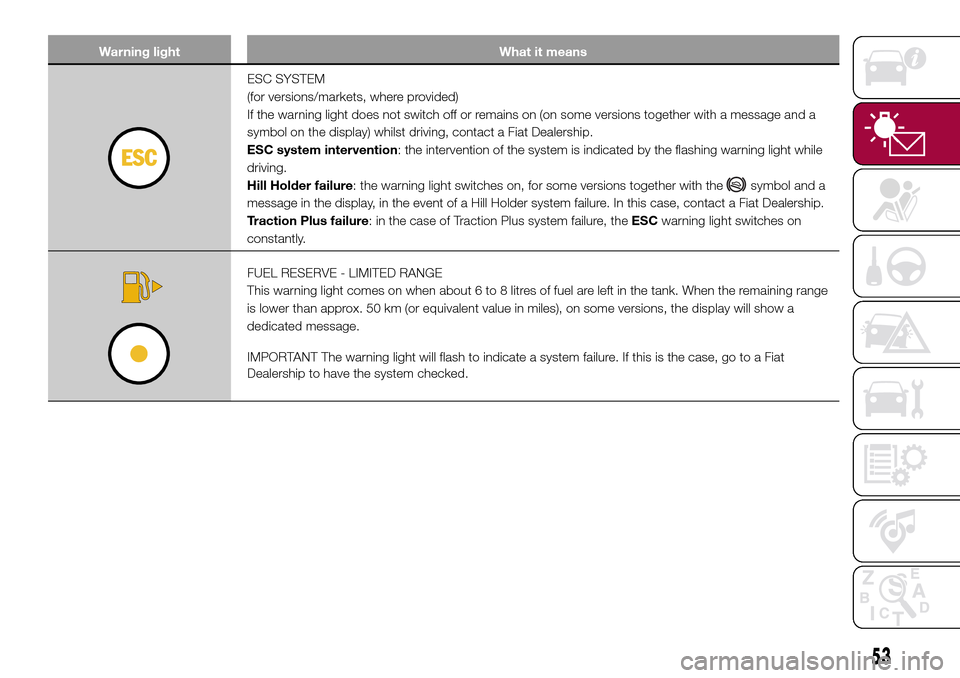

ESC SYSTEM
(for versions/markets, where provided)
If the warning light does not switch off or remains on (on some versions together with a message and a
symbol on the display) whilst driving, contact a Fiat Dealership.
ESC system intervention: the intervention of the system is indicated by the flashing warning light while
driving.
Hill Holder failure: the warning light switches on, for some versions together with the
symbol and a
message in the display, in the event of a Hill Holder system failure. In this case, contact a Fiat Dealership.
Traction Plus failure: in the case of Traction Plus system failure, theESCwarning light switches on
constantly.
FUEL RESERVE - LIMITED RANGE
This warning light comes on when about 6 to 8 litres of fuel are left in the tank. When the remaining range
is lower than approx. 50 km (or equivalent value in miles), on some versions, the display will show a
dedicated message.
IMPORTANT The warning light will flash to indicate a system failure. If this is the case, go to a Fiat
Dealership to have the system checked.
53

Warning light What it means
INJECTION/EOBD SYSTEM FAILURE
If the warning light remains on or switches on whilst driving (on some versions together with the display of a
message and a symbol), the injection system is not working properly.
Warning light on constantly: signals a malfunction in the supply/ignition system that could cause high
exhaust emissions, a possible loss of performance, poor driveability and high consumption. Under these
conditions, the vehicle can continue travelling at moderate speed but without demanding excessive effort
from the engine or high speed. Prolonged use of the vehicle with the warning light on constantly may cause
damage: contact a Fiat Dealership as soon as possible.
The warning light switches off if the malfunction disappears, but is still stored by the system.
Warning light on and flashing (for petrol engines only): it reports a possible damage to the catalytic
converter. Release the accelerator pedal to lower the speed of the engine until the warning light stops
flashing. Continue the journey at moderate speed, trying to avoid driving conditions that may cause further
flashing and contact a Fiat Dealership as soon as possible.
30)
WARNING
30)Go to a Fiat Dealership as soon as possible if the warning light either does not light up when the key is turned to MAR or lights up or
flashes (along with a message and a symbol on the display on some versions). The exhaust emission levels may be checked by the traffic
control authorities using the appropriate equipment. Always comply with the traffic regulations in force in the country where you are driving.
