2017 FIAT 500L LIVING Owners Manual

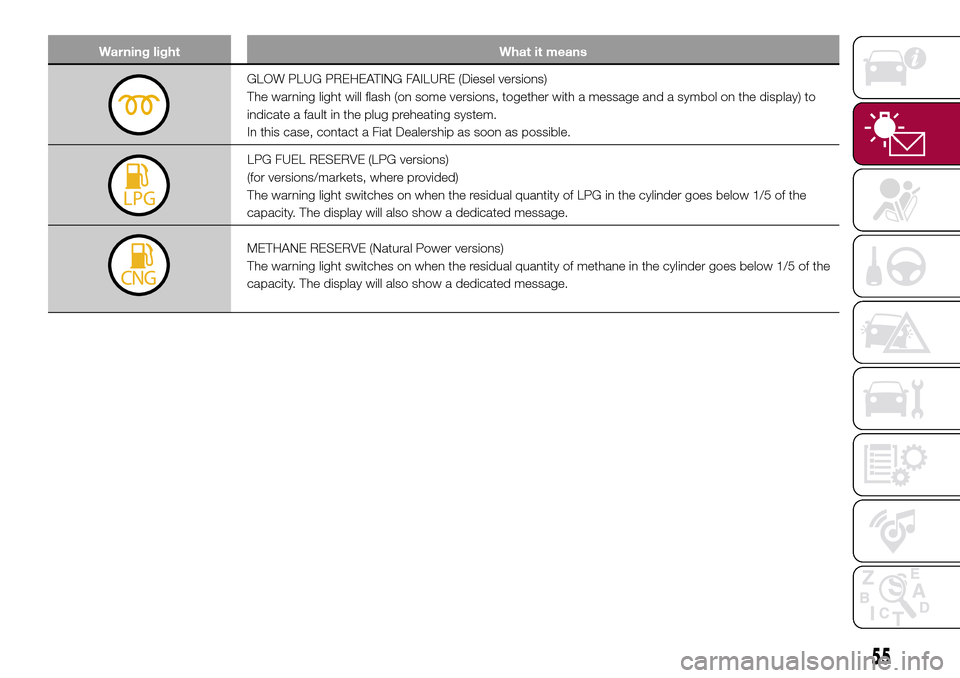

Warning light What it means
GLOW PLUG PREHEATING FAILURE (Diesel versions)
The warning light will flash (on some versions, together with a message and a symbol on the display) to
indicate a fault in the plug preheating system.
In this case, contact a Fiat Dealership as soon as possible.
LPG FUEL RESERVE (LPG versions)
(for versions/markets, where provided)
The warning light switches on when the residual quantity of LPG in the cylinder goes below 1/5 of the
capacity. The display will also show a dedicated message.
METHANE RESERVE (Natural Power versions)
The warning light switches on when the residual quantity of methane in the cylinder goes below 1/5 of the
capacity. The display will also show a dedicated message.
55

Warning light What it means

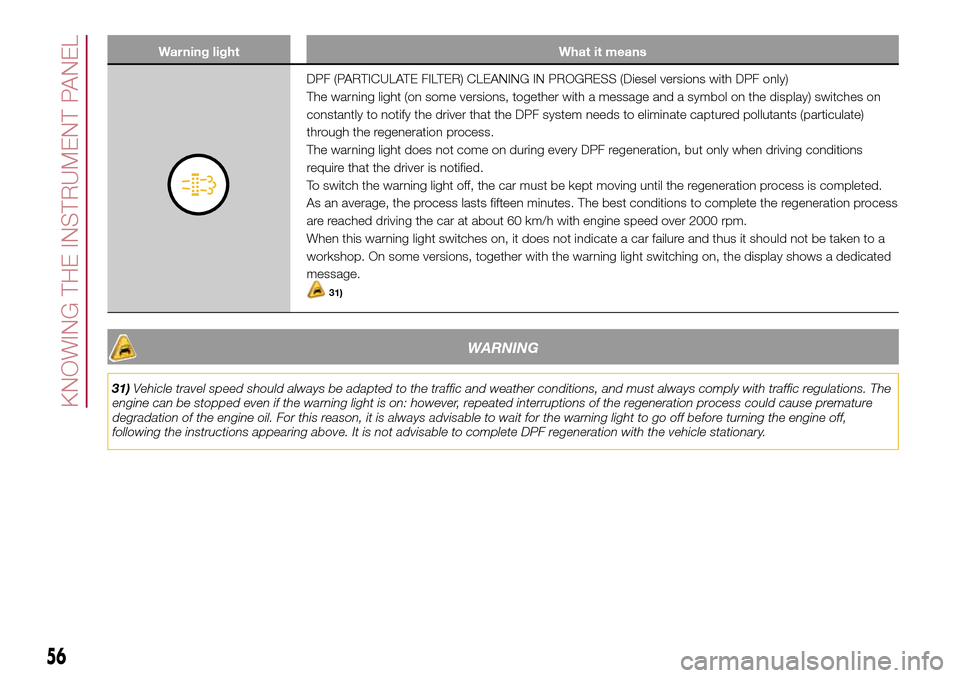

DPF (PARTICULATE FILTER) CLEANING IN PROGRESS (Diesel versions with DPF only)
The warning light (on some versions, together with a message and a symbol on the display) switches on
constantly to notify the driver that the DPF system needs to eliminate captured pollutants (particulate)
through the regeneration process.
The warning light does not come on during every DPF regeneration, but only when driving conditions
require that the driver is notified.
To switch the warning light off, the car must be kept moving until the regeneration process is completed.
As an average, the process lasts fifteen minutes. The best conditions to complete the regeneration process
are reached driving the car at about 60 km/h with engine speed over 2000 rpm.
When this warning light switches on, it does not indicate a car failure and thus it should not be taken to a
workshop. On some versions, together with the warning light switching on, the display shows a dedicated
message.
31)
WARNING
31)Vehicle travel speed should always be adapted to the traffic and weather conditions, and must always comply with traffic regulations. The
engine can be stopped even if the warning light is on: however, repeated interruptions of the regeneration process could cause premature
degradation of the engine oil. For this reason, it is always advisable to wait for the warning light to go off before turning the engine off,
following the instructions appearing above. It is not advisable to complete DPF regeneration with the vehicle stationary.
56
KNOWING THE INSTRUMENT PANEL

Warning light What it means

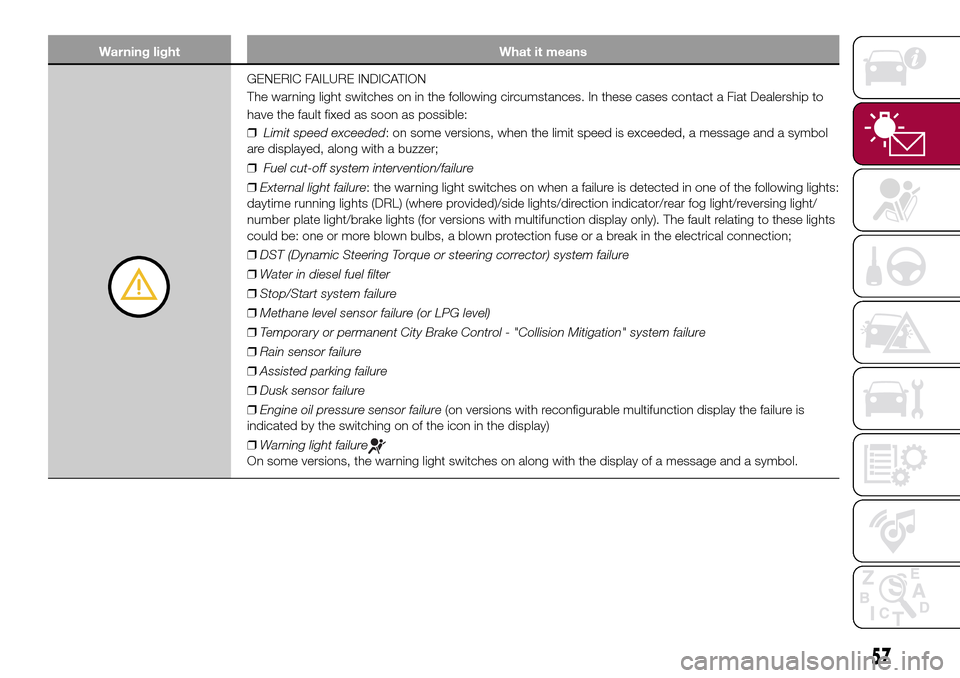

GENERIC FAILURE INDICATION
The warning light switches on in the following circumstances. In these cases contact a Fiat Dealership to
have the fault fixed as soon as possible:
❒Limit speed exceeded: on some versions, when the limit speed is exceeded, a message and a symbol
are displayed, along with a buzzer;
❒Fuel cut-off system intervention/failure
❒External light failure: the warning light switches on when a failure is detected in one of the following lights:
daytime running lights (DRL) (where provided)/side lights/direction indicator/rear fog light/reversing light/
number plate light/brake lights (for versions with multifunction display only). The fault relating to these lights
could be: one or more blown bulbs, a blown protection fuse or a break in the electrical connection;
❒DST (Dynamic Steering Torque or steering corrector) system failure
❒Water in diesel fuel filter
❒Stop/Start system failure
❒Methane level sensor failure (or LPG level)
❒Temporary or permanent City Brake Control - "Collision Mitigation" system failure
❒Rain sensor failure
❒Assisted parking failure
❒Dusk sensor failure
❒Engine oil pressure sensor failure(on versions with reconfigurable multifunction display the failure is
indicated by the switching on of the icon in the display)
❒Warning light failure
On some versions, the warning light switches on along with the display of a message and a symbol.
57

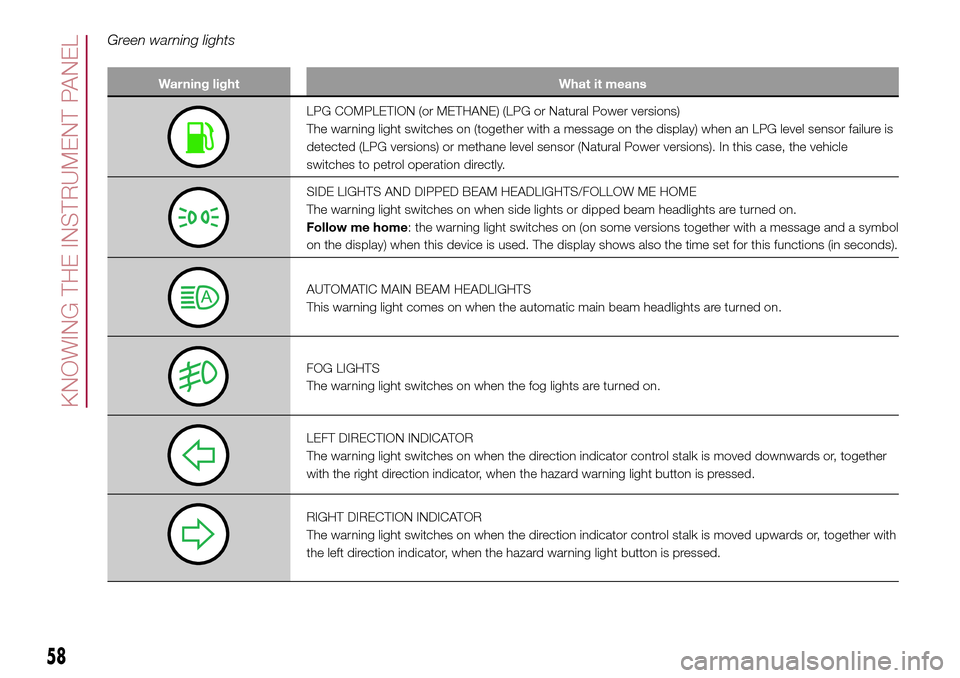

Green warning lights
Warning light What it means
LPG COMPLETION (or METHANE) (LPG or Natural Power versions)
The warning light switches on (together with a message on the display) when an LPG level sensor failure is
detected (LPG versions) or methane level sensor (Natural Power versions). In this case, the vehicle
switches to petrol operation directly.
SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS/FOLLOW ME HOME
The warning light switches on when side lights or dipped beam headlights are turned on.
Follow me home: the warning light switches on (on some versions together with a message and a symbol
on the display) when this device is used. The display shows also the time set for this functions (in seconds).
AUTOMATIC MAIN BEAM HEADLIGHTS
This warning light comes on when the automatic main beam headlights are turned on.
FOG LIGHTS
The warning light switches on when the fog lights are turned on.
LEFT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved downwards or, together
with the right direction indicator, when the hazard warning light button is pressed.
RIGHT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with
the left direction indicator, when the hazard warning light button is pressed.
58
KNOWING THE INSTRUMENT PANEL

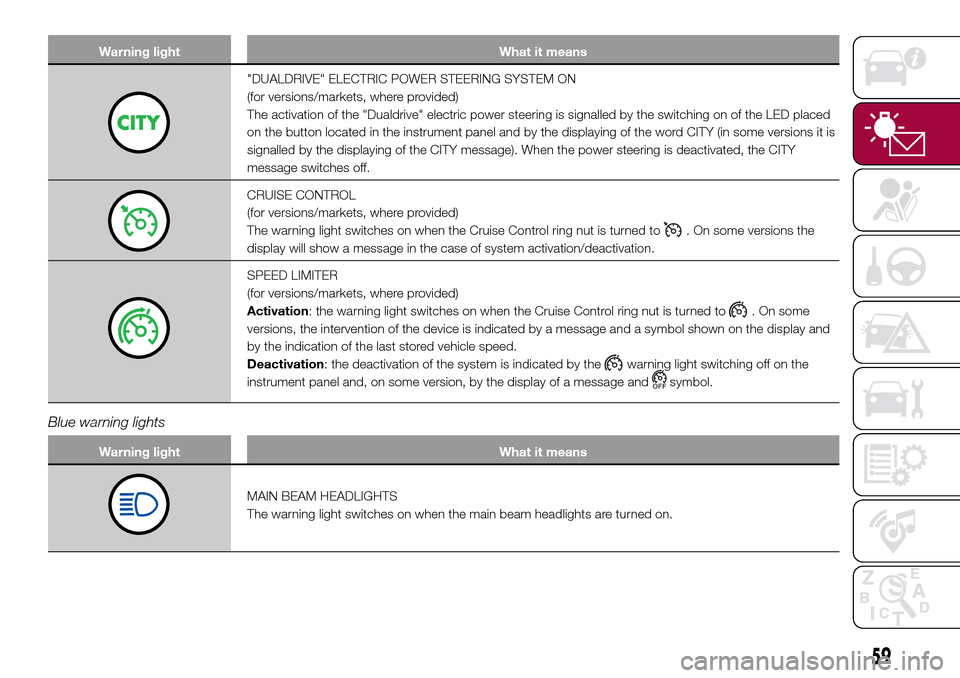

Warning light What it means
"DUALDRIVE" ELECTRIC POWER STEERING SYSTEM ON
(for versions/markets, where provided)
The activation of the "Dualdrive" electric power steering is signalled by the switching on of the LED placed
on the button located in the instrument panel and by the displaying of the word CITY (in some versions it is
signalled by the displaying of the CITY message). When the power steering is deactivated, the CITY
message switches off.
CRUISE CONTROL
(for versions/markets, where provided)
The warning light switches on when the Cruise Control ring nut is turned to
. On some versions the
display will show a message in the case of system activation/deactivation.
SPEED LIMITER
(for versions/markets, where provided)
Activation: the warning light switches on when the Cruise Control ring nut is turned to
. On some
versions, the intervention of the device is indicated by a message and a symbol shown on the display and
by the indication of the last stored vehicle speed.
Deactivation: the deactivation of the system is indicated by the
warning light switching off on the
instrument panel and, on some version, by the display of a message and
symbol.
Blue warning lights
Warning light What it means
MAIN BEAM HEADLIGHTS
The warning light switches on when the main beam headlights are turned on.
59

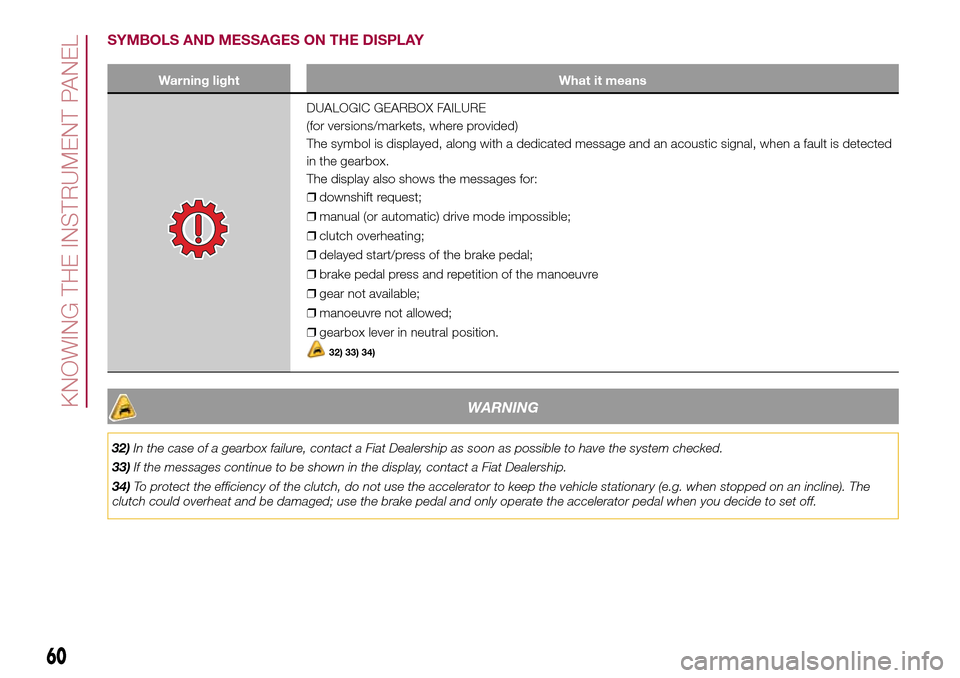

SYMBOLS AND MESSAGES ON THE DISPLAY
Warning light What it means
DUALOGIC GEARBOX FAILURE
(for versions/markets, where provided)
The symbol is displayed, along with a dedicated message and an acoustic signal, when a fault is detected
in the gearbox.
The display also shows the messages for:
❒downshift request;
❒manual (or automatic) drive mode impossible;
❒clutch overheating;
❒delayed start/press of the brake pedal;
❒brake pedal press and repetition of the manoeuvre
❒gear not available;
❒manoeuvre not allowed;
❒gearbox lever in neutral position.
32) 33) 34)
WARNING
32)In the case of a gearbox failure, contact a Fiat Dealership as soon as possible to have the system checked.
33)If the messages continue to be shown in the display, contact a Fiat Dealership.
34)To protect the efficiency of the clutch, do not use the accelerator to keep the vehicle stationary (e.g. when stopped on an incline). The
clutch could overheat and be damaged; use the brake pedal and only operate the accelerator pedal when you decide to set off.
60
KNOWING THE INSTRUMENT PANEL

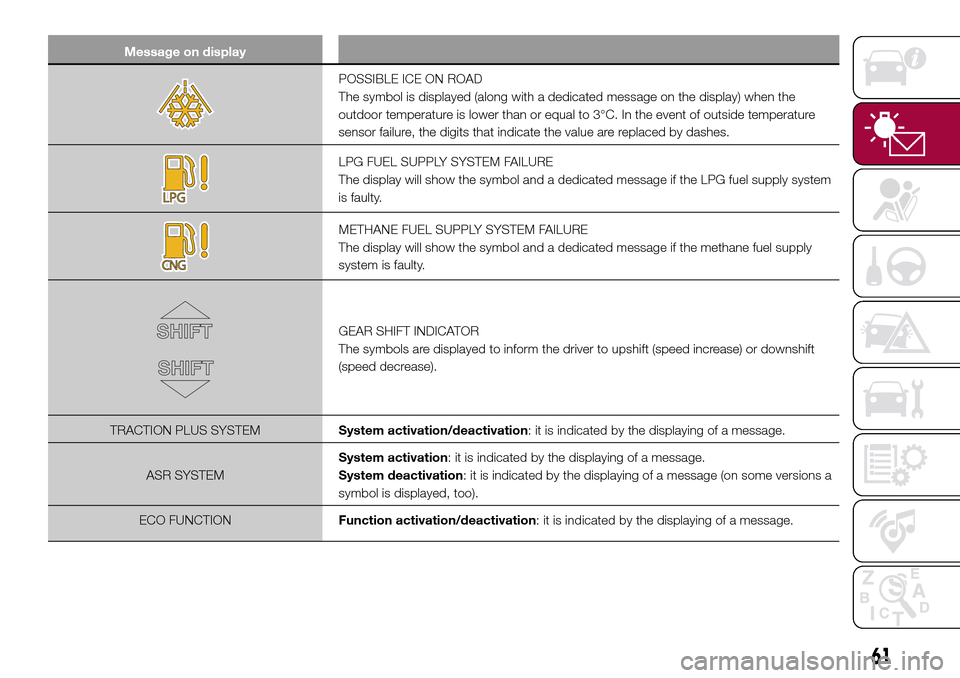

Message on display
POSSIBLE ICE ON ROAD
The symbol is displayed (along with a dedicated message on the display) when the
outdoor temperature is lower than or equal to 3°C. In the event of outside temperature
sensor failure, the digits that indicate the value are replaced by dashes.
LPG FUEL SUPPLY SYSTEM FAILURE
The display will show the symbol and a dedicated message if the LPG fuel supply system
is faulty.
METHANE FUEL SUPPLY SYSTEM FAILURE
The display will show the symbol and a dedicated message if the methane fuel supply
system is faulty.
GEAR SHIFT INDICATOR
The symbols are displayed to inform the driver to upshift (speed increase) or downshift
(speed decrease).
TRACTION PLUS SYSTEMSystem activation/deactivation: it is indicated by the displaying of a message.
ASR SYSTEMSystem activation: it is indicated by the displaying of a message.
System deactivation: it is indicated by the displaying of a message (on some versions a
symbol is displayed, too).
ECO FUNCTIONFunction activation/deactivation: it is indicated by the displaying of a message.
61

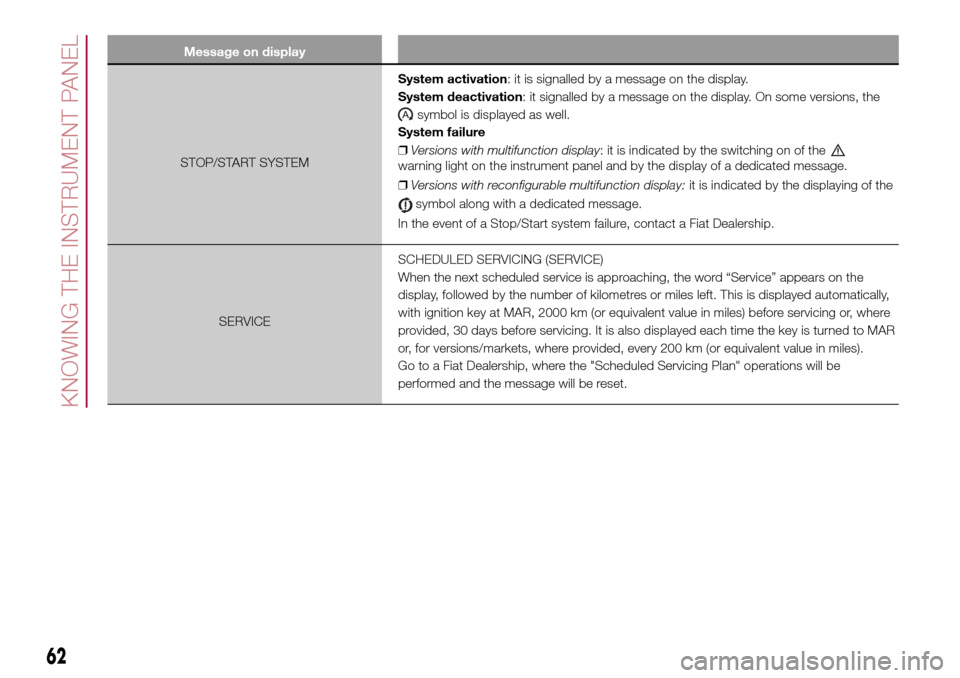

Message on display
STOP/START SYSTEMSystem activation: it is signalled by a message on the display.
System deactivation: it signalled by a message on the display. On some versions, the
symbol is displayed as well.
System failure
❒Versions with multifunction display: it is indicated by the switching on of the
warning light on the instrument panel and by the display of a dedicated message.
❒Versions with reconfigurable multifunction display:it is indicated by the displaying of the
symbol along with a dedicated message.
In the event of a Stop/Start system failure, contact a Fiat Dealership.
SERVICESCHEDULED SERVICING (SERVICE)
When the next scheduled service is approaching, the word “Service” appears on the
display, followed by the number of kilometres or miles left. This is displayed automatically,
with ignition key at MAR, 2000 km (or equivalent value in miles) before servicing or, where
provided, 30 days before servicing. It is also displayed each time the key is turned to MAR
or, for versions/markets, where provided, every 200 km (or equivalent value in miles).
Go to a Fiat Dealership, where the "Scheduled Servicing Plan" operations will be
performed and the message will be reset.
