2017 FIAT 500L LIVING Owners Manual

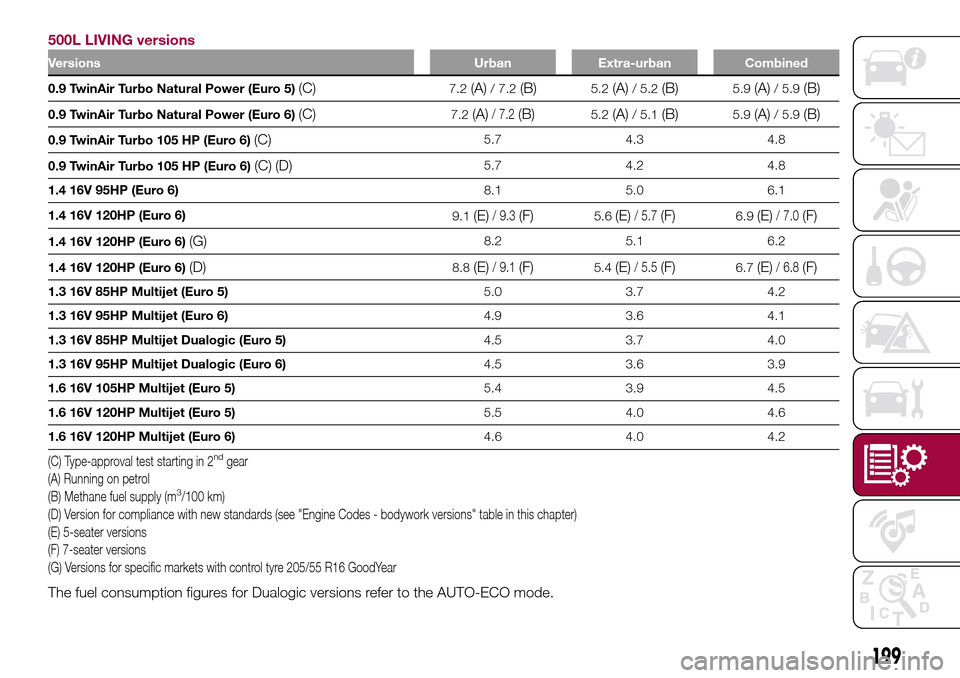

500L LIVING versions
Versions Urban Extra-urban Combined
0.9 TwinAir Turbo Natural Power (Euro 5)(C)7.2(A)/ 7.2(B)5.2(A)/ 5.2(B)5.9(A)/ 5.9(B)
0.9 TwinAir Turbo Natural Power (Euro 6)(C)7.2(A)/ 7.2(B)5.2(A)/ 5.1(B)5.9(A)/ 5.9(B)
0.9 TwinAir Turbo 105 HP (Euro 6)(C)5.7 4.3 4.8
0.9 TwinAir Turbo 105 HP (Euro 6)
(C) (D)5.7 4.2 4.8
1.4 16V 95HP (Euro 6)8.1 5.0 6.1
1.4 16V 120HP (Euro 6)
9.1
(E)/ 9.3(F)5.6(E)/ 5.7(F)6.9(E)/ 7.0(F)
1.4 16V 120HP (Euro 6)(G)8.2 5.1 6.2
1.4 16V 120HP (Euro 6)
(D)8.8(E)/ 9.1(F)5.4(E)/ 5.5(F)6.7(E)/ 6.8(F)
1.3 16V 85HP Multijet (Euro 5)5.0 3.7 4.2
1.3 16V 95HP Multijet (Euro 6)4.9 3.6 4.1
1.3 16V 85HP Multijet Dualogic (Euro 5)4.5 3.7 4.0
1.3 16V 95HP Multijet Dualogic (Euro 6)4.5 3.6 3.9
1.6 16V 105HP Multijet (Euro 5)5.4 3.9 4.5
1.6 16V 120HP Multijet (Euro 5)5.5 4.0 4.6
1.6 16V 120HP Multijet (Euro 6)4.6 4.0 4.2
(C) Type-approval test starting in 2ndgear
(A) Running on petrol
(B) Methane fuel supply (m
3/100 km)
(D) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(E) 5-seater versions
(F) 7-seater versions
(G) Versions for specific markets with control tyre 205/55 R16 GoodYear
The fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
199

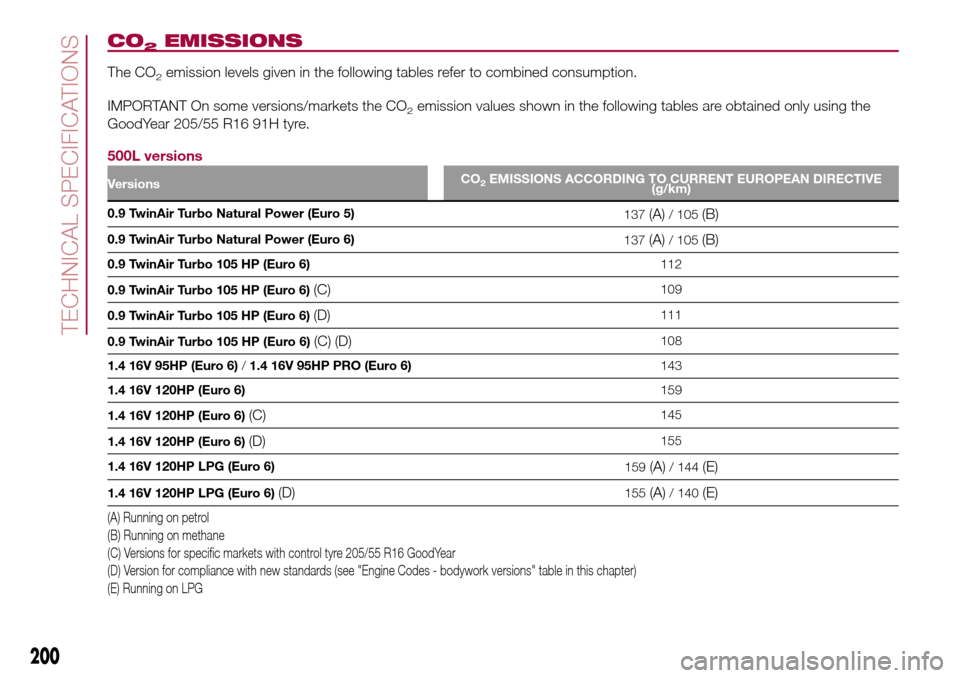

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
IMPORTANT On some versions/markets the CO
2emission values shown in the following tables are obtained only using the
GoodYear 205/55 R16 91H tyre.
500L versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir Turbo Natural Power (Euro 5)
137(A)/ 105(B)
0.9 TwinAir Turbo Natural Power (Euro 6)
137(A)/ 105(B)
0.9 TwinAir Turbo 105 HP (Euro 6)112
0.9 TwinAir Turbo 105 HP (Euro 6)
(C)109
0.9 TwinAir Turbo 105 HP (Euro 6)
(D)111
0.9 TwinAir Turbo 105 HP (Euro 6)
(C) (D)108
1.4 16V 95HP (Euro 6)/1.4 16V 95HP PRO (Euro 6)143
1.4 16V 120HP (Euro 6)159
1.4 16V 120HP (Euro 6)
(C)145
1.4 16V 120HP (Euro 6)
(D)155
1.4 16V 120HP LPG (Euro 6)
159
(A)/ 144(E)
1.4 16V 120HP LPG (Euro 6)(D)155(A)/ 140(E)
(A) Running on petrol
(B) Running on methane
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
(D) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(E) Running on LPG
200
TECHNICAL SPECIFICATIONS

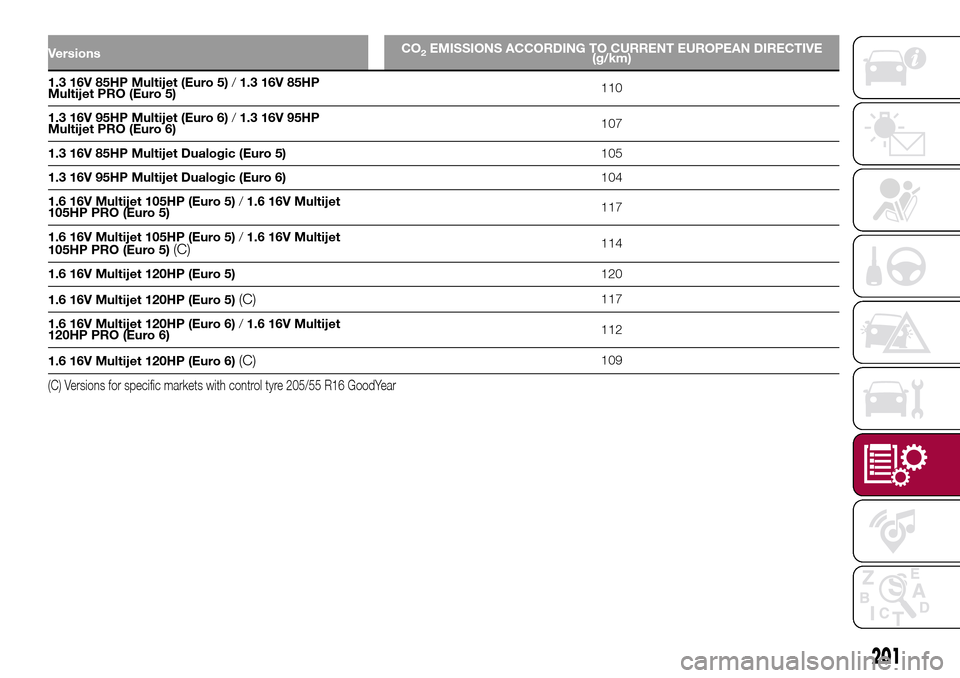

VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.3 16V 85HP Multijet (Euro 5)/1.3 16V 85HP
Multijet PRO (Euro 5)110
1.3 16V 95HP Multijet (Euro 6)/1.3 16V 95HP
Multijet PRO (Euro 6)107
1.3 16V 85HP Multijet Dualogic (Euro 5)105
1.3 16V 95HP Multijet Dualogic (Euro 6)104
1.6 16V Multijet 105HP (Euro 5)/1.6 16V Multijet
105HP PRO (Euro 5)117
1.6 16V Multijet 105HP (Euro 5)/1.6 16V Multijet
105HP PRO (Euro 5)
(C)114
1.6 16V Multijet 120HP (Euro 5)120
1.6 16V Multijet 120HP (Euro 5)
(C)117
1.6 16V Multijet 120HP (Euro 6)/1.6 16V Multijet
120HP PRO (Euro 6)112
1.6 16V Multijet 120HP (Euro 6)
(C)109
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
201

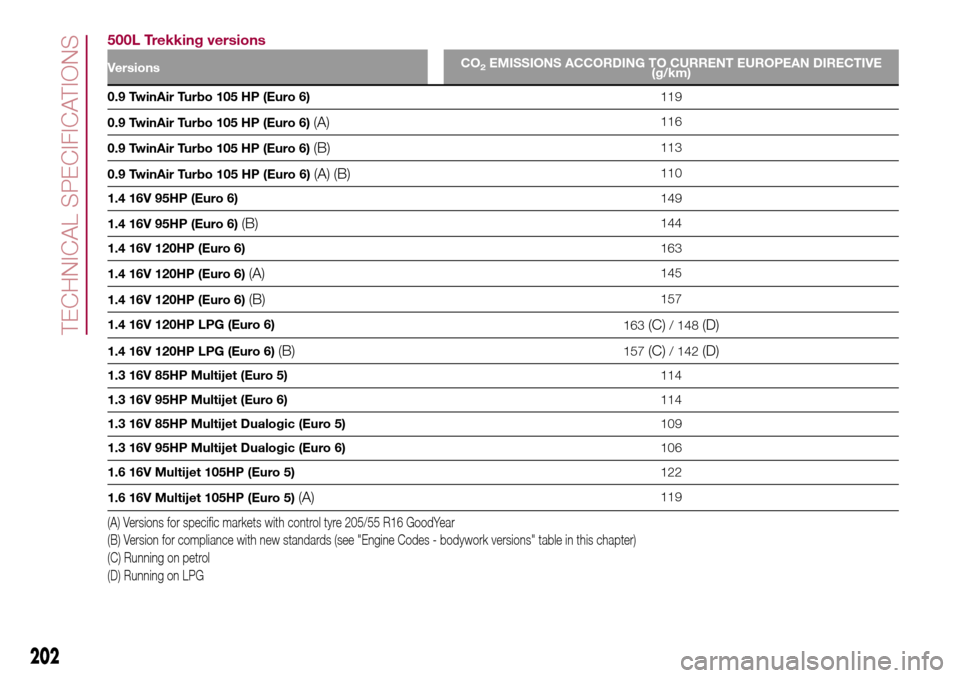

500L Trekking versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir Turbo 105 HP (Euro 6)119
0.9 TwinAir Turbo 105 HP (Euro 6)
(A)116
0.9 TwinAir Turbo 105 HP (Euro 6)
(B)113
0.9 TwinAir Turbo 105 HP (Euro 6)
(A) (B)110
1.4 16V 95HP (Euro 6)149
1.4 16V 95HP (Euro 6)
(B)144
1.4 16V 120HP (Euro 6)163
1.4 16V 120HP (Euro 6)
(A)145
1.4 16V 120HP (Euro 6)
(B)157
1.4 16V 120HP LPG (Euro 6)
163
(C)/ 148(D)
1.4 16V 120HP LPG (Euro 6)(B)157(C)/ 142(D)
1.3 16V 85HP Multijet (Euro 5)114
1.3 16V 95HP Multijet (Euro 6)114
1.3 16V 85HP Multijet Dualogic (Euro 5)109
1.3 16V 95HP Multijet Dualogic (Euro 6)106
1.6 16V Multijet 105HP (Euro 5)122
1.6 16V Multijet 105HP (Euro 5)
(A)119
(A) Versions for specific markets with control tyre 205/55 R16 GoodYear
(B) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(C) Running on petrol
(D) Running on LPG
202
TECHNICAL SPECIFICATIONS

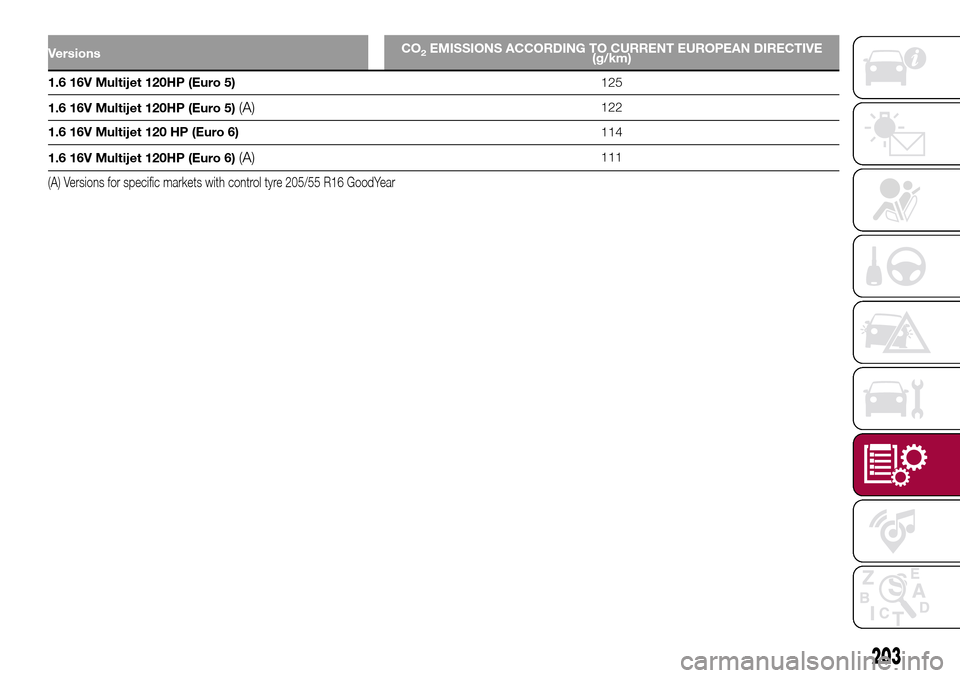

VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.6 16V Multijet 120HP (Euro 5)125
1.6 16V Multijet 120HP (Euro 5)
(A)122
1.6 16V Multijet 120 HP (Euro 6)114
1.6 16V Multijet 120HP (Euro 6)
(A)111
(A) Versions for specific markets with control tyre 205/55 R16 GoodYear
203

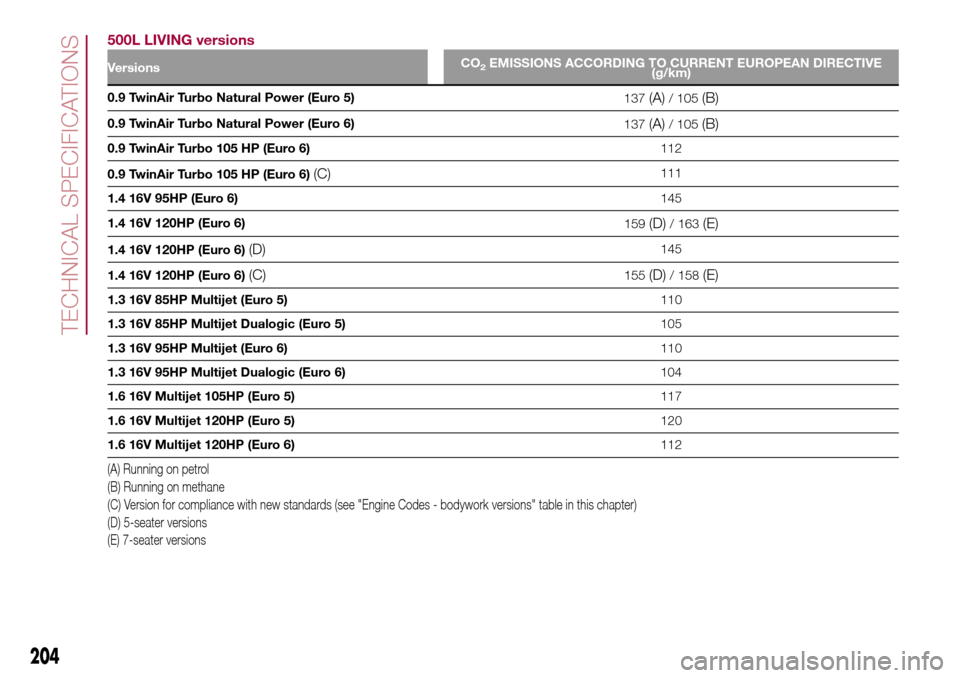

500L LIVING versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir Turbo Natural Power (Euro 5)
137(A)/ 105(B)
0.9 TwinAir Turbo Natural Power (Euro 6)
137(A)/ 105(B)
0.9 TwinAir Turbo 105 HP (Euro 6)112
0.9 TwinAir Turbo 105 HP (Euro 6)
(C)111
1.4 16V 95HP (Euro 6)145
1.4 16V 120HP (Euro 6)
159
(D)/ 163(E)
1.4 16V 120HP (Euro 6)(D)145
1.4 16V 120HP (Euro 6)
(C)155(D)/ 158(E)
1.3 16V 85HP Multijet (Euro 5)110
1.3 16V 85HP Multijet Dualogic (Euro 5)105
1.3 16V 95HP Multijet (Euro 6)110
1.3 16V 95HP Multijet Dualogic (Euro 6)104
1.6 16V Multijet 105HP (Euro 5)117
1.6 16V Multijet 120HP (Euro 5)120
1.6 16V Multijet 120HP (Euro 6)112
(A) Running on petrol
(B) Running on methane
(C) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(D) 5-seater versions
(E) 7-seater versions
204
TECHNICAL SPECIFICATIONS

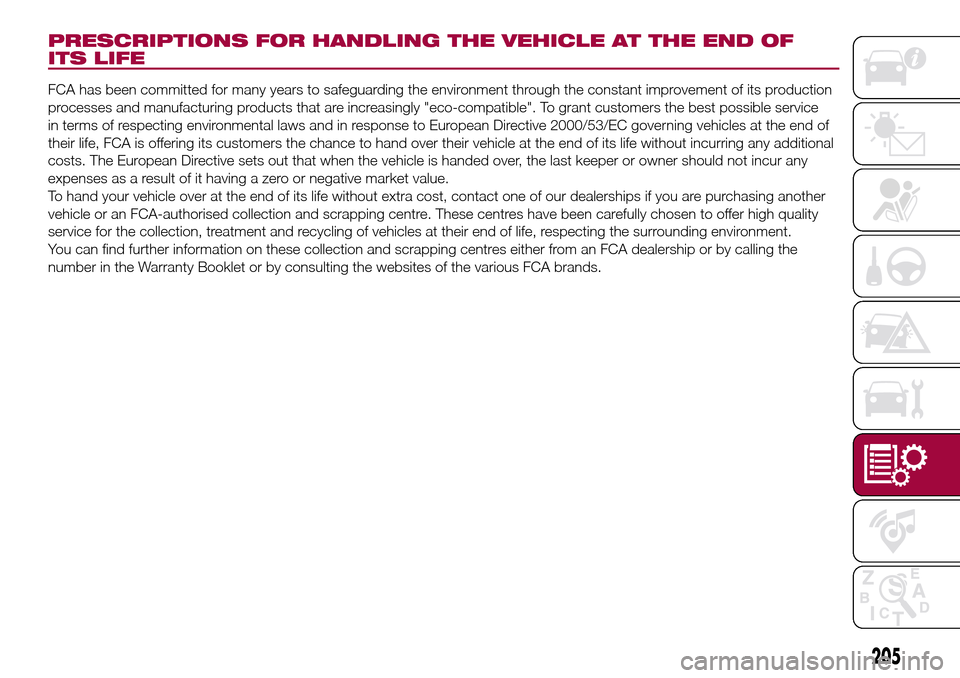

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
205

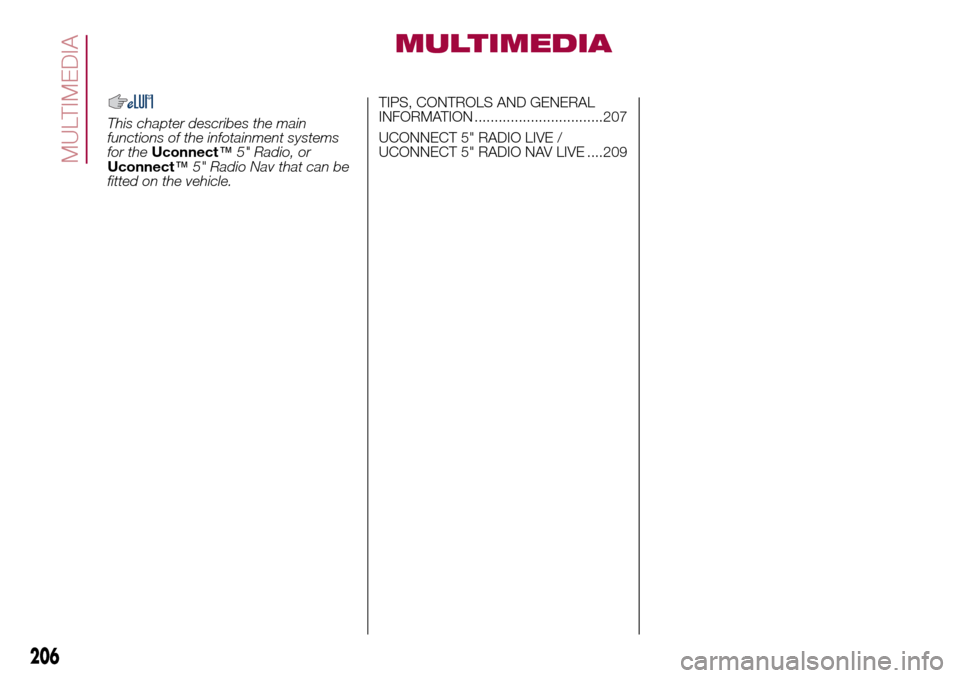

MULTIMEDIA
This chapter describes the main
functions of the infotainment systems
for theUconnect™5" Radio, or
Uconnect™5" Radio Nav that can be
fitted on the vehicle.TIPS, CONTROLS AND GENERAL
INFORMATION ................................207
UCONNECT 5" RADIO LIVE /
UCONNECT 5" RADIO NAV LIVE ....209
