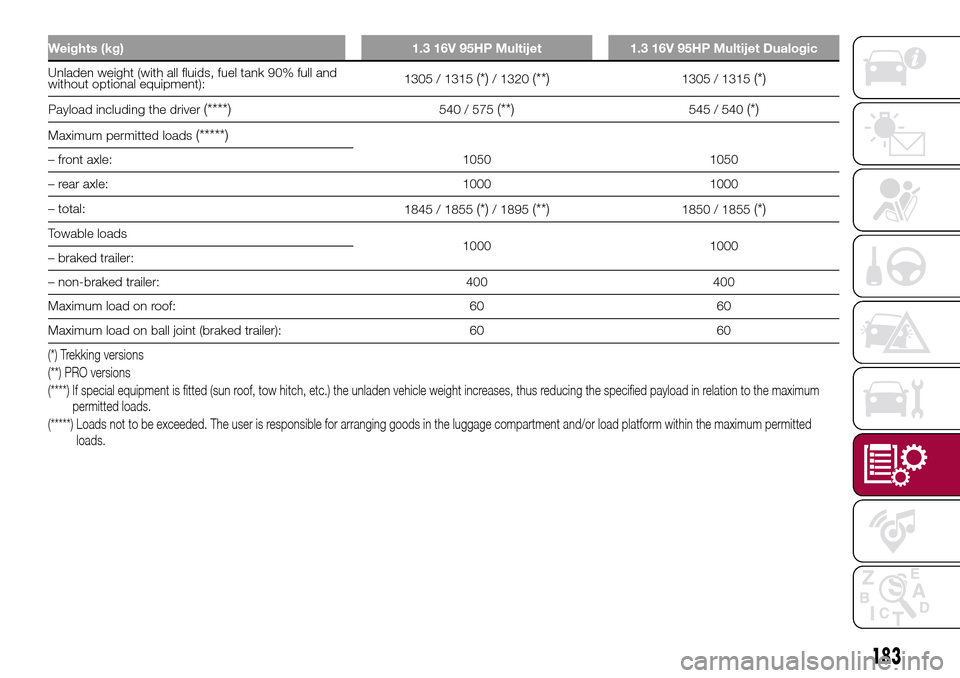

Weights (kg) 1.3 16V 95HP Multijet 1.3 16V 95HP Multijet Dualogic
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1305 / 1315(*)/ 1320(**)1305 / 1315(*)
Payload including the driver(****)540 / 575(**)545 / 540(*)
Maximum permitted loads(*****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1845 / 1855
(*)/ 1895(**)1850 / 1855(*)
Towable loads
1000 1000
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Trekking versions
(**) PRO versions
(****) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
183

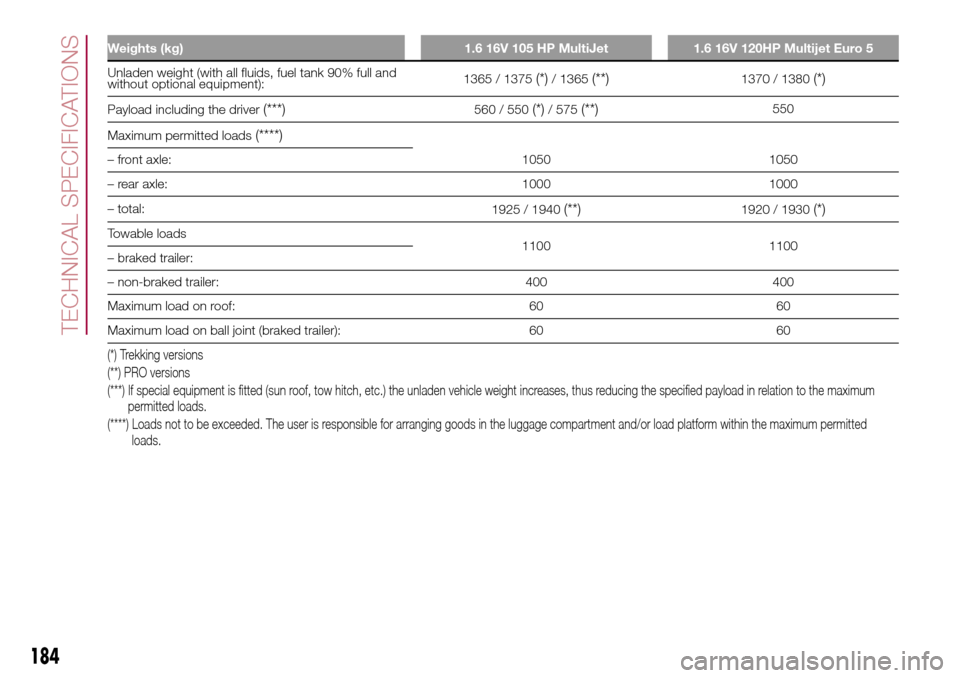

Weights (kg) 1.6 16V 105 HP MultiJet 1.6 16V 120HP Multijet Euro 5
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1365 / 1375(*)/ 1365(**)1370 / 1380(*)
Payload including the driver(***)560 / 550(*)/ 575(**)550
Maximum permitted loads
(****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1925 / 1940
(**)1920 / 1930(*)
Towable loads
1100 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Trekking versions
(**) PRO versions
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
184
TECHNICAL SPECIFICATIONS

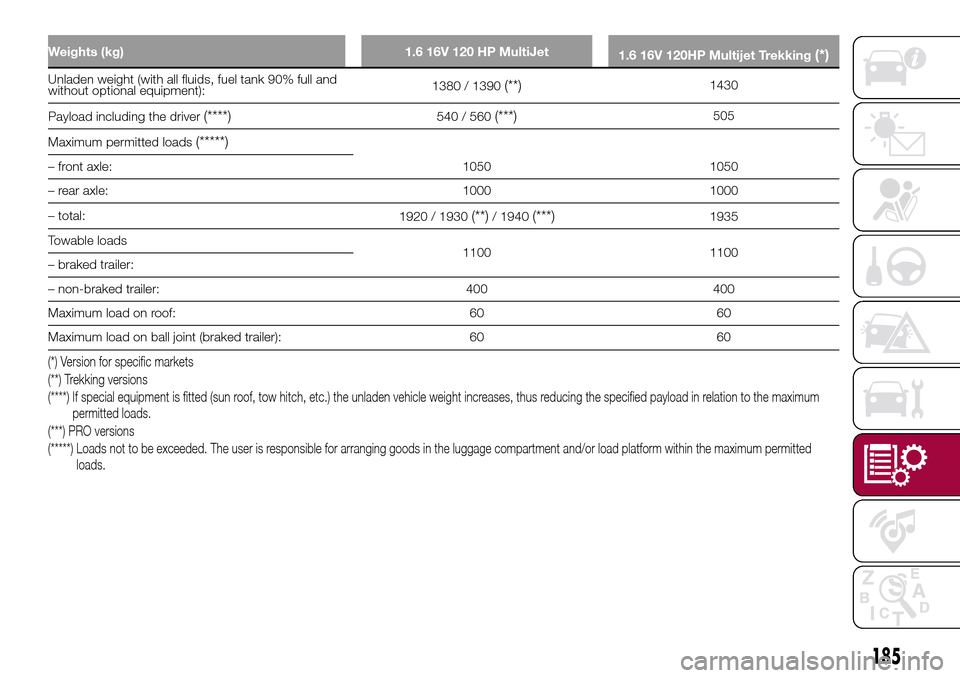

Weights (kg) 1.6 16V 120 HP MultiJet
1.6 16V 120HP Multijet Trekking(*)
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1380 / 1390(**)1430
Payload including the driver
(****)540 / 560(***)505
Maximum permitted loads
(*****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1920 / 1930
(**)/ 1940(***)1935
Towable loads
1100 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Version for specific markets
(**) Trekking versions
(****) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(***) PRO versions
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
185

500L LIVING VERSIONS
Weights (kg)0.9 TwinAir Turbo
Natural Power0.9 TwinAir Turbo 105HP
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1420 1290 1320
Payload including the driver
(*)500 515 645
Maximum permitted loads
(**)
- front axle: 1050 1050 1050
– rear axle: 1000 1000 1080
- total: 1920 1805 1965
Towable loads
– braked trailer: – 1000 1000
– non-braked trailer: – 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): – 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
186
TECHNICAL SPECIFICATIONS

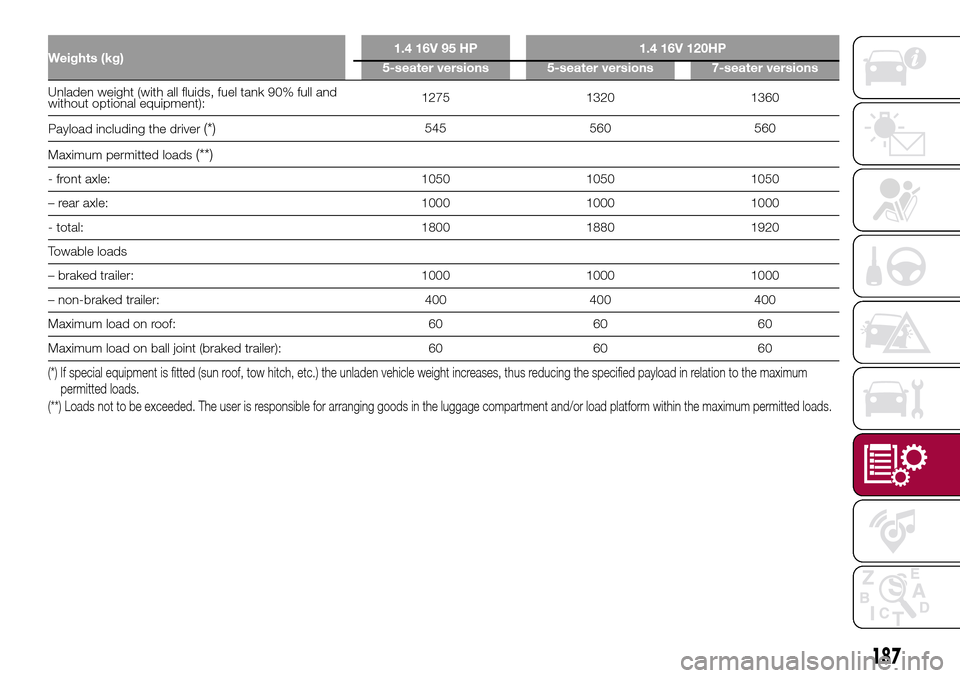

Weights (kg)1.4 16V 95 HP 1.4 16V 120HP
5-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1275 1320 1360
Payload including the driver
(*)545 560 560
Maximum permitted loads
(**)
- front axle: 1050 1050 1050
– rear axle: 1000 1000 1000
- total: 1800 1880 1920
Towable loads
– braked trailer: 1000 1000 1000
– non-braked trailer: 400 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
187

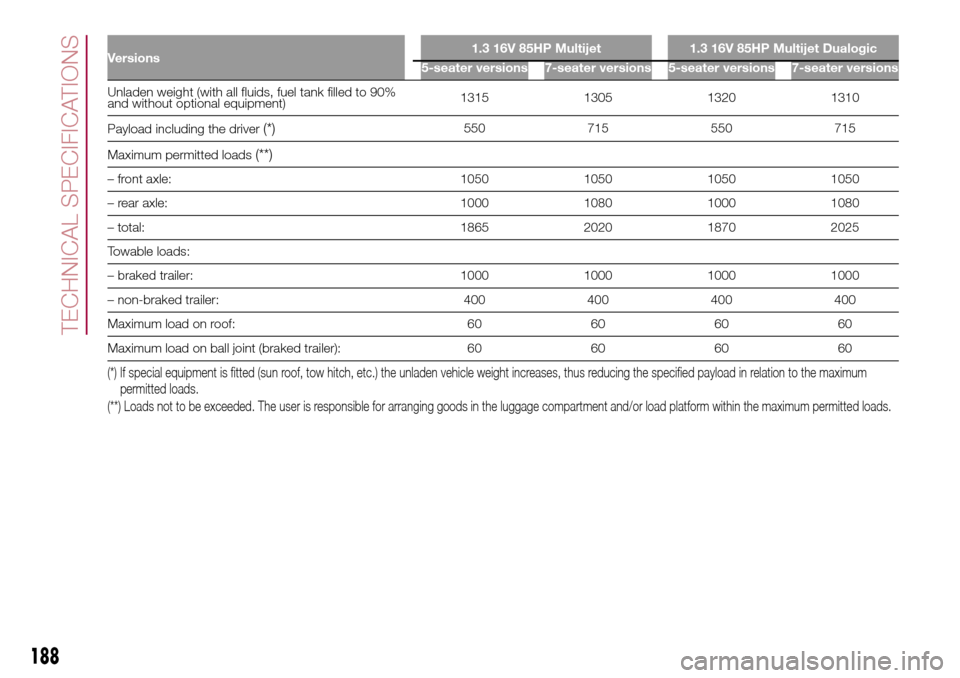

Versions1.3 16V 85HP Multijet 1.3 16V 85HP Multijet Dualogic
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1315 1305 1320 1310
Payload including the driver
(*)550 715 550 715
Maximum permitted loads
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1865 2020 1870 2025
Towable loads:
– braked trailer: 1000 1000 1000 1000
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
188
TECHNICAL SPECIFICATIONS

Versions1.3 16V 95HP Multijet 1.3 16V 95HP Multijet Dualogic
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1320 1320 1320 1320
Payload including the driver
(*)575 700 575 705
Maximum permitted loads
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
- total: 1895 2020 1895 2025
Towable loads:
– braked trailer: 1000 1000 1000 1000
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
189

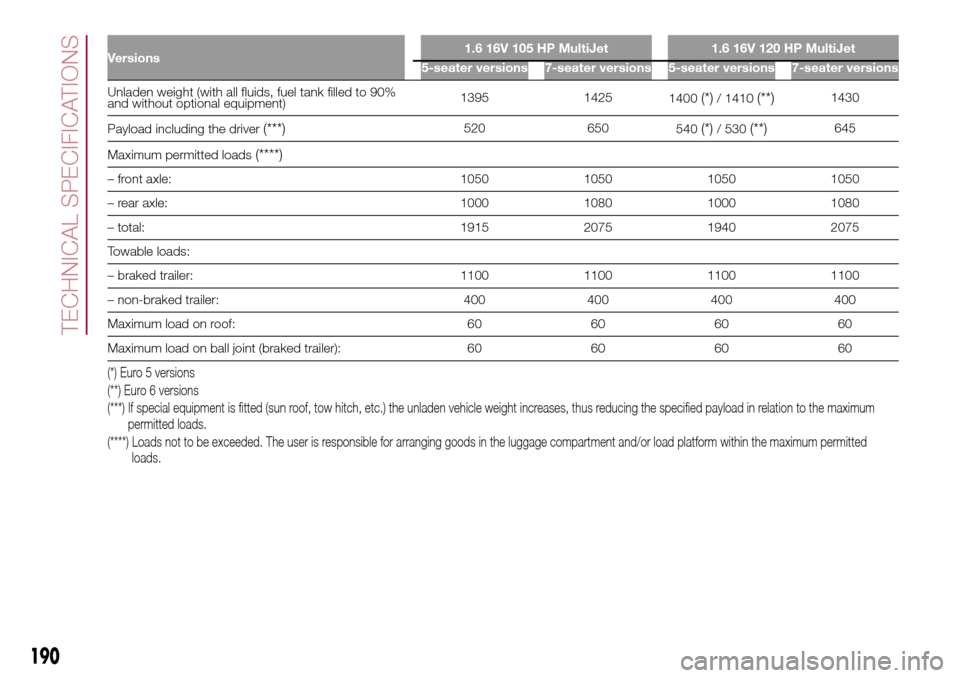

Versions1.6 16V 105 HP MultiJet 1.6 16V 120 HP MultiJet
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1395 1425
1400(*)/ 1410(**)1430
Payload including the driver
(***)520 650
540(*)/ 530(**)645
Maximum permitted loads
(****)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1915 2075 1940 2075
Towable loads:
– braked trailer: 1100 1100 1100 1100
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) Euro 5 versions
(**) Euro 6 versions
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
