2017 FIAT 500L LIVING Owners Manual

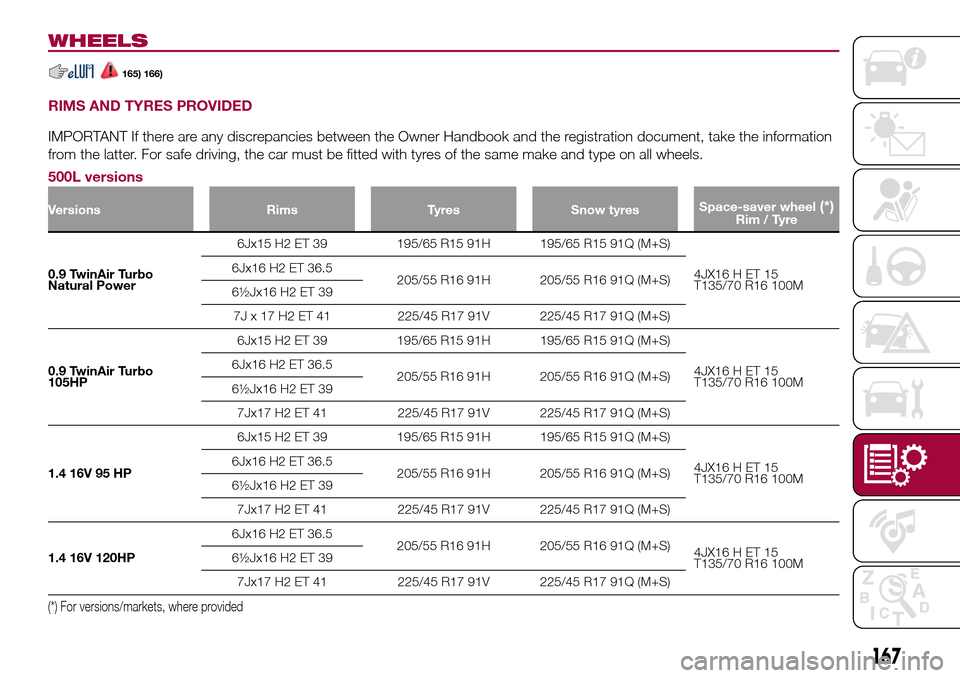

WHEELS
165) 166)
RIMS AND TYRES PROVIDED
IMPORTANT If there are any discrepancies between the Owner Handbook and the registration document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
500L versions
Versions Rims Tyres Snow tyresSpace-saver wheel(*)Rim / Tyre
0.9 TwinAir Turbo
Natural Power6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7J x 17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
0.9 TwinAir Turbo6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 16V 95 HP6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 16V 120HP6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
167
105HP

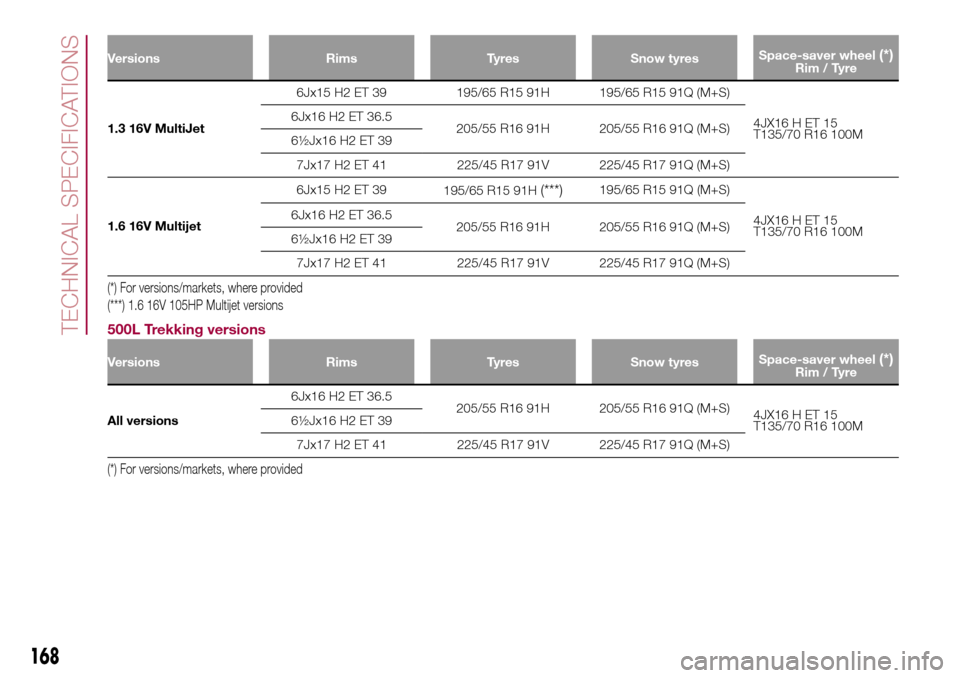

Versions Rims Tyres Snow tyresSpace-saver wheel(*)Rim / Tyre
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.6 16V Multijet6Jx15 H2 ET 39
195/65 R15 91H
(***)195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
(***) 1.6 16V 105HP Multijet versions
500L Trekking versions
Versions Rims Tyres Snow tyresSpace-saver wheel(*)Rim / Tyre
All versions6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
168
TECHNICAL SPECIFICATIONS

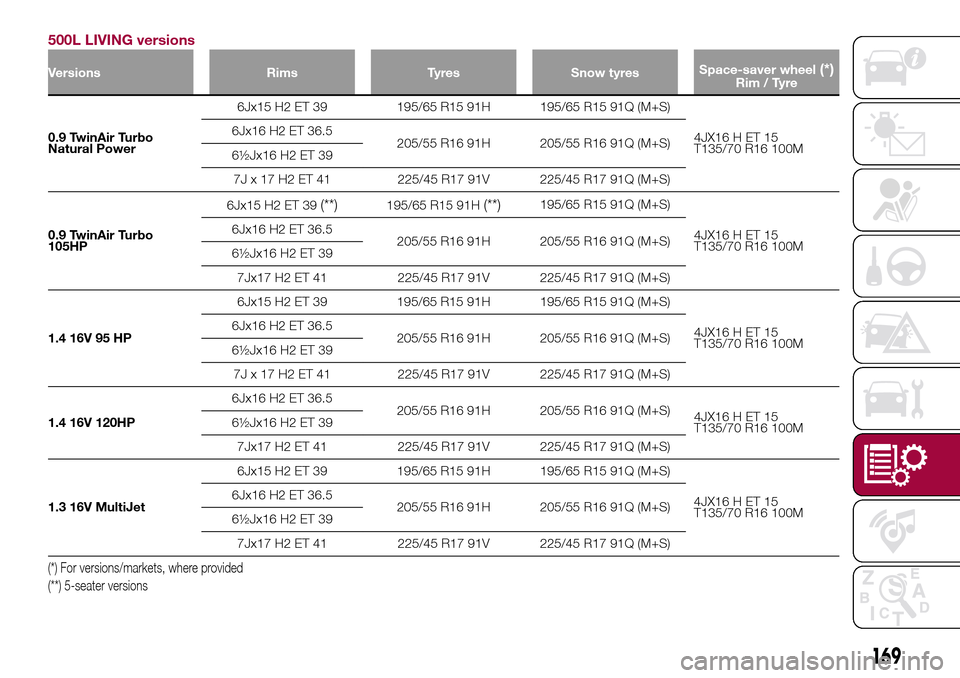

500L LIVING versions
Versions Rims Tyres Snow tyresSpace-saver wheel(*)Rim / Tyre
0.9 TwinAir Turbo
Natural Power6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7J x 17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
0.9 TwinAir Turbo
105HP6Jx15 H2 ET 39
(**)195/65 R15 91H(**)195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 16V 95 HP6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7J x 17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 16V 120HP6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
(**) 5-seater versions
169

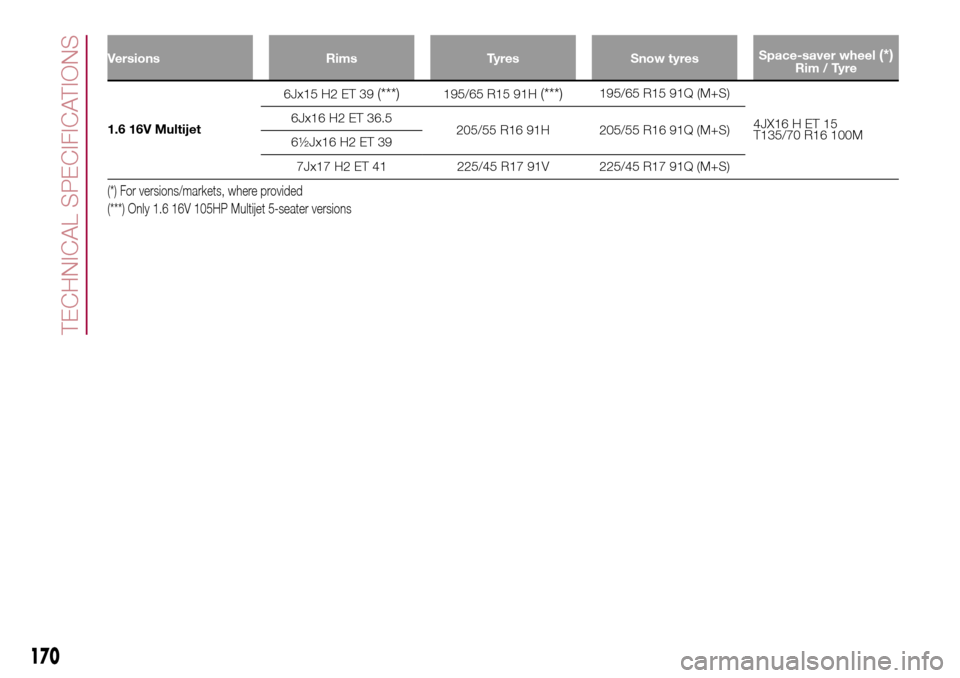

Versions Rims Tyres Snow tyresSpace-saver wheel(*)Rim / Tyre
1.6 16V Multijet6Jx15 H2 ET 39
(***)195/65 R15 91H(***)195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
(***) Only 1.6 16V 105HP Multijet 5-seater versions
170
TECHNICAL SPECIFICATIONS

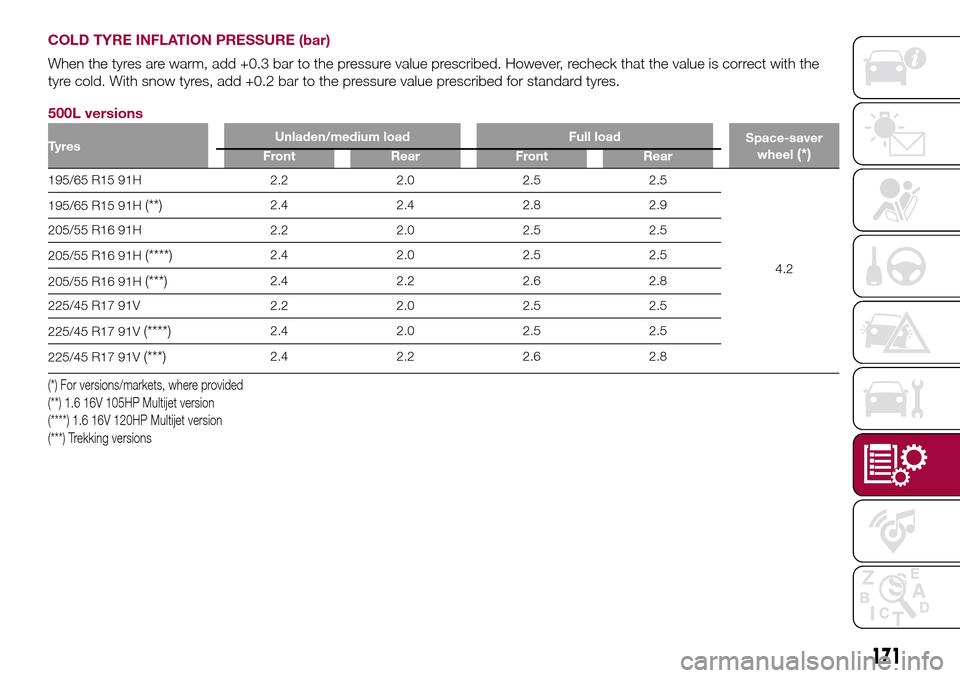

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the
tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
500L versions
Ty r e sUnladen/medium load Full load
Space-saver
wheel(*)Front Rear Front Rear
195/65 R15 91H 2.2 2.0 2.5 2.5
4.2 195/65 R15 91H
(**)2.4 2.4 2.8 2.9
205/55 R16 91H 2.2 2.0 2.5 2.5
205/55 R16 91H
(****)2.4 2.0 2.5 2.5
205/55 R16 91H
(***)2.4 2.2 2.6 2.8
225/45 R17 91V 2.2 2.0 2.5 2.5
225/45 R17 91V
(****)2.4 2.0 2.5 2.5
225/45 R17 91V
(***)2.4 2.2 2.6 2.8
(*) For versions/markets, where provided
(**) 1.6 16V 105HP Multijet version
(****) 1.6 16V 120HP Multijet version
(***) Trekking versions
171

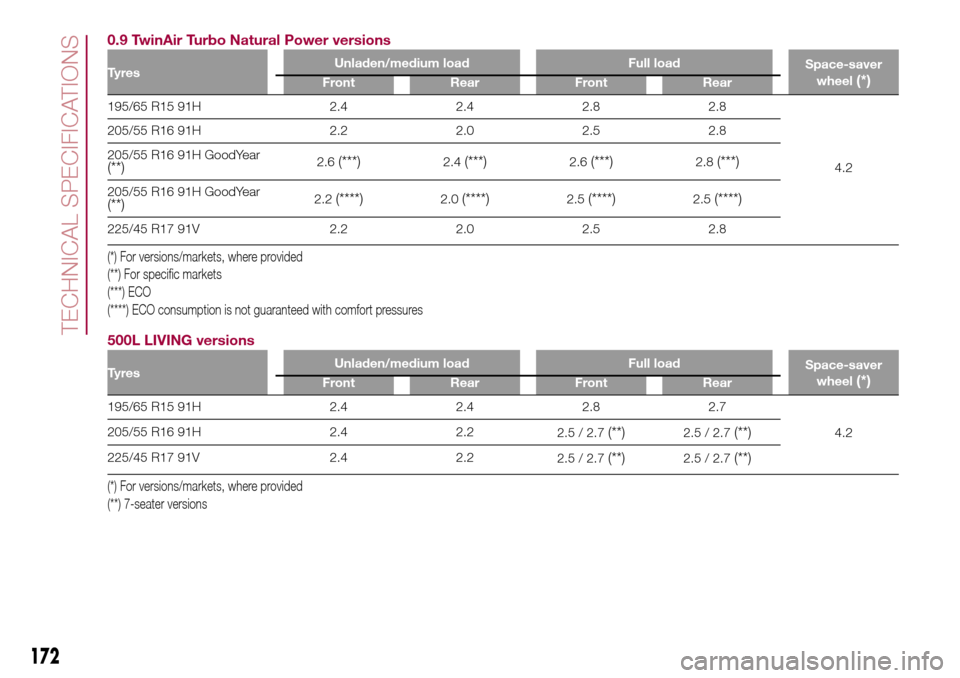

0.9 TwinAir Turbo Natural Power versions
Ty r e sUnladen/medium load Full load
Space-saver
wheel(*)Front Rear Front Rear
195/65 R15 91H 2.4 2.4 2.8 2.8
4.2 205/55 R16 91H 2.2 2.0 2.5 2.8
205/55 R16 91H GoodYear
(**)2.6(***)2.4(***)2.6(***)2.8(***)
205/55 R16 91H GoodYear(**)2.2(****)2.0(****)2.5(****)2.5(****)
225/45 R17 91V 2.2 2.0 2.5 2.8
(*) For versions/markets, where provided
(**) For specific markets
(***) ECO
(****) ECO consumption is not guaranteed with comfort pressures
500L LIVING versions
Ty r e sUnladen/medium load Full load
Space-saver
wheel(*)Front Rear Front Rear
195/65 R15 91H 2.4 2.4 2.8 2.7
4.2 205/55 R16 91H 2.4 2.2
2.5 / 2.7
(**)2.5 / 2.7(**)
225/45 R17 91V 2.4 2.2
2.5 / 2.7(**)2.5 / 2.7(**)
(*) For versions/markets, where provided
(**) 7-seater versions
172
TECHNICAL SPECIFICATIONS

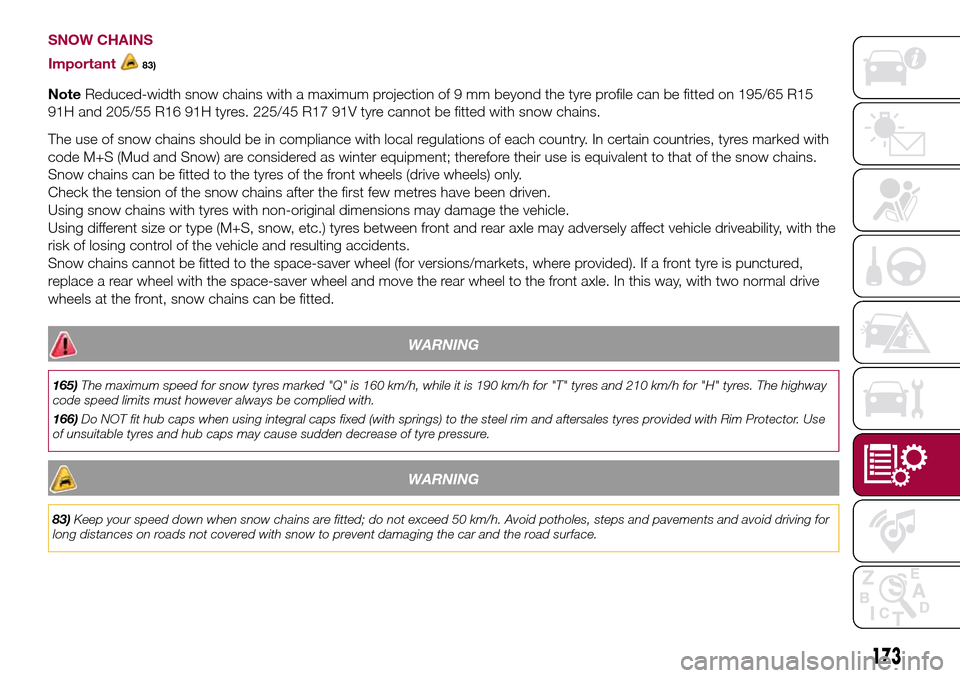

SNOW CHAINS
Important
83)
NoteReduced-width snow chains with a maximum projection of 9 mm beyond the tyre profile can be fitted on 195/65 R15
91H and 205/55 R16 91H tyres. 225/45 R17 91V tyre cannot be fitted with snow chains.
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with
code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
Snow chains can be fitted to the tyres of the front wheels (drive wheels) only.
Check the tension of the snow chains after the first few metres have been driven.
Using snow chains with tyres with non-original dimensions may damage the vehicle.
Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle driveability, with the
risk of losing control of the vehicle and resulting accidents.
Snow chains cannot be fitted to the space-saver wheel (for versions/markets, where provided). If a front tyre is punctured,
replace a rear wheel with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive
wheels at the front, snow chains can be fitted.
WARNING
165)The maximum speed for snow tyres marked "Q" is 160 km/h, while it is 190 km/h for "T" tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
166)Do NOT fit hub caps when using integral caps fixed (with springs) to the steel rim and aftersales tyres provided with Rim Protector. Use
of unsuitable tyres and hub caps may cause sudden decrease of tyre pressure.
WARNING
83)Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, steps and pavements and avoid driving for
long distances on roads not covered with snow to prevent damaging the car and the road surface.
173

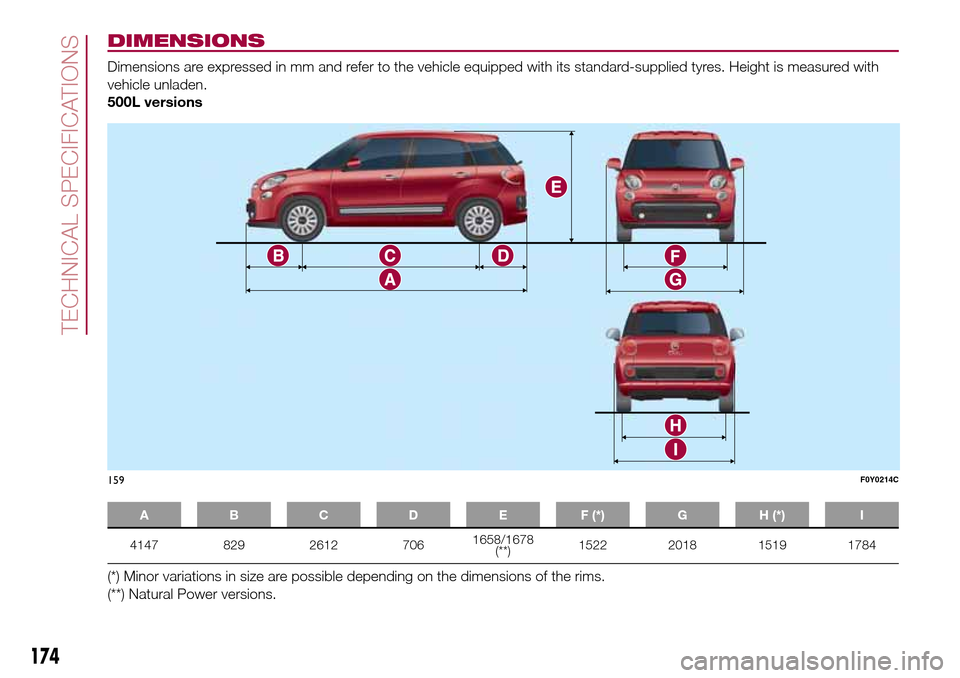

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
500L versions
A B C D E F (*) G H (*) I
4147 829 2612 7061658/1678
(**)1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
(**) Natural Power versions.
159F0Y0214C
174
