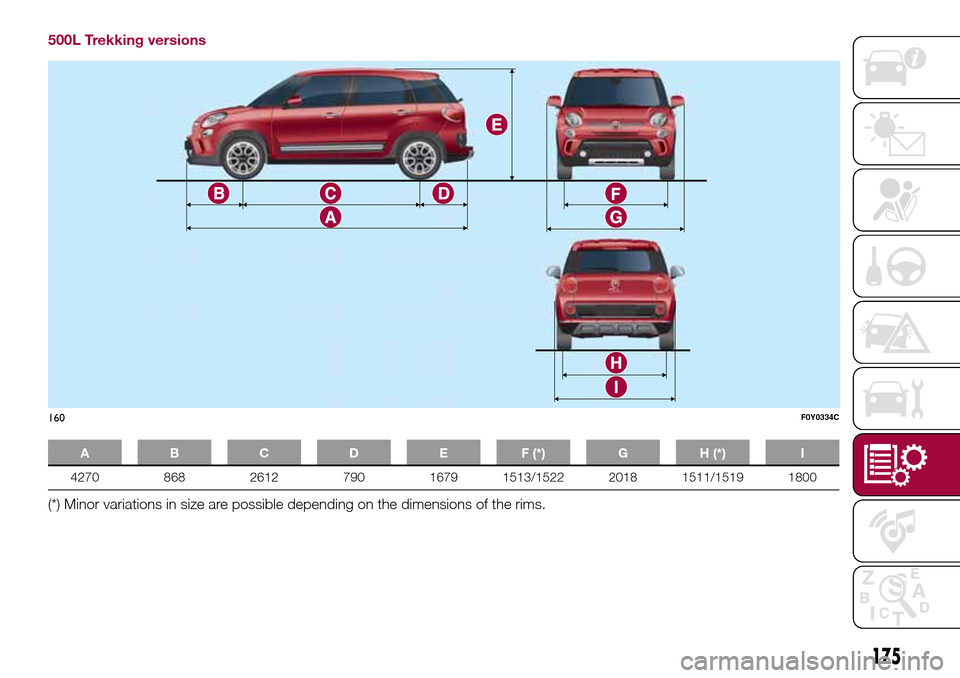

500L Trekking versions
A B C D E F (*) G H (*) I
4270 868 2612 790 1679 1513/1522 2018 1511/1519 1800
(*) Minor variations in size are possible depending on the dimensions of the rims.
160F0Y0334C
175

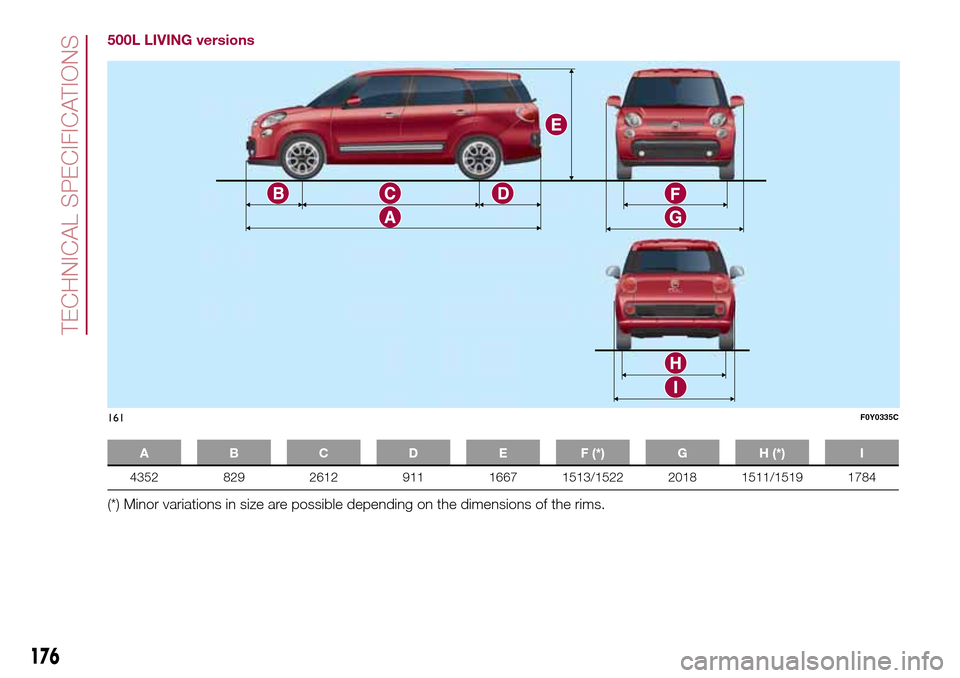

500L LIVING versions
A B C D E F (*) G H (*) I
4352 829 2612 911 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
161F0Y0335C
176
TECHNICAL SPECIFICATIONS

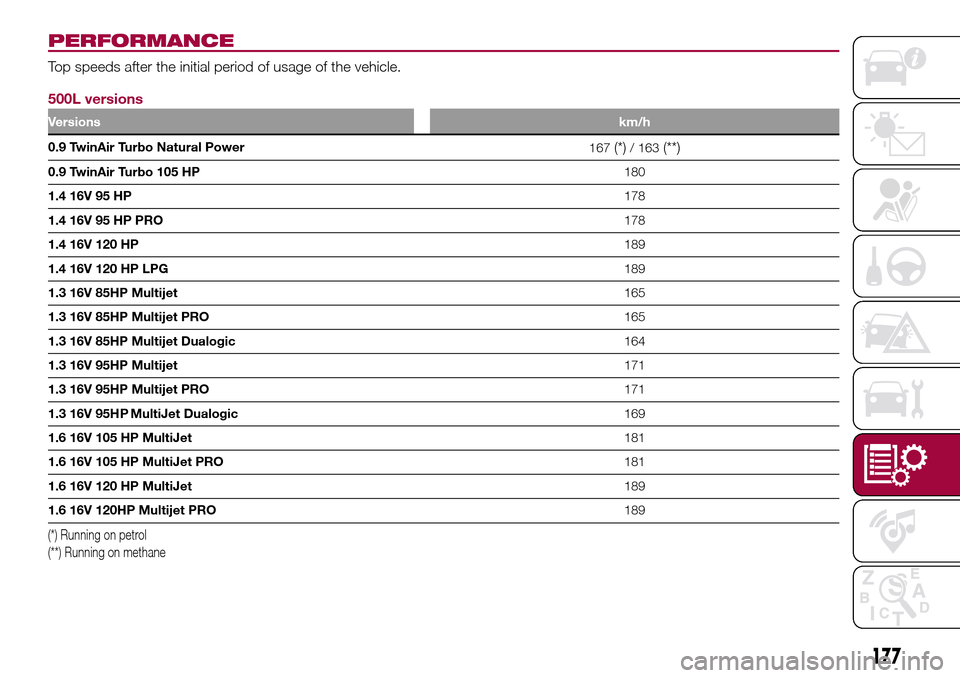

PERFORMANCE
Top speeds after the initial period of usage of the vehicle.
500L versions
Versionskm/h
0.9 TwinAir Turbo Natural Power
167(*)/ 163(**)
0.9 TwinAir Turbo 105 HP180
1.4 16V 95 HP178
1.4 16V 95 HP PRO178
1.4 16V 120 HP189
1.4 16V 120 HP LPG189
1.3 16V 85HP Multijet165
1.3 16V 85HP Multijet PRO165
1.3 16V 85HP Multijet Dualogic164
1.3 16V 95HP Multijet171
1.3 16V 95HP Multijet PRO171
1.3 16V 95HP MultiJet Dualogic169
1.6 16V 105 HP MultiJet181
1.6 16V 105 HP MultiJet PRO181
1.6 16V 120 HP MultiJet189
1.6 16V 120HP Multijet PRO189
(*) Running on petrol
(**) Running on methane
177

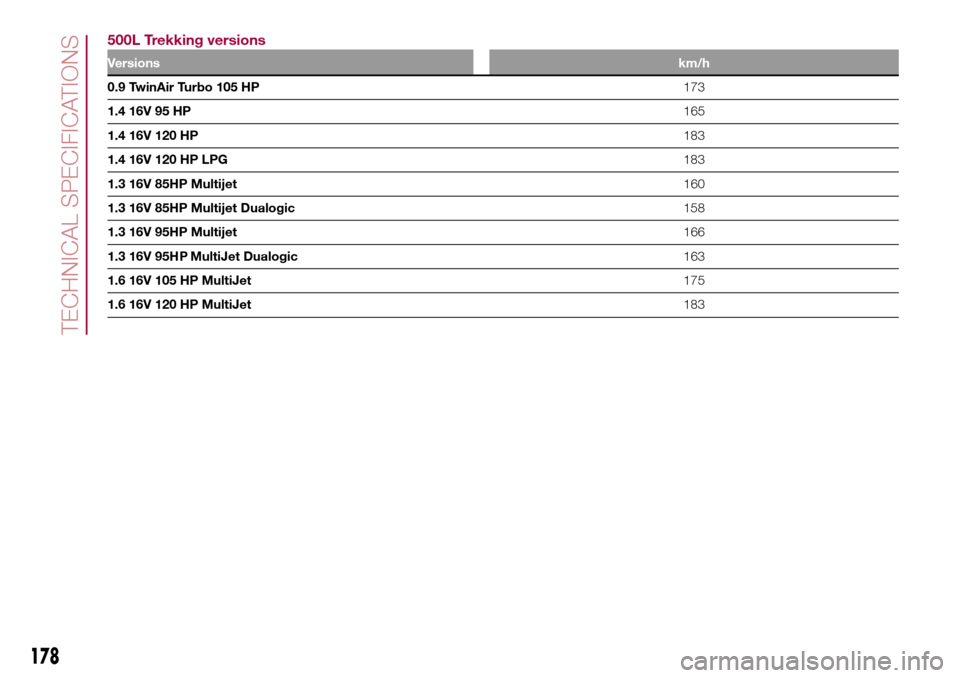

500L Trekking versions
Versionskm/h
0.9 TwinAir Turbo 105 HP173
1.4 16V 95 HP165
1.4 16V 120 HP183
1.4 16V 120 HP LPG183
1.3 16V 85HP Multijet160
1.3 16V 85HP Multijet Dualogic158
1.3 16V 95HP Multijet166
1.3 16V 95HP MultiJet Dualogic163
1.6 16V 105 HP MultiJet175
1.6 16V 120 HP MultiJet183
178
TECHNICAL SPECIFICATIONS

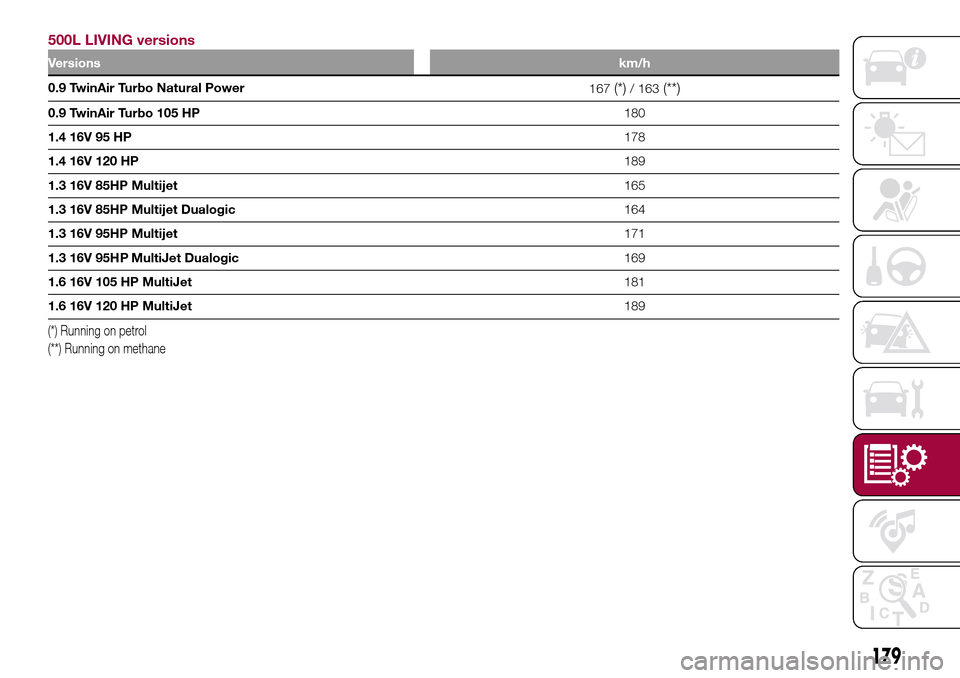

500L LIVING versions
Versionskm/h
0.9 TwinAir Turbo Natural Power
167(*)/ 163(**)
0.9 TwinAir Turbo 105 HP180
1.4 16V 95 HP178
1.4 16V 120 HP189
1.3 16V 85HP Multijet165
1.3 16V 85HP Multijet Dualogic164
1.3 16V 95HP Multijet171
1.3 16V 95HP MultiJet Dualogic169
1.6 16V 105 HP MultiJet181
1.6 16V 120 HP MultiJet189
(*) Running on petrol
(**) Running on methane
179

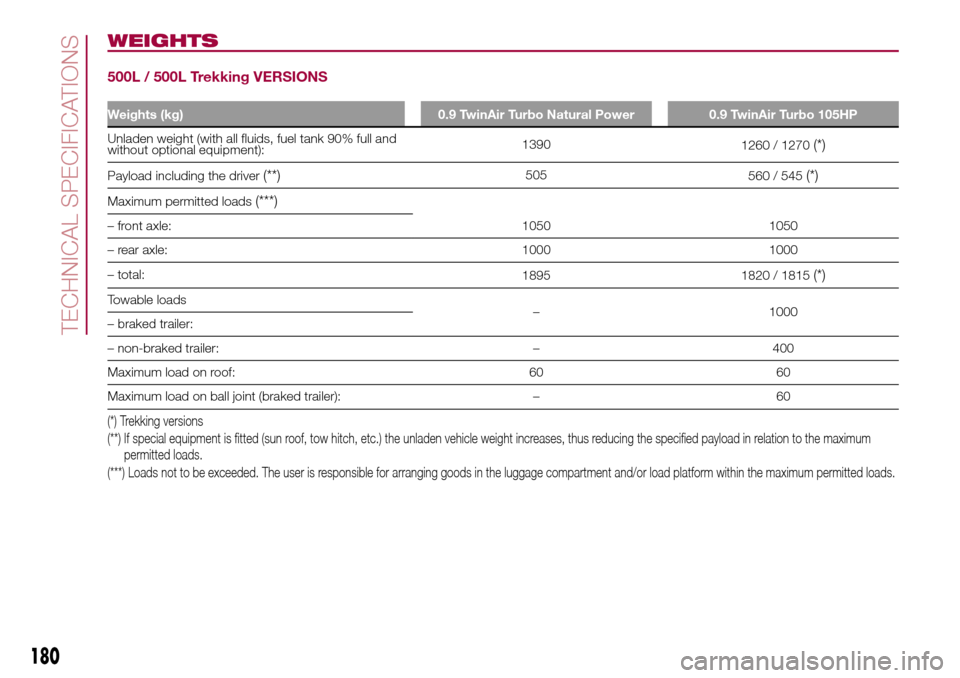

WEIGHTS
500L / 500L Trekking VERSIONS
Weights (kg) 0.9 TwinAir Turbo Natural Power 0.9 TwinAir Turbo 105HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1390
1260 / 1270(*)
Payload including the driver(**)505
560 / 545(*)
Maximum permitted loads(***)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1895 1820 / 1815
(*)
Towable loads
– 1000
– braked trailer:
– non-braked trailer: – 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): – 60
(*) Trekking versions
(**) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relationto the maximum
permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
180
TECHNICAL SPECIFICATIONS

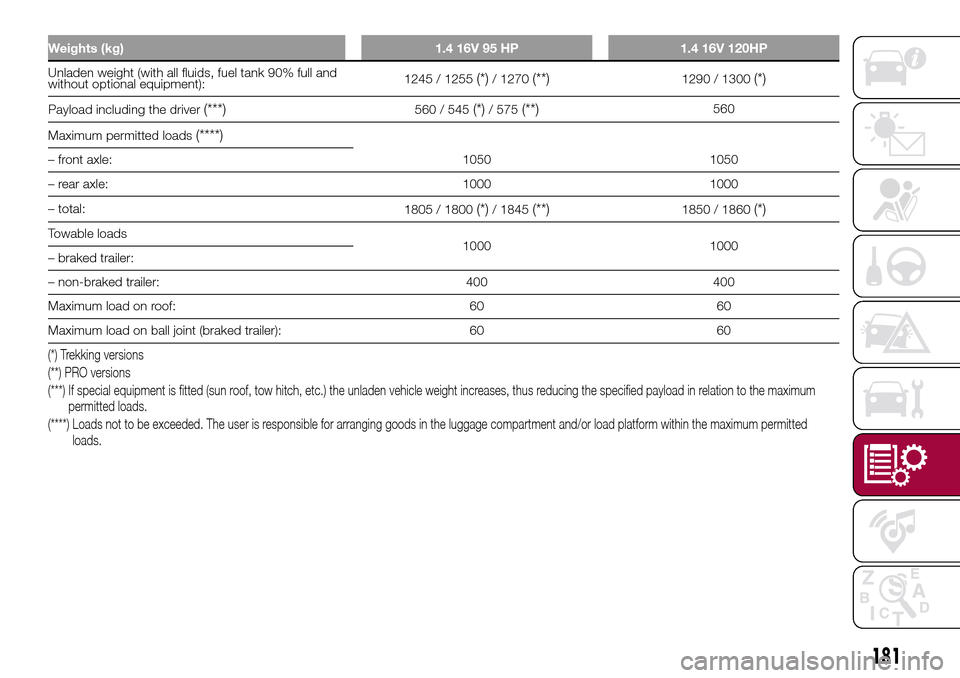

Weights (kg) 1.4 16V 95 HP 1.4 16V 120HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1245 / 1255(*)/ 1270(**)1290 / 1300(*)
Payload including the driver(***)560 / 545(*)/ 575(**)560
Maximum permitted loads
(****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1805 / 1800
(*)/ 1845(**)1850 / 1860(*)
Towable loads
1000 1000
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Trekking versions
(**) PRO versions
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
181

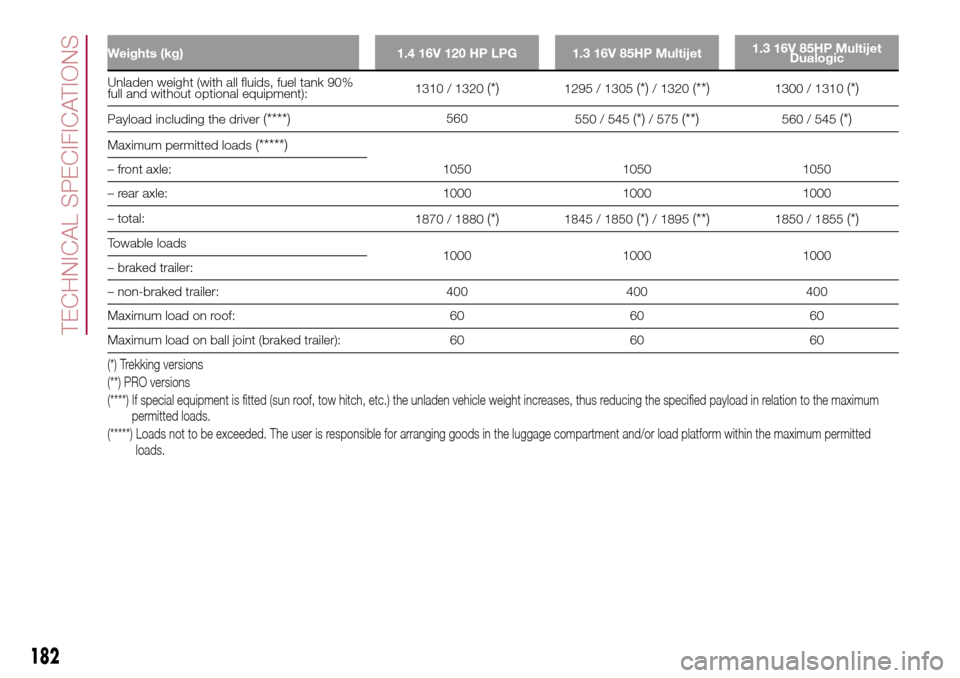

Weights (kg) 1.4 16V 120 HP LPG 1.3 16V 85HP Multijet1.3 16V 85HP Multijet
Dualogic
Unladen weight (with all fluids, fuel tank 90%
full and without optional equipment):1310 / 1320(*)1295 / 1305(*)/ 1320(**)1300 / 1310(*)
Payload including the driver(****)560
550 / 545(*)/ 575(**)560 / 545(*)
Maximum permitted loads(*****)
1050 1050 1050 – front axle:
– rear axle: 1000 1000 1000
– total:
1870 / 1880
(*)1845 / 1850(*)/ 1895(**)1850 / 1855(*)
Towable loads
1000 1000 1000
– braked trailer:
– non-braked trailer: 400 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60
(*) Trekking versions
(**) PRO versions
(****) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
182
