2017 FIAT 500L LIVING Owners Manual

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................160
ENGINE CODES - BODYWORK
VERSIONS ......................................161
ENGINE ..........................................163
WHEELS .........................................167
DIMENSIONS ..................................174
PERFORMANCE .............................177
WEIGHTS........................................180
SUPPLIES .......................................191
FLUIDS AND LUBRICANTS ............193
FUEL CONSUMPTION ....................195
CO2 EMISSIONS ............................200
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................205
159

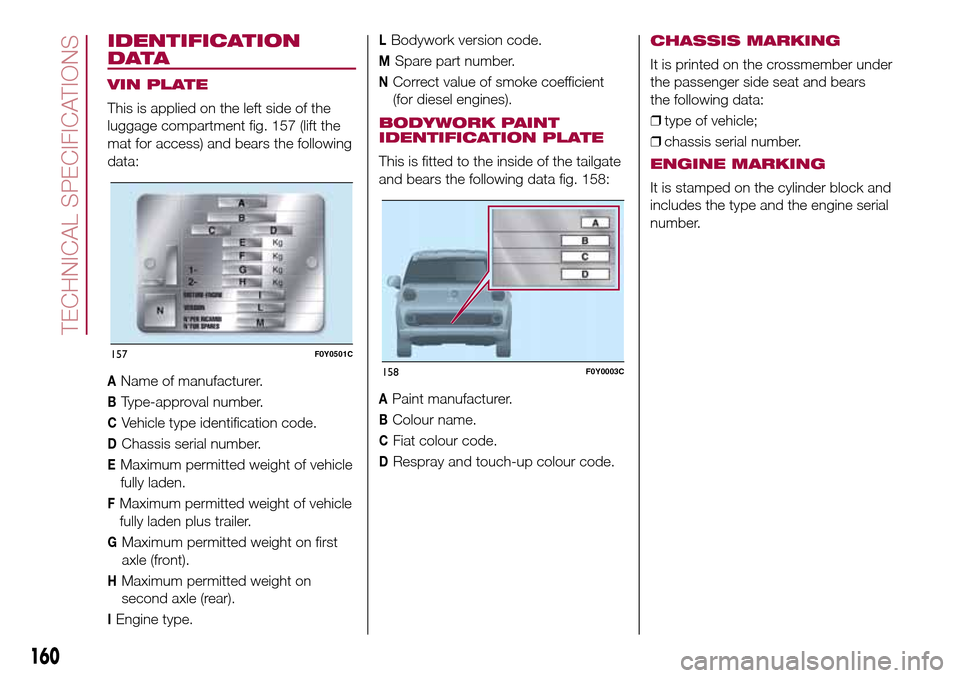

IDENTIFICATION
DATA
VIN PLATE
This is applied on the left side of the
luggage compartment fig. 157 (lift the
mat for access) and bears the following
data:
AName of manufacturer.
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum permitted weight of vehicle
fully laden plus trailer.
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient
(for diesel engines).
BODYWORK PAINT
IDENTIFICATION PLATE
This is fitted to the inside of the tailgate
and bears the following data fig. 158:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch-up colour code.
CHASSIS MARKING
It is printed on the crossmember under
the passenger side seat and bears
the following data:
❒type of vehicle;
❒chassis serial number.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
157F0Y0501C
158F0Y0003C
160
TECHNICAL SPECIFICATIONS

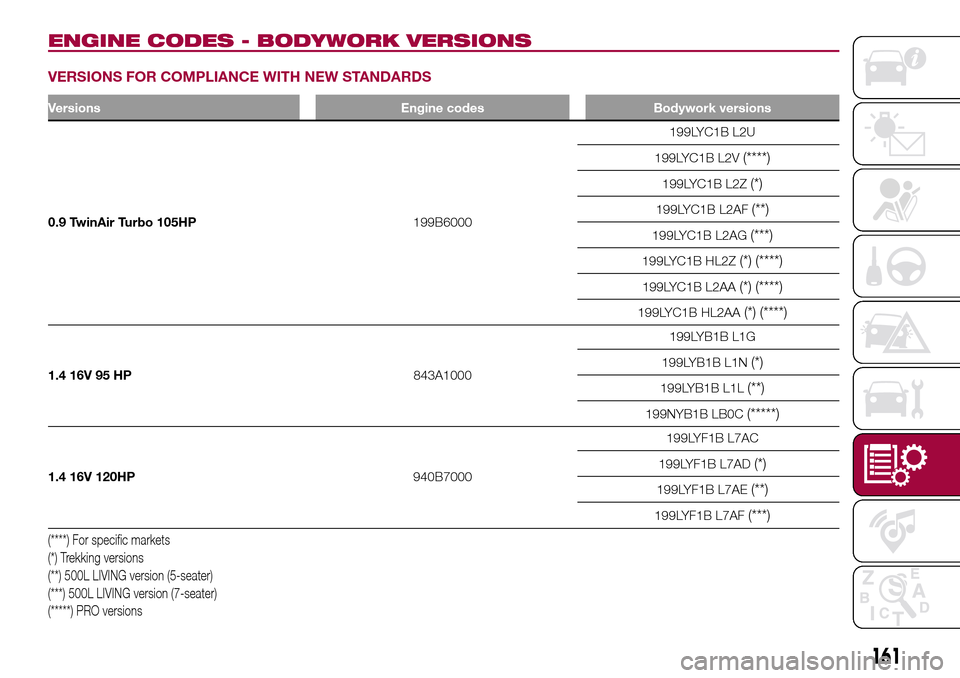

ENGINE CODES - BODYWORK VERSIONS
VERSIONS FOR COMPLIANCE WITH NEW STANDARDS
Versions Engine codes Bodywork versions
0.9 TwinAir Turbo 105HP199B6000199LYC1B L2U
199LYC1B L2V
(****)
199LYC1B L2Z(*)
199LYC1B L2AF(**)
199LYC1B L2AG(***)
199LYC1B HL2Z(*) (****)
199LYC1B L2AA(*) (****)
199LYC1B HL2AA(*) (****)
1.4 16V 95 HP843A1000199LYB1B L1G
199LYB1B L1N(*)
199LYB1B L1L(**)
199NYB1B LB0C(*****)
1.4 16V 120HP940B7000199LYF1B L7AC
199LYF1B L7AD(*)
199LYF1B L7AE(**)
199LYF1B L7AF(***)
(****) For specific markets
(*) Trekking versions
(**) 500L LIVING version (5-seater)
(***) 500L LIVING version (7-seater)
(*****) PRO versions
161

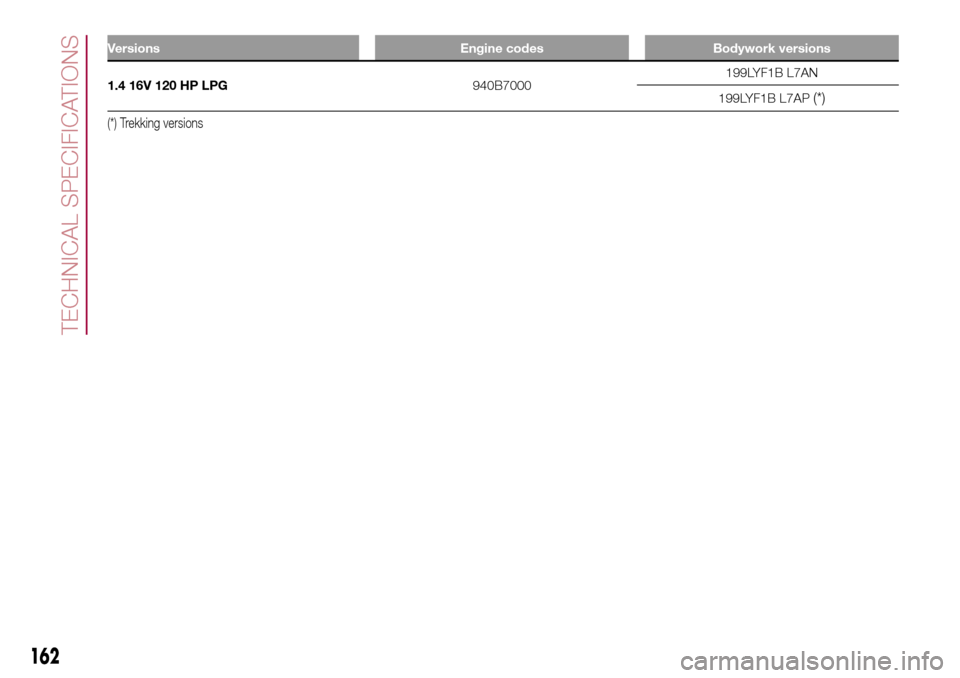

Versions Engine codes Bodywork versions
1.4 16V 120 HP LPG940B7000199LYF1B L7AN
199LYF1B L7AP(*)
(*) Trekking versions
162
TECHNICAL SPECIFICATIONS

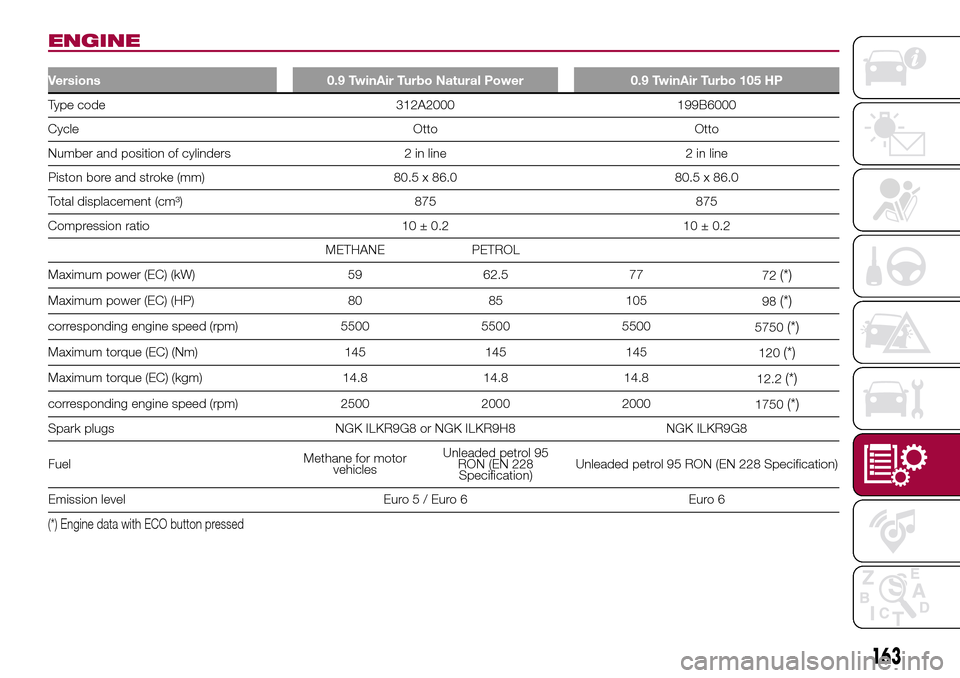

ENGINE
Versions 0.9 TwinAir Turbo Natural Power 0.9 TwinAir Turbo 105 HP
Type code 312A2000 199B6000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 x 86.0 80.5 x 86.0
Total displacement (cm³) 875 875
Compression ratio 10 ± 0.2 10 ± 0.2
METHANE PETROL
Maximum power (EC) (kW) 59 62.5 77
72
(*)
Maximum power (EC) (HP) 80 85 105
98(*)
corresponding engine speed (rpm) 5500 5500 5500
5750(*)
Maximum torque (EC) (Nm) 145 145 145
120(*)
Maximum torque (EC) (kgm) 14.8 14.8 14.8
12.2(*)
corresponding engine speed (rpm) 2500 2000 2000
1750(*)
Spark plugs NGK ILKR9G8 or NGK ILKR9H8 NGK ILKR9G8
FuelMethane for motor
vehiclesUnleaded petrol 95
RON (EN 228
Specification)Unleaded petrol 95 RON (EN 228 Specification)
Emission level Euro5/Euro6 Euro6
(*) Engine data with ECO button pressed
163

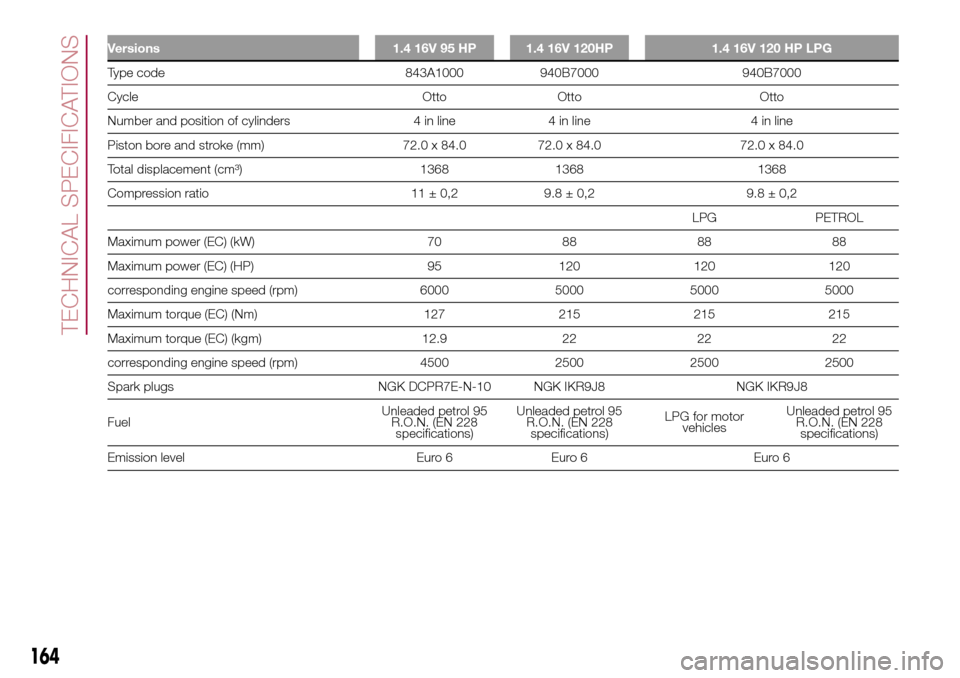

Versions 1.4 16V 95 HP 1.4 16V 120HP 1.4 16V 120 HP LPG
Type code 843A1000 940B7000 940B7000
Cycle Otto Otto Otto
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 84.0 72.0 x 84.0 72.0 x 84.0
Total displacement (cm³) 1368 1368 1368
Compression ratio 11 ± 0,2 9.8 ± 0,2 9.8 ± 0,2
LPG PETROL
Maximum power (EC) (kW) 70 88 88 88
Maximum power (EC) (HP) 95 120 120 120
corresponding engine speed (rpm) 6000 5000 5000 5000
Maximum torque (EC) (Nm) 127 215 215 215
Maximum torque (EC) (kgm) 12.9 22 22 22
corresponding engine speed (rpm) 4500 2500 2500 2500
Spark plugs NGK DCPR7E-N-10 NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95
R.O.N. (EN 228
specifications)Unleaded petrol 95
R.O.N. (EN 228
specifications)LPG for motor
vehiclesUnleaded petrol 95
R.O.N. (EN 228
specifications)
Emission level Euro 6 Euro 6 Euro 6
164
TECHNICAL SPECIFICATIONS

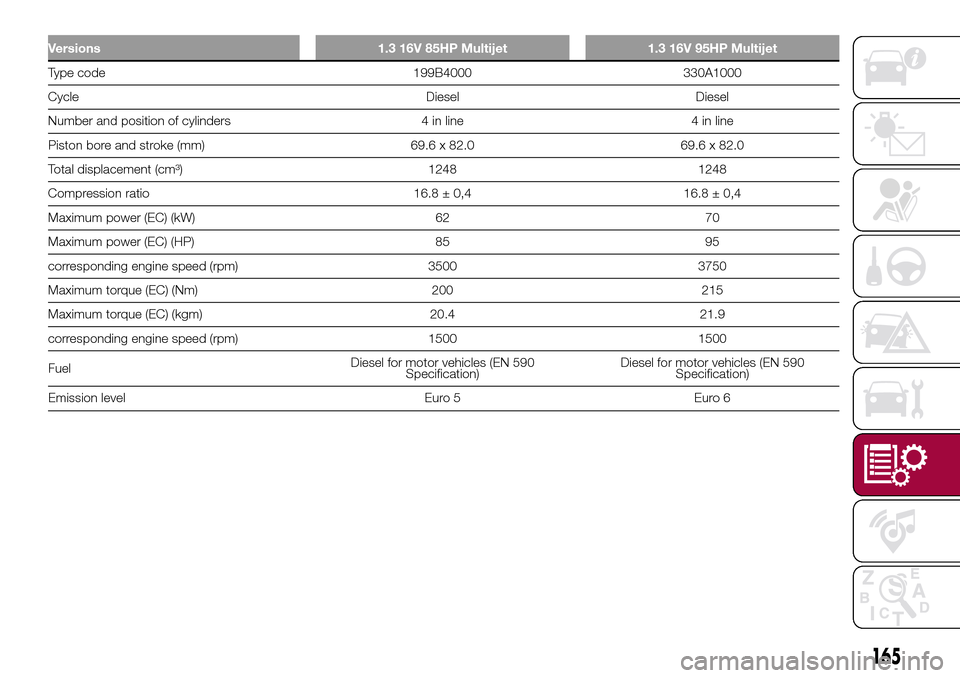

Versions 1.3 16V 85HP Multijet 1.3 16V 95HP Multijet
Type code 199B4000 330A1000
Cycle Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 69.6 x 82.0 69.6 x 82.0
Total displacement (cm³) 1248 1248
Compression ratio 16.8 ± 0,4 16.8 ± 0,4
Maximum power (EC) (kW) 62 70
Maximum power (EC) (HP) 85 95
corresponding engine speed (rpm) 3500 3750
Maximum torque (EC) (Nm) 200 215
Maximum torque (EC) (kgm) 20.4 21.9
corresponding engine speed (rpm) 1500 1500
FuelDiesel for motor vehicles (EN 590
Specification)Diesel for motor vehicles (EN 590
Specification)
Emission level Euro 5 Euro 6
165

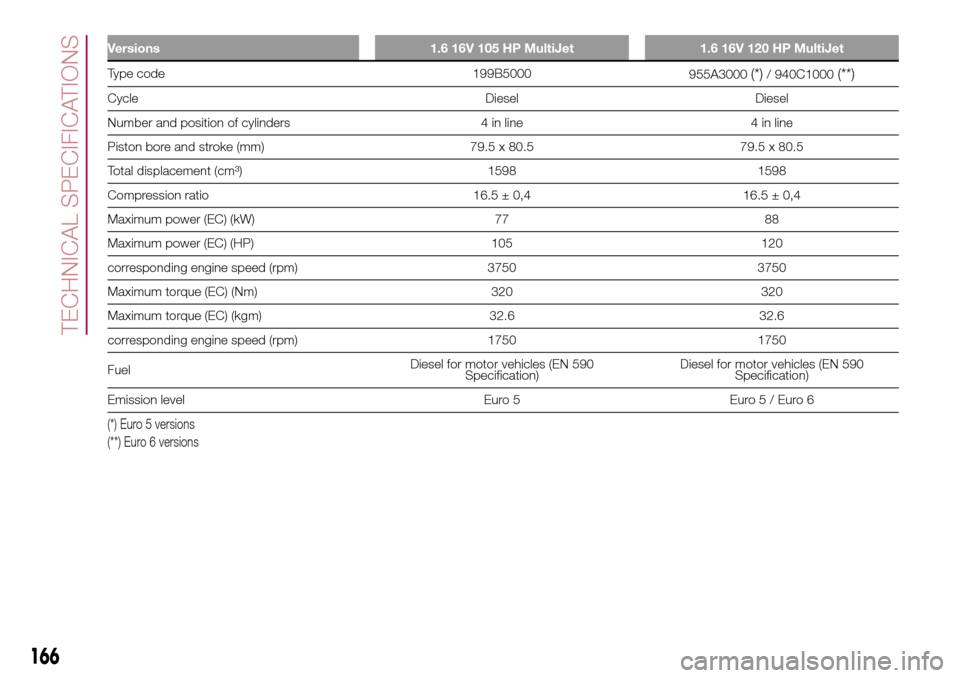

Versions 1.6 16V 105 HP MultiJet 1.6 16V 120 HP MultiJet
Type code 199B5000
955A3000(*)/ 940C1000(**)
Cycle Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5 x 80.5 79.5 x 80.5
Total displacement (cm³) 1598 1598
Compression ratio 16.5 ± 0,4 16.5 ± 0,4
Maximum power (EC) (kW) 77 88
Maximum power (EC) (HP) 105 120
corresponding engine speed (rpm) 3750 3750
Maximum torque (EC) (Nm) 320 320
Maximum torque (EC) (kgm) 32.6 32.6
corresponding engine speed (rpm) 1750 1750
FuelDiesel for motor vehicles (EN 590
Specification)Diesel for motor vehicles (EN 590
Specification)
Emission level Euro 5 Euro5/Euro6
(*) Euro 5 versions
(**) Euro 6 versions
166
