2017 CHRYSLER PACIFICA Owners Manual

•The vehicle’s electrical systems are not intact.
• The 9-1-1 Call system software and/or hardware are
damaged during a crash.
• The vehicle battery loses power or becomes discon-
nected during a vehicle crash.
• 1X (voice/data) or 3G (data) network and/or Global
Positioning Satellite signals are unavailable or ob-
structed.
• Equipment malfunction at the 9-1-1 operator facility.
• Operator error by the 9-1-1 operator.
• 1X (voice/data) or 3G (data) network congestion.
• Weather conditions.
• Buildings, structures, geographic terrain, or tunnels.WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• Never place anything on or near the vehicle’s 1X
(voice/data) or 3G (data) and GPS antennas. You could
prevent 1X (voice/data) or 3G (data) and GPS signal
reception, which can prevent your vehicle from plac-
ing an emergency call. An operable 1X (voice/data) or
3G (data) network connection and a GPS signal is
required for the 9-1-1 Call system to function properly.
7
IN CASE OF EMERGENCY 535

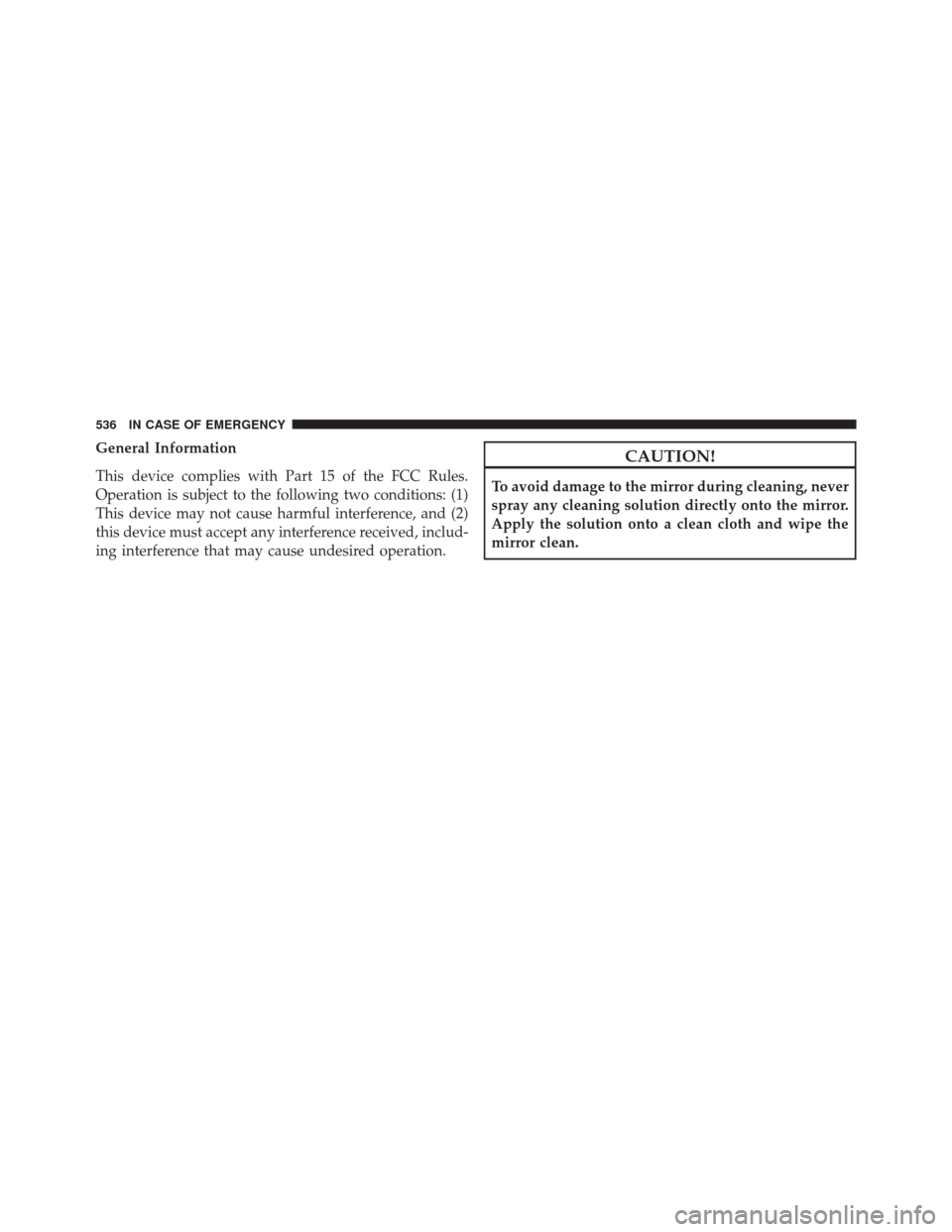

General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
536 IN CASE OF EMERGENCY

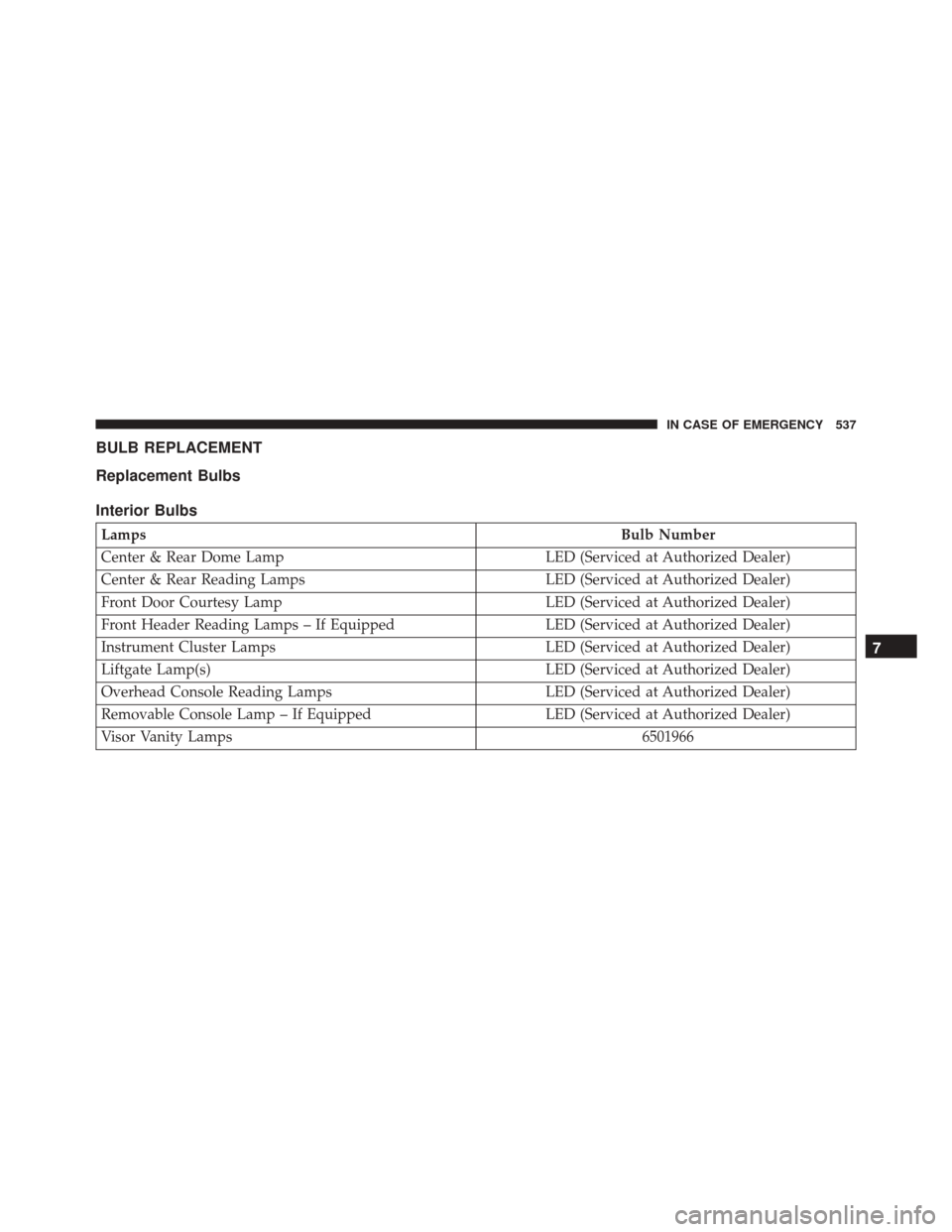

BULB REPLACEMENT
Replacement Bulbs
Interior Bulbs
LampsBulb Number
Center & Rear Dome Lamp LED (Serviced at Authorized Dealer)
Center & Rear Reading Lamps LED (Serviced at Authorized Dealer)
Front Door Courtesy Lamp LED (Serviced at Authorized Dealer)
Front Header Reading Lamps – If Equipped LED (Serviced at Authorized Dealer)
Instrument Cluster Lamps LED (Serviced at Authorized Dealer)
Liftgate Lamp(s) LED (Serviced at Authorized Dealer)
Overhead Console Reading Lamps LED (Serviced at Authorized Dealer)
Removable Console Lamp – If Equipped LED (Serviced at Authorized Dealer)
Visor Vanity Lamps 6501966
7
IN CASE OF EMERGENCY 537

Exterior Bulbs
LampsBulb Number
High Intensity Discharge Headlamp Low Beam - D3S
High Beam - 9005LL
Halogen Headlamp Reflector Low Beam - H11LL
Projector Halogen Low Beam - 9005HL+ All High Beams - 9005LL
Dedicated Daytime Running Lamp (If Equipped) LED (Serviced at Authorized Dealer)
Front Turn Signal Lamp PWY24WNA (If Halogen Headlamp Equipped)
PWY24WSV (If HID Headlamp Equipped)
Side Marker Lamp W3W
Front Park Lamp PWY24WNA (If Bulb Equipped)
LED (Serviced at Authorized Dealer)
Front Fog Lamp H11LL
LED Front Fog Lamp LED (Serviced at Authorized Dealer)
Center High Mounted Stop (CHMSL) Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Signal Lamp W21/5WLL
538 IN CASE OF EMERGENCY

LampsBulb Number
Rear Tail/Side Marker Lamp Rear Tail - Body Side - W21/5WLL (If Bulb
Equipped); LED (Serviced at Authorized Dealer)
Rear Tail - Liftgate - W5WLL (If Bulb Equipped); LED (Serviced at Authorized Dealer)Rear Side Marker: W3W
Backup Lamp W21W
License Lamp LED (Serviced at Authorized Dealer)
Replacing Exterior Bulbs
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source
yourself. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service.NOTE:
On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
(Continued)
7
IN CASE OF EMERGENCY 539

WARNING!(Continued)
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Reach behind the headlamp housing to access the
headlamp bulb cap.
2. Firmly grasp the headlamp bulb cap and rotate it counterclockwise to unlock it.
3. Firmly grasp the headlamp bulb socket assembly androtate counterclockwise to remove from the housing.
Headlamp Bulb Cap
540 IN CASE OF EMERGENCY

4. Disconnect the bulb from the electrical connector andthen connect the replacement bulb.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Headlamp Bulb SocketHeadlamp Bulb
7
IN CASE OF EMERGENCY 541

5. Install the bulb and connector assembly into theheadlamp housing and rotate clockwise to lock it in
place.
6. Install the headlamp bulb cap in the headlamp hous- ing and rotate clockwise to lock it in place.
Front Turn Signal Lamp
1. Open the hood.
2. Twist the front turn signal lamp socket assemblycounterclockwise, and then remove the front turn
signal lamp assembly from the lamp housing.
3. Pull the bulb out of the socket and insert the replace-ment bulb.
4. Install the front turn signal lamp socket assembly into the housing, and rotate the front turn signal lamp
socket clockwise to lock it in place.
Front Turn Signal Lamp Socket
