2016 PEUGEOT 3008 Owners Manual

143
3008_en_Chap08_conduite_ed01-2015

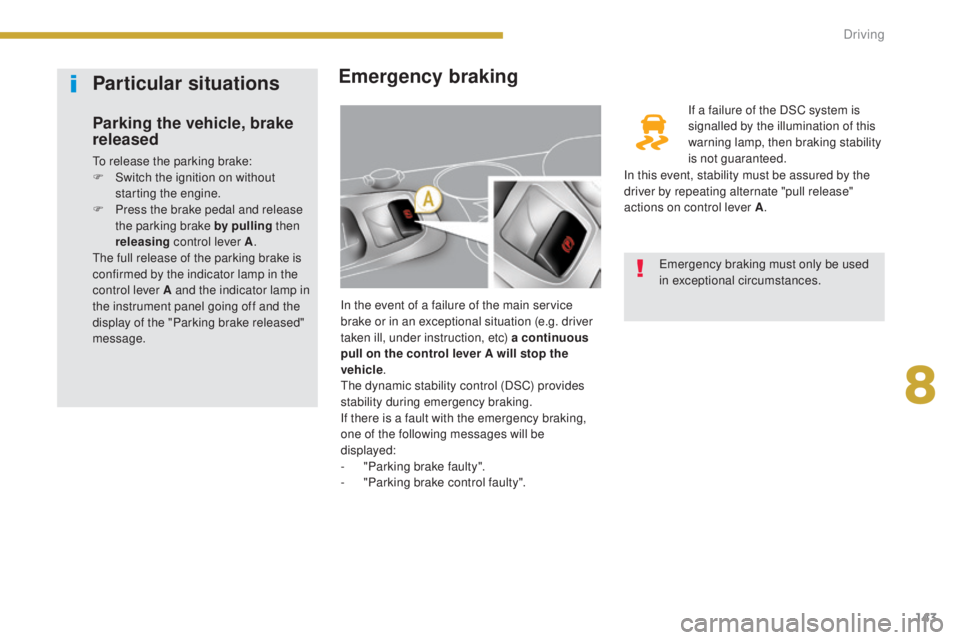

Emergency braking
In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A will stop the
vehicle .
The dynamic stability control (DSC) provides
stability during emergency braking.
If there is a fault with the emergency braking,
one of the following messages will be
displayed:
-

"
Parking brake faulty".
-

"
Parking brake control faulty". If a failure of the DSC system is
signalled by the illumination of this
warning lamp, then braking stability
is not guaranteed.
Emergency braking must only be used
in exceptional circumstances.
Particular situations
Parking the vehicle, brake
released
To release the parking brake:
F S witch the ignition on without
starting the engine.
F

P
ress the brake pedal and release
the parking brake by pulling then
releasing control lever A .
The full release of the parking brake is
confirmed by the indicator lamp in the
control lever A and the indicator lamp in
the instrument panel going off and the
display of the "Parking brake released"
message. In this event, stability must be assured by the
driver by repeating alternate "pull release"
actions on control lever A
.
8
Driving

144
3008_en_Chap08_conduite_ed01-2015

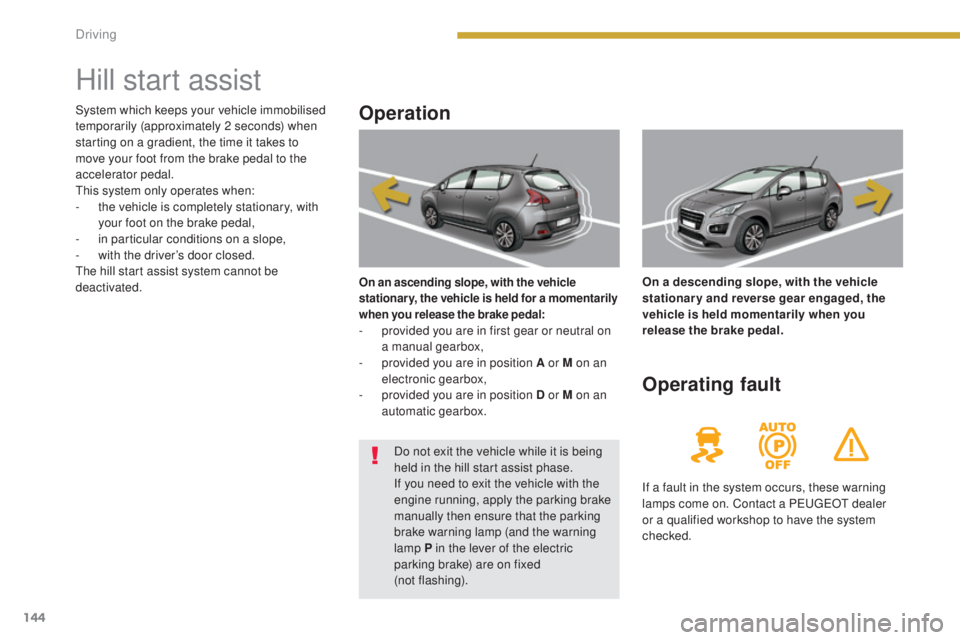

Hill start assist
Operation
On an ascending slope, with the vehicle
stationary, the vehicle is held for a momentarily
when you release the brake pedal:
- provided you are in first gear or neutral on a manual gearbox,
-

p
rovided you are in position A or M on an
electronic gearbox,
-

p
rovided you are in position D or M on an
automatic gearbox. On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a fault in the system occurs, these warning
lamps come on. Contact a PEUGEOT dealer
or a qualified workshop to have the system
checked.
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
This system only operates when:
-

t

he vehicle is completely stationary, with
your foot on the brake pedal,
-

i

n particular conditions on a slope,
-

w

ith the driver’s door closed.
The hill start assist system cannot be
deactivated.
Do not exit the vehicle while it is being
held in the hill start assist phase.
If you need to exit the vehicle with the
engine running, apply the parking brake
manually then ensure that the parking
brake warning lamp (and the warning
lamp P in the lever of the electric
parking brake) are on fixed
(not flashing).
Driving

145
3008_en_Chap08_conduite_ed01-2015

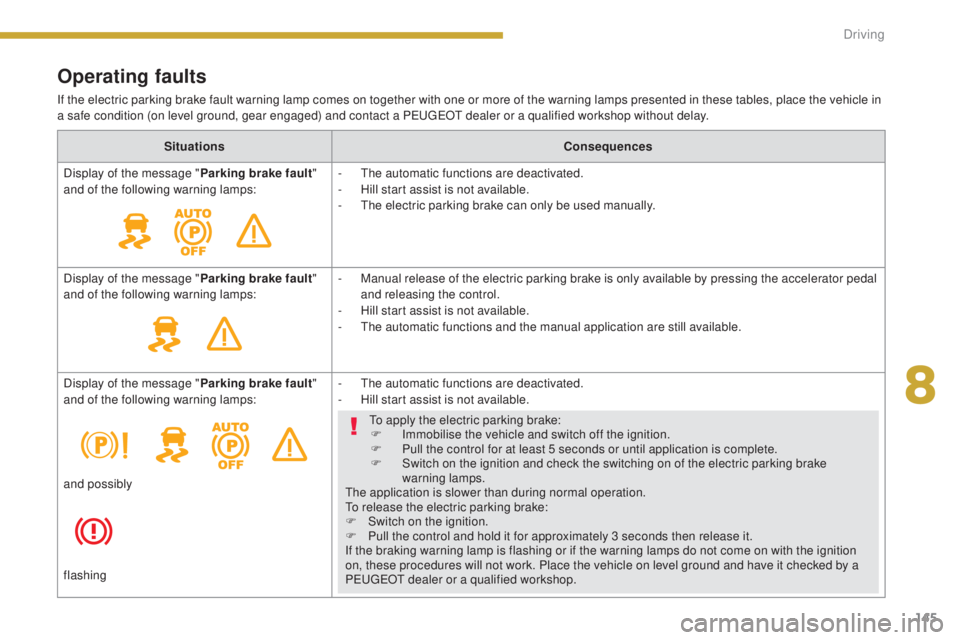

Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle in
a safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.Situations Consequences
Display of the message " Parking brake fault"
and of the following warning lamps: -

T
he automatic functions are deactivated.
-

H
ill start assist is not available.
-

T
he electric parking brake can only be used manually.
Display of the message " Parking brake fault"
and of the following warning lamps: -

M
anual release of the electric parking brake is only available by pressing the accelerator pedal
and releasing the control.
-

H
ill start assist is not available.
-

T
he automatic functions and the manual application are still available.
Display of the message " Parking brake fault"
and of the following warning lamps: -

T
he automatic functions are deactivated.
-

H
ill start assist is not available.
To apply the electric parking brake: F

I
mmobilise the vehicle and switch off the ignition.
F

P
ull the control for at least 5 seconds or until application is complete.
F

S
witch on the ignition and check the switching on of the electric parking brake
warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:
F

S
witch on the ignition.
F

P
ull the control and hold it for approximately 3 seconds then release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition
on, these procedures will not work. Place the vehicle on level ground and have it checked by a
PEUGEOT dealer or a qualified workshop.
and possibly
flashing
8
Driving

146
3008_en_Chap08_conduite_ed01-2015

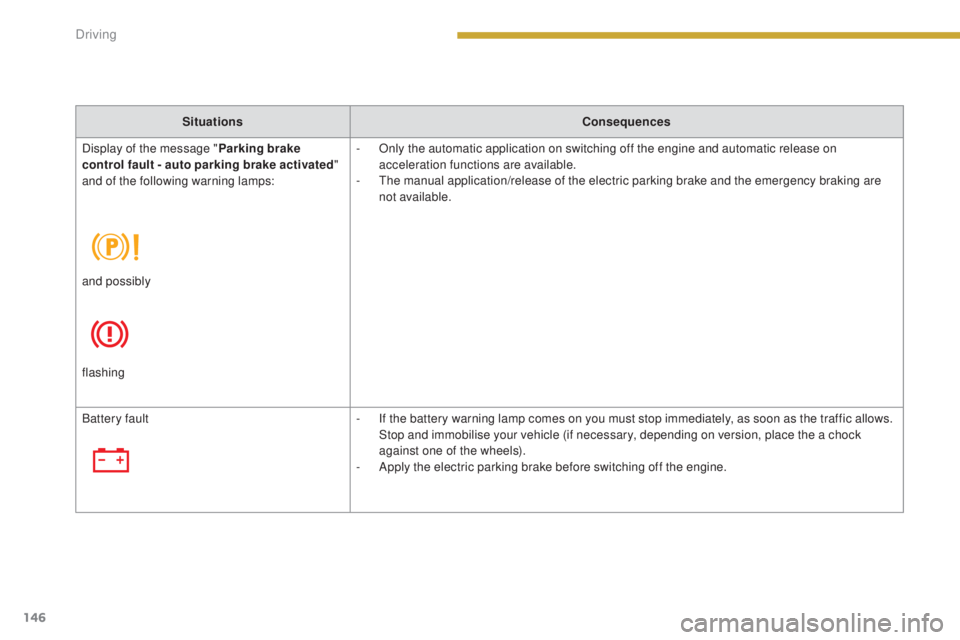

SituationsConsequences
Display of the message " Parking brake
control fault - auto parking brake activated "
and of the following warning lamps: -

O
nly the automatic application on switching off the engine and automatic release on
acceleration functions are available.
-

T
he manual application/release of the electric parking brake and the emergency braking are
not available.
and possibly
flashing
Battery fault -

I
f the battery warning lamp comes on you must stop immediately, as soon as the traffic allows.
Stop and immobilise your vehicle (if necessary, depending on version, place the a chock
against one of the wheels).
-

A
pply the electric parking brake before switching off the engine.
Driving

147
3008_en_Chap08_conduite_ed01-2015

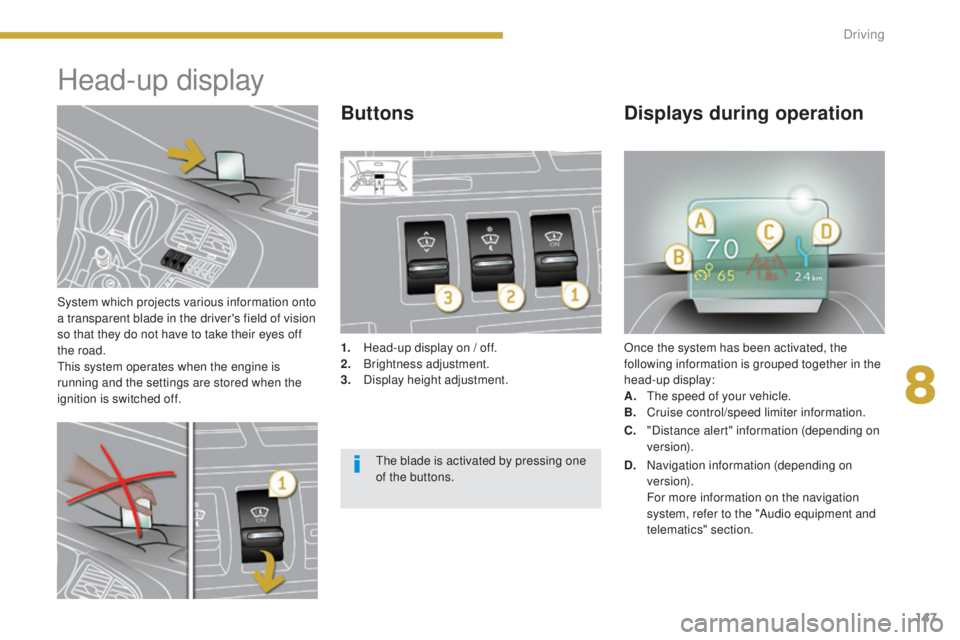

System which projects various information onto
a transparent blade in the driver's field of vision
so that they do not have to take their eyes off
the road.
This system operates when the engine is
running and the settings are stored when the
ignition is switched off.
Head-up display
1. Head-up display on / off.
2. Br ightness adjustment.
3.
D

isplay height adjustment. Once the system has been activated, the
following information is grouped together in the
head-up display:
A.
T

he speed of your vehicle.
B.
C

ruise control/speed limiter information.
ButtonsDisplays during operation
C. "Distance alert" information (depending on
ve r s i o n).
The blade is activated by pressing one
of the buttons. D.
N

avigation information (depending on
ve r s i o n).
F

or more information on the navigation
system, refer to the "Audio equipment and
telematics" section.
8
Driving

148
3008_en_Chap08_conduite_ed01-2015

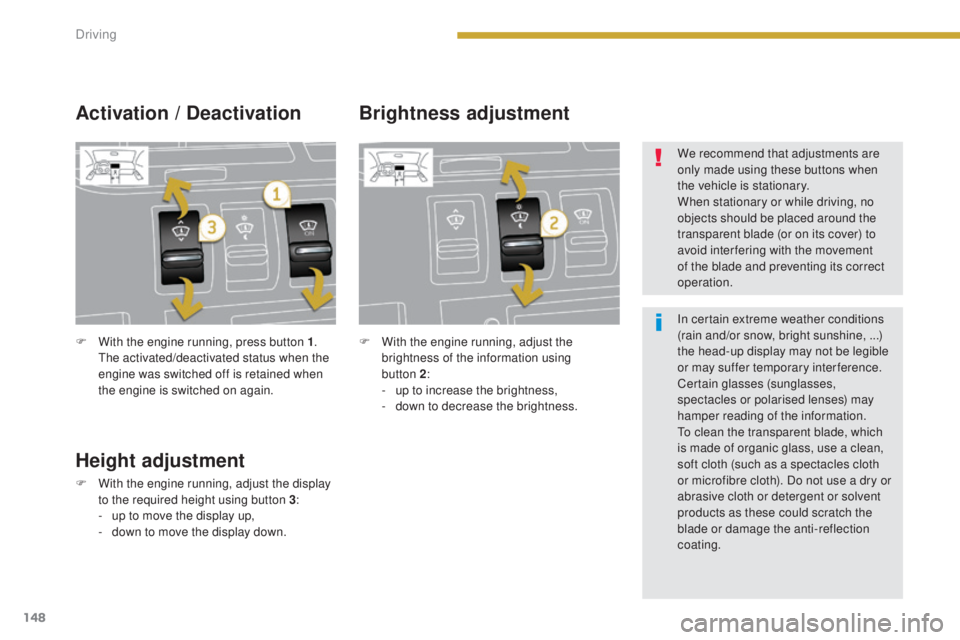

F With the engine running, press button 1.
The activated/deactivated status when the
engine was switched off is retained when
the engine is switched on again. F
W ith the engine running, adjust the
brightness of the information using
button
2:
-

u
p to increase the brightness,
-

d
own to decrease the brightness.
Activation / Deactivation Brightness adjustment
Height adjustment
F With the engine running, adjust the display to the required height using button 3 :
-

u
p to move the display up,
-

d
own to move the display down. We recommend that adjustments are
only made using these buttons when
the vehicle is stationary.
When stationary or while driving, no
objects should be placed around the
transparent blade (or on its cover) to
avoid inter fering with the movement
of the blade and preventing its correct
operation.
In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary interference.
Certain glasses (sunglasses,
spectacles or polarised lenses) may
hamper reading of the information.
To clean the transparent blade, which
is made of organic glass, use a clean,
soft cloth (such as a spectacles cloth
or microfibre cloth). Do not use a dry or
abrasive cloth or detergent or solvent
products as these could scratch the
blade or damage the anti-reflection
coating.
Driving

149
3008_en_Chap08_conduite_ed01-2015

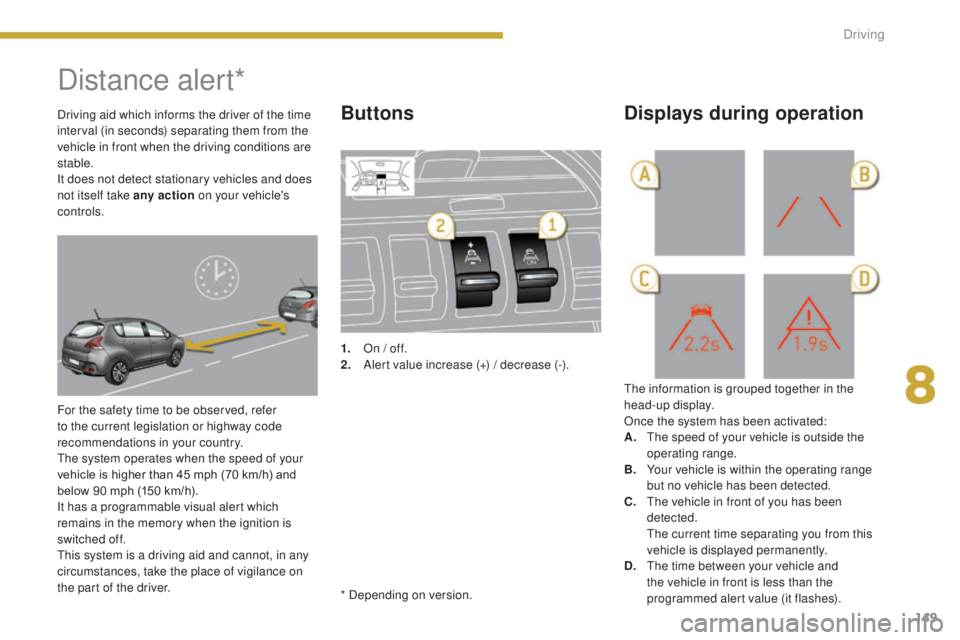

Distance alert*
For the safety time to be observed, refer
to the current legislation or highway code
recommendations in your country.
The system operates when the speed of your
vehicle is higher than 45 mph (70 km/h) and
below 90 mph (150 km/h).
It has a programmable visual alert which
remains in the memory when the ignition is
switched off.
This system is a driving aid and cannot, in any
circumstances, take the place of vigilance on
the part of the driver.1.
O

n / off.
2.
A
lert value increase (+) / decrease (-).
The information is grouped together in the
head-up display.
Once the system has been activated:
A.
T

he speed of your vehicle is outside the
operating range.
B.
Y

our vehicle is within the operating range
but no vehicle has been detected.
C.
T

he vehicle in front of you has been
detected.
T

he current time separating you from this
vehicle is displayed permanently.
D.
T

he time between your vehicle and
the vehicle in front is less than the
programmed alert value (it flashes).
Buttons Displays during operationDriving aid which informs the driver of the time
interval (in seconds) separating them from the
vehicle in front when the driving conditions are
stable.
It does not detect stationary vehicles and does
not itself take any action on your vehicle's
controls.
* Depending on version.
8
Driving

150
3008_en_Chap08_conduite_ed01-2015

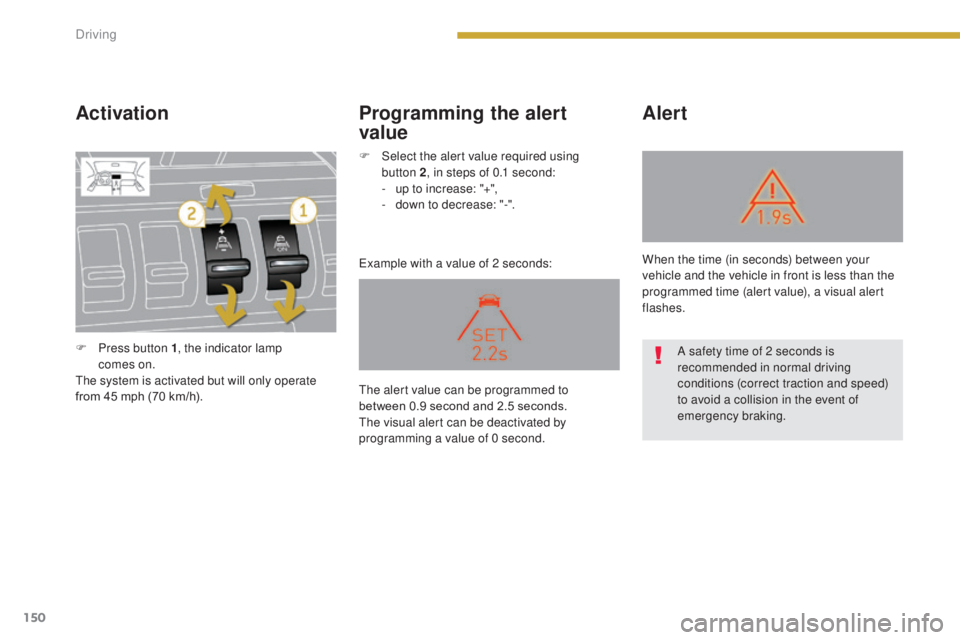

Activation
Example with a value of 2 seconds:
Alert
Programming the alert
value
F Press button 1 , the indicator lamp
comes on.
The system is activated but will only operate
from 45 mph (70 km/h). The alert value can be programmed to
between
0.9 second and 2.5 seconds.
The visual alert can be deactivated by
programming a value of 0 second. When the time (in seconds) between your
vehicle and the vehicle in front is less than the
programmed time (alert value), a visual alert
flashes.
A safety time of 2 seconds is
recommended in normal driving
conditions (correct traction and speed)
to avoid a collision in the event of
emergency braking.
F

S
elect the alert value required using
button 2
, in steps of 0.1 second:
-
u
p to increase: "+",
-
do
wn to decrease: "-".
