2016 PEUGEOT 3008 Owners Manual

175
3008_en_Chap08_conduite_ed01-2015

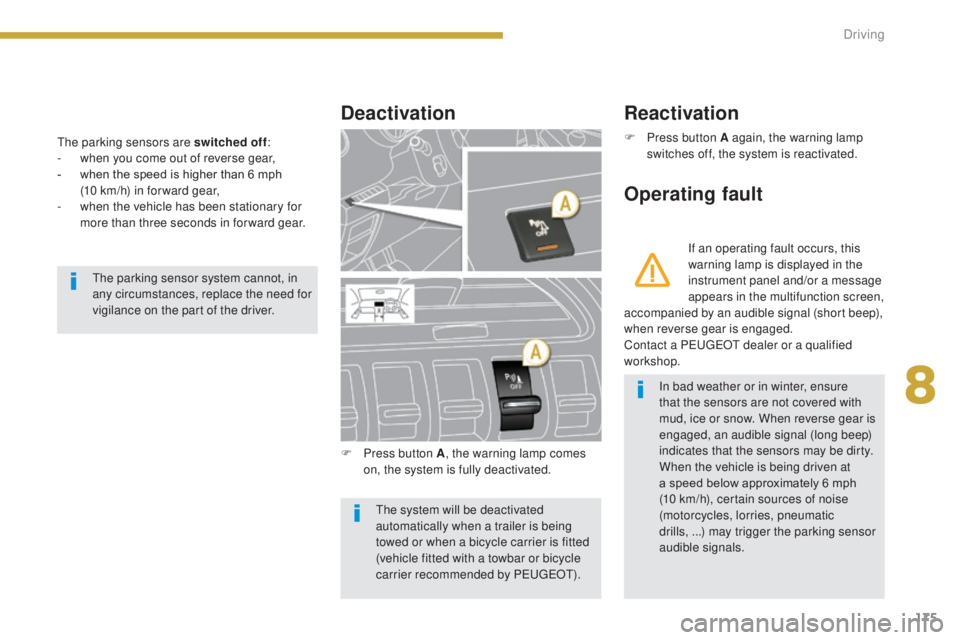

The parking sensors are switched off:
- w hen you come out of reverse gear,
-

w
hen the speed is higher than 6 mph
(10 km/h) in for ward gear,
-

w
hen the vehicle has been stationary for
more than three seconds in forward gear.
Deactivation
Operating fault
F Press button A again, the warning lamp switches off, the system is reactivated.
F

P

ress button A , the warning lamp comes
on, the system is fully deactivated. If an operating fault occurs, this
warning lamp is displayed in the
instrument panel and/or a message
appears in the multifunction screen,
accompanied by an audible signal (short beep),
when reverse gear is engaged.
Contact a PEUGEOT dealer or a qualified
workshop.
The parking sensor system cannot, in
any circumstances, replace the need for
vigilance on the part of the driver.
The system will be deactivated
automatically when a trailer is being
towed or when a bicycle carrier is fitted
(vehicle fitted with a towbar or bicycle
carrier recommended by PEUGEOT).In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain sources of noise
(motorcycles, lorries, pneumatic
drills, ...) may trigger the parking sensor
audible signals.
Reactivation
8
Driving

176
3008_en_Chap08_conduite_ed01-2015

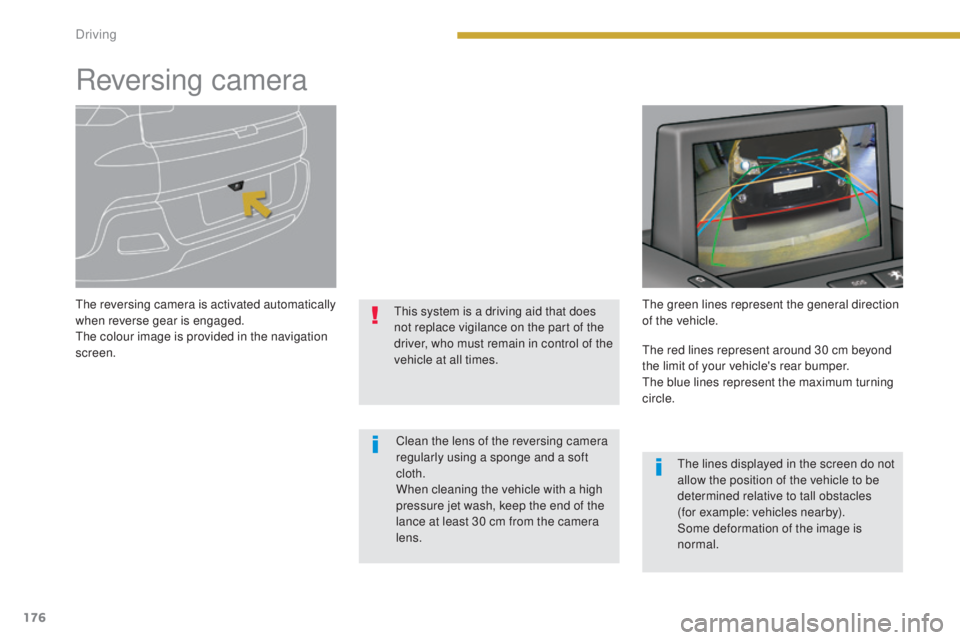

Reversing camera
The reversing camera is activated automatically
when reverse gear is engaged.
The colour image is provided in the navigation
screen.This system is a driving aid that does
not replace vigilance on the part of the
driver, who must remain in control of the
vehicle at all times.The green lines represent the general direction
of the vehicle.
Clean the lens of the reversing camera
regularly using a sponge and a soft
cloth.
When cleaning the vehicle with a high
pressure jet wash, keep the end of the
lance at least 30 cm from the camera
lens. The red lines represent around 30 cm beyond
the limit of your vehicle's rear bumper.
The blue lines represent the maximum turning
circle.
The lines displayed in the screen do not
allow the position of the vehicle to be
determined relative to tall obstacles
(for example: vehicles nearby).
Some deformation of the image is
normal.
Driving

177
3008_en_Chap08_conduite_ed01-2015

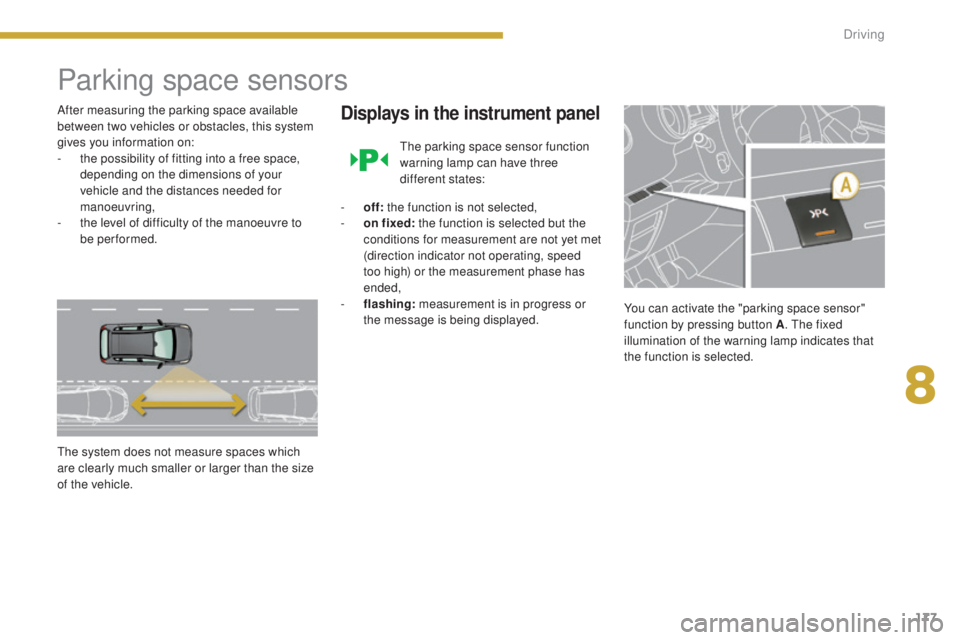

Parking space sensors
After measuring the parking space available
between two vehicles or obstacles, this system
gives you information on:
-
t
he possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for
manoeuvring,
-

t
he level of difficulty of the manoeuvre to
be performed.
The system does not measure spaces which
are clearly much smaller or larger than the size
of the vehicle.Displays in the instrument panel
The parking space sensor function
warning lamp can have three
different states:
-

o

ff: the function is not selected,
-

o

n fixed: the function is selected but the
conditions for measurement are not yet met
(direction indicator not operating, speed
too high) or the measurement phase has
ended,
-

f

lashing: measurement is in progress or
the message is being displayed. You can activate the "parking space sensor"
function by pressing button A
. The fixed
illumination of the warning lamp indicates that
the function is selected.
8
Driving

178
3008_en_Chap08_conduite_ed01-2015

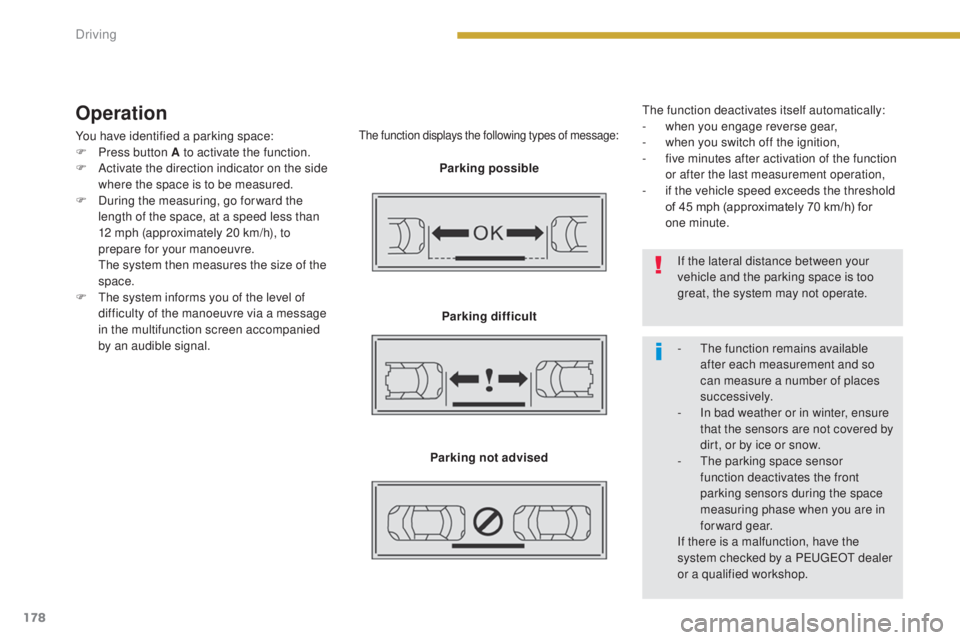

Operation
You have identified a parking space:
F P ress button A to activate the function.
F

A
ctivate the direction indicator on the side
where the space is to be measured.
F

D
uring the measuring, go for ward the
length of the space, at a speed less than
12 mph (approximately 20 km/h), to
prepare for your manoeuvre.
T

he system then measures the size of the
space.
F

T
he system informs you of the level of
difficulty of the manoeuvre via a message
in the multifunction screen accompanied
by an audible signal.The function displays the following types of message:
Parking possible
Parking difficult
Parking not advised The function deactivates itself automatically:
-
w

hen you engage reverse gear,
-
w
hen you switch off the ignition,
- f ive minutes after activation of the function
or after the last measurement operation,
-

i
f the vehicle speed exceeds the threshold
of 45 mph (approximately 70 km/h) for
one minute.
If the lateral distance between your
vehicle and the parking space is too
great, the system may not operate.
-

T
he function remains available
after each measurement and so
can measure a number of places
su c c e s s i ve l y.
-

I
n bad weather or in winter, ensure
that the sensors are not covered by
dirt, or by ice or snow.
-

T
he parking space sensor
function deactivates the front
parking sensors during the space
measuring phase when you are in
forward gear.
If there is a malfunction, have the
system checked by a PEUGEOT dealer
or a qualified workshop.
Driving

179
3008_en_Chap09_verifications_ed01-2015

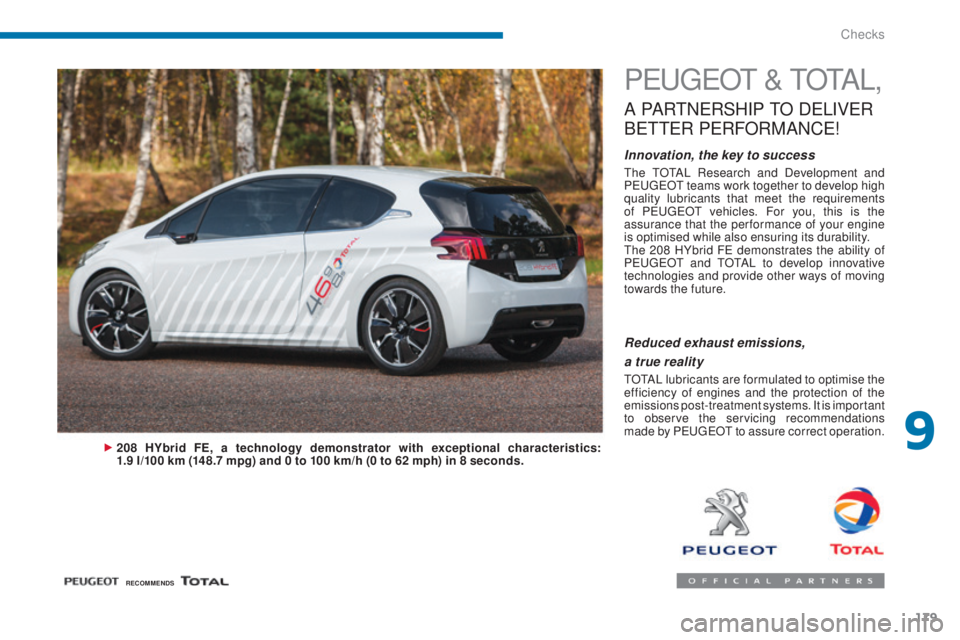

PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER
B

ETTER

PERFORMANCE
!
Innovation, the key to success
The TOTAL Research and Development and
PEUGEOT teams work together to develop high
quality lubricants that meet the requirements
of PEUGEOT vehicles. For you, this is the
assurance that the performance of your engine
is optimised while also ensuring its durability.
The 208 HYbrid FE demonstrates the ability of
PEUGEOT and TOTAL to develop innovative
technologies and provide other ways of moving
towards the future.
208 HYbrid FE, a technology demonstrator with exceptional characteristics:
1.9 l/100 km (148.7 mpg) and 0 to 100 km/h (0 to 62 mph) in 8 seconds.
Reduced exhaust emissions,
a true reality
TOTAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is important
to observe the servicing recommendations
made by PEUGEOT to assure correct operation.
RECOMMENDS
9
Checks

180
3008_en_Chap09_verifications_ed01-2015

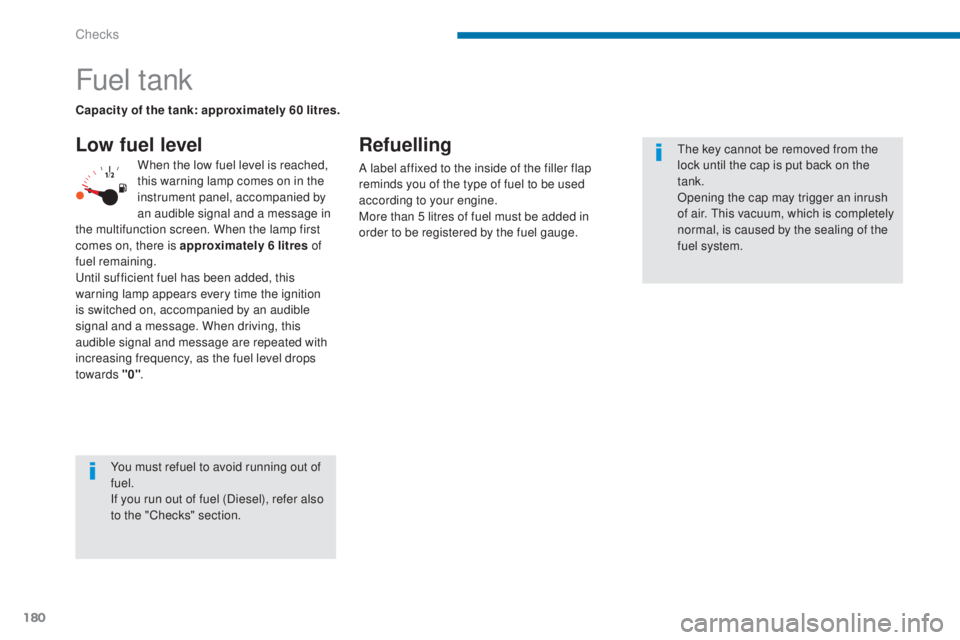

Fuel tank
Low fuel levelRefuelling
A label affixed to the inside of the filler flap
reminds you of the type of fuel to be used
according to your engine.
More than 5 litres of fuel must be added in
order to be registered by the fuel gauge.
When the low fuel level is reached,
this warning lamp comes on in the
instrument panel, accompanied by
an audible signal and a message in
the multifunction screen. When the lamp first
comes on, there is approximately 6 litres of
fuel remaining.
Until sufficient fuel has been added, this
warning lamp appears every time the ignition
is switched on, accompanied by an audible
signal and a message. When driving, this
audible signal and message are repeated with
increasing frequency, as the fuel level drops
towards "0" .
Capacity of the tank: approximately 60 litres.
You must refuel to avoid running out of
fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section. The key cannot be removed from the
lock until the cap is put back on the
tank.
Opening the cap may trigger an inrush
of air. This vacuum, which is completely
normal, is caused by the sealing of the
fuel system.
Checks

181
3008_en_Chap09_verifications_ed01-2015

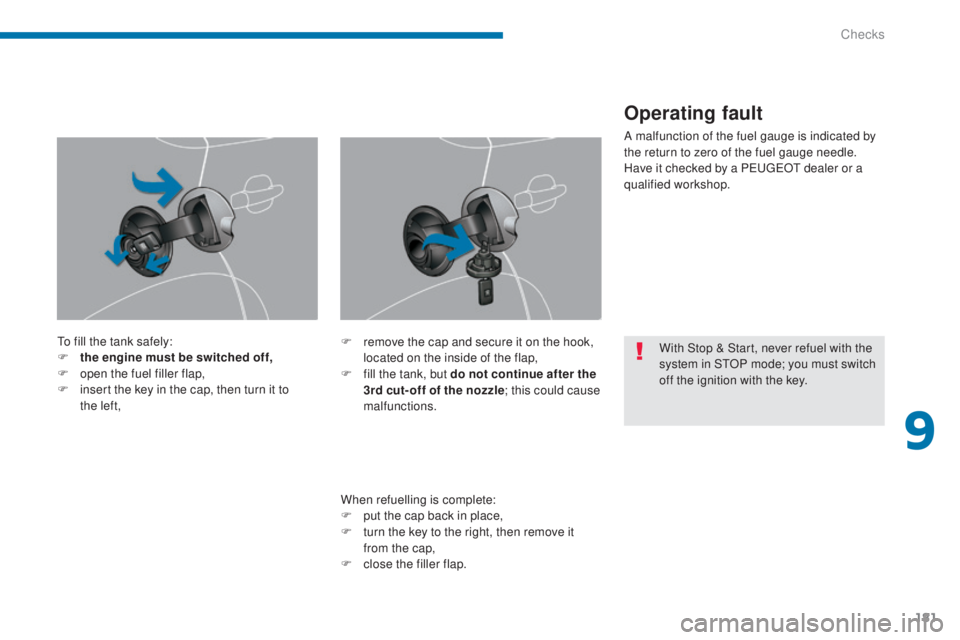

To fill the tank safely:
F t he engine must be switched off,
F

o
pen the fuel filler flap,
F

i
nsert the key in the cap, then turn it to
the


left,
When refuelling is complete:
F

p
ut the cap back in place,
F

t
urn the key to the right, then remove it
from the cap,
F

c
lose the filler flap.
F
r emove the cap and secure it on the hook,
located on the inside of the flap,
F

f
ill the tank, but do not continue after the
3rd cut- off of the nozzle ; this could cause
malfunctions.
Operating fault
A malfunction of the fuel gauge is indicated by
the return to zero of the fuel gauge needle.
Have it checked by a PEUGEOT
dealer or a
qualified workshop.
With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
9
Checks

DIESEL
182
3008_en_Chap09_verifications_ed01-2015

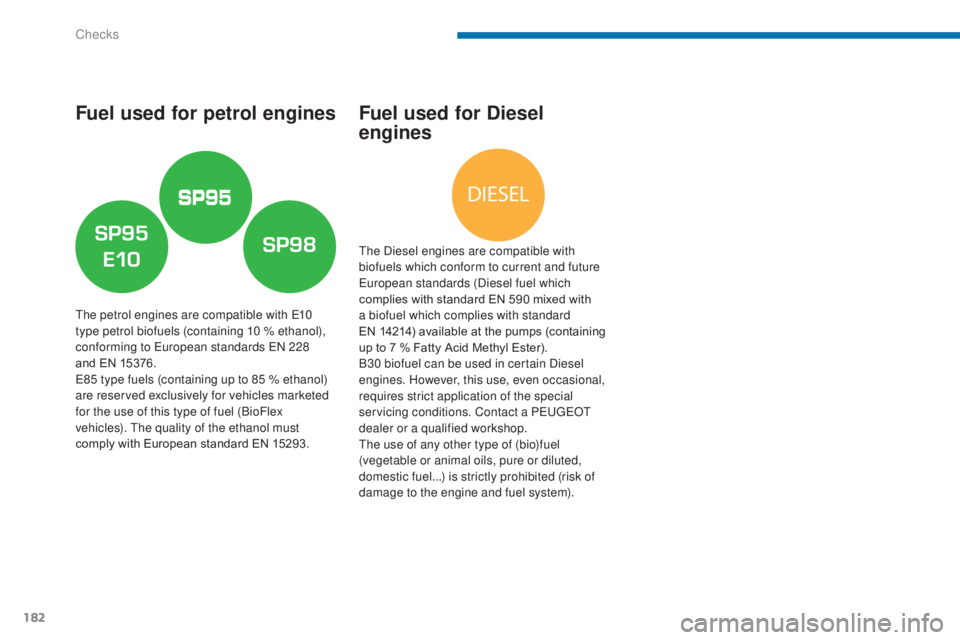

Fuel used for petrol engines
The petrol engines are compatible with E10
type petrol biofuels (containing 10 % ethanol),
conforming to European standards EN 228
and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
Fuel used for Diesel
engines
The Diesel engines are compatible with
biofuels which conform to current and future
European standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
EN
14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl Ester).
B30 biofuel can be used in certain Diesel
engines. However, this use, even occasional,
requires strict application of the special
servicing conditions. Contact a PEUGEOT
dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
Checks
