2016 PEUGEOT 3008 Owners Manual

87
3008_en_Chap04_visibilite_ed01-2015

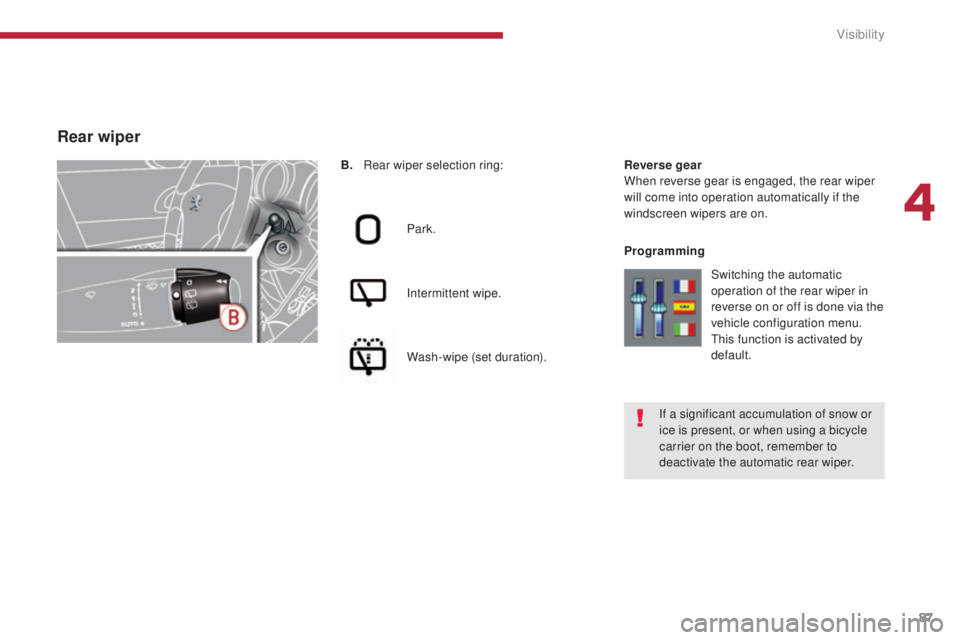

B. Rear wiper selection ring:Park.
Intermittent wipe.
Wash-wipe (set duration). Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are on.
Programming
Rear wiper
Switching the automatic
operation of the rear wiper in
reverse on or off is done via the
vehicle configuration menu.
This function is activated by
default.
If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, remember to
deactivate the automatic rear wiper.
4
Visibility

88
3008_en_Chap04_visibilite_ed01-2015

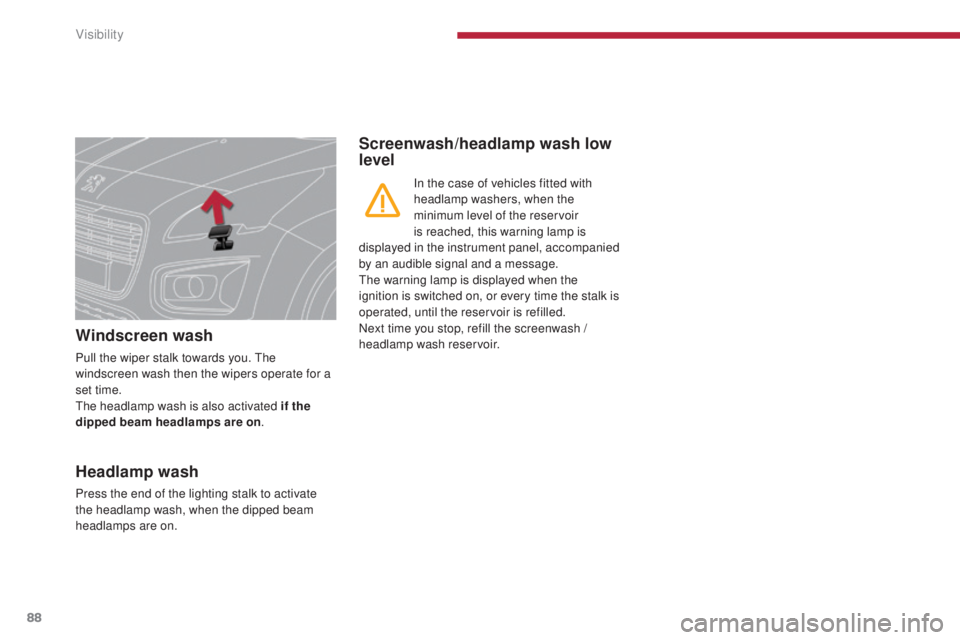

Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash then the wipers operate for a
set time.
The headlamp wash is also activated if the
dipped beam headlamps are on.
Screenwash/headlamp wash low
level
In the case of vehicles fitted with
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, accompanied
by an audible signal and a message.
The warning lamp is displayed when the
ignition is switched on, or every time the stalk is
operated, until the reservoir is refilled.
Next time you stop, refill the screenwash
/
headlamp wash reservoir.
Headlamp wash
Press the end of the lighting stalk to activate
the headlamp wash, when the dipped beam
headlamps are on.
Visibility

89
3008_en_Chap04_visibilite_ed01-2015

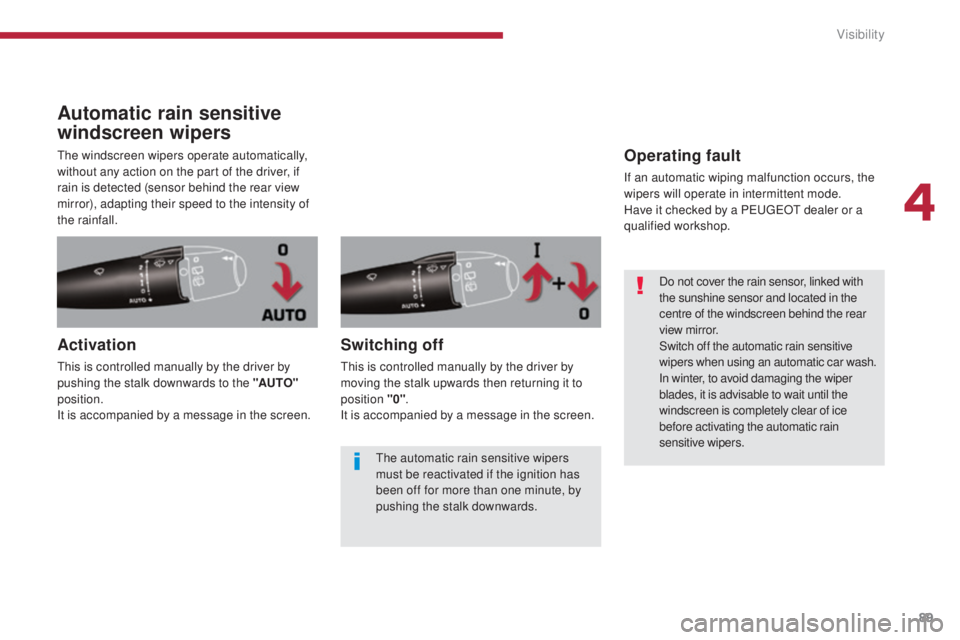

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Activation
This is controlled manually by the driver by
pushing the stalk downwards to the "AUTO"
position.
It is accompanied by a message in the screen.
Switching off
This is controlled manually by the driver by
moving the stalk upwards then returning it to
position "0" .
It is accompanied by a message in the screen.
Operating fault
If an automatic wiping malfunction occurs, the
wipers will operate in intermittent mode.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, to avoid damaging the wiper
blades, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
4
Visibility

90
3008_en_Chap04_visibilite_ed01-2015

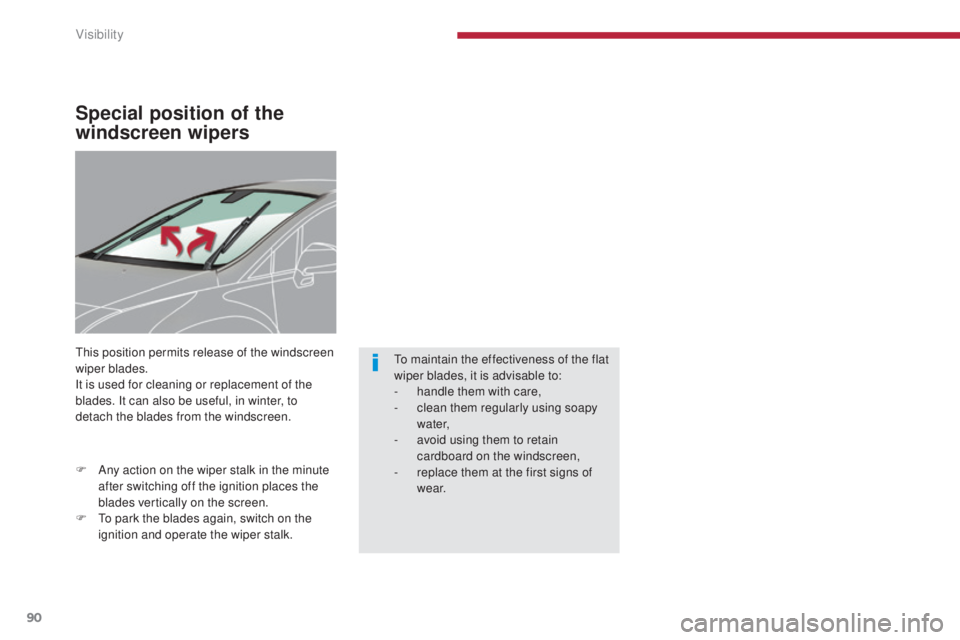

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
F
A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk. To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
Visibility

91
3008_en_Chap04_visibilite_ed01-2015

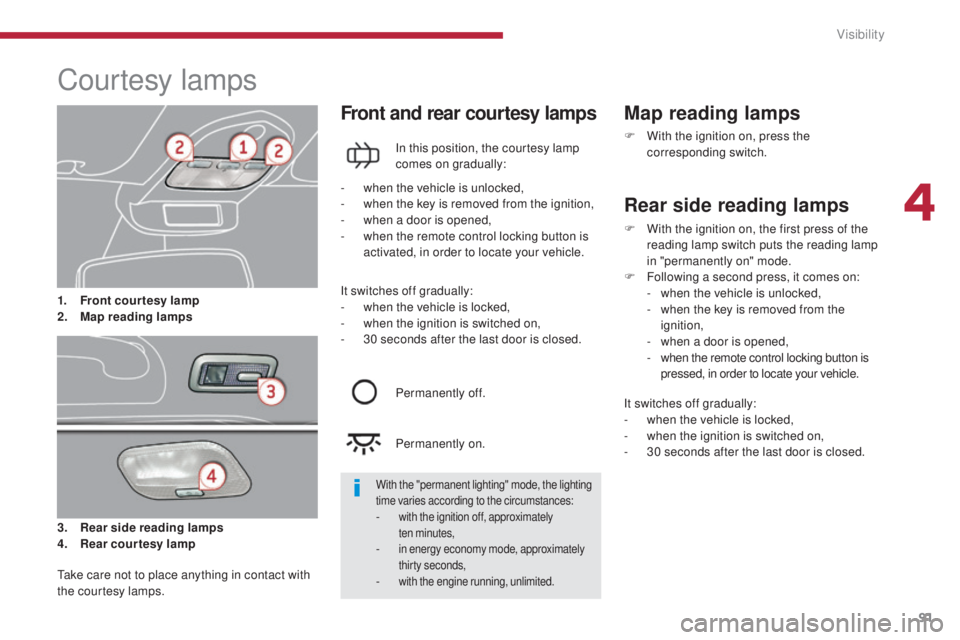

Courtesy lamps
3. Rear side reading lamps
4. Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy lamp
comes on gradually:
Map reading lamps
F With the ignition on, press the corresponding switch.
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-

w

hen a door is opened,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanently on.
Rear side reading lamps
It switches off gradually:
- w hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.
Take care not to place anything in contact with
the courtesy lamps. 1. F
ront courtesy lamp
2.
M

ap reading lamps
With the "permanent lighting" mode, the lighting
time varies according to the circumstances:
- with the ignition off, approximately
ten minutes,
- in energy economy mode, approximately
thirty seconds,
- with the engine running, unlimited.
F With the ignition on, the first press of the reading lamp switch puts the reading lamp
in "permanently on" mode.
F

F
ollowing a second press, it comes on:
-

w
hen the vehicle is unlocked,
-

w
hen the key is removed from the
ignition,
-

w
hen a door is opened,
-
w

hen the remote control locking button is
pressed, in order to locate your vehicle.
It switches off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.
4
Visibility

92
3008_en_Chap04_visibilite_ed01-2015
Footwell lighting
Its operation is identical to that of the courtesy
lamps. The lamps come on when one of the
doors is opened. The soft lighting provided by the footwell lamps
improves visibility in the vehicle when the light
i s p o o r.
Switching on
Interior mood
lighting
Switching on
At night, the mood lamp in the front courtesy
lamp comes on automatically when the
sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are switched
of f.
Door mirror
spotlamps
To make your approach to the vehicle easier,
these illuminate:
-
t
he zones facing the driver’s and
passenger’s doors,
-

t
he zones for ward of the door mirrors and
rear ward of the front doors.
Switching on
The spotlamps come on:
- w hen you unlock the vehicle,
-

w
hen you remove the key from the ignition,
-

w
hen you open a door,
-

w
hen you use the remote control.
Switching off
They are timed to go off automatically. The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
i s p o o r.
Visibility

93
3008_en_Chap04_visibilite_ed01-2015

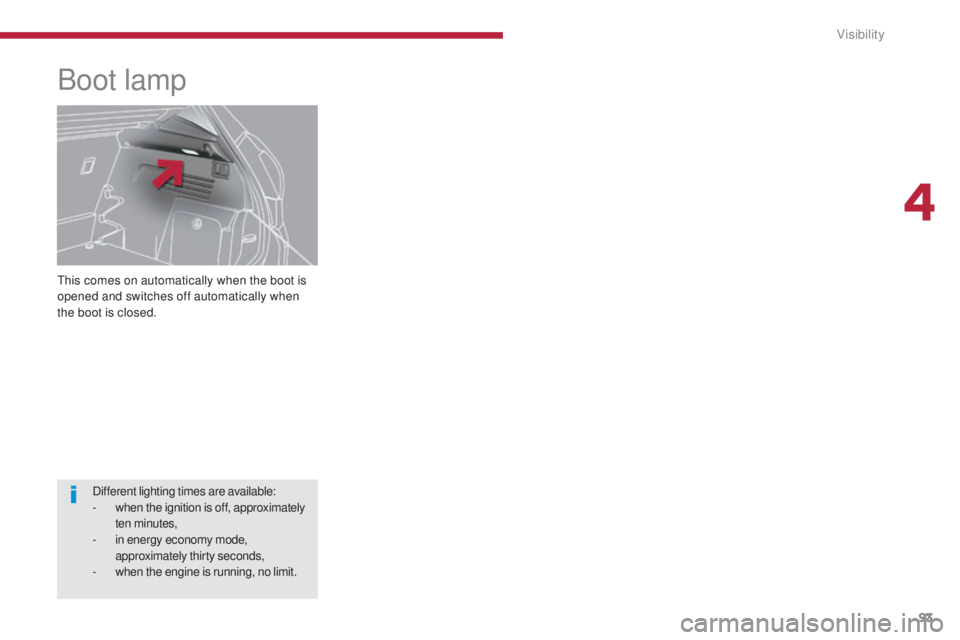

This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.
Boot lamp
Different lighting times are available:
- when the ignition is off, approximately
ten minutes,
-
i

n energy economy mode,
approximately thirty seconds,
-
w

hen the engine is running, no limit.
4
Visibility

94
3008_en_Chap05_amenagements_ed01-2015

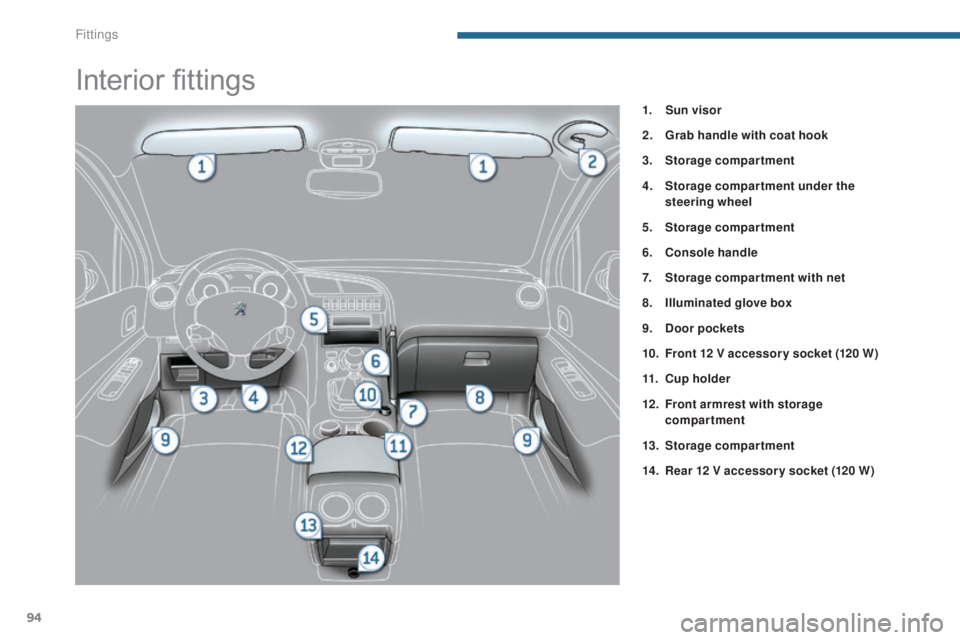

Interior fittings
1. Sun visor
2.
G
rab handle with coat hook
3.
S

torage compartment
4.
S

torage compar tment under the
steering wheel
5.
S

torage compartment
6.
C

onsole handle
7.
S

torage compartment with net
8.
I

lluminated glove box
9.
Doo

r pockets
10.
F

ront 12 V accessor y socket (120 W)
11.
C

up holder
12 .
F

ront armrest with storage
compartment
13.
S

torage compartment
14 .
R

ear 12 V accessor y socket (120 W)
Fittings
