2016 PEUGEOT 3008 Owners Manual

55
3008_en_Chap02_ouvertures_ed01-2015

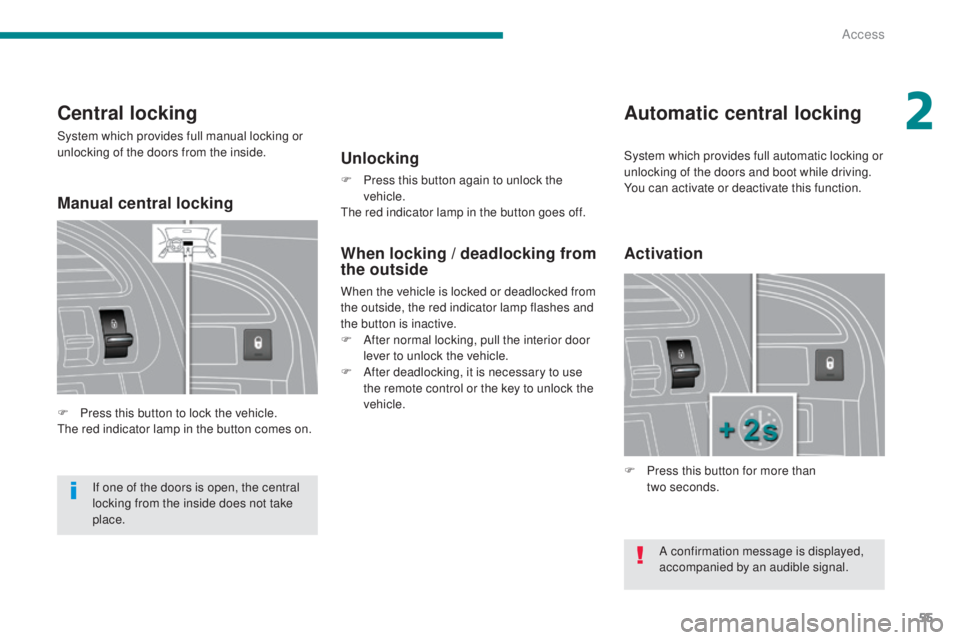

Central locking
System which provides full manual locking or
unlocking of the doors from the inside.
F
P
ress this button to lock the vehicle.
The red indicator lamp in the button comes on.
Automatic central locking
Unlocking
F Press this button again to unlock the vehicle.
The red indicator lamp in the button goes off.
Activation
F Press this button for more than two seconds.
If one of the doors is open, the central
locking from the inside does not take
place.
When locking / deadlocking from
the outside
When the vehicle is locked or deadlocked from
the outside, the red indicator lamp flashes and
the button is inactive.
F

A
fter normal locking, pull the interior door
lever to unlock the vehicle.
F

A
fter deadlocking, it is necessary to use
the remote control or the key to unlock the
vehicle.
A confirmation message is displayed,
accompanied by an audible signal.
System which provides full automatic locking or
unlocking of the doors and boot while driving.
You can activate or deactivate this function.
Manual central locking
2
Access

56
3008_en_Chap02_ouvertures_ed01-2015

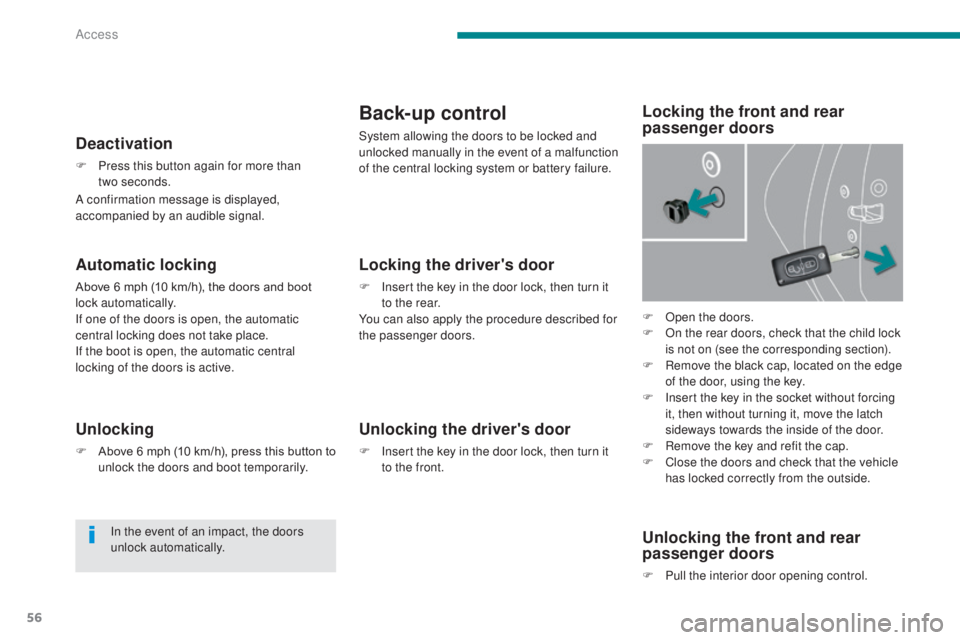

Automatic locking
Above 6 mph (10 km/h), the doors and boot
lock automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central
locking of the doors is active.
Deactivation
F Press this button again for more than two seconds.
Unlocking
F Above 6 mph (10 km/h), press this button to unlock the doors and boot temporarily.
In the event of an impact, the doors
unlock automatically.
Back-up control
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
F

O
pen the doors.
F

O
n the rear doors, check that the child lock
is not on (see the corresponding section).
F

R
emove the black cap, located on the edge
of the door, using the key.
F

I
nsert the key in the socket without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.
F

R
emove the key and refit the cap.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
Locking the driver's door
F Insert the key in the door lock, then turn it to the rear.
You can also apply the procedure described for
the passenger doors.
Unlocking the driver's door
F Insert the key in the door lock, then turn it to the front.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
F Pull the interior door opening control.
A confirmation message is displayed,
accompanied by an audible signal.
Access

57
3008_en_Chap02_ouvertures_ed01-2015

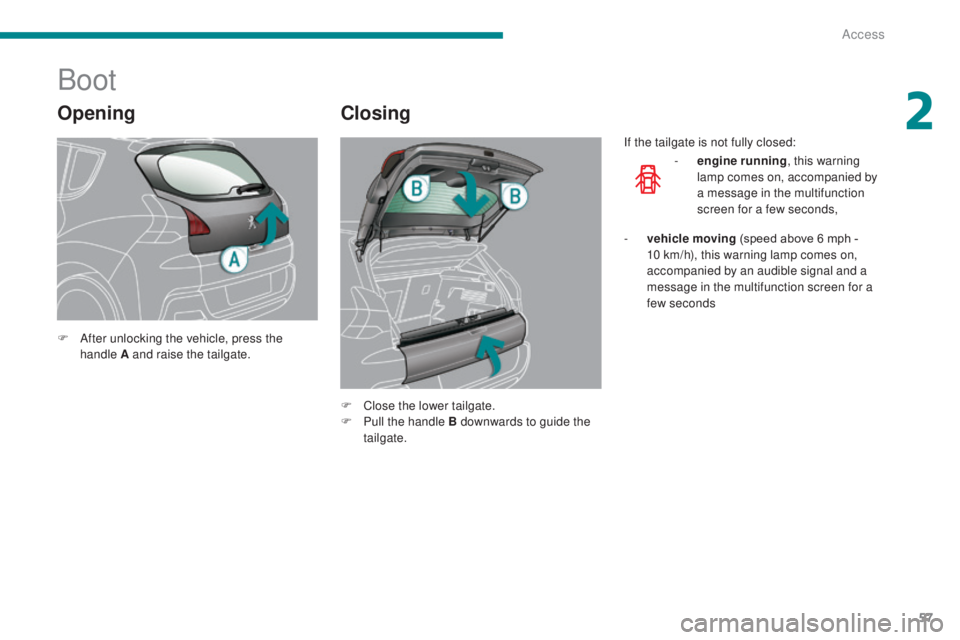

Opening
Boot
Closing
F After unlocking the vehicle, press the handle A and raise the tailgate.
F

C
lose the lower tailgate.
F

P
ull the handle B downwards to guide the
tailgate. If the tailgate is not fully closed:
-
e
ngine running
, this warning
lamp comes on, accompanied by
a message in the multifunction
screen for a few seconds,
-
v
ehicle moving
(speed above 6 mph -
10 km/h), this warning lamp comes on,
accompanied by an audible signal and a
message in the multifunction screen for a
few seconds
2
Access

58
3008_en_Chap02_ouvertures_ed01-2015

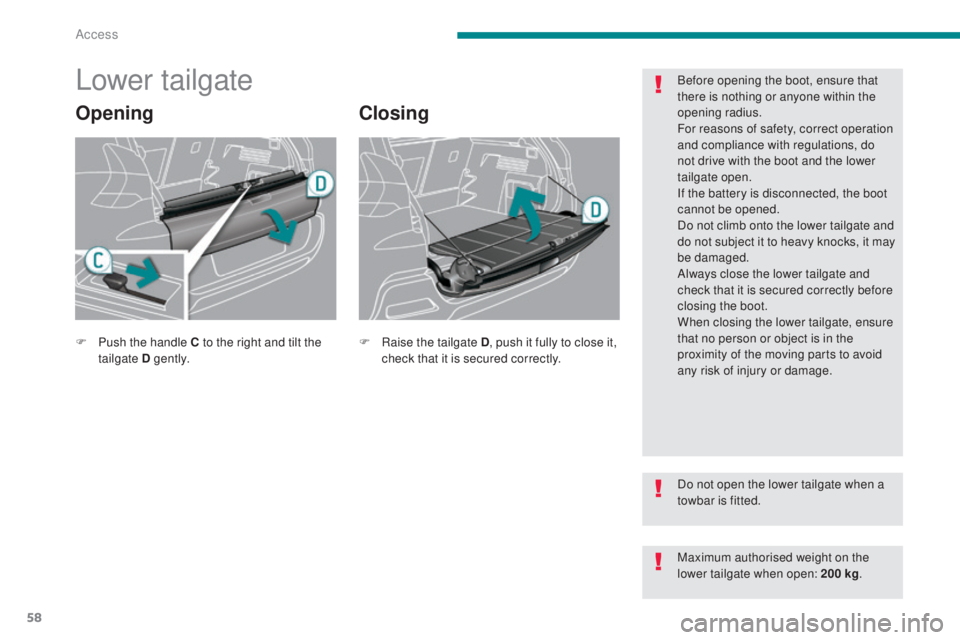

Lower tailgate
OpeningClosing
Before opening the boot, ensure that
there is nothing or anyone within the
opening radius.
For reasons of safety, correct operation
and compliance with regulations, do
not drive with the boot and the lower
tailgate open.
If the battery is disconnected, the boot
cannot be opened.
Do not climb onto the lower tailgate and
do not subject it to heavy knocks, it may
be damaged.
Always close the lower tailgate and
check that it is secured correctly before
closing the boot.
When closing the lower tailgate, ensure
that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.
Do not open the lower tailgate when a
towbar is fitted.
Maximum authorised weight on the
lower tailgate when open: 200 kg .
F

P

ush the handle C to the right and tilt the
tailgate D g e nt l y. F

Ra

ise the tailgate D , push it fully to close it,
check that it is secured correctly.
Access

59
3008_en_Chap03_confort_ed01-2015

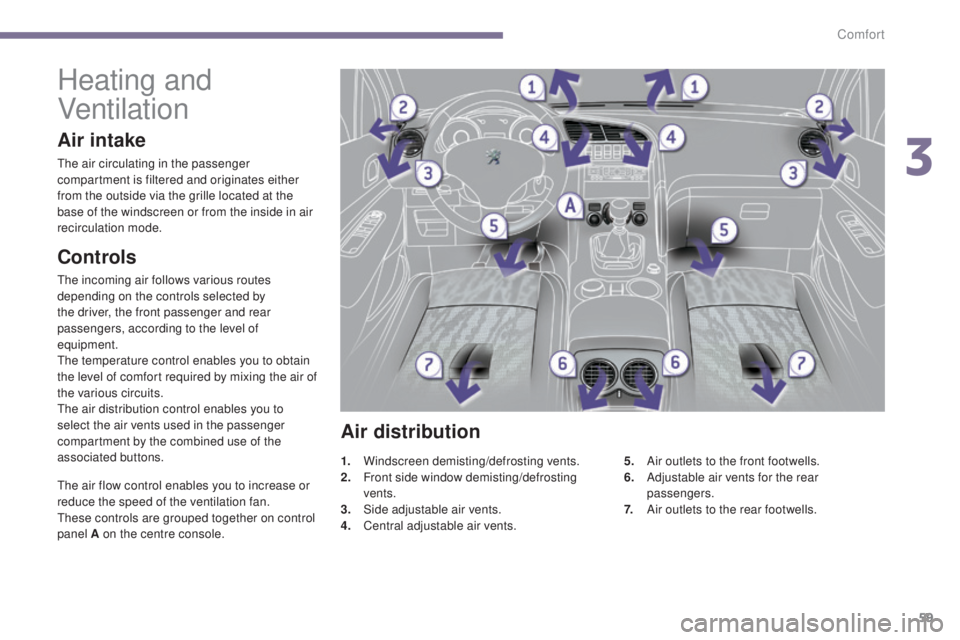

Heating and
Ventilation
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Air distribution
1. Windscreen demisting/defrosting vents.
2. Front side window demisting/defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents. 5. A
ir outlets to the front footwells.
6. A djustable air vents for the rear
passengers.
7.
A

ir outlets to the rear footwells.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
These controls are grouped together on control
panel A on the centre console.
3
Comfort

60
3008_en_Chap03_confort_ed01-2015

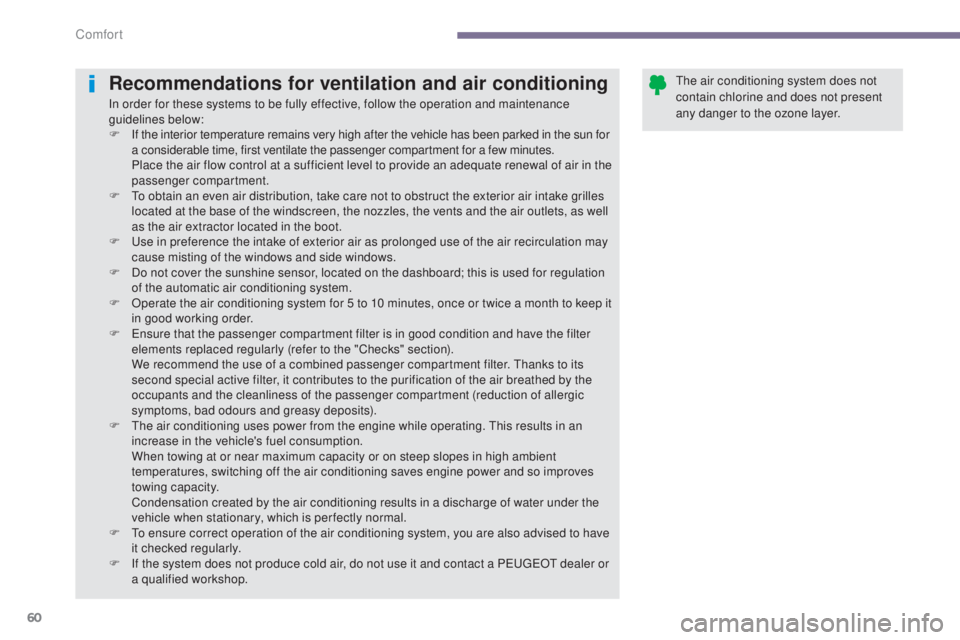

Recommendations for ventilation and air conditioning
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
I
f the interior temperature remains very high after the vehicle has been parked in the sun for
a considerable time, first ventilate the passenger compartment for a few minutes.
P

lace the air flow control at a sufficient level to provide an adequate renewal of air in the
passenger compartment.
F

T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

U
se in preference the intake of exterior air as prolonged use of the air recirculation may
cause misting of the windows and side windows.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the automatic air conditioning system.
F

O
perate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it
in good working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly (refer to the "Checks" section).


W
e recommend the use of a combined passenger compartment filter. Thanks to its
second special active filter, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
he air conditioning uses power from the engine while operating. This results in an
increase in the vehicle's fuel consumption.
W

hen towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so improves
towing capacity.
C

ondensation created by the air conditioning results in a discharge of water under the
vehicle when stationary, which is per fectly normal.
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly.
F

I
f the system does not produce cold air, do not use it and contact a PEUGEOT dealer or
a qualified workshop. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Comfort

61
3008_en_Chap03_confort_ed01-2015
2. Air flow adjustment
F Turn the dial from position 1
to position 5 to obtain a
comfortable air flow. Windscreen, side windows and
front-rear footwells.
Footwells, front-rear
(closing the vents increases the
flow to the footwells).
Central, side and rear vents.
F

T
urn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements. Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an


intermediate position.
The air conditioning can only operate with the
engine running.
4. Air intake / Air recirculation
The intake of exterior air limits misting of the
windscreen and side windows.
The recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
demisting performance.
3. Air distribution adjustment
F Press the button to recirculate
the interior air. The indicator
lamp comes on to confirm this.
F

P

ress the button again to permit the intake
of exterior air. The indicator lamp goes off
to confirm this.

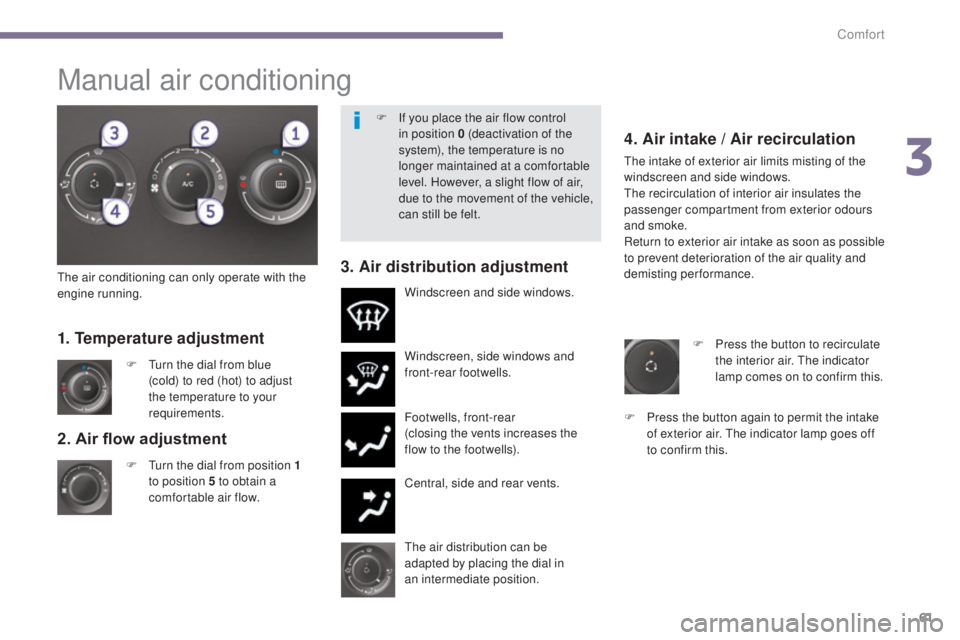

Manual air conditioning
F If you place the air flow control in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfortable
level. However, a slight flow of air,
due to the movement of the vehicle,
can still be felt.
3
Comfort

62
3008_en_Chap03_confort_ed01-2015
Demisting/defrosting
5. Air conditioning On / Off
The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables you to:
-

l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3 °C.
Switching off
F Press the "A /C " button again, the button's
indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
Switching on
F Press the "A /C " button, the button's
indicator lamp comes on.
The air conditioning does not operate when the
air flow adjustment control 2 is in position " 0".
To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.
The marking on the control panel
indicates the position of the
controls to quickly demist or
defrost the windscreen and side
windows:
F

p

lace the air intake control 4 in the
"Exterior air intake" position (indicator lamp
off),
F

p

lace the air distribution dial 3 in the
"Windscreen position",
F

p

lace the air flow dial 2 in position 5
(maximum),
F

p

lace the temperature dial 1 in the red
position (hot). With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
The rear screen demist - defrost
can only operate when the engine is
running.
Comfort
