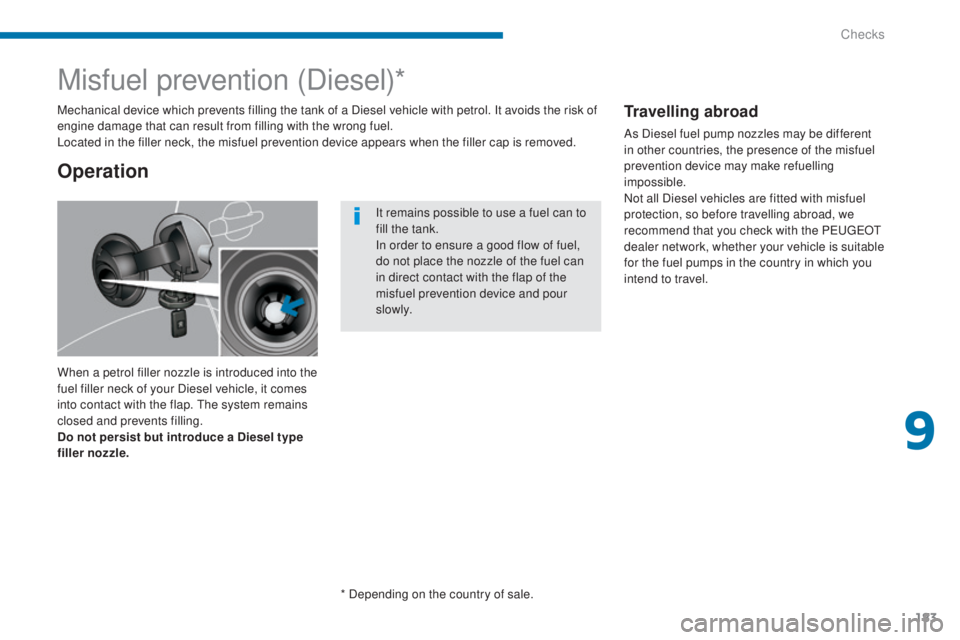

Misfuel prevention (Diesel)*
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle. Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
Operation
It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
s l ow l y.
Travelling abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuelling
impossible.
Not all Diesel vehicles are fitted with misfuel
protection, so before travelling abroad, we
recommend that you check with the PEUGEOT
dealer network, whether your vehicle is suitable
for the fuel pumps in the country in which you
intend to travel.
* Depending on the country of sale.
9
Checks

184
3008_en_Chap09_verifications_ed01-2015

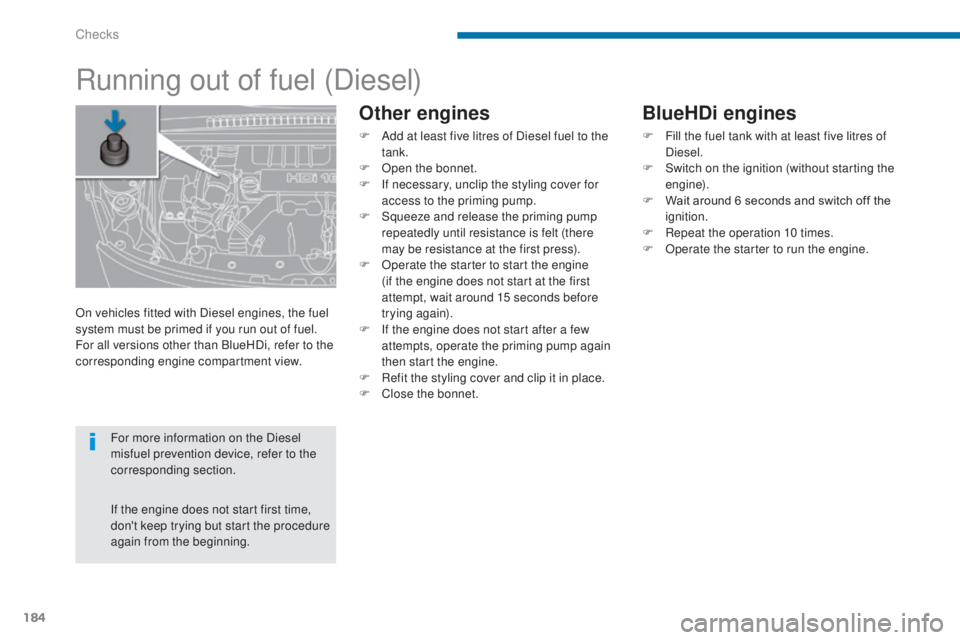

Running out of fuel (Diesel)
Other engines
F Add at least five litres of Diesel fuel to the tank.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.
For more information on the Diesel
misfuel prevention device, refer to the
corresponding section.
If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.
BlueHDi engines
F Fill the fuel tank with at least five litres of Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine.
Checks

185
3008_en_Chap09_verifications_ed01-2015

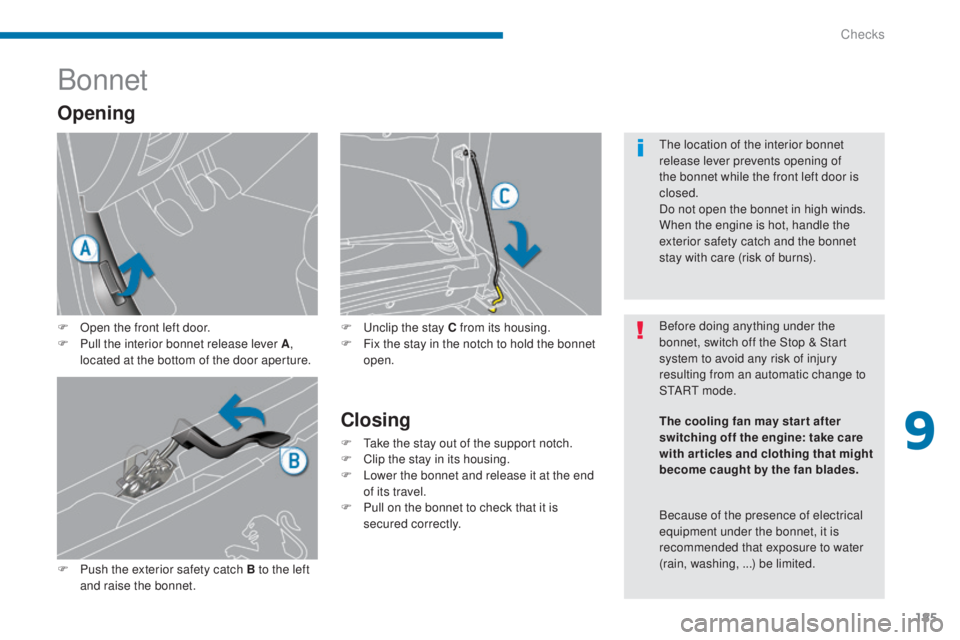

Bonnet
F Open the front left door.
F P ull the interior bonnet release lever A ,
located at the bottom of the door aperture.
F

P
ush the exterior safety catch B to the left
and raise the bonnet.
Closing
F Take the stay out of the support notch.
F C lip the stay in its housing.
F

L
ower the bonnet and release it at the end
of its travel.
F

P
ull on the bonnet to check that it is
secured correctly.
Opening
F Unclip the stay C from its housing.
F F ix the stay in the notch to hold the bonnet
open. Before doing anything under the
bonnet, switch off the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
S TA R T m o d e . The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door is
closed.
Do not open the bonnet in high winds.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited. The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.
9
Checks

186
3008_en_Chap09_verifications_ed01-2015

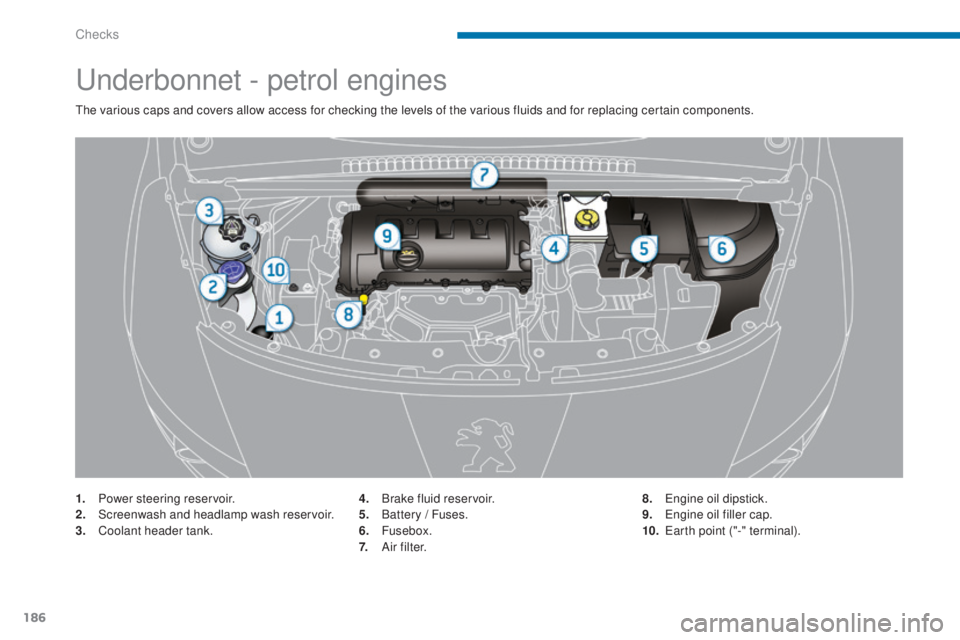

Underbonnet - petrol engines
The various caps and covers allow access for checking the levels of the various fluids and for replacing certain components.
1.
P
ower steering reservoir.
2.
S

creenwash and headlamp wash reservoir.
3.
C

oolant header tank. 4.
B

rake fluid reservoir.
5.
B

attery / Fuses.
6.


Fusebox.
7.
A

i r f i l t e r.8.
E

ngine oil dipstick.
9.
E

ngine oil filler cap.
10.
E

arth point ("-" terminal).
Checks

187
3008_en_Chap09_verifications_ed01-2015

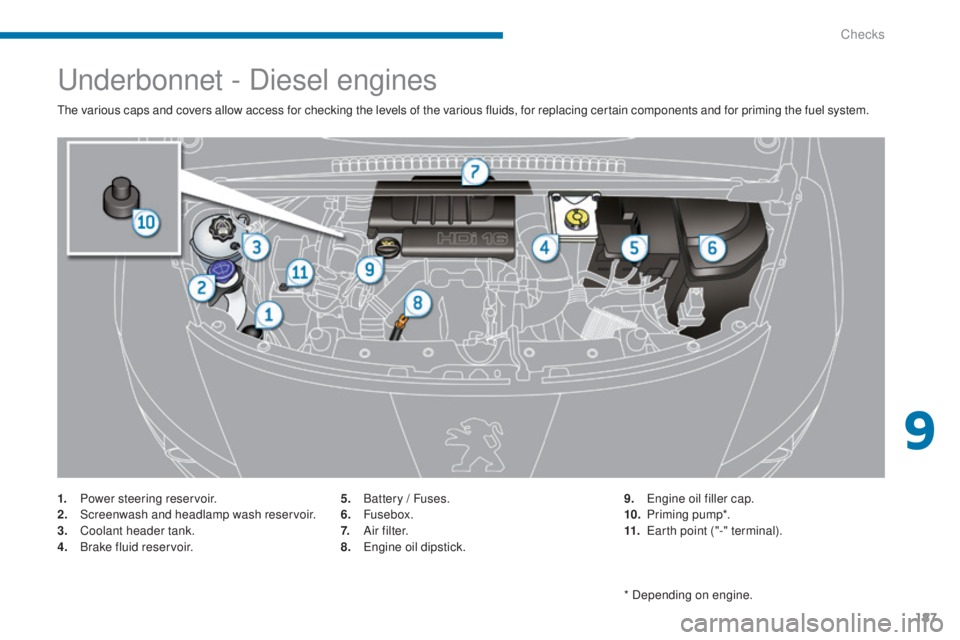

Underbonnet - Diesel engines
The various caps and covers allow access for checking the levels of the various fluids, for replacing certain components and for priming the fuel system.
1.
P
ower steering reservoir.
2.
S

creenwash and headlamp wash reservoir.
3.
C

oolant header tank.
4.
B

rake fluid reservoir. 5.
B

attery / Fuses.
6.


Fusebox.
7.
A

i r f i l t e r.
8.
E

ngine oil dipstick.9.
E

ngine oil filler cap.
10.
P

riming pump*.
11.
E

arth point ("-" terminal).
* Depending on engine.
9
Checks

188
3008_en_Chap09_verifications_ed01-2015

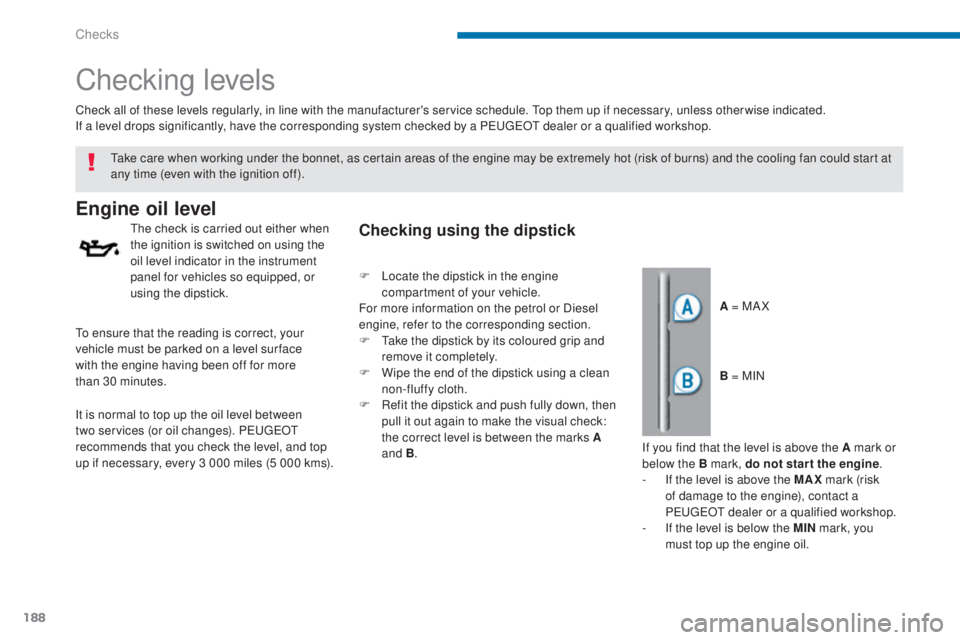

Checking levels
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop.
A = MA X
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
To ensure that the reading is correct, your
vehicle must be parked on a level sur face
with the engine having been off for more
than


30


minutes. B = MIN
It is normal to top up the oil level between
two services (or oil changes). PEUGEOT
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).Checking using the dipstick
If you find that the level is above the A mark or
below the B mark, do not star t the engine .
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
PEUGEOT dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top up the engine oil.
F

L

ocate the dipstick in the engine
compartment of your vehicle.
For more information on the petrol or Diesel
engine, refer to the corresponding section.
F

T

ake the dipstick by its coloured grip and
remove it completely.
F

W

ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R

efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
Checks

189
3008_en_Chap09_verifications_ed01-2015
Power steering fluid level
The power steering fluid level should
be close to the "MA X" mark. With
the engine cold, unscrew the cap to
check the level.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
After topping-up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after

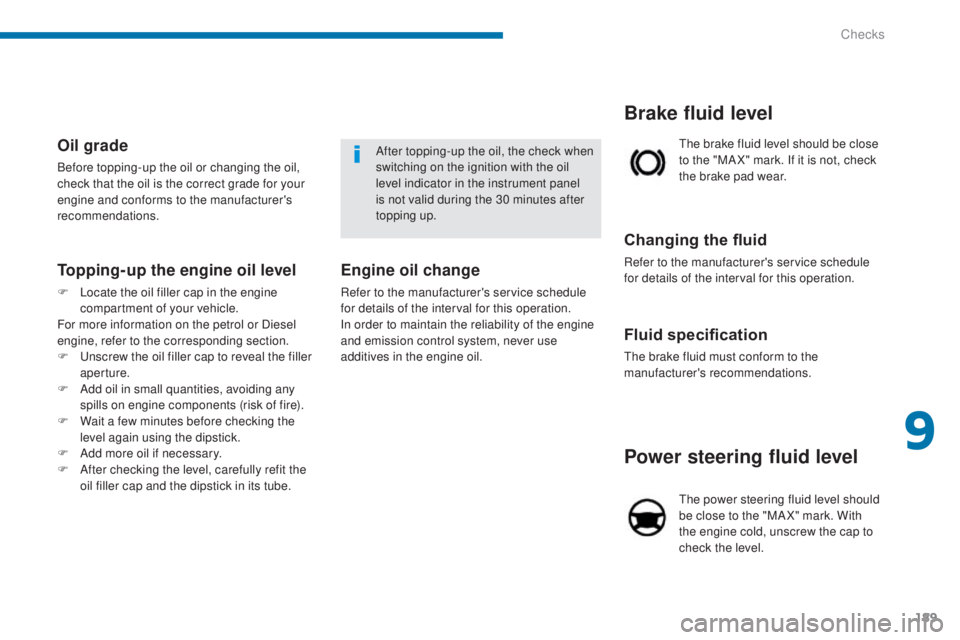

topping up.Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
Topping-up the engine oil level
F Locate the oil filler cap in the engine
compartment of your vehicle.
For more information on the petrol or Diesel
engine, refer to the corresponding section.
F

U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
9
Checks

190
3008_en_Chap09_verifications_ed01-2015
Diesel additive level (Diesel
engine with particle filter)
Used products
To p p i n g u p
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.
Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the instrument panel
screen.
Top up the reservoir when you next stop
the

vehicle.
Screenwash and headlamp
wash fluid
A low additive level is indicated by
illumination of this warning lamp,
accompanied by an audible warning
and a message in the instrument panel screen.
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Fluid specification
The coolant must conform to the
manufacturer's recommendations. The coolant level should be close
to the "MA X" mark but should never
exceed it.
When the engine is warm, the
temperature of the coolant is regulated by
the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying out any
work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.

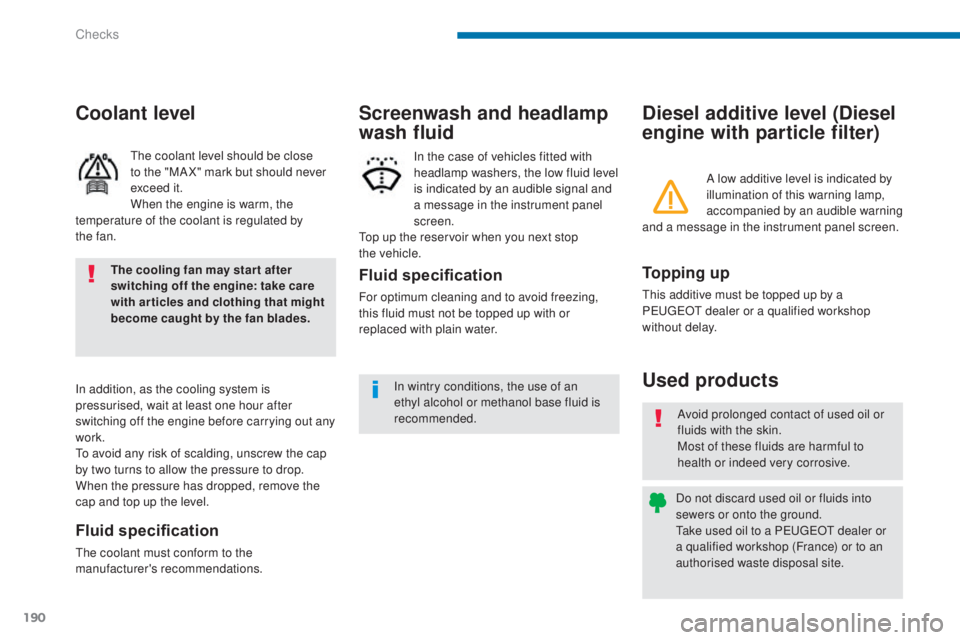

Coolant level
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades. In wintry conditions, the use of an
ethyl alcohol or methanol base fluid is
recommended.
