2016 PEUGEOT 3008 Owners Manual

247
3008_en_Chap11_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

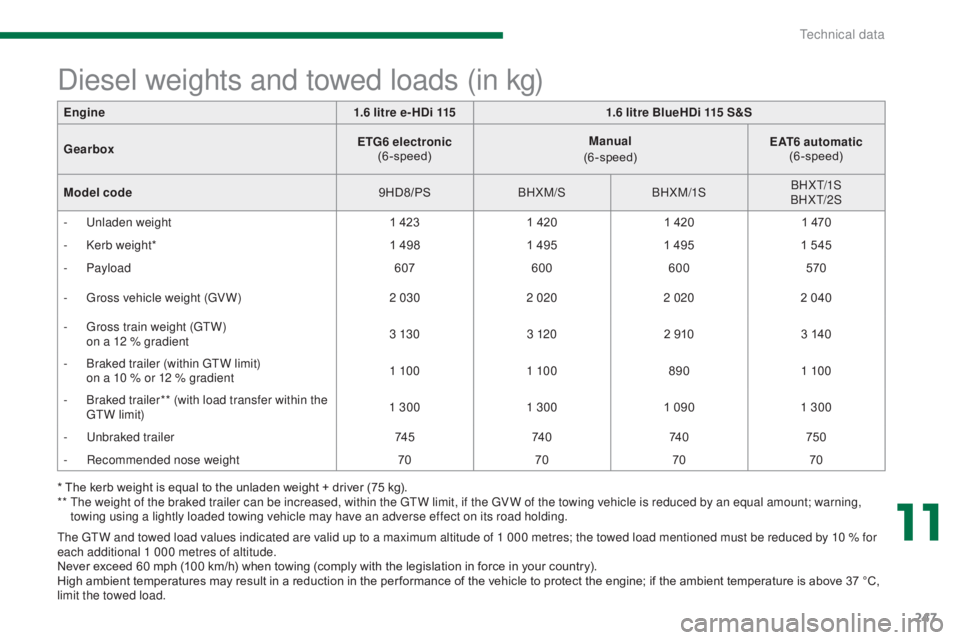

Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.6 litre e- HDi 1151.6 litre BlueHDi 115 S&S
Gearbox ETG6 electronic

(6-speed) Manual

(6-speed) EAT6 automatic

(6-speed)
Model code 9HD8/PSBHXM/SBHXM/1S BH X T/1S
BH X T/2S
-
U
nladen weight
1 4231 4201 420 1 470
-
K
erb weight*
1 4981 4951 4951 545
-

Payload
607600 600 570
-
G
ross vehicle weight (GV W)
2 0302 0202 0202 040
-
G
ross train weight (GTW)
o

n a 12 % gradient
3 13 0
3 1202 9103 140
-
B
raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient
1 10 0
1 10 0 8901 10 0
-
B
raked trailer** (with load transfer within the
GTW limit) 1 300
1 3001 090 1 300
-
U
nbraked trailer
74 574 074 0750
-
R
ecommended nose weight
70707070
11
Technical data

248
3008_en_Chap11_caracteristiques_ed01-2015

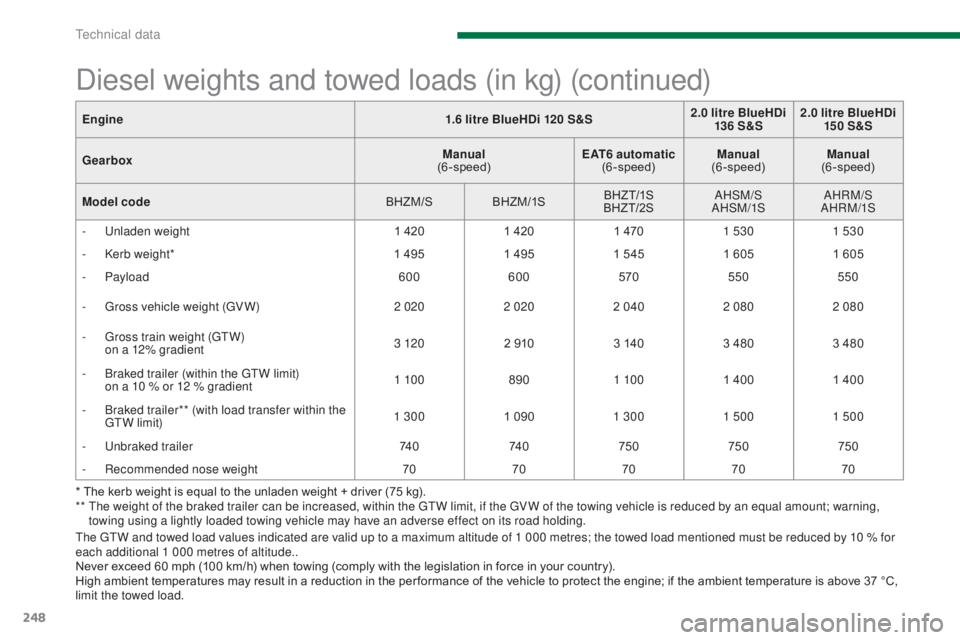

Diesel weights and towed loads (in kg) (continued)
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude..
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.6 litre BlueHDi 120 S&S2.0 litre BlueHDi
136 S&S 2.0 litre BlueHDi
15 0 S&S
Gearbox Manual

(6-speed) EAT6 automatic

(6-speed) Manual

(6-speed) Manual

(6-speed)
Model code BHZM/SBHZM /1S BHZ T/1S
BHZ T/2S AHSM/S
AHSM/1S AHRM/S
AHRM/1S
-
U
nladen weight
1 4201 420 1 4701 530 1 530
-
K
erb weight*
1 4951 4951 545 1 6051 605
-

Payload
600600 570550 550
-
G
ross vehicle weight (GV W)
2 0202 0202 040 2 080 2 080
-
G
ross train weight (GTW)
o

n a 12% gradient
3 120
2 9103 1403 480 3 480
-
B
raked trailer (within the GTW limit)
o

n a 10 % or 12 % gradient
1 10 0
8901 10 0 1 400 1 400
-
B
raked trailer** (with load transfer within the
GTW limit) 1 300
1 090 1 300 1 5001 500
-
U
nbraked trailer
74 074 0750 750750
-
R
ecommended nose weight
7070707070
Technical data

249
3008_en_Chap11_caracteristiques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

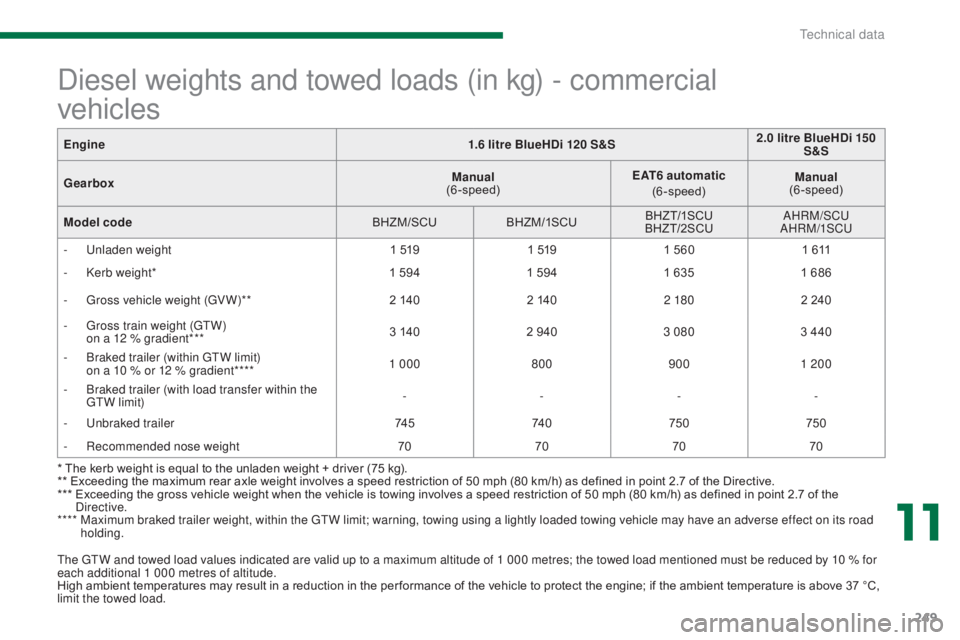

Diesel weights and towed loads (in kg) - commercial
vehicles
* The kerb weight is equal to the unladen weight + driver (75 kg).
** Exceeding the maximum rear axle weight involves a speed restriction of 50 mph (80 km/h) as defined in point 2.7 of the Directive.
***
E
xceeding the gross vehicle weight when the vehicle is towing involves a speed restriction of 50 mph (80 km/h) as defined in point 2.7 of the
Directive.
****

M
aximum braked trailer weight, within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road
holding.
Engine
1.6 litre BlueHDi 120 S&S 2.0 litre BlueHDi 150
S&S
Gearbox Manual

(6-speed) E AT 6
automatic
(6-speed) Manual

(6-speed)
Model code BHZM/SCUBHZM/1SCU BHZ T/1SCU
BHZT/2SCU AHRM/SCU
AHRM/1SCU
-
U
nladen weight
1 5191 5191 560 1 611
-
K
erb weight*
1 5941 594 1 6351 686
-
G
ross vehicle weight (GV W)**
2 1402 1402 180 2 240
-
G
ross train weight (GTW)

o
n a 12 % gradient***
3 140
2 940 3 080 3 440
-
B
raked trailer (within GTW limit)

o
n a 10 % or 12 % gradient****
1 000
8009001 200
-
B
raked trailer (with load transfer within the
GTW limit) -
---
-
U
nbraked trailer
74 574 0750 750
-
R
ecommended nose weight
70707070
11
Technical data

250
3008_en_Chap11_caracteristiques_ed01-2015

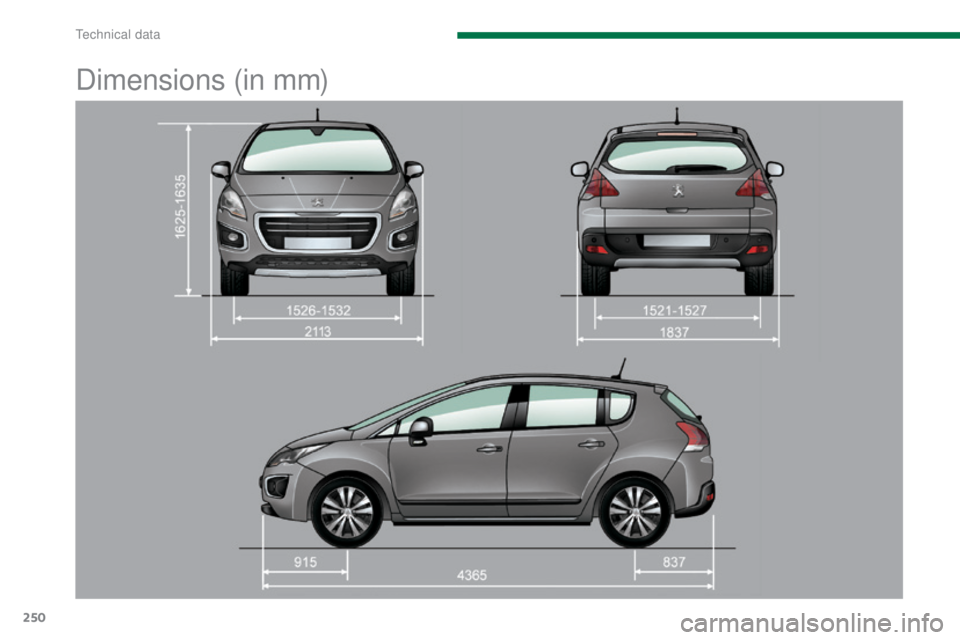

Dimensions (in mm)
Technical data

251
3008_en_Chap11_caracteristiques_ed01-2015

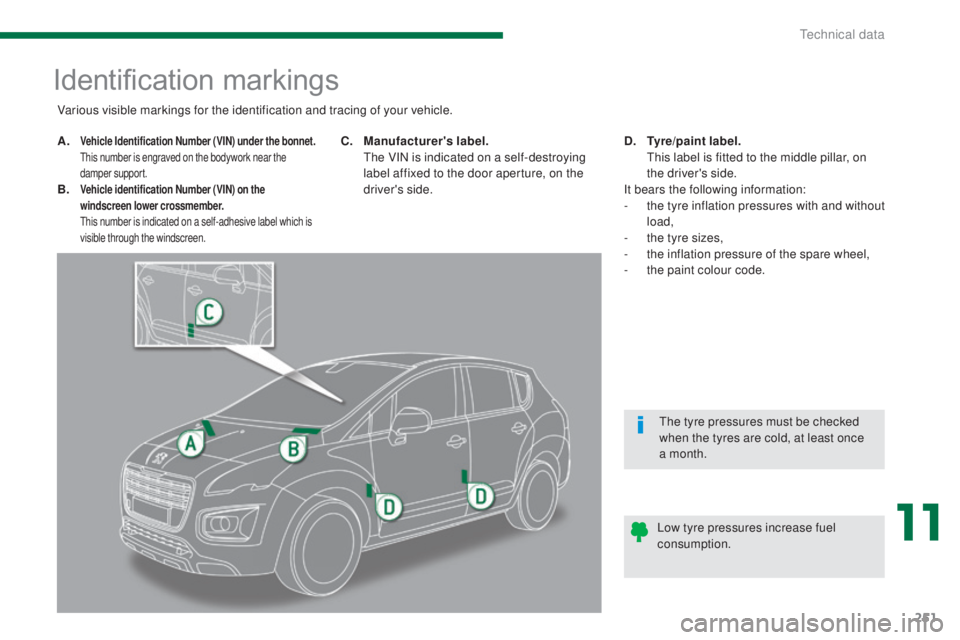

Identification markings
A. Vehicle Identification Number (VIN) under the bonnet. T
his number is engraved on the bodywork near the
damper support.
B. Vehicle identification Number (VIN) on the windscreen lower crossmember.
T

his number is indicated on a self-adhesive label which is
visible through the windscreen.
C. Manufacturer's label. T
he VIN is indicated on a self-destroying
label affixed to the door aperture, on the
driver's side. D. T
yre/paint label.
T
his label is fitted to the middle pillar, on
the driver's side.
It bears the following information:
-

t
he tyre inflation pressures with and without
load,
-

t
he tyre sizes,
-

t
he inflation pressure of the spare wheel,
-

t
he paint colour code.
Various visible markings for the identification and tracing of your vehicle.
Low tyre pressures increase fuel
consumption.The tyre pressures must be checked
when the tyres are cold, at least once
a month.
11
Technical data

252
3008_en_Chap12a_BTA_ed01-2015

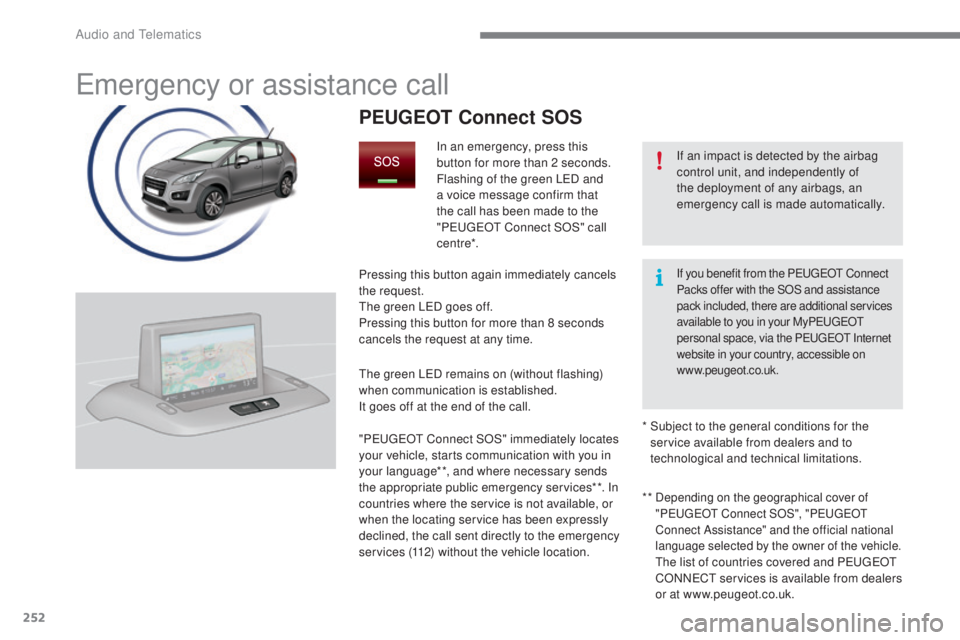

Emergency or assistance call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
PEUGEOT Connect SOS
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LED and
a voice message confirm that
the call has been made to the
"P
E

UGEOT
C
onnect SOS" call
c e nt re*.
Pressing this button again immediately cancels
the request.
The green LED goes off.
Pressing this button for more than 8 seconds
cancels the request at any time.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.
" P
E

UGEOT
C

onnect SOS" immediately locates
your vehicle, starts communication with you in
your language**, and where necessary sends
the appropriate public emergency services**. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call sent directly to the emergency
services (112) without the vehicle location. **
Depending on the geographical cover of
"
PE
UGEOT C onnect SOS", " PE
UGEOT
C
onnect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
*

S
ubject to the general conditions for the
service available from dealers and to
technological and technical limitations.
If you benefit from the PE UGEOT C onnect
Packs offer with the SOS and assistance
pack included, there are additional services
available to you in your My P
E

UGEOT

p

ersonal space, via the PEUGEOT Internet
website in your country, accessible on
www.peugeot.co.uk.
Audio and Telematics

253
3008_en_Chap12a_BTA_ed01-2015

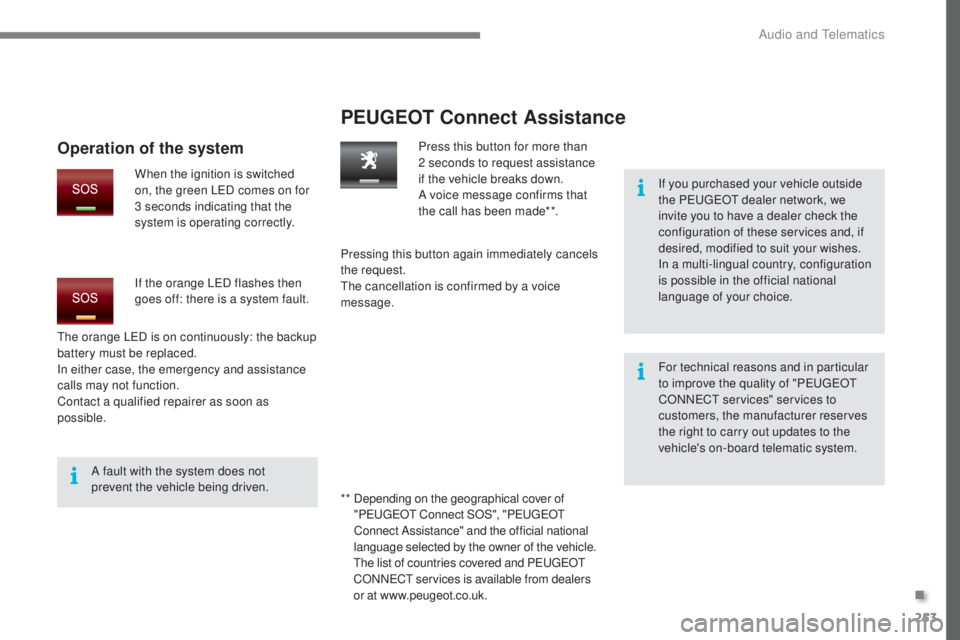

PEUGEOT Connect Assistance
If you purchased your vehicle outside
the PEUGEOT dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons and in particular
to improve the quality of "PEUGEOT
CONNECT services" services to
customers, the manufacturer reserves
the right to carry out updates to the
vehicle's on-board telematic system.
A fault with the system does not
prevent the vehicle being driven. Press this button for more than
2

seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been made**.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
The orange LED is on continuously: the backup
battery must be replaced.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible.
Operation of the system
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
If the orange LED flashes then
goes off: there is a system fault.
* *



D
epending on the geographical cover of
" P
E

UGEOT
C
onnect SOS", "P
E

UGEOT

C

onnect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
.
Audio and Telematics
