2016 PEUGEOT 3008 Owners Manual

103
3008_en_Chap05_amenagements_ed01-2015

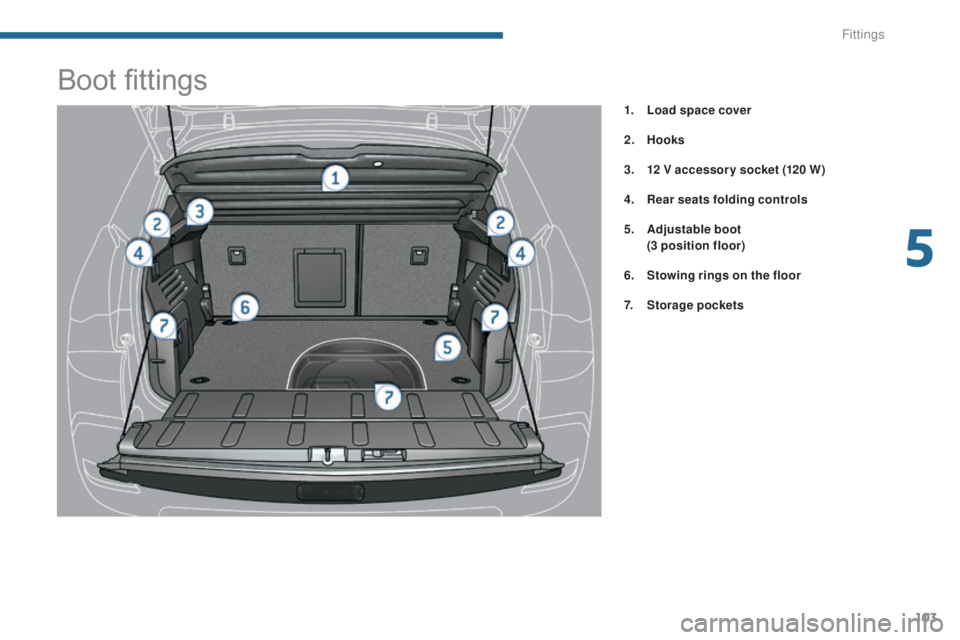

Boot fittings
1. Load space cover
2.
Hoo
ks
3.
1

2 V accessor y socket (120 W)
4.
R

ear seats folding controls
5.
A

djustable boot


(
3 position floor )
6.
S

towing rings on the floor
7.
Sto

rage pockets
5
Fittings

104
3008_en_Chap05_amenagements_ed01-2015

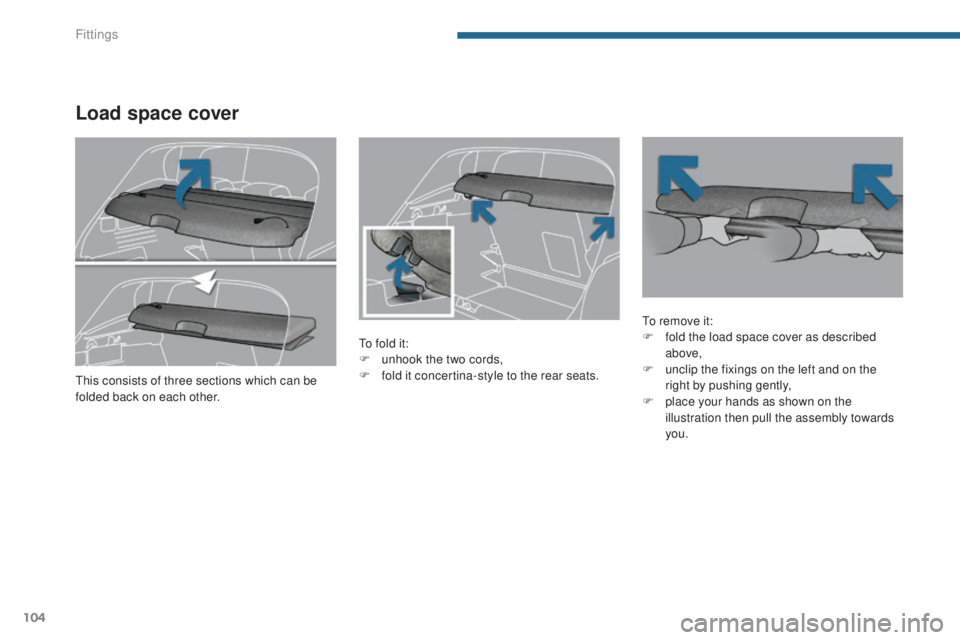

Load space cover
To fold it:
F u nhook the two cords,
F

f
old it concertina-style to the rear seats. To remove it:
F
f old the load space cover as described
above,
F

u
nclip the fixings on the left and on the
right by pushing gently,
F

p
lace your hands as shown on the
illustration then pull the assembly towards
you.
This consists of three sections which can be
folded back on each other.
Fittings

105
3008_en_Chap05_amenagements_ed01-2015

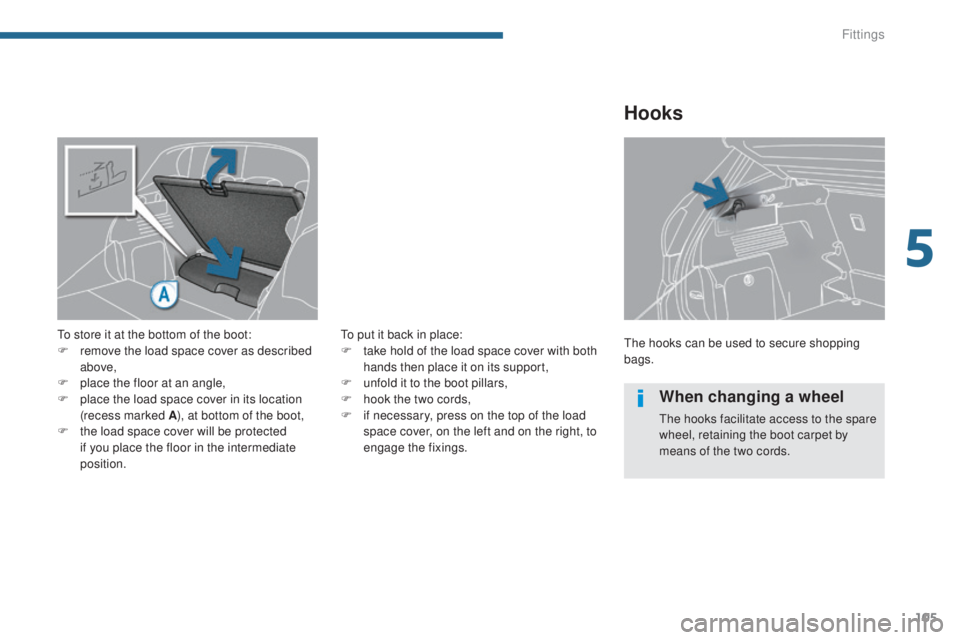

The hooks can be used to secure shopping
bags.
Hooks
To store it at the bottom of the boot:
F r emove the load space cover as described
above,
F

p
lace the floor at an angle,
F

p
lace the load space cover in its location
(recess marked A ), at bottom of the boot,
F

t
he load space cover will be protected
if you place the floor in the intermediate
position. To put it back in place:
F
t ake hold of the load space cover with both
hands then place it on its support,
F

u
nfold it to the boot pillars,
F

h
ook the two cords,
F

i
f necessary, press on the top of the load
space cover, on the left and on the right, to
engage the fixings.
When changing a wheel
The hooks facilitate access to the spare
wheel, retaining the boot carpet by
means of the two cords.
5
Fittings

106
3008_en_Chap05_amenagements_ed01-2015

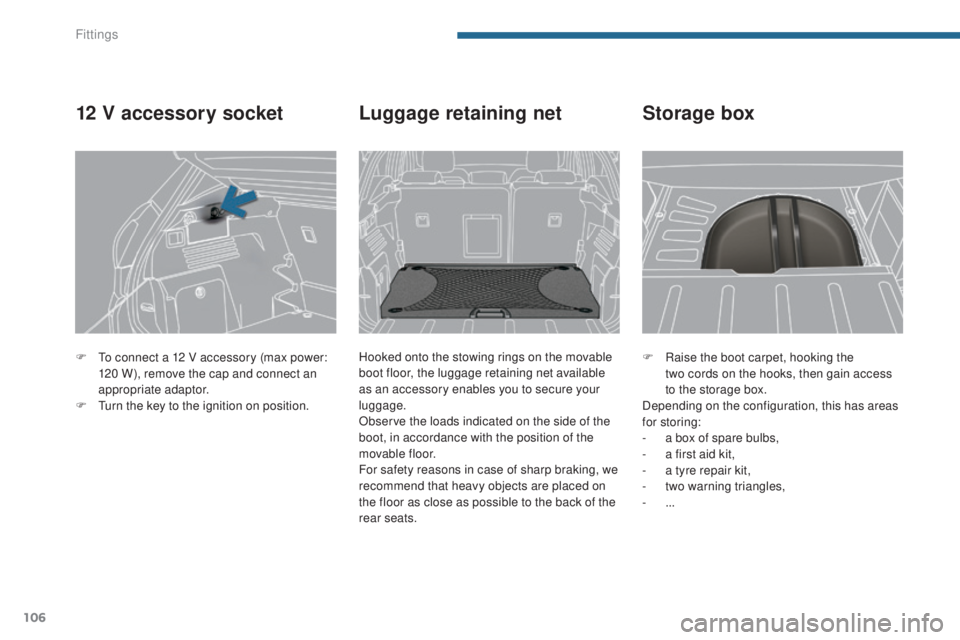

F Raise the boot carpet, hooking the two cords on the hooks, then gain access
to the storage box.
Depending on the configuration, this has areas
for storing:
-

a b
ox of spare bulbs,
-

a f
irst aid kit,
-

a t
yre repair kit,
-

t
wo warning triangles,
-


...
Storage box
F To connect a 12 V accessory (max power: 120 W), remove the cap and connect an
appropriate adaptor.
F

T
urn the key to the ignition on position.
12 V accessory socket Luggage retaining net
Hooked onto the stowing rings on the movable
boot floor, the luggage retaining net available
as an accessory enables you to secure your
luggage.
Observe the loads indicated on the side of the
boot, in accordance with the position of the
movable floor.
For safety reasons in case of sharp braking, we
recommend that heavy objects are placed on
the floor as close as possible to the back of the
rear seats.
Fittings

107
3008_en_Chap05_amenagements_ed01-2015

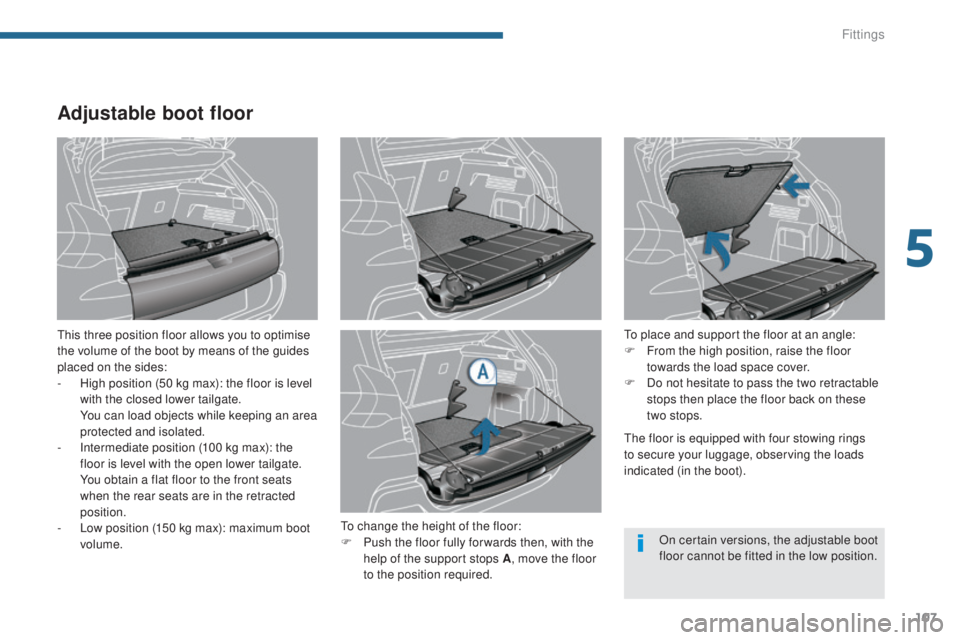

Adjustable boot floor
This three position floor allows you to optimise
the volume of the boot by means of the guides
placed on the sides:
-
H
igh position (50 kg max): the floor is level
with the closed lower tailgate.
Y

ou can load objects while keeping an area
protected and isolated.
-

I
ntermediate position (100 kg max): the
floor is level with the open lower tailgate.
Y

ou obtain a flat floor to the front seats
when the rear seats are in the retracted
position.
-

L
ow position (150 kg max): maximum boot
volume. To place and support the floor at an angle:
F
F rom the high position, raise the floor
towards the load space cover.
F

D
o not hesitate to pass the two retractable
stops then place the floor back on these
two stops.
To change the height of the floor:
F

P
ush the floor fully for wards then, with the
help of the support stops A , move the floor
to the position required. The floor is equipped with four stowing rings
to secure your luggage, observing the loads
indicated (in the boot).
On certain versions, the adjustable boot
floor cannot be fitted in the low position.
5
Fittings

108
3008_en_Chap05_amenagements_ed01-2015

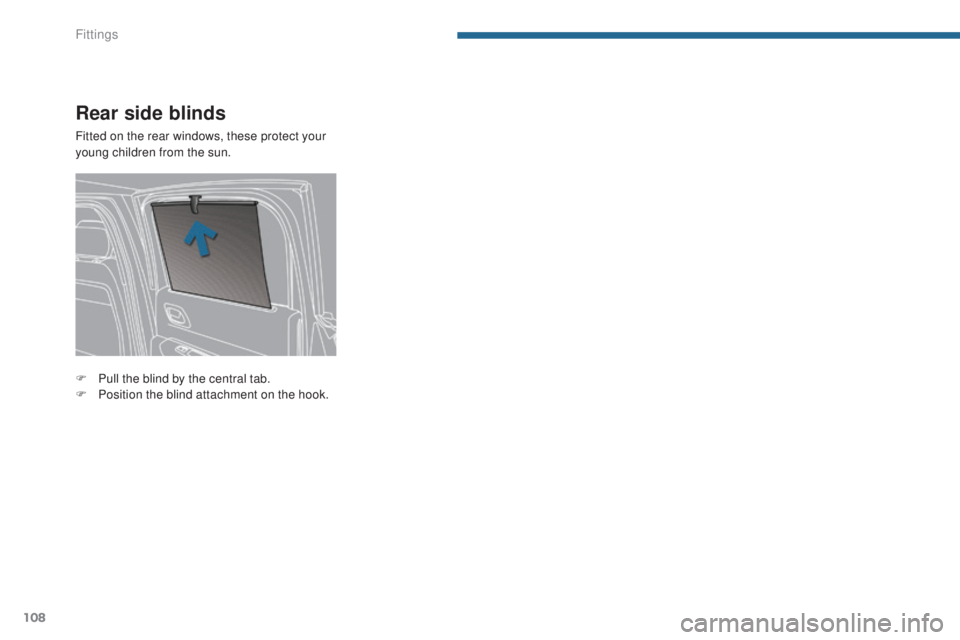

Rear side blinds
Fitted on the rear windows, these protect your
young children from the sun.
F
P
ull the blind by the central tab.
F

P
osition the blind attachment on the hook.
Fittings

109
3008_en_Chap06_securite-enfants_ed01-2015

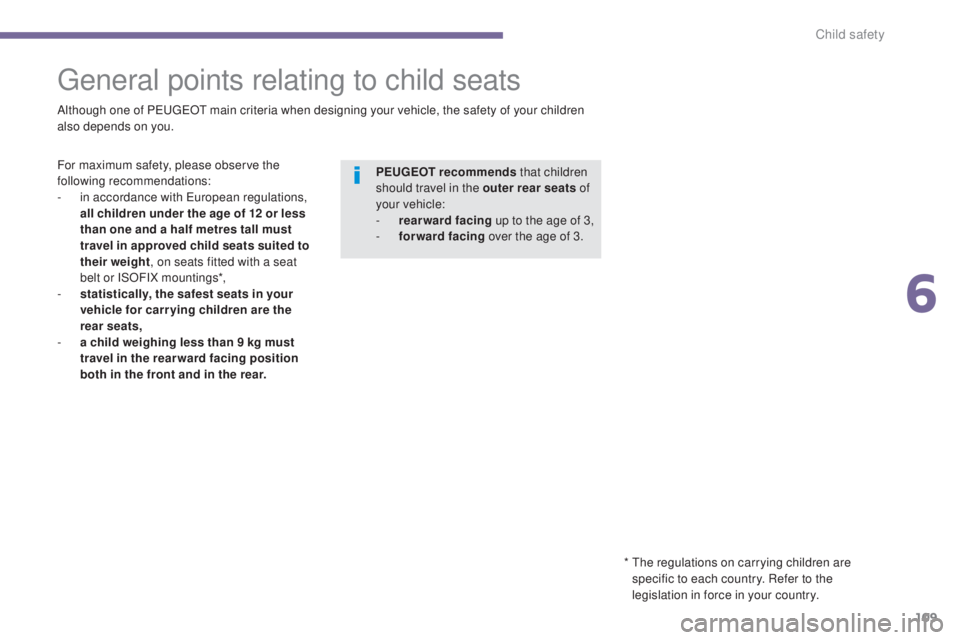

General points relating to child seats
Although one of PEUGEOT main criteria when designing your vehicle, the safety of your children
also depends on you.*

T
he regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
For maximum safety, please observe the
following recommendations:
-

i
n accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings*,
-

s
tatistically, the safest seats in your
vehicle for carr ying children are the
rear seats,
-

a c
hild weighing less than 9 kg must
travel in the rearward facing position
both in the front and in the rear. PEUGEOT recommends
that children
should travel in the outer rear seats of
your vehicle:
-

re
arward facing up to the age of 3,
-

fo
rward facing over the age of 3.
6
Child safety

110
3008_en_Chap06_securite-enfants_ed01-2015
Forward facing
When a for ward facing child seat is installed on
the front passenger seat, adjust the vehicle
seat to the fully back and highest position,
with the backrest straightened. Leave the
passenger's airbag active.
Rearward facing
When a rear ward facing child seat is installed
on the front passenger seat , adjust the
vehicle seat to the fully back and highest
position, with the backrest straightened.
The passenger's airbag must be deactivated.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed .
Child seat at the front*
Ensure that the seat belt is properly
tightened.
For child seats with a support leg,
ensure that this is in firm and steady
contact with the floor. If necessary,
adjust the passenger's seat. Passenger seat in the fully back and
highest position.
*

R

efer to the legislation in force in your country
before installing a child seat on this seating
position.
