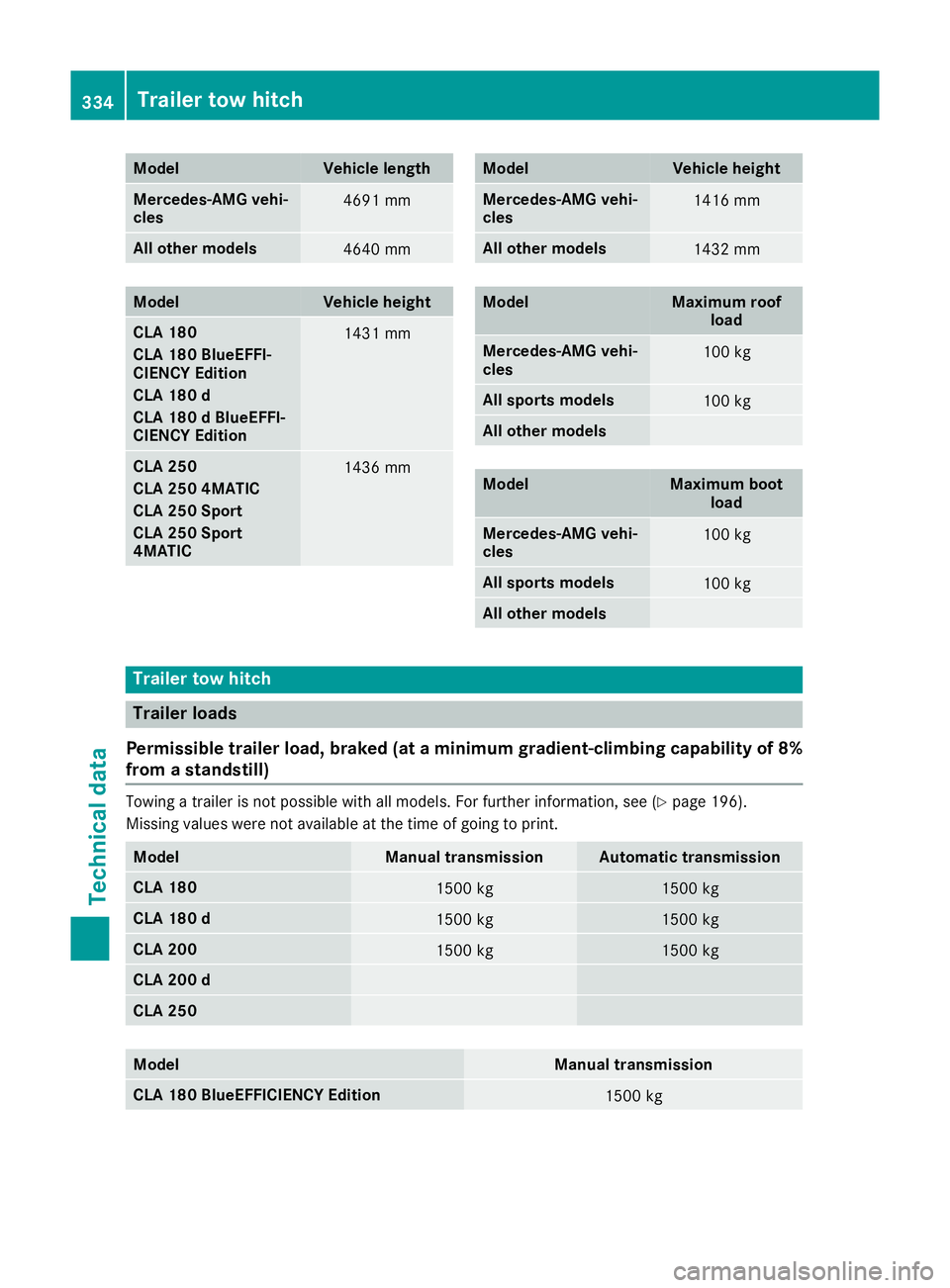

Page 337 of 345

Model Vehicle length
Mercedes-AMG vehi-
cles
4691 mm
All other models
4640 mm
Model Vehicle height
CLA 180
CLA 180 BlueEFFI-
CIENCY Edition
CLA 180 d
CLA 180 d BlueEFFI-
CIENCY Edition
1431 mm
CLA 250
CLA 250 4MATIC
CLA 250 Sport
CLA 250 Sport
4MATIC
1436 mm Model Vehicle height
Mercedes-AMG vehi-
cles
1416 mm
All other models
1432 mm
Model Maximum roof
load Mercedes-AMG vehi-
cles
100 kg
All sports models
100 kg
All other models
Model Maximum boot
load Mercedes-AMG vehi-
cles
100 kg
All sports models
100 kg
All other models
Trailer tow hitch
Trailer loads
Permissible trailer load, braked (at a minimum gradient-climbing capability of 8%
from a standstill) Towing a trailer is not possible with all models. For further information, see (Y
page 196).
Missing values were not available at the time of going to print. Model Manual transmission Automatic transmission
CLA 180
1500 kg 1500 kg
CLA 180 d
1500 kg 1500 kg
CLA 200
1500 kg 1500 kg
CLA 200 d
CLA 250
Model Manual transmission
CLA 180 BlueEFFICIENCY Edition
1500 kg334
Trailer tow hitchTechnical data

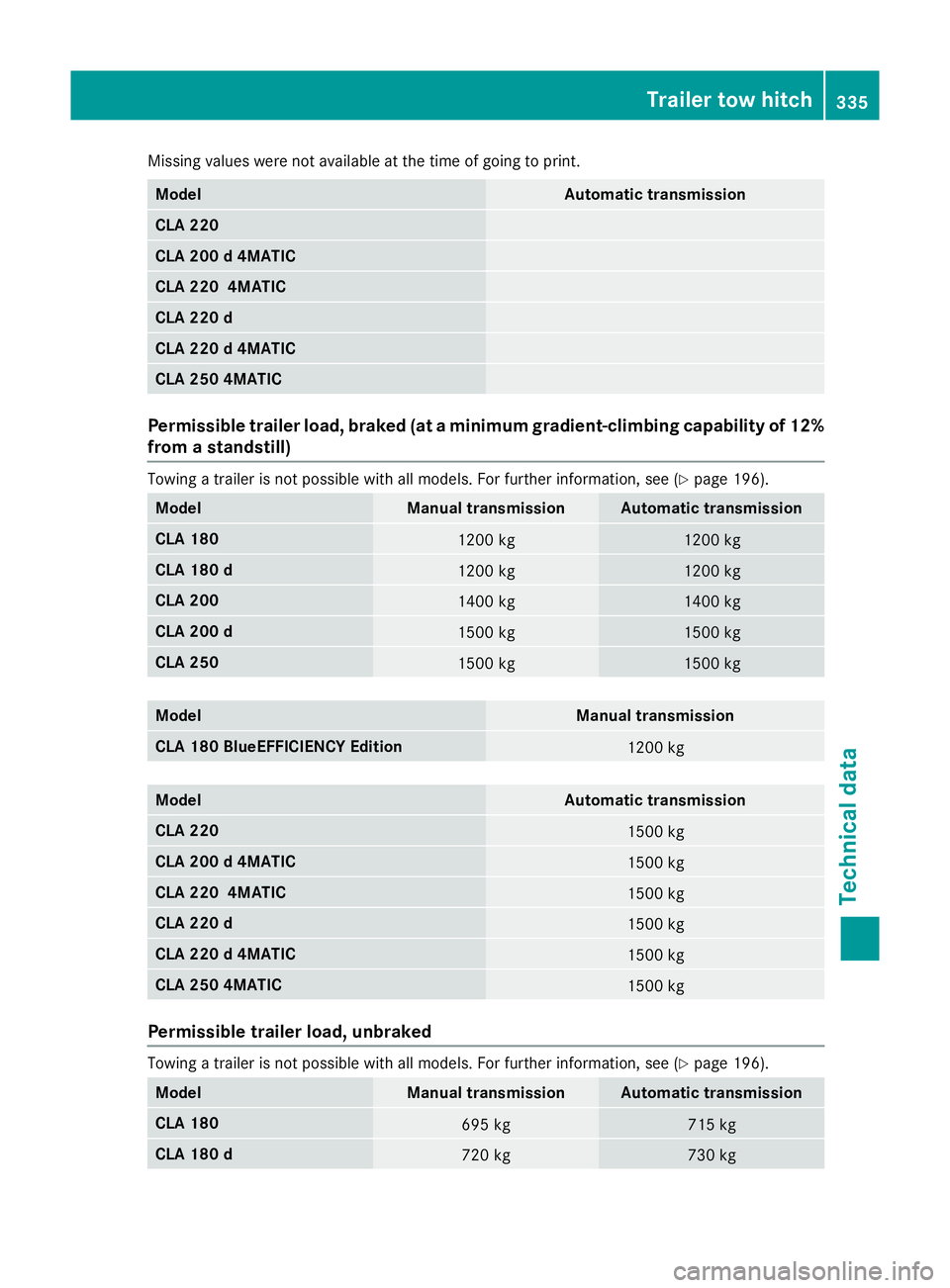

Page 338 of 345

Missing values were not available at the time of going to print.
Model Automatic transmission
CLA 220
CLA 200 d 4MATIC
CLA 220 4MATIC
CLA 220 d
CLA 220 d 4MATIC
CLA 250 4MATIC
Permissible trailer load, braked (at a minimum gradient-climbing capability of 12%
from a standstill) Towing a trailer is not possible with all models. For further information, see (Y
page 196).Model Manual transmission Automatic transmission
CLA 180
1200 kg 1200 kg
CLA 180 d
1200 kg 1200 kg
CLA 200
1400 kg 1400 kg
CLA 200 d
1500 kg 1500 kg
CLA 250
1500 kg 1500 kg
Model Manual transmission
CLA 180 BlueEFFICIENCY Edition
1200 kg
Model Automatic transmission
CLA 220
1500 kg
CLA 200 d 4MATIC
1500 kg
CLA 220 4MATIC
1500 kg
CLA 220 d
1500 kg
CLA 220 d 4MATIC
1500 kg
CLA 250 4MATIC
1500 kg
Permissible trailer load, unbraked
Towing a trailer is not possible with all models. For further information, see (Y
page 196).Model Manual transmission Automatic transmission
CLA 180
695 kg 715 kg
CLA 180 d
720 kg 730 kgTrailer tow hitch
335Technical data Z

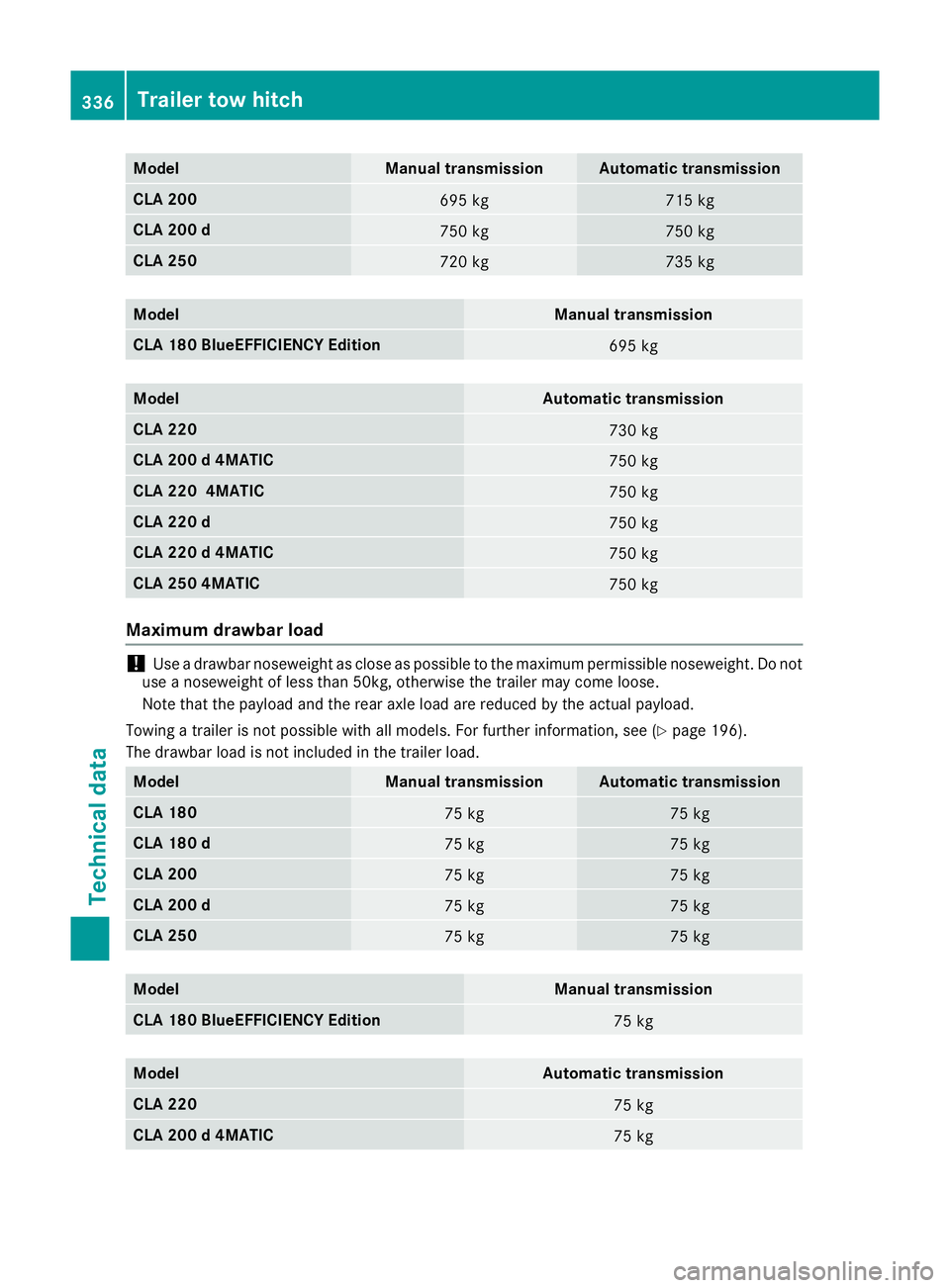

Page 339 of 345

Model Manual transmission Automatic transmission
CLA 200
695 kg 715 kg
CLA 200 d
750 kg 750 kg
CLA 250
720 kg 735 kg
Model Manual transmission
CLA 180 BlueEFFICIENCY Edition
695 kg
Model Automatic transmission
CLA 220
730 kg
CLA 200 d 4MATIC
750 kg
CLA 220 4MATIC
750 kg
CLA 220 d
750 kg
CLA 220 d 4MATIC
750 kg
CLA 250 4MATIC
750 kg
Maximum drawbar load
!
Use a drawbar noseweight as close as possible to the maximum permissible noseweight. Do not
use a noseweight of less than 50kg, otherwise the trailer may come loose.
Note that the payload and the rear axle load are reduced by the actual payload.
Towing a trailer is not possible with all models. For further information, see (Y page 196).
The drawbar load is not included in the trailer load. Model Manual transmission Automatic transmission
CLA 180
75 kg 75 kg
CLA 180 d
75 kg 75 kg
CLA 200
75 kg 75 kg
CLA 200 d
75 kg 75 kg
CLA 250
75 kg 75 kg
Model Manual transmission
CLA 180 BlueEFFICIENCY Edition
75 kg
Model Automatic transmission
CLA 220
75 kg
CLA 200 d 4MATIC
75 kg336
Trailer tow hitchTechnical data
Page 340 of 345

Model Automatic transmission
CLA 220 4MATIC
75 kg
CLA 220 d
75 kg
CLA 220 d 4MATIC
75 kg
CLA 250 4MATIC
75 kg
The actual drawbar load may not be higher than the specified value. The value can be found on the
trailer tow hitch or trailer identification plates. The lowest weight applies.
You can attach carrier systems, e.g. bicycle racks or load-bearing implements, on the ball coupling.
The maximum payload of 75 kg applies when using carrier systems on the ball coupling.
Permissible rear axle load when towing a trailer Towing a trailer is not possible with all models. For further information, see (Y
page 196).Model Manual transmission Automatic transmission
CLA 180
995 kg 995 kg
CLA 180 d
1000 kg 995 kg
CLA 200
995 kg 995 kg
CLA 200 d
1000 kg 995 kg
CLA 250
1010 kg 1010 kg
Model Manual transmission
CLA 180 BlueEFFICIENCY Edition
985 kg
Model Automatic transmission
CLA 220
1005 kg
CLA 200 d 4MATIC
1045 kg
CLA 220 4MATIC
1055 kg
CLA 220 d
995 kg
CLA 220 d 4MATIC
1045 kg
CLA 250 4MATIC
1055 kg Trailer tow hitch
337Technical data Z
