2016 MERCEDES-BENZ CLA COUPE Owners Manual

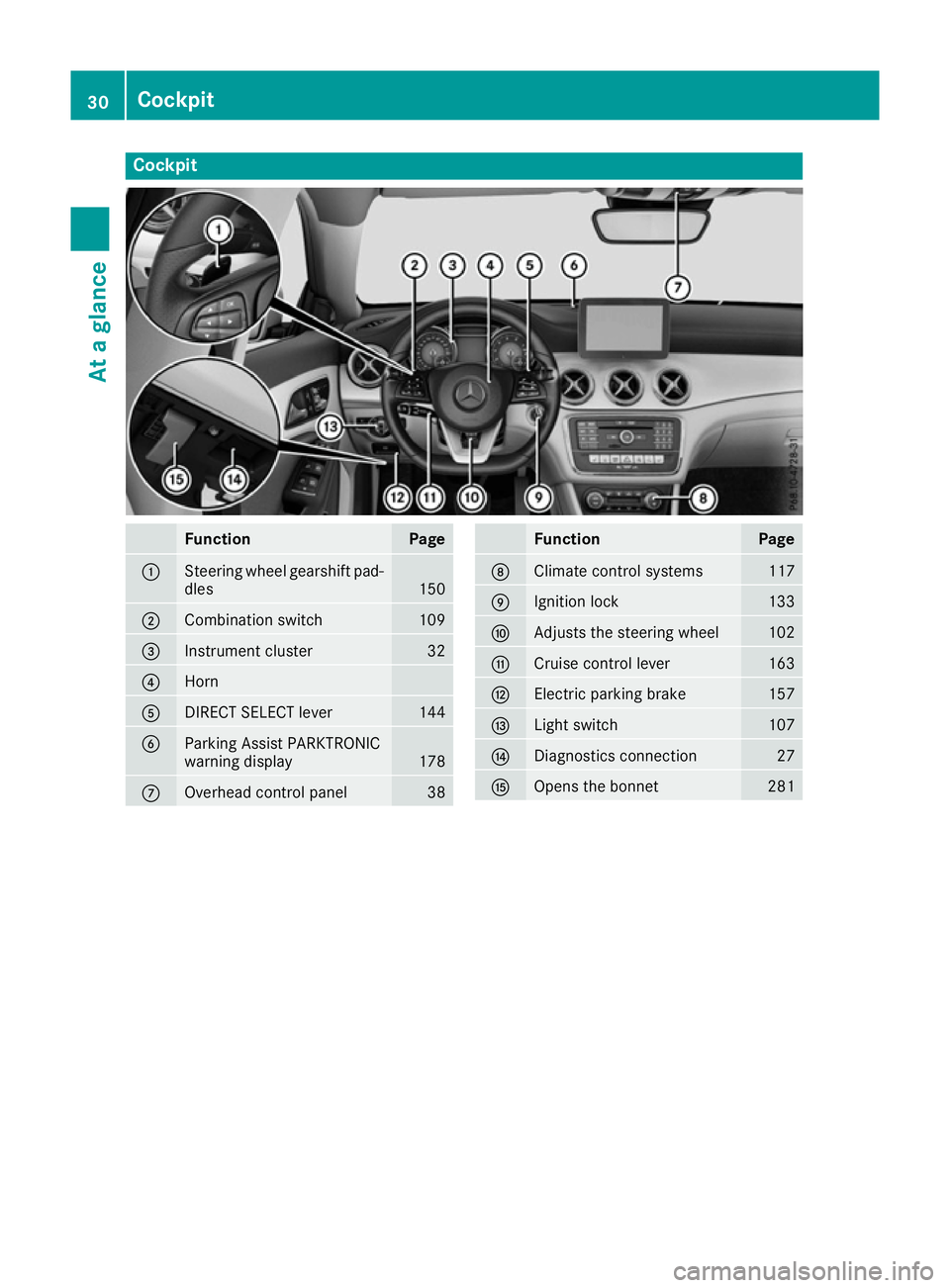

Cockpit
Function Page
:
Steering wheel gearshift pad-
dles 150
;
Combination switch 109
=
Instrument cluster 32
?
Horn
A
DIRECT SELECT lever 144
B
Parking Assist PARKTRONIC
warning display
178
C
Overhead control panel 38 Function Page
D
Climate control systems 117
E
Ignition lock 133
F
Adjusts the steering wheel 102
G
Cruise control lever 163
H
Electric parking brake 157
I
Light switch 107
J
Diagnostics connection 27
K
Opens the bonnet 28130

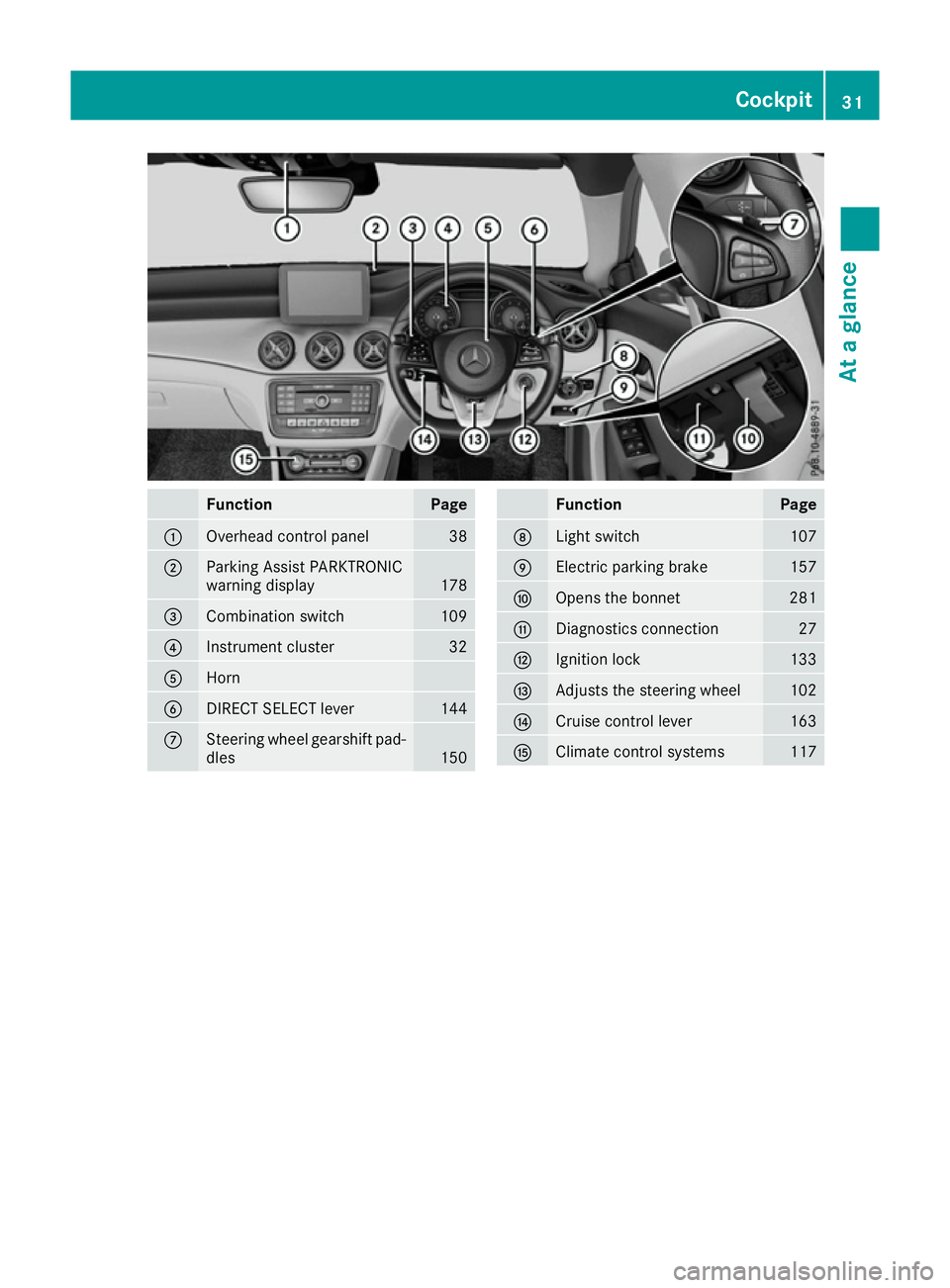

CockpitAt a glance

Function Page
:
Overhead control panel 38
;
Parking Assist PARKTRONIC
warning display
178
=
Combination switch 109
?
Instrument cluster 32
A
Horn
B
DIRECT SELECT lever 144
C
Steering wheel gearshift pad-
dles 150 Function Page
D
Light switch 107
E
Electric parking brake 157
F
Opens the bonnet 281
G
Diagnostics connection 27
H
Ignition lock 133
I
Adjusts the steering wheel 102
J
Cruise control lever 163
K
Climate control systems 117Cockpit
31At a glance

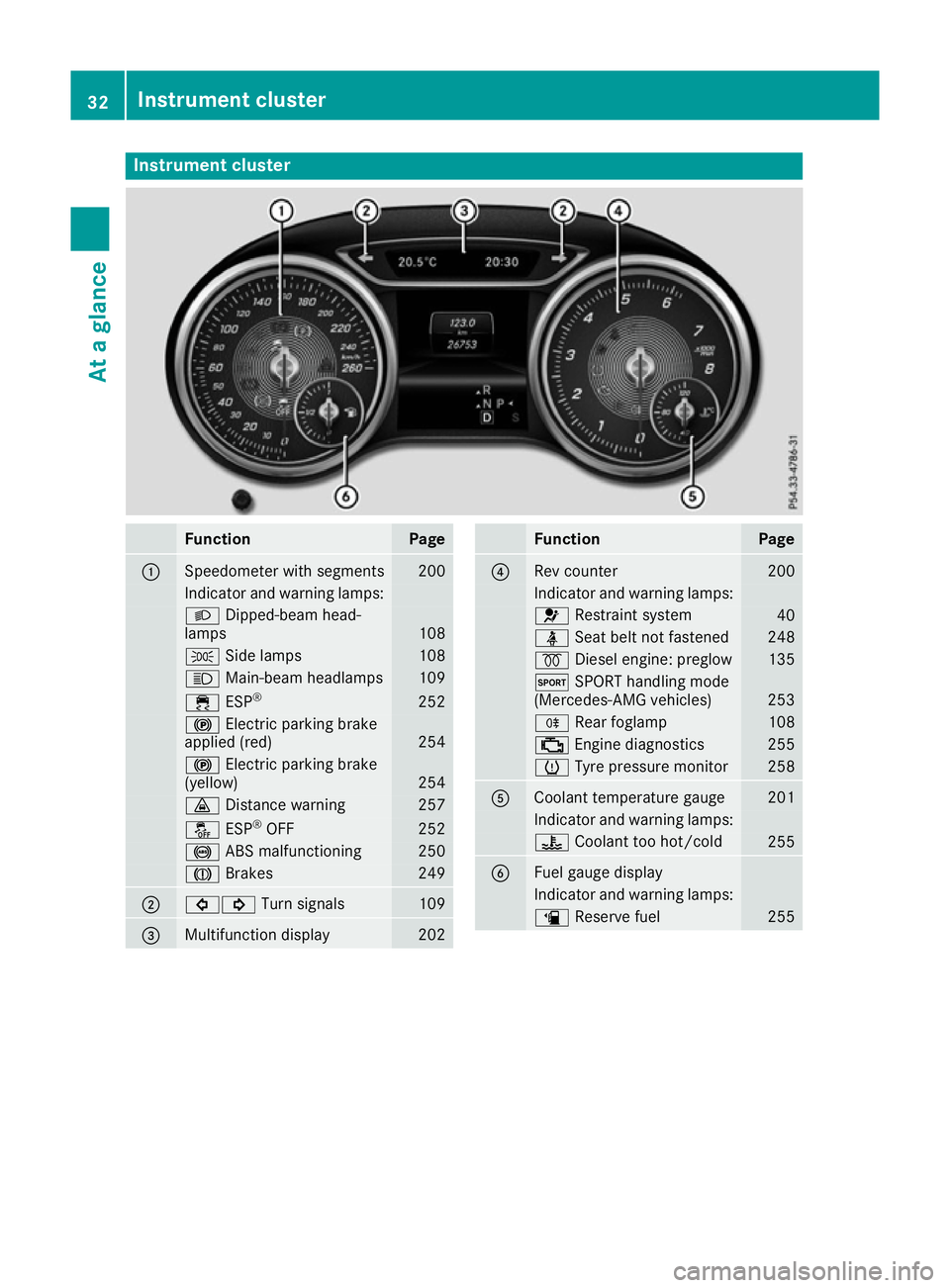

Instrument cluster
Function Page
:
Speedometer with segments 200
Indicator and warning lamps:
L
Dipped-beam head-
lamps 108
T
Side lamps 108
K
Main-beam headlamps 109
÷
ESP® 252
!
Electric parking brake
applied (red) 254
!
Electric parking brake
(yellow) 254
·
Distance warning 257
å
ESP®
OFF 252
!
ABS malfunctioning 250
J
Brakes 249
;
#!
Turn signals 109
=
Multifunction display 202 Function Page
?
Rev counter 200
Indicator and warning lamps:
6
Restraint system 40
ü
Seat belt not fastened 248
%
Diesel engine: preglow 135
M
SPORT handling mode
(Mercedes-AMG vehicles) 253
R
Rear foglamp 108
;
Engine diagnostics 255
h
Tyre pressure monitor 258
A
Coolant temperature gauge 201
Indicator and warning lamps:
?
Coolant too hot/cold 255
B
Fuel gauge display
Indicator and warning lamps:
æ
Reserve fuel 25532
Instrument clusterAt a glance

Multifunction steering wheel
Function Page
:
Multifunction display 202
;
Multimedia system display
=
~
Rejects or ends a call 6
Makes or accepts a call Further telephone functions 207
WXAdjusts the vol-
ume 8
Mute ?
Switches on voice-
operated control for naviga-
tion or LINGUATRONIC Function Page
?
ò
Opens the menu list 9:Selects a menu
a
Confirms the selection %
Back Operates the on-board com-
puter
201
?
Switches off voice-
operated control for naviga-
tion or LINGUATRONIC i
You can find further information in vehicles
with an Audio 20 multimedia system:
R on the multimedia system in the Digital
Owner's Manual
R on voice-controlled navigation in the man-
ufacturer's operating instructions i
You can find further information in vehicles
with a COMAND Online multimedia system:
R on the multimedia system in the Digital
Owner's Manual
R on the DVD changer or single DVD drive in
the Digital Owner's Manual
R on LINGUATRONIC in the separate operat-
ing instructions Multifunction steering wheel
33At a glance

Centre console
Centre console, upper section
Function Page
:
Multimedia system; see the
separate operating instruc-
tions
;
c
Seat heating 101
Mercedes-AMG vehicles:
AMG RIDE CONTROL (left
side) 175
Mercedes-AMG vehicles:
adjusts the exhaust flap of
the AMG performance
exhaust system (right side) 139
=
c
Parking Assist
PARKTRONIC 179 Function Page
?
è
ECO start/stop func-
tion 137
A
£
Hazard warning lamps 109
B
PASSENGER AIRBAG indica-
tor lamps 40
C
DYNAMIC SELECT button 141
å
Mercedes-AMG vehi-
cles: ESP ® 71
D
&
Auxiliary heating 12634
Centre consoleAt a glance

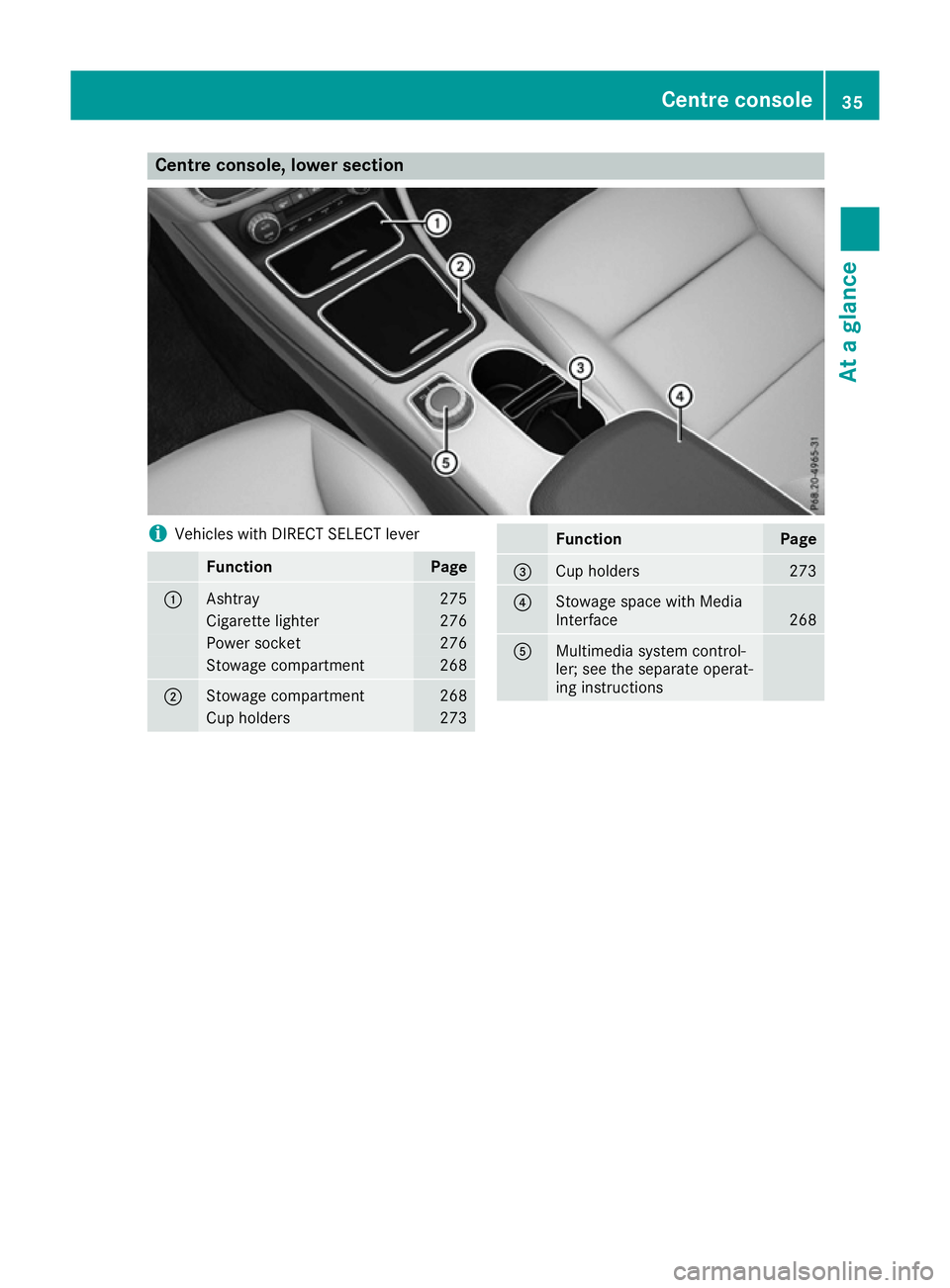

Centre console, lower section
i
Vehicles with DIRECT SELECT lever Function Page
:
Ashtray 275
Cigarette lighter 276
Power socket 276
Stowage compartment 268
;
Stowage compartment 268
Cup holders 273 Function Page
=
Cup holders 273
?
Stowage space with Media
Interface
268
A
Multimedia system control-
ler; see the separate operat-
ing instructions Centre console
35At a glance

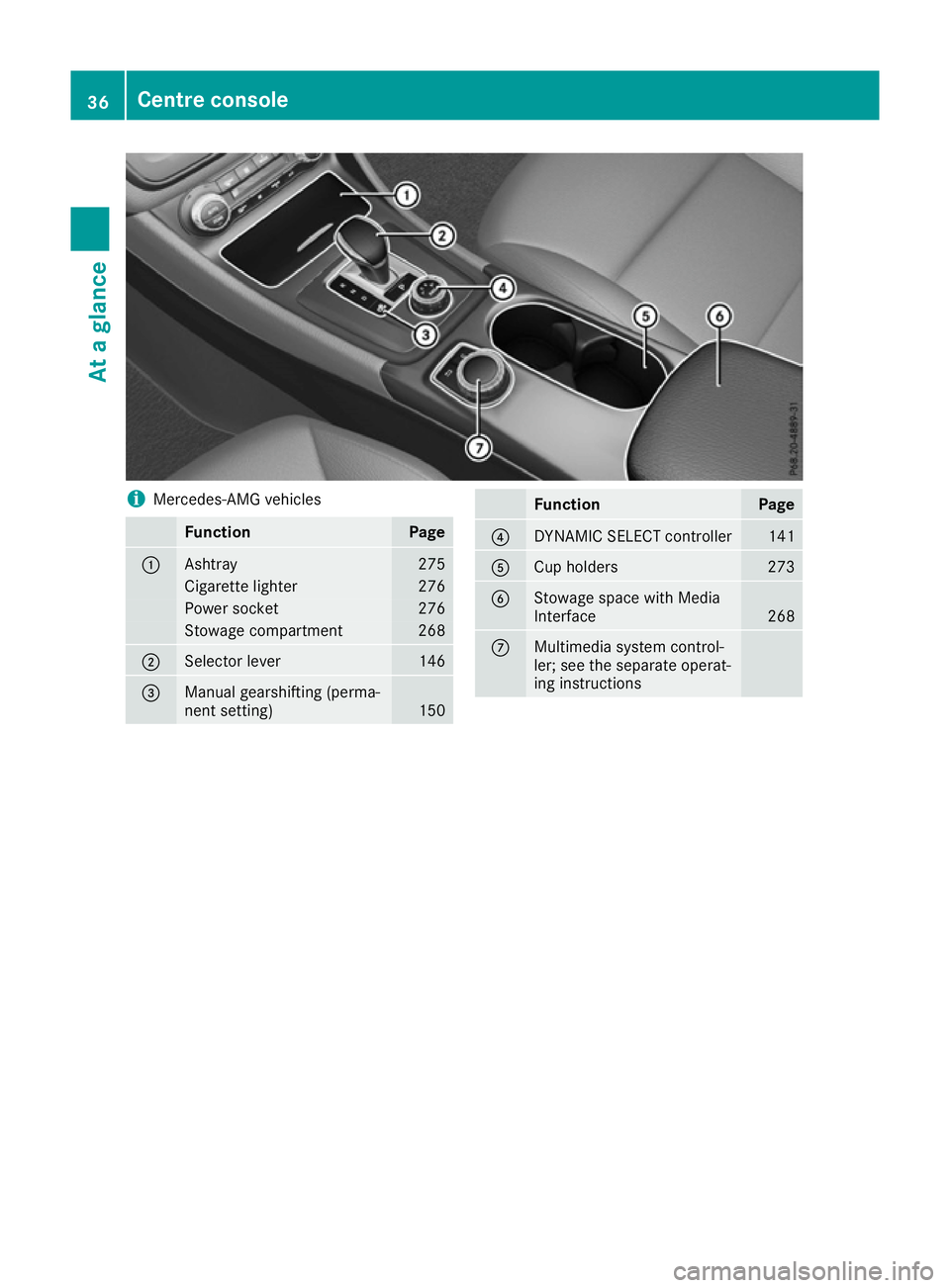

i
Mercedes-AMG vehicles Function Page
:
Ashtray 275
Cigarette lighter 276
Power socket 276
Stowage compartment 268
;
Selector lever 146
=
Manual gearshifting (perma-
nent setting)
150 Function Page
?
DYNAMIC SELECT controller 141
A
Cup holders 273
B
Stowage space with Media
Interface
268
C
Multimedia system control-
ler; see the separate operat-
ing instructions36
Centre consoleAt a glance

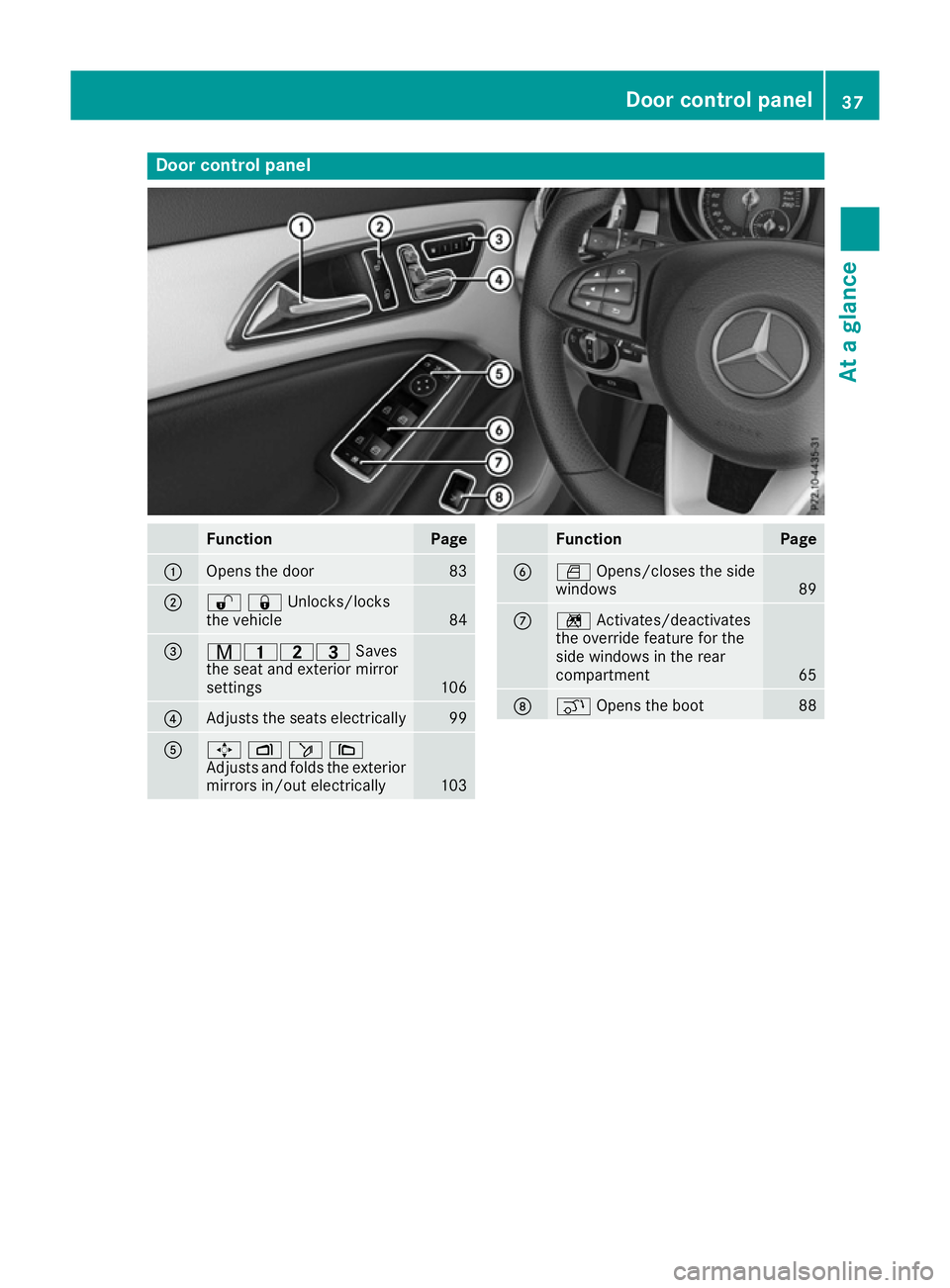

Door control panel
Function Page
:
Opens the door 83
;
%&Unlocks/locks
the vehicle
84
=
r45=
Saves
the seat and exterior mirror
settings 106
?
Adjusts the seats electrically 99
A
7
Zö\
Adjusts and folds the exterior
mirrors in/out electrically 103 Function Page
B
W
Opens/closes the side
windows 89
C
n
Activates/deactivates
the override feature for the
side windows in the rear
compartment 65
D
q
Opens the boot 88Door control panel
37At a glance
