2016 MAZDA MODEL CX-3 Owners Manual (in English)

*Some models.2–5
Essential Safety Equipment
Seats
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch to illuminate
the indicator light while the ignition
is switched ON. The mode changes as
follows each time the seat warmer switch
is pressed.
OFF
High
Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.



¾ Infants, small babies, elderly
people, and physically challenged
people



¾ People with delicate skin



¾ People who are excessively fatigued



¾ People who are intoxicated



¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.

Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.

Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
NOTE



y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.



y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.



y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–6
Essential Safety Equipment
Seats
Rear Seat
Split Folding the Seatback
By lowering the rear seatbacks the luggage
compartment space can be expanded.
WARNING
Do not drive the vehicle with occupants
on folded down seatbacks or in the
luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.

Do not allow children to play inside the
vehicle with the seatbacks lowered.
Allowing children to play in the
vehicle with the seatbacks folded
down is dangerous. If a child enters
the luggage compartment and the
seatbacks were raised back up, the
child may become trapped in the
luggage compartment which could
lead to an accident.

Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or
a collision resulting in an unexpected
accident.
When transporting cargo, do not allow
the cargo to exceed the height of the
seatbacks.
Transporting cargo stacked higher
than the seatbacks is dangerous as
visibility to the rear and sides of the
vehicle is reduced which could interfere
with driving operations and lead to an
accident.
Lowering the seatbacks
CAUTION



¾ When folding the seatback forward,
always support the seatback with your
hand. If it is not supported by a hand,
fi ngers or the hand pressing the push
knob could be injured.



¾ Check the position of a front seat before
folding a rear seatback.
  Depending on the position of a front
seat, it may not be possible to fold a rear
seatback all the way down because it
may hit the seatback of the front seat
which could scratch or damage the front
seat or its pocket. Remove the head
restraint on the rear outboard seat if
necessary.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–7
Essential Safety Equipment
Seats
1. Lower the head restraint all the way
down.
Refer to Head Restraints on page 2-8 .
2. Press the push knob to fold down the
seatback.
Push knob
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback
and the 3-point seat belt is not twisted.
If the seat belt is used while it is twisted
and caught in the seatback, the seat
belt cannot function at its full capacity,
which could cause serious injury or
death. When returning a seatback to its
upright position, make sure that it is
fi rmly locked and the red indication is
not visible.
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.

Red indicationUnlocked positionLocked position
1. Make sure that the seat belt passes
through the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.
Seat belt guideRed indication
2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–8
Essential Safety Equipment
Seats
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted.
In addition, always raise the head
restraints mentioned below when they
are being used:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be seriously
injured in a collision.

(Head restraints which must be raised
for use)



¾ All rear seat head restraints
Height Adjustment
Adjust the head restraint so that the center
is even with the top of the passenger's ears.
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Front outboard seat
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–9
Essential Safety Equipment
Seats
Rear outboard seat
Except Mexico
Mexico
Rear center seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.

After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
eff ectiveness of the head restraint will
be compromised which could cause it
to unexpectedly detach from the seat.
CAUTION



¾ When installing a head restraint, make
sure that it is installed correctly with
the front of the head restraint facing
forward. If the head restraint is installed
incorrectly, it could detach from the seat
during a collision and result in injury.



¾ The head restraints on each of the front
and rear seats are specialized to each
seat. Do not switch around the head
restraint positions. If a head restraint is
not installed to its correct seat position,
the eff ectiveness of the head restraint
during a collision will be compromised
which could cause injury.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC

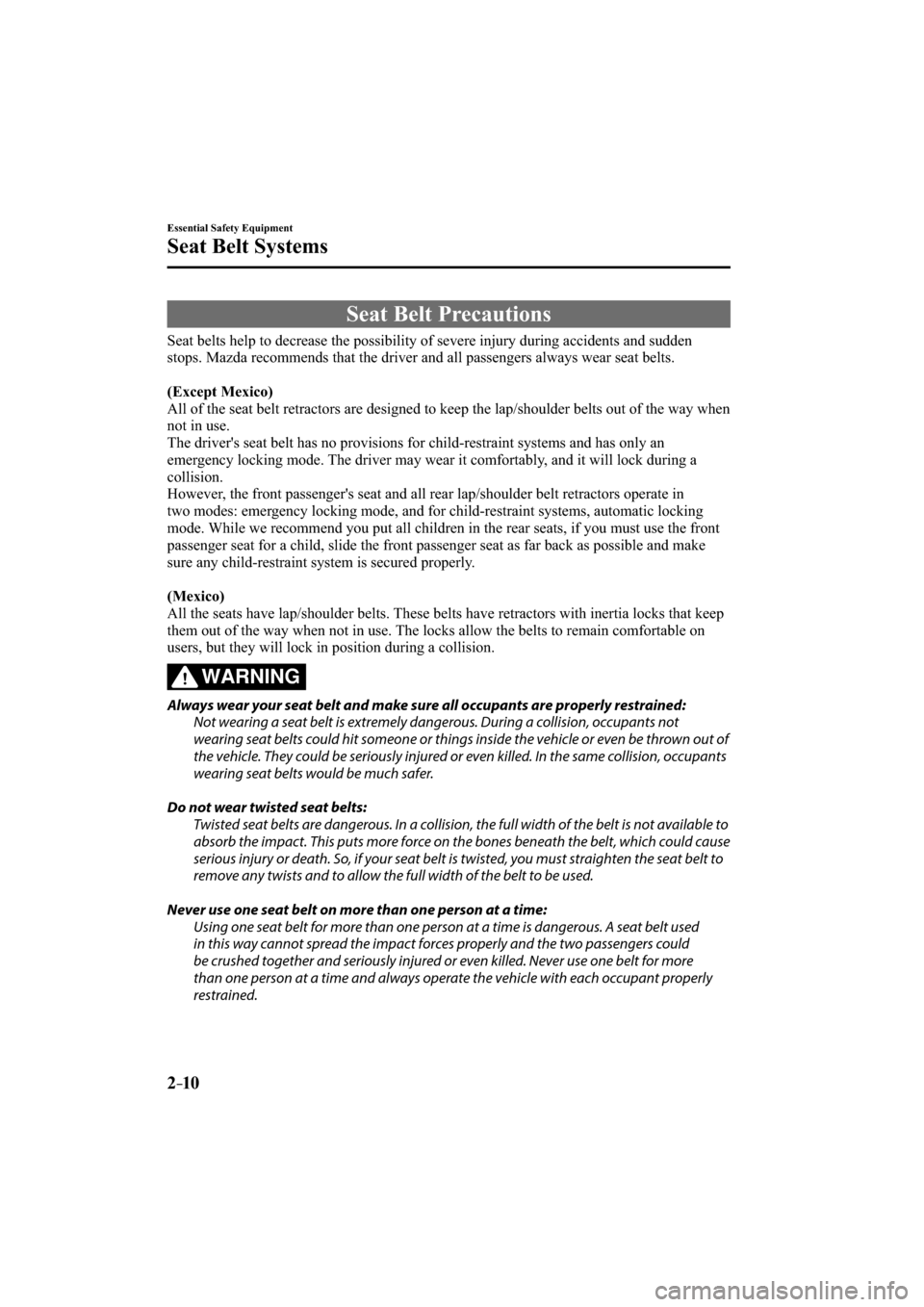

2–10
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
(Except Mexico)
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when
not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in
two modes: emergency locking mode, and for child-restraint systems, automatic locking
mode. While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
(Mexico)
All the seats have lap/shoulder belts. These belts have retractors with inertia locks that keep
them out of the way when not in use. The locks allow the belts to remain comfortable on
users, but they will lock in position during a collision.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out of
the vehicle. They could be seriously injured or even killed. In the same collision, occupants
wearing seat belts would be much safer.

Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to
absorb the impact. This puts more force on the bones beneath the belt, which could cause
serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to
remove any twists and to allow the full width of the belt to be used.

Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could
be crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–11
Essential Safety Equipment
Seat Belt Systems
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an
accident before they are used again.

Have your seat belts changed immediately if the pretensioner or load limiter has been
expended: Always have an Authorized Mazda Dealer immediately inspect the seat belt pretensioners
and air bags after any collision. Like the air bags, the seat belt pretensioners and load
limiters will only function once and must be replaced after any collision that caused them
to deploy. A seat belt with an expended pretensioner or load limiter is still better than
wearing no seat belt at all; however, if the seat belt pretensioners and load limiters are
not replaced, the risk of injury in a collision will increase.

Positioning the Shoulder Portion of the Seat Belt: Improper positioning of the shoulder portion of the seat belt is dangerous. Always make
sure the shoulder portion of the seat belt is positioned across your shoulder and near your
neck, but never under your arm, on your neck, or on your upper arm.

Positioning the Lap Portion of the Seat Belt: The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury. Wear
the lap portion of the belt snugly and as low as possible.
CAUTION
Belt retraction may become diffi cult if the belts and rings are soiled, so try to keep them
clean. For more details about cleaning the seat belts, refer to "Cleaning the Lap/Shoulder
Belt Webbing" (page 6-66 ).

Ring
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.2–12
Essential Safety Equipment
Seat Belt Systems
Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specifi c
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your doctor
for any special instructions regarding specifi c medical conditions.
Emergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out
slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the belt
feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it
may be in the automatic locking mode because the belt has been pulled too far out. To return
the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped
in a safe, level area, retract the belt fully to convert it back to emergency locking mode and
then extend it around you again.
Automatic Locking Mode *
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will retract
down to the child-restraint system and stay locked on it. See the section on child restraint
(page 2-18 ).
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
