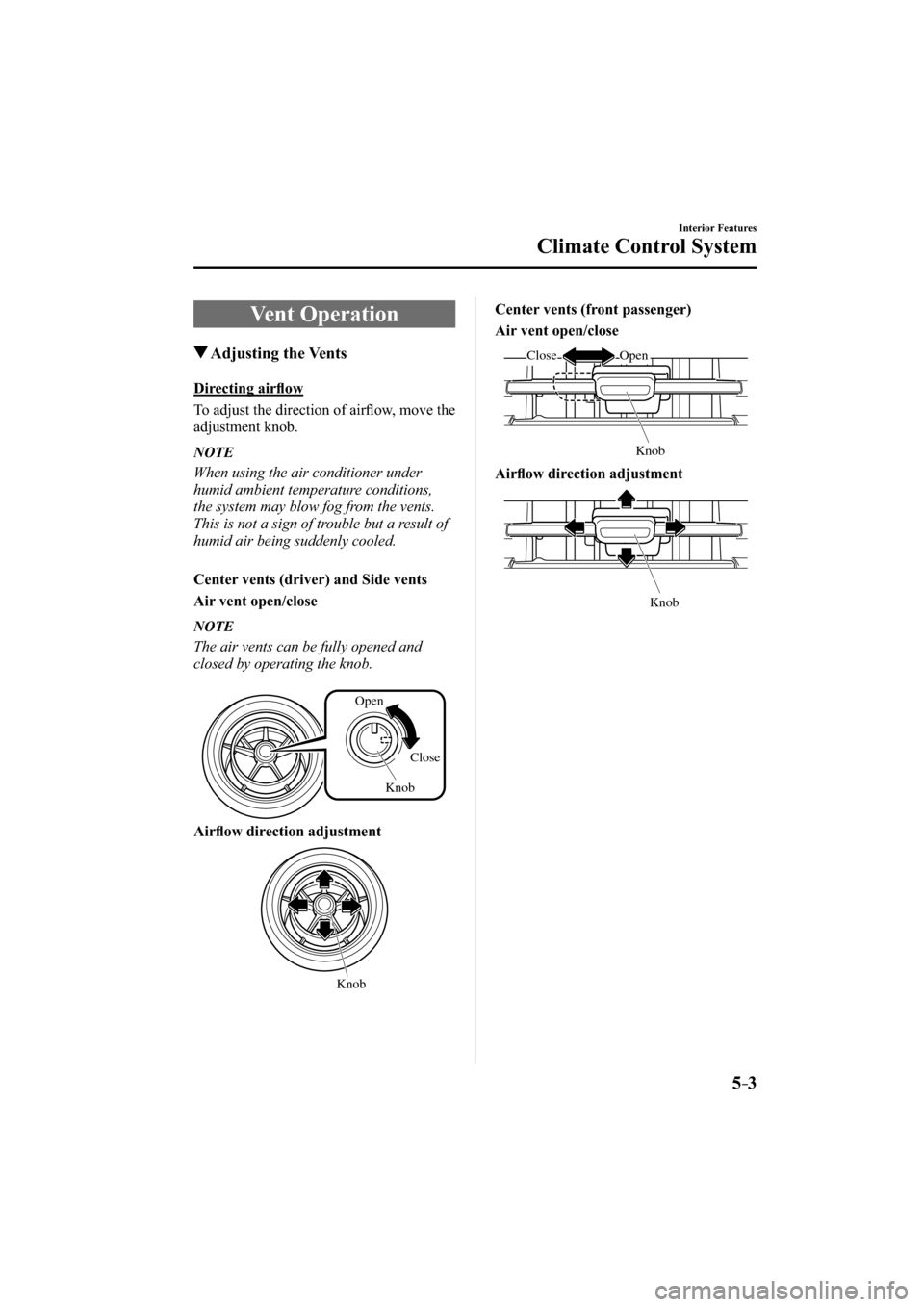

Interior Features
Climate Control System
Vent Operation
Adjusting the Vents
Directing airfl ow
To adjust the direction of airfl ow, move the
adjustment knob.
NOTE
When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result of
humid air being suddenly cooled.
Center vents (driver) and Side vents
Air vent open/close
NOTE
The air vents can be fully opened and
closed by operating the knob.
Open
Close
Knob
Airfl ow direction adjustment
Knob
Center vents (front passenger)
Air vent open/close
OpenClose
Knob
Airfl ow direction adjustment
Knob
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–4
Interior Features
Climate Control System
Selecting the Airfl ow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor VentsDefroster and Floor Vents
Defroster Vents
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–5
Interior Features
Climate Control System
Manual Type
Rear window defogger switch
Air intake selector (outside air position)
Air intake selector (recirculated air position) Fan control dial Temperature control dial
A/C switch Mode selector dial
Temperature control dial Fan control dialRear window defogger switch
A/C switch
Air intake selectorMode selector dial Type A
Type B
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–6
Interior Features
Climate Control System
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
NOTE
(Type A)
When the mode is set to
or with the
fan control dial in a position other than 0
and the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch
to turn it off.
Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Mode selector dial
Turn the mode selector dial to select
airfl ow mode (page 5-4 ).
NOTE




y The mode selector dial can be set at the
intermediate positions (
) between
each mode. Set the dial to an
intermediate position if you want to split
the airfl ow between the two modes.



y For example, when the mode selector
dial is at the
position between the
and positions, airfl ow from the fl oor
vent is less than that of the
position.
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is set at position 1, 2, 3, or 4.
Press the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).
Air intake selector (Type A)
This switch controls the source of air
entering the vehicle.
Press the air intake selector switch to
alternate between the outside air and
recirculated air positions.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
Outside air position (
)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
WARNING
Do not use the recirculated air position
in cold or rainy weather:
Using the recirculated air position in
cold or rainy weather is dangerous as it
will cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–7
Interior Features
Climate Control System
Air intake selector (Type B)
This lever controls the source of air
entering the vehicle.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
Outside air position (
)
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
WARNING
Do not use the position in cold or
rainy weather:
Using the
position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
Heating
1. Set the mode selector dial to the
position.
2. (Type A)
Set the air intake selector to the outside
air position.
(Type B)
Set the air intake selector to the
position.
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidifi ed heating is desired, turn
on the air conditioner.
NOTE



y If the windshield fogs up easily, set the
mode selector dial to the
position.


y If cooler air is desired at face level, set
the mode selector dial to the
position
and adjust the temperature control dial
to maintain maximum comfort.



y The air to the fl oor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).
Cooling (With air conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. After cooling begins, adjust the fan
control dial and temperature control
dial as needed to maintain maximum
comfort.
CAUTION
If the air conditioner is used while
driving up long hills or in heavy
traffi c, monitor the engine coolant
temperature warning light to see if it is
illuminated or fl ashing (page 4-24 ).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or fl ashing, turn the air
conditioning off (page 7-22 ).
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–8
Interior Features
Climate Control System
NOTE



y When maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the recirculated air
position, then set the fan control dial to
position 4.



y If warmer air is desired at fl oor level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.



y The air to the fl oor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).
Ventilation
1. Set the mode selector dial to the
position.
2. (Type A)
Set the air intake selector to the outside
air position.
(Type B)
Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
Windshield Defrosting and
Defogging
1. Set the mode selector dial to the
position.
2. (Type B)
Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. If dehumidifi ed heating is desired, turn
on the air conditioner.
WARNING
Do not defog the windshield using the
position with the temperature
control set to the cold position:
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident. Set
the temperature control to the hot or
warm position when using the

position.
NOTE



y For maximum defrosting, turn on the air
conditioner, set the temperature control
dial to the extreme hot position, and the
fan control dial to position 4.



y If warm air is desired at the fl oor, set the
mode selector dial to the
position.


y (Type A)
 In the or position, the air
conditioner is automatically turned on
and the outside air position is
automatically selected to defrost the
windshield. In the
or position, the
outside air position cannot be changed
to the recirculated air position.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–9
Interior Features
Climate Control System
Dehumidifying (With air
conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the desired
position.
2. (Type A)
Set the air intake selector to the outside
air position.
(Type B)
Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner by pressing
the A/C switch.
NOTE
One of the functions of the air conditioner
is dehumidifying the air and, to use
this function, the temperature does not
have to be set to cold. Therefore, set the
temperature control dial to the desired
position (hot or cold) and turn on the air
conditioner when you want to dehumidify
the cabin air.
