2016 MAZDA MODEL CX-3 Owners Manual (in English)

*Some models.6–65
Maintenance and Care
Appearance Care
Cleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
*
Remove dust and sand fi rst using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
NOTE



y Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.



y To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.



y Sand and dust on the seat surface may
damage the overcoat of the genuine
leather surfaces and accelerate wear.



y Greasy soiling on genuine leather may
cause molding and stains.



y Rubbing hard with a stiff brush or cloth
may cause damage.



y Do not wipe the leather using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, or gasoline.
Otherwise, it may cause discoloration
or stains.



y If the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.



y Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.



y Do not leave vinyl products on the seats
for long periods as they may affect
the leather quality and coloring. If the
cabin temperature becomes hot, the
vinyl may deteriorate and adhere to the
genuine leather.
Fabric and Synthetic Leather
Allowing the material to remain dirty
makes it hard to clean later and may cause
stains or discoloration. Clean as soon as
possible.
Fabric
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
CAUTION
Use only recommended cleaners
and procedures. Others may aff ect
appearance and fi re-resistance.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.6–66
Maintenance and Care
Appearance Care
Synthetic leather
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted in water.
3. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Panel
When the interior panels need to be
cleaned, use soft material such as a soft
cloth soaked in clean water and wrung
out well and lightly wipe off dirt from
the surface. If a panel requires further
cleaning, use the following procedure.
1. Wipe dirt off using a soft cloth soaked
in mild detergent (about 5% solution).
2. Wipe off any remaining detergent
using a cloth soaked in clean water and
wrung out well.
NOTE



y Do not wipe leather parts using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, or gasoline.
Otherwise, it may cause discoloration
or stains.



y Scratches or nicks on the panels and
metallic trim resulting from the use
of a hard brush or cloth may not be
repairable.



y Be particularly careful when cleaning
high lustre panels and metallic trim as
they can be easily scratched.
Maintenance of the Active Driving
Display*
The combiner and mirror surface have a
special coating. When cleaning, do not use
a hard or rough-surface cloth, or cleaning
detergent. In addition, if a chemical
solvent gets on the active driving display,
wipe it off immediately. Otherwise, the
combiner and mirror could be damaged
and the surface coating could be scratched.
Use a fi ne, soft cloth such as those used
for cleaning eyeglasses.
Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Do not bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is no
remaining moisture before retracting them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–67
Maintenance and Care
Appearance Care

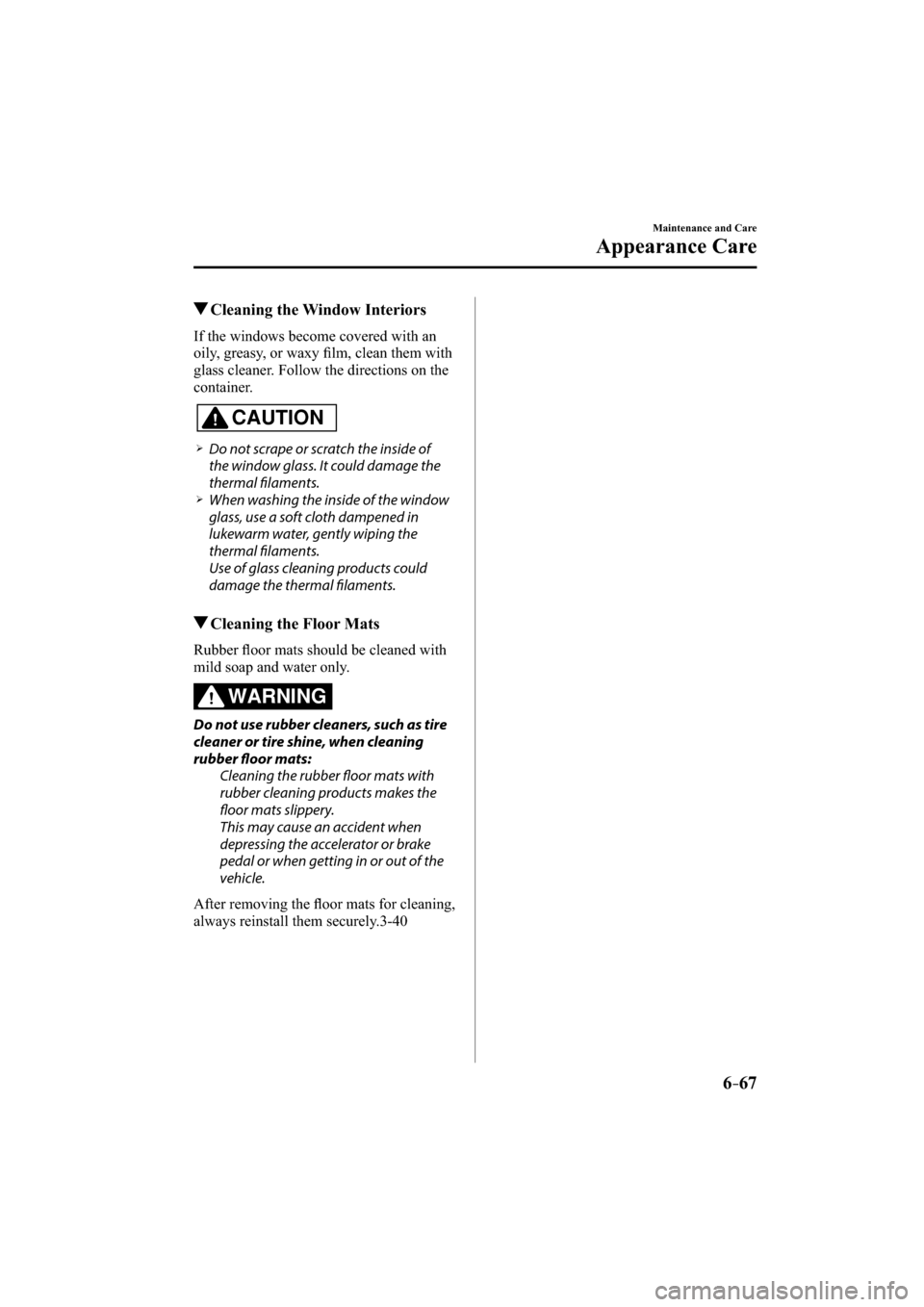

Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy fi lm, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION



¾ Do not scrape or scratch the inside of
the window glass. It could damage the
thermal fi laments.



¾ When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal fi laments.
  Use of glass cleaning products could
damage the thermal fi laments.
Cleaning the Floor Mats
Rubber fl oor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber fl oor mats:
Cleaning the rubber fl oor mats with
rubber cleaning products makes the
fl oor mats slippery.
This may cause an accident when
depressing the accelerator or brake
pedal or when getting in or out of the
vehicle.
After removing the fl oor mats for cleaning,
always reinstall them securely. 3-40
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–68
MEMO
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–1
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.



Parking in an Emergency .................................................................. 7-2
Parking in an Emergency .............................................................. 7-2
Flat Tire............................................................................................... 7-3
Spare Tire and Tool Storage .......................................................... 7-3
Changing a Flat Tire ...................................................................... 7-8
Battery Runs Out ............................................................................. 7-18
Jump-Starting .............................................................................. 7-18
Emergency Starting ......................................................................... 7-21
Starting a Flooded Engine ........................................................... 7-21
Push-Starting ............................................................................... 7-21
Overheating ...................................................................................... 7-22
Overheating ................................................................................. 7-22
Emergency Towing ........................................................................... 7-24
Towing Description ..................................................................... 7-24
Tiedown Hooks
* .......................................................................... 7-25
Warning/Indicator Lights and Warning Sounds ........................... 7-27
If a Warning Light Turns On or Flashes...................................... 7-27
Message Indicated on Display
* ................................................... 7-37
Warning Sound is Activated ........................................................ 7-39
When Liftgate Cannot be Opened .................................................. 7-44
When Liftgate Cannot be Opened ............................................... 7-44
Active Driving Display Does Not Operate
* .................................... 7-45
If the Active Driving Display does not operate .......................... 7-45
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–2
If Trouble Arises
Parking in an Emergency
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffi c hazard
and that they must take extreme caution
when near it.
Depress the hazard warning fl asher and
all the turn signals will fl ash. The hazard
warning indicator lights in the instrument
cluster fl ash simultaneously.
NOTE




y The turn signals do not work when the
hazard warning lights are on.



y Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–3
If Trouble Arises
Flat Tire
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Jack Flat tire belt
Jack lever Spare tire hold-down bolt Spare tire With sub-woofer
Type A
Tiedown eyelet
Lug wrench
Jack
Jack lever Spare tire hold-down bolt Spare tire Type B
Tiedown eyelet
Lug wrench
Some models.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–4
If Trouble Arises
Flat Tire
Spare tire hold-down bolt
Tiedown eyelet
Jack
Spare tire
Jack lever Lug wrench
Spare tire hold-down bolt Without sub-woofer
Tiedown eyelet
Jack
Flat tire belt
Spare tire
Jack lever Lug wrench
Type A
Type B
Some models.
