When Driving
i-ACTIVSENSE
Blind Spot Monitoring (BSM) OFF
Indicator Light



y When the ignition is switched ON, the
malfunction warning light turns on
momentarily and then turns off after a
few seconds.



y The Blind Spot Monitoring (BSM) OFF
indicator light illuminates when the
Blind Spot Monitoring (BSM) switch
is pressed to turn off the Blind Spot
Monitoring (BSM) and Rear Cross
Traffi c Alert (RCTA) systems.




y A malfunction in the system may
be indicated under the following
conditions. Have your vehicle inspected
at an Authorized Mazda Dealer.


y
 The light does not turn on when the
ignition is switched ON.


y
 The light remains turned on even if the
Blind Spot Monitoring (BSM) switch
is operated.


y
 It turns on while driving the vehicle.
Blind Spot Monitoring (BSM)
Switch
When the Blind Spot Monitoring
(BSM) switch is pressed, the Blind Spot
Monitoring (BSM) and Rear Cross Traffi c
Alert (RCTA) systems are turned off and
the Blind Spot Monitoring (BSM) OFF
indicator light in the instrument cluster
turns on.
If the switch is pressed again, the Blind
Spot Monitoring (BSM) and Rear Cross
Traffi c Alert (RCTA) systems become
operable and the Blind Spot Monitoring
(BSM) OFF indicator light turns off.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–86
When Driving
i-ACTIVSENSE
NOTE



y When the ignition is switched off, the
condition before the system was turned
off is maintained. For example, if the
ignition is switched OFF while the
Blind Spot Monitoring (BSM) and Rear
Cross Traffi c Alert (RCTA) systems are
operational, the Blind Spot Monitoring
(BSM) and Rear Cross Traffi c Alert
(RCTA) systems remain operational the
next time the ignition is switched ON.



y The Blind Spot Monitoring (BSM) and
Rear Cross Traffi c Alert (RCTA) systems
are turned off when the battery is
disconnected such as when the battery
terminals or fuses have been removed
and re-installed. To turn the Blind Spot
Monitoring (BSM) and Rear Cross
Traffi c Alert (RCTA) systems back on,
press the Blind Spot Monitoring (BSM)
switch.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.4–87
When Driving
i-ACTIVSENSE
Distance Recognition Support System (DRSS) *
The Distance Recognition Support System (DRSS) measures the distance between your
vehicle and a vehicle ahead using a radar sensor (front) while the vehicle speed is 30 km/h
or faster (19 mph or faster), and indicates a recommended distance to maintain between the
vehicles. Furthermore, if your vehicle approaches a vehicle ahead more closely than the
appropriate distance to maintain between the vehicles, the vehicle-ahead indication in the
active driving display is fl ashed to advise the driver to keep a safer distance from the vehicle
ahead.
WARNING
Do not rely completely on the Distance Recognition Support System (DRSS) and always
drive carefully:
The Distance Recognition Support System (DRSS) provides advice for safer driving and
notifi es the driver of a recommended, safer distance to maintain with a vehicle ahead.
The ability to detect a vehicle ahead is limited depending on the type of vehicle ahead,
the weather conditions, and the traffi c conditions. Therefore, if the accelerator and brake
pedals are not operated correctly it could lead to an accident. Always verify the safety of
the surrounding area and depress the brake pedal or accelerator pedal while keeping a
safer distance from vehicles ahead or on-coming vehicles.
NOTE



y The Distance Recognition Support System (DRSS) operates when all of the following
conditions are met:



y The ignition is switched ON.



y The Distance Recognition Support System (DRSS) is on.



y The selector lever is in a position other than reverse (R).



y The vehicle speed is 30 km/h or faster (19 mph or faster).




y The objects which activate the system are 4-wheeled vehicles.



y The Distance Recognition Support System (DRSS) may also operate in the presence of
motorcycles and bicycles.



y The Distance Recognition Support System (DRSS) may not operate normally under the
following conditions:



y The Dynamic Stability Control (DSC) has a malfunction.



y The vehicle ahead is traveling at an extremely slow speed.




y The system does not operate with the following objects:




y Vehicles approaching in the opposite direction.



y Stationary objects (stopped vehicles, obstructions)
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–88
When Driving
i-ACTIVSENSE
Indication on Display
The Distance Recognition Support System (DRSS) operation status is displayed in the
active driving display.
Problems are indicated in the center display (Type B audio). If there is a problem, take
appropriate action according to the displayed message.
Refer to Warning/Indicator Lights on page 4-24 .
NOTE



y When the ignition is switched off, the operation status before the system was turned off
is maintained. For example, if the ignition is switched off with the Distance Recognition
Support System (DRSS) operable, the system will be operable when the ignition is
switched ON the next time.



y The Distance Recognition Support System (DRSS) can be turned on/off and the system's
sensitivity can be changed.
Refer to Personalization Features on page 9-10 .
Vehicle ahead
display
Distance between
vehicle display
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–89
When Driving
i-ACTIVSENSE
Distance-between-vehicles guidelines *1
Indication on display Distance between vehicles
guidelines
(During travel at about 40km/h
(25 mph)) Distance between vehicles
guidelines
(During travel at about 80km/h
(50 mph))
About 25 m (82 ft) About 50 m (164 ft)
About 20 m (66 ft) About 40 m (131 ft)
About 15 m (49 ft) About 30 m (98 ft)
About 10 m (32 ft) About 20 m (65 ft)
About 10 m (32 ft) or less About 20 m (65 ft) or less
*1 The distance between vehicles differs depending on vehicle speed.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.4–90
When Driving
i-ACTIVSENSE
Rear Cross Traffi c Alert (RCTA) *
The Rear Cross Traffi c Alert (RCTA) system is designed to assist the driver in checking the
area to the rear of the vehicle on both sides while the vehicle is reversing by alerting the
driver to the presence of vehicles approaching the rear of the vehicle.
The Rear Cross Traffi c Alert (RCTA) system detects vehicles approaching from the left and
right sides of the vehicle while the vehicle is being reversed out of a parking space, and
notifi es the driver of possible danger using the Blind Spot Monitoring (BSM) warning lights
and the warning buzzer.
Detection areas
Your vehicle
Rear Cross Traffi c Alert (RCTA) operation
1. The Rear Cross Traffi c Alert (RCTA) system operates when the selector lever is shifted
to the reverse (R) position.
2. If there is the possibility of a collision with an approaching vehicle, the Blind
Spot Monitoring (BSM) warning light fl ashes and the warning beep is activated
simultaneously.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC

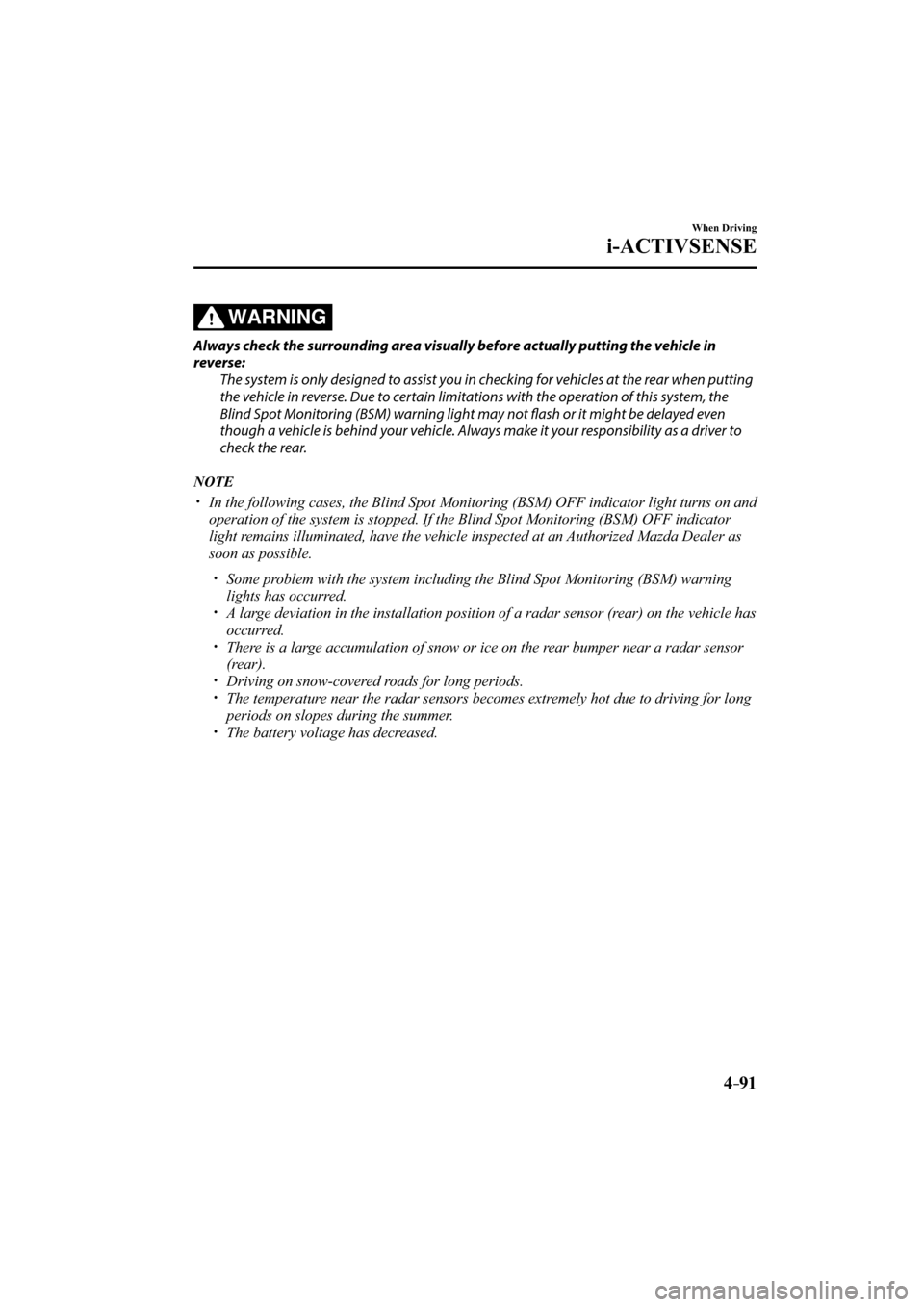

4–91
When Driving
i-ACTIVSENSE
WARNING
Always check the surrounding area visually before actually putting the vehicle in
reverse:
The system is only designed to assist you in checking for vehicles at the rear when putting
the vehicle in reverse. Due to certain limitations with the operation of this system, the
Blind Spot Monitoring (BSM) warning light may not fl ash or it might be delayed even
though a vehicle is behind your vehicle. Always make it your responsibility as a driver to
check the rear.
NOTE



y In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and
operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator
light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as
soon as possible.



y Some problem with the system including the Blind Spot Monitoring (BSM) warning
lights has occurred.



y A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.



y There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).



y Driving on snow-covered roads for long periods.



y The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.



y The battery voltage has decreased.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–92
When Driving
i-ACTIVSENSE



y Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be diffi cult to detect them.




y The vehicle speed when reversing is about 10 km/h (6 mph) or faster.



y The radar sensor (rear) detection area is obstructed by a nearby wall or parked
vehicle. Reverse the vehicle to a position where the radar sensor detection area is no
longer obstructed.)
Your vehicle



y A vehicle is approaching directly from the rear of your vehicle.
Your vehicle




y The vehicle is parked on a slant.
Your vehicle




y Directly after pressing the Blind Spot Monitoring (BSM) switch and the system
becomes operable.



y In the following cases, it may be diffi cult to view the illumination/fl ashing of the Blind
Spot Monitoring (BSM) warning lights equipped on the door mirrors.



y Snow or ice adheres to the door mirrors.



y The front door glass is fogged or covered in snow, frost or dirt.




y Turn off the Rear Cross Traffi c Alert (RCTA) system while pulling a trailer or while an
accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise,
the radio waves emitted by the radar will be blocked causing the system to not operate
normally.
$9@&)&"#@&EJUJPOJOEC
