2016 MAZDA MODEL CX-3 Owners Manual (in English)

*Some models.7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Message Indicated on Display *
If a message is displayed in the center display (Type B audio), take appropriate action (in a
calm manner) according to the displayed message.
(Display example)
Stop Vehicle in Safe Place Immediately
If the following messages are displayed in the center display (Type B audio), a vehicle
system may be malfunctioning. Stop the vehicle in a safe place and contact an Authorized
Mazda Dealer.
Display Indicated Condition
Displays if the engine coolant temperature has
increased excessively.
Displays if the charging system has a malfunction.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Verify Display Content
Displays in the following cases:
Display Indicated Condition/Action to be taken
The following message is displayed when the
temperature around the center display is high.
Lowering the temperature in the cabin or the
temperature around the center display by avoiding
direct sunlight is recommended.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Warning Sound is
Activated
Lights-On Reminder
The lights-on reminder is operable when
the time setting *1 of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or the ignition is switched off, a
continuous beep sound will be heard when
the driver's door is opened.
*1 If the light switch is left on, the auto
headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-10 .
NOTE



y When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-40 ) overrides
the lights-on reminder.



y A personalized function is available to
change the sound volume for the lights-
on reminder.
  Refer to Personalization Features on
page 9-10 .
Air Bag/Front Seat Belt
Pretensioner System Warning
Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35
minutes. Have your vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
seat belt pretensioner system warning
beep sounding is dangerous. In a
collision, the air bags and the seat belt
pretensioner system will not deploy
and this could result in death or serious
injury. Contact an Authorized Mazda
Dealer to have the vehicle inspected as
soon as possible.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Except Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the front passenger's seat belt
is not fastened and the vehicle is driven
at a speed faster than about 20 km/h (12
mph), a beep sound will be heard again for
a specifi ed period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE



y To allow the front passenger occupant
classifi cation sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.



y If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE



y Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.



y To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.



y If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened while
the ignition is switched to ACC, a
continuous beep sound will be heard to
notify the driver that the ignition has not
been switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–41
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

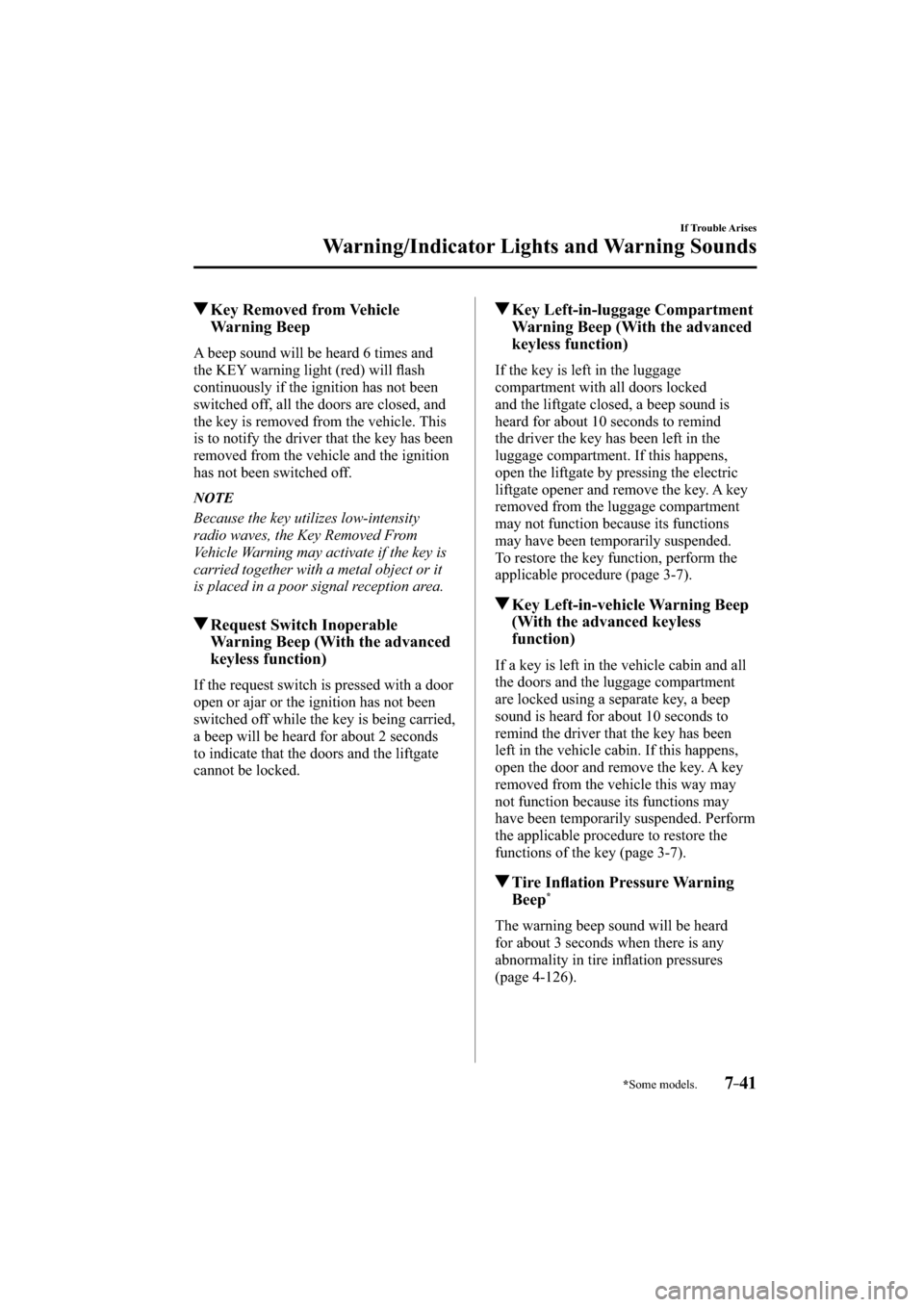

Key Removed from Vehicle
Warning Beep
A beep sound will be heard 6 times and
the KEY warning light (red) will fl ash
continuously if the ignition has not been
switched off, all the doors are closed, and
the key is removed from the vehicle. This
is to notify the driver that the key has been
removed from the vehicle and the ignition
has not been switched off.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with a door
open or ajar or the ignition has not been
switched off while the key is being carried,
a beep will be heard for about 2 seconds
to indicate that the doors and the liftgate
cannot be locked.
Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all doors locked
and the liftgate closed, a beep sound is
heard for about 10 seconds to remind
the driver the key has been left in the
luggage compartment. If this happens,
open the liftgate by pressing the electric
liftgate opener and remove the key. A key
removed from the luggage compartment
may not function because its functions
may have been temporarily suspended.
To restore the key function, perform the
applicable procedure (page 3-7 ).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If a key is left in the vehicle cabin and all
the doors and the luggage compartment
are locked using a separate key, a beep
sound is heard for about 10 seconds to
remind the driver that the key has been
left in the vehicle cabin. If this happens,
open the door and remove the key. A key
removed from the vehicle this way may
not function because its functions may
have been temporarily suspended. Perform
the applicable procedure to restore the
functions of the key (page 3-7 ).
Tire Infl ation Pressure Warning
Beep*
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tire infl ation pressures
(page 4-126 ).
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–42
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Blind Spot Monitoring (BSM)
System Warning Beep *
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-10 .
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
Lane Departure Warning System
(LDWS) Warning Sound *
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE



y The volume of the LDWS warning sound
can be changed.
  Refer to Personalization Features on
page 9-10 .



y The type of the LDWS warning sound
can be changed.
  Refer to Personalization Features on
page 9-10 .
Mazda Radar Cruise Control
(MRCC) System Warnings *
The Mazda Radar Cruise Control (MRCC)
system warnings notify the driver of
system malfunctions and cautions on use
when required.
Check based on the beep sound.
Cautions What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control (MRCC)
is operating The vehicle speed is
slower than 25 km/h (16
mph) and the Mazda
Radar Cruise Control
(MRCC) system has
been canceled.
The beep sounds
continuously while
driving The distance between
your vehicle and the
vehicle ahead is too
close. Verify the safety
of the surrounding area
and reduce vehicle
speed.
When the Mazda Radar
Cruise Control (MRCC)
is operating, the beep
sounds and the Mazda
Radar Cruise Control
(MRCC) warning
light (amber) in the
instrument cluster turns
on. A malfunction in
the system may be
indicated. Have your
vehicle inspected at
an Authorized Mazda
Dealer.
Collision warning *
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the display.
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or fl ashes and
the buzzer operates at the same time.
Refer to Warning/Indicator Lights on page
4-24 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–43
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

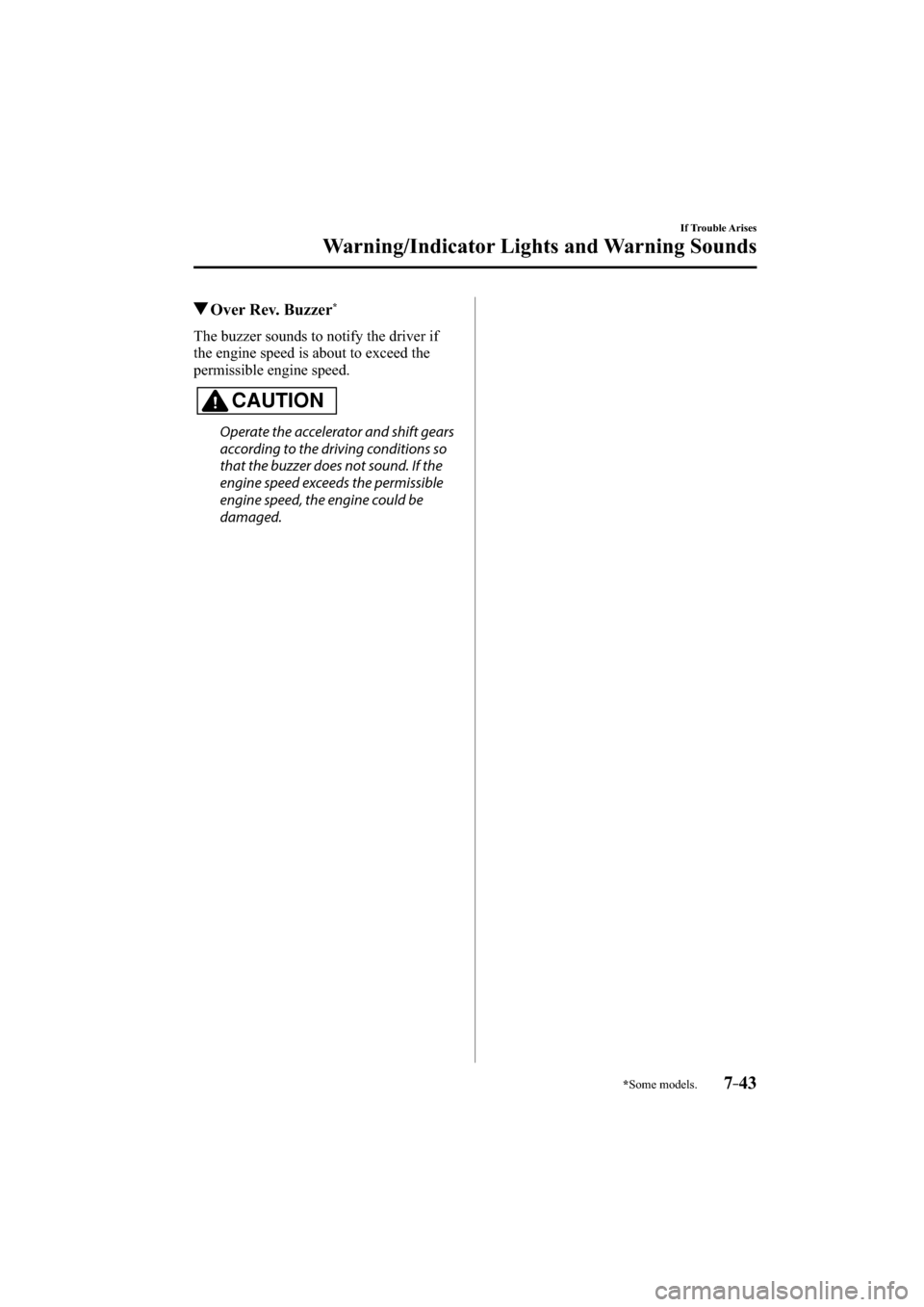

Over Rev. Buzzer *
The buzzer sounds to notify the driver if
the engine speed is about to exceed the
permissible engine speed.
CAUTION
Operate the accelerator and shift gears
according to the driving conditions so
that the buzzer does not sound. If the
engine speed exceeds the permissible
engine speed, the engine could be
damaged.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–44
If Trouble Arises
When Liftgate Cannot be Opened
When Liftgate Cannot be
Opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be opened, perform
the following procedure as an emergency
measure to open it:
1. Fold down the rear seatbacks.
Refer to Split/One-piece Folding the
Seatback on page 2-6 .
2. Remove cover on the interior surface of
the liftgate using a fl athead screwdriver.
Cover
3. Using a fl athead screwdriver, open the
inner cover.
4. Using a fl athead screwdriver, turn the
lever to the right to unlock the liftgate.
Lever
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
