If Trouble Arises

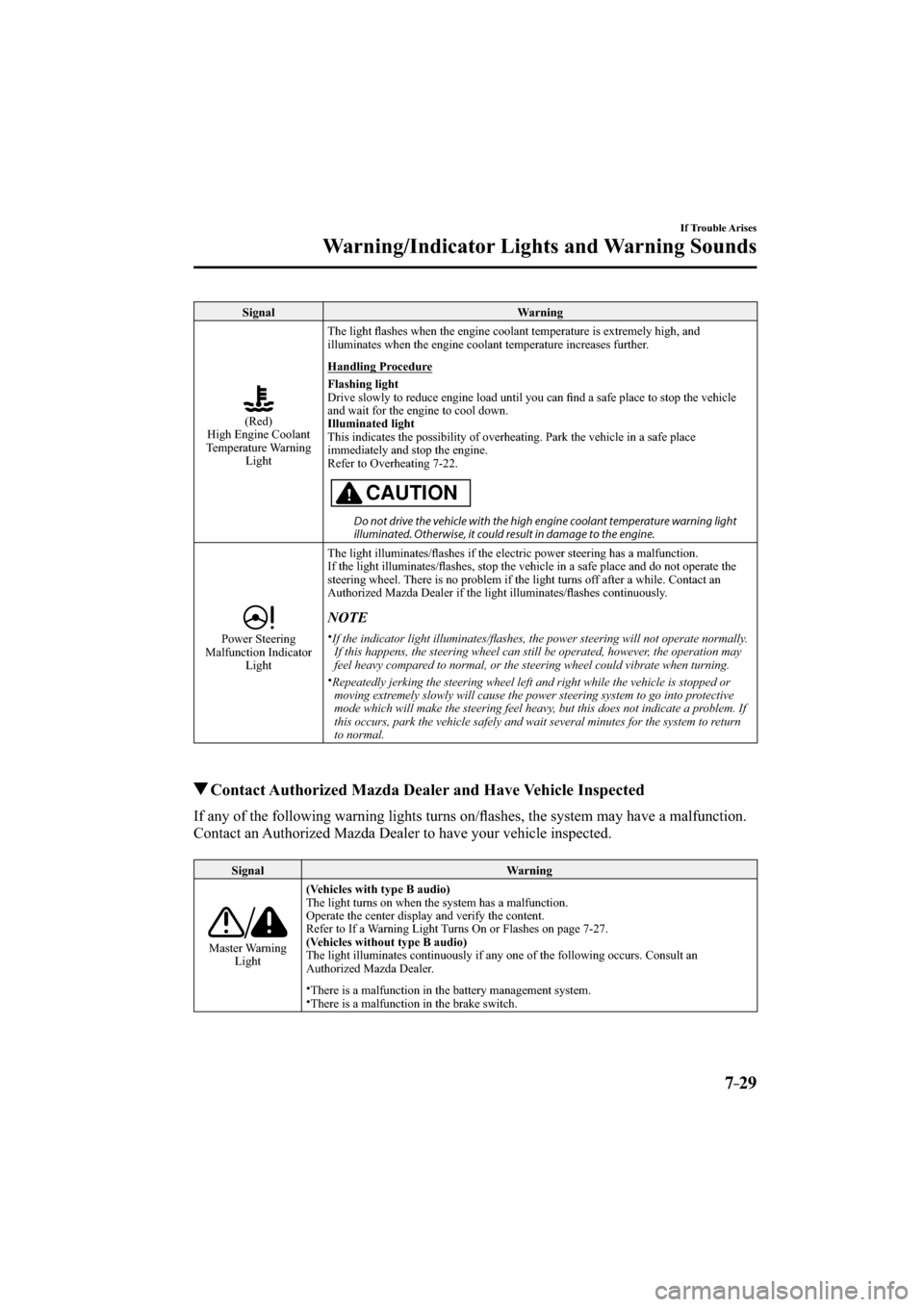

Warning/Indicator Lights and Warning Sounds
Signal Warning
(Red)
High Engine Coolant
Temperature Warning
Light
The light fl ashes when the engine coolant temperature is extremely high, and
illuminates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can fi nd a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place
immediately and stop the engine.
Refer to Overheating 7-22 .
CAUTION
Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.
Power Steering
Malfunction Indicator
Light The light illuminates/fl ashes if the electric power steering has a malfunction.
If the light illuminates/fl ashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an
Authorized Mazda Dealer if the light illuminates/fl ashes continuously.
NOTE
y If the indicator light illuminates/fl ashes, the power steering will not operate normally.
If this happens, the steering wheel can still be operated, however, the operation may
feel heavy compared to normal, or the steering wheel could vibrate when turning.
y Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem. If
this occurs, park the vehicle safely and wait several minutes for the system to return
to normal.
Contact Authorized Mazda Dealer and Have Vehicle Inspected
If any of the following warning lights turns on/fl ashes, the system may have a malfunction.
Contact an Authorized Mazda Dealer to have your vehicle inspected.
Signal Warning
Master Warning
Light(Vehicles with type B audio)
The light turns on when the system has a malfunction.
Operate the center display and verify the content.
Refer to If a Warning Light Turns On or Flashes on page 7-27 .
(Vehicles without type B audio)
The light illuminates continuously if any one of the following occurs. Consult an
Authorized Mazda Dealer.
y There is a malfunction in the battery management system. y There is a malfunction in the brake switch.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible. NOTE
y When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
y The brake assist system does not operate while the ABS warning light is illuminated.
Check Engine Light If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:y The fuel tank level being very low or approaching empty. y The engine's electrical system has a problem. y The emission control system has a problem. y The fuel-fi ller cap is missing or not tightened securely.
If the check engine light remains on, or it fl ashes continuously , do not drive at high speeds
and consult an Authorized Mazda Dealer as soon as possible.
Automatic
Transaxle Warning
Light The light illuminates when the transaxle has a problem.CAUTION
If the automatic transaxle warning light illuminates, the transaxle has an electrical
problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
AWD Warning
Light*
When the light is turned on
If the AWD warning light illuminates, contact an Authorized Mazda Dealer.
y Illuminates when there is an abnormality with the AWD system. y Illuminates if there is too much difference in tire radius between the front and rear wheels.
When the light is fl ashing
Park the vehicle in a safe place. After a few moments, if the warning light stops fl ashing,
you can resume driving. If the light does not stop fl ashing, contact an Authorized Mazda
Dealer.
y Flashes when the differential oil temperature is abnormally high. y Flashes when there is a continuous large difference between front and rear wheel rotation,
such as when trying to pull away from an icy surface or when trying to remove the vehicle
from mud, sand or similar conditions.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–31
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
Air Bag/Front Seat
Belt Pretensioner
System Warning
Light A system malfunction is indicated if the warning light constantly fl ashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized
Mazda Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
(Flashing)
Tire Pressure
Monitoring System
Warning Light
*
If the tire pressure monitoring system has a malfunction, the tire pressure warning
light fl ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an Authorized Mazda Dealer as soon as
possible.
WARNING
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a fl at, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed
to a place where air may be added and the system monitored again by an Authorized
Mazda Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Have the problem taken care of as soon as possible before it develops into a more
serious situation that could lead to tire failure and a dangerous accident.
(Red)
(Illuminate)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) fl ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–32
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
(Illuminate)
Lane Departure
Warning System
(LDWS) Warning
Light
*
y The warning light remains turned on if there is a problem with the system. Have your
vehicle inspected at an Authorized Mazda Dealer.
y The LDWS does not operate when the warning light illuminates.
CAUTION



¾

A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an Authorized Mazda Dealer.



¾When the light remains turned on while driving the vehicle.

When the system is canceled automatically, the light turns on. Normally, the system
restores automatically and the light turns off , however, if the light remains turned on,
there may be a problem with the system.


¾The light does not illuminate when the ignition is switched ON.



¾

Always use tires for all wheels that are of the specifi ed size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle. If such improper tires are used, the LDWS may not operate
normally.


¾When an emergency spare tire is used, the system may not operate normally.
(Amber)
High Beam Control
System (HBC)
Warning Light
*
The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
LED Headlight
Warning Light *
This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
(Amber)
Mazda Radar
Cruise Control
(MRCC) Warning
Light
*
The warning light turns on if there is a malfunction in the system while the Mazda Radar
Cruise Control (MRCC) system is on.
Have your vehicle inspected at an Authorized Mazda Dealer.
Blind Spot
Monitoring (BSM)
OFF Indicator
Light
*
A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
y The light does not turn on when the ignition is switched ON. y The light remains turned on even if the Blind Spot Monitoring (BSM) switch is operated. y It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffi c and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator light in
the instrument cluster illuminates). However, it does not indicate a malfunction.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Taking Action
Take the appropriate action and verify that the warning light turns off.
Signal Warning Action to be taken
Low Fuel Warning
Light The light turns on when the remaining fuel is
about 9.0 L (2.3 US gal, 1.9 Imp gal). NOTE
The light illumination timing may vary because
fuel inside the fuel tank moves around according
to the driving conditions and the vehicle posture. Add fuel.
Check Fuel Cap
Warning Light If the check fuel cap warning light illuminates
while driving, the fuel-fi ller cap may not be
installed properly. Stop the engine and reinstall the fuel-
fi ller cap.
Refer to Fuel-Filler Cap on page 3-26
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning Action to be taken
Seat Belt Warning
Light
Except Mexico
The seat belt warning light turns on if the driver
or front passenger's seat is occupied and the seat
belt is not fastened with the ignition switched
ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's seat
is occupied) and the vehicle is driven at a speed
faster than about 20 km/h (12 mph), the warning
light fl ashes. After a short time, the warning
light stops fl ashing, but remains illuminated.
NOTE
yThe warning light fl ashes for about 6 seconds
if the driver's seat belt is not fastened when the
ignition is switched ON.
yTo allow the front passenger occupant
classifi cation sensor to function properly, do
not place and sit on an additional seat cushion
on the front passenger's seat. The sensor may
not function properly because the additional
seat cushion could cause sensor interference.
yIf a small child is seated on the front
passenger's seat, the warning light may not
operate.
Mexico
The seat belt warning light turns on if the driver
or front passenger's seat is occupied and the seat
belt is not fastened with the ignition switched
ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's seat
is occupied) and the vehicle is driven at a speed
faster than about 20 km/h (12 mph), the warning
light fl ashes. After a short time, the warning
light stops fl ashing, but remains illuminated. If
a seat belt remains unfastened, the warning light
fl ashes again for a given period of time.
NOTE
yPlacing heavy items on the front passenger's
seat may cause the front passenger's seat belt
warning function to operate depending on the
weight of the item.
yTo allow the front passenger seat weight
sensor to function properly, do not place and
sit on an additional seat cushion on the front
passenger's seat. The sensor may not function
properly because the additional seat cushion
could cause sensor interference.
yIf a small child is seated on the front
passenger's seat, the warning light may not
operate. Fasten the seat belts.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–35
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning Action to be taken
Door-Ajar Warning Light The light turns on if any door is not closed
securely.
Close the door securely.
Low Washer Fluid
Level Warning Light
*
This warning light indicates that little washer
fl uid remains. Add washer fl
uid (page 6-32 ).
(Illuminate)
Tire Pressure
Monitoring System Warning Light
*
When the warning light illuminates, and the
warning beep sound is heard (about 3 seconds),
tire pressure is too low in one or more tires.
WARNING
If the tire pressure monitoring system
warning light illuminates or fl ashes, or the
tire pressure warning beep sound is heard,
decrease vehicle speed immediately and
avoid sudden maneuvering and braking: If the tire pressure monitoring system
warning light illuminates or fl ashes, or the
tire pressure warning beep sound is heard,
it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering
or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a
fl at, pull over to a safe position where you
can check the visual condition of the tire
and determine if you have enough air to
proceed to a place where air may be added
and the system monitored again by an
Authorized Mazda Dealer or a tire repair
station.
Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken care of
as soon as possible before it develops into
a more serious situation that could lead to
tire failure and a dangerous accident. Inspect the tires and adjust to the
specifi
ed infl ation pressure (page 6-42 ).
NOTE
yPerform tire pressure adjustment when
the tires are cold. Tire pressure will
vary according to the tire temperature,
therefore let the vehicle stand for 1
hour or only drive it 1.6 km (1 mile) or
less before adjusting the tire pressures.
When pressure is adjusted on hot tires
to the cold infl ation pressure, the TPMS
warning light/beep may turn on after
the tires cool and pressure drops below
specifi cation.
Also, an illuminated TPMS warning
light, resulting from the tire air
pressure dropping due to cold ambient
temperature will remain illuminated
even if the ambient temperature rises.
In this case, it will also be necessary
to adjust the tire air pressures. If the
TPMS warning light illuminates due to
a drop in tire air pressure, make sure to
check and adjust the tire air pressures.
yTires lose air naturally over time and the TPMS cannot tell if the tires are
getting too soft over time or you have
a fl at. However, when you fi nd one low
tire in a set of four-that is an indication
of trouble; you should have someone
drive the vehicle slowly forward so
you can inspect any low tire for cuts
and any metal objects sticking through
tread or sidewall. Put a few drops
of water in the valve stem to see if it
bubbles indicating a bad valve. Leaks
need to be addressed by more than
simply reinfl ating the tire as leaks are
dangerous — take it to an Authorized
Mazda Dealer.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning Action to be taken
(Amber)
Smart Brake
Support/Smart
City Brake Support (SBS/SCBS)
Warning Light
*
The light turns on if the windshield or the radar
sensor are dirty, or there is a malfunction in the
system.
(Vehicles with type B audio)
Verify the reason why the warning light
is illuminated on the center display (page
7-27 ).
If the reason why the warning light is
illuminated is due to a dirty windshield,
clean the windshield.
If the warning light is illuminated
because of a dirty radar sensor, clean the
front emblem.
For any other reasons, have the vehicle
inspected at an Authorized Mazda Dealer.
(Vehicles without type B audio)
If the reason why the warning light is
illuminated is due to a dirty windshield,
clean the windshield. For any other
reasons, have the vehicle inspected at an
Authorized Mazda Dealer.
KEY Warning Light
Take the appropriate action and verify that the warning light turns off.
Signal Cause Action to be taken
(Red)
(Flashing) The advanced key battery is dead. Replace the key battery (page 6-39 ).
The advanced key is not within the
operation range.
Bring the advanced key into the operation
range (page 3-7 ).
The advanced key is placed in areas inside
the cabin where it is diffi
cult for the key to
be detected.
A key from another manufacturer similar to
the advanced key is in the operation range. Take the key from another manufacturer
similar to the advanced key out of the
operation range.
Without the ignition switched off, the
advanced key is taken out of the cabin, and
then all the doors are closed. Bring the advanced key back into the
cabin.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
