2016 MAZDA MODEL CX-3 Owners Manual (in English)

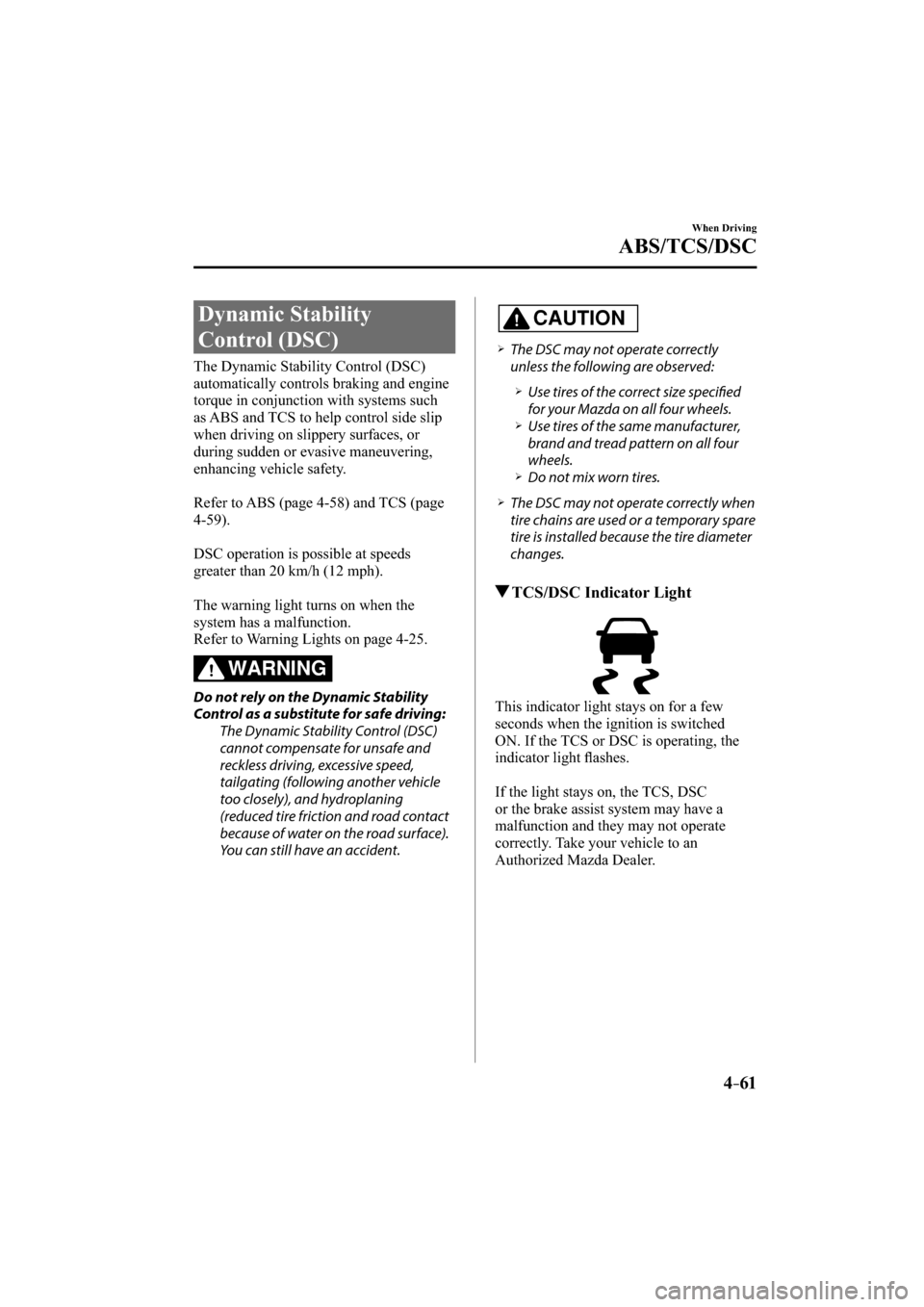

4–61
When Driving
ABS/TCS/DSC
Dynamic Stability
Control (DSC)
The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such
as ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.
Refer to ABS (page 4-58 ) and TCS (page
4-59 ).
DSC operation is possible at speeds
greater than 20 km/h (12 mph).
The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-25 .
WARNING
Do not rely on the Dynamic Stability
Control as a substitute for safe driving:
The Dynamic Stability Control (DSC)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road contact
because of water on the road surface).
You can still have an accident.
CAUTION



¾ The DSC may not operate correctly
unless the following are observed:



¾ Use tires of the correct size specifi ed
for your Mazda on all four wheels.



¾ Use tires of the same manufacturer,
brand and tread pattern on all four
wheels.



¾ Do not mix worn tires.




¾ The DSC may not operate correctly when
tire chains are used or a temporary spare
tire is installed because the tire diameter
changes.
TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light fl ashes.
If the light stays on, the TCS, DSC
or the brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.4–62
When Driving
Fuel Economy Monitor
Fuel Economy Monitor *
For vehicles with type B audio, the Fuel Consumption are switched and displayed by
operating each icon in the display.
In addition, after completing a trip, the total energy effi ciency to date is displayed in the
ending display when the ending display is turned on.
1. Select the
icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Operate the commander switch or touch the screen and display the menu.
NOTE
When the menu is displayed by touching the screen, the display is hidden automatically after
6 seconds.
4. Select the icon in the menu and perform the operation. Each icon operates as follows:
Indication on display Control status
Hides the menu display.
Displays the application screen.
Switches the Fuel Economy Monitor in the order of
Fuel Consumption.
Resets the fuel economy data.
Displays the following setting screen.y Ending display on/off switching y On/off switching for function which synchronizes
reset fuel economy data to trip meter (Trip A)
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–63
When Driving
Fuel Economy Monitor
Fuel Consumption Display
Information regarding the fuel economy is displayed.
Indication on display Control status
Displays the fuel economy for the past 60 minutes.y Displays the fuel economy every minute for the past 1 to 10 minutes.
y Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
Displays the average fuel economy over the past 5 resets and after the current reset.
Calculates the average fuel economy every minute after vehicle travel begins, and displays it.
NOTE

y  The fuel economy data can be reset by doing the following operation:

y Press the reset switch from the menu screen.
y When the function which synchronizes the fuel economy monitor and the trip meter is
on, reset trip A of the trip meter.

y Delete the average fuel economy information displayed in the trip comput\
er.

y After resetting the fuel economy data, “-- -” is displayed while the aver\
age fuel economy
is calculated.
Ending Screen Display
If the ending display on the fuel economy monitor is on when the ignitio\
n is switched from
ON to OFF, the information regarding the fuel economy is displayed.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–64
When Driving
Drive Selection
Drive Selection
Drive selection is a system to switch the vehicle's drive mode. When the sport mode
is selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely make maneuvers such as lane
changes, merging onto freeways, or passing other vehicles.
CAUTION
Do not use the sport mode when driving on slippery roads such as wet or snow-covered
roads. It may cause tire slipping.
NOTE



y When the sport mode is selected, driving at higher engine speeds increases and it may
increase fuel consumption. Mazda recommends that you cancel the sport mode on normal
driving.



y Drive mode cannot be switched in the following conditions:




y ABS/TCS/DSC is operating



y Steering wheel is being operated abruptly
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–65
When Driving
Drive Selection
Drive Selection Switch
Press the drive selection switch to the
side (forward) to select the sport
mode.
Pull the drive selection switch to the
side (backward) to cancel the sport mode.
NOTE



y When the ignition is switched off, the
sport mode is canceled.



y Depending on the driving conditions
when sport mode is selected, the vehicle
may perform shift-down or slightly
accelerate.
Select Mode Indicator Light
When the sport mode is selected, the
select mode indicator light turns on in the
instrument cluster.
NOTE
If the mode cannot be switched to drive
mode, the select mode indicator light
fl ashes to notify the driver.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–66
When Driving
AW D
All-Wheel Drive (AWD)
Operation
AWD provides excellent drivability on
snow-covered and ice-packed roads, sand
and mud, as well as on steep slopes and
other slippery surfaces.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-25 .
WARNING
Never spin a wheel that is off the
ground:
Spinning a wheel that is off the ground
as a result of the vehicle being stuck
or in a ditch is dangerous. The drive
assembly could be seriously damaged
which could lead to an accident or
could even lead to overheating, oil
leakage, and a fi re.
AWD Driving
This vehicle has not been designed for the
purpose of off-road driving or rallies. Do
not attempt to drive over uneven or rocky
surfaces, or across rivers.
Although this vehicle is equipped with
AWD, acceleration, steering and braking
operations should be conducted in the
same manner as with a non-AWD vehicle,
with the emphasis placed on safe driving.
Tires and Tire Chains
The condition of the tires plays a large
role in the performance of the vehicle.
Moreover, to prevent adverse effects to the
drive assembly, please note the following:
Tires





y When replacing tires, always replace all
front and rear tires at the same time.



y All tires must be of the same size,
manufacture, brand and tread pattern.
Pay particular attention when equipping
snow or other types of winter tires.



y Do not mix tread-worn tires with normal
tires.



y Inspect tire infl ation pressures at the
specifi ed periods adjust to the specifi ed
pressures, and initialize the tire pressure
monitoring system.
Refer to Tire Pressure Monitoring
System Initialization on page 4-129 .
NOTE
Check the tire infl ation pressure label
attached to driver's door frame for the
correct tire infl ation pressure.



y Make sure to equip the vehicle with
genuine wheels of the specifi ed size, on
all wheels. With AWD, the system is
calibrated for all four wheels being of
the same dimensions.
Tire chains





y Install tire chains to the front tires.



y Do not use tire chains on the rear
wheels.



y Do not drive the vehicle faster than
30 km/h (19 mph) with the tire chains
installed.



y Do not drive the vehicle with tire chains
on road conditions other than snow or
ice.
Towing
If the vehicle requires towing, have it
towed with all four wheels completely off
the ground 7-24 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–67
When Driving
Power Steering
Power Steering













y Power steering is only operable when
the engine is running. If the engine is
off or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.
  If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an Authorized Mazda
Dealer.



y The warning light notifi es the driver
of system abnormalities and operation
conditions.
  In addition, the buzzer may also activate
depending on the system abnormality or
operation condition.
  Refer to Warning Lights on page 4-25 .
 Refer to Power Steering Warning Buzzer
on page 7-42 .
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running. This
could damage the power steering
system.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.4–68
When Driving
i-ACTIVSENSE
i-ACTIVSENSE *
i-ACTIVSENSE is a collective term covering a series of advanced safety a\
nd driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sen\
sors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer driving by redu\
cing the load on the
driver and helping to avert collisions or reduce their severity. However, because each system
has its limitations, always drive carefully and do not rely solely on th\
e systems.
Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognize potential
hazards and avert accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting System (AFS) ........................................................................\
...... 4-70
High Beam Control System (HBC) ........................................................................\
............ 4-71
Left/right side and rear side detection
Lane Departure Warning System (LDWS) ........................................................................\
. 4-74
Blind Spot Monitoring (BSM) System ........................................................................\
....... 4-80
Inter-vehicle distance recognition
Distance Recognition Support System (DRSS) .................................................................. 4-87
Rear obstruction detection when leaving a parking space
Rear Cross Traffi c Alert (RCTA) ........................................................................\
................ 4-90
Driver support system
Inter-vehicle distance
Mazda Radar Cruise Control (MRCC) ........................................................................\
....... 4-93
Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in averting\
collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support (SCBS) ........................................................................\
........... 4-104
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS) ........................................................................\
...................... 4 -109
