2016 LEXUS RX450H Owners Manual

891-4. Theft deterrent system
1
For safety and security
RX450h_U_OM0E013U

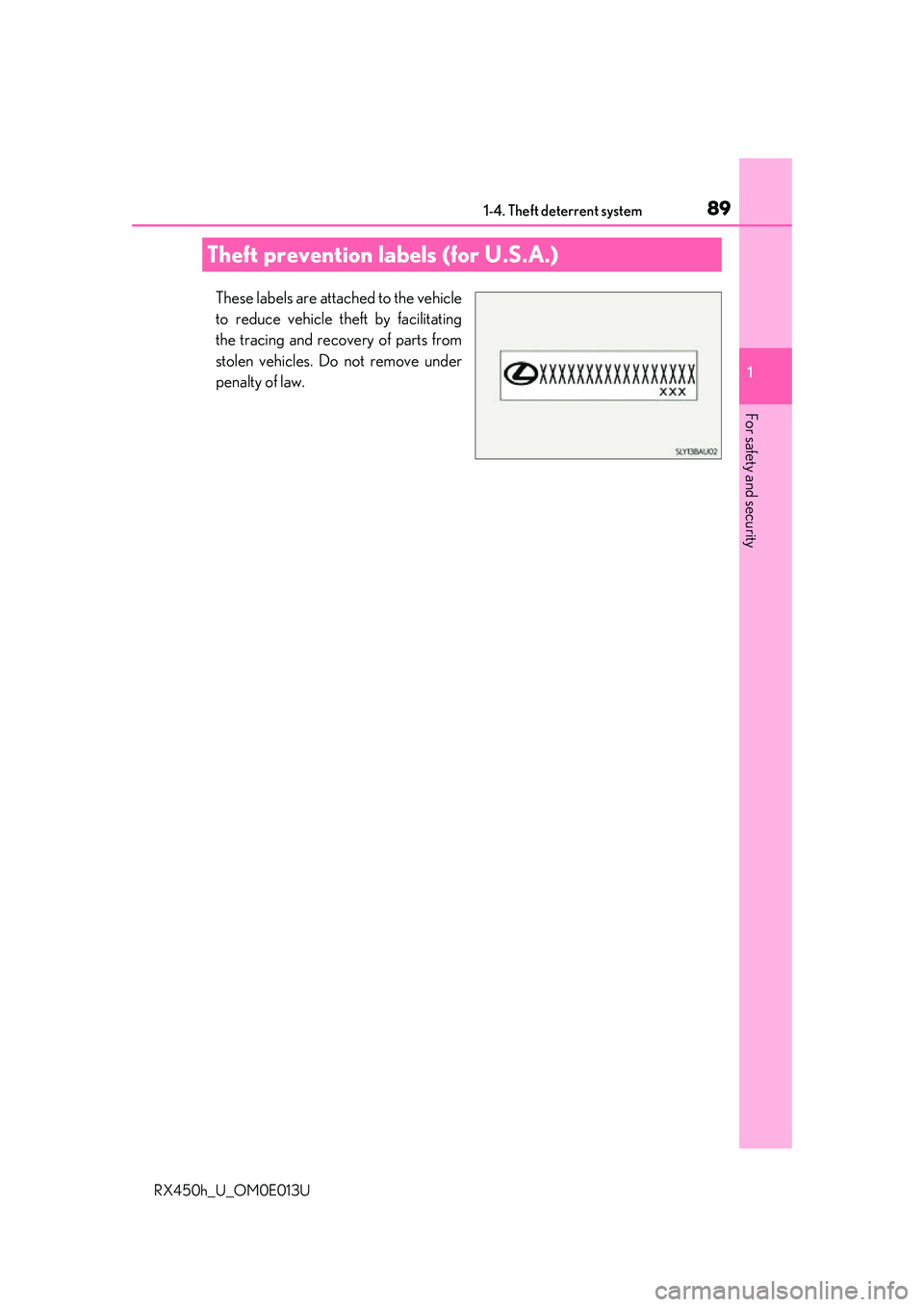

These labels are attached to the vehicle
to reduce vehicle theft by facilitating
the tracing and recovery of parts from
stolen vehicles. Do not remove under
penalty of law.
Theft prevention labels (for U.S.A.)

901-4. Theft deterrent system
RX450h_U_OM0E013U

91
Instrument cluster2
RX450h_U_OM0E013U
2. Instrument clusterWarning lights and indicators ....................................... 92
Gauges and meters ..................... 97
Multi-information display ........ 102
Head-up display ............................118
Energy monitor/ consumption screen ................124

92
RX450h_U_OM0E013U2. Instrument cluster
Except F SPORT models
F SPORT models
The units used on the meter and some indicators may differ depending on the target
region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration displays all warning
lights and indicators illuminated.

932. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 536)*1
(Canada)
ABS warning light
( P. 537)
*1
(Canada)
Brake system warning light
( P. 536)*2
(U.S.A.)
Parking brake indicator
( P. 537)
*1Brake system warning light
( P. 536)*2
(Canada)
Parking brake indicator
( P. 537)
*1
(if equipped)
Charging system warning
light ( P. 536)
*1, 2
Brake hold operated
indicator ( P. 537)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 536)*1Electric power steering
system warning light
( P. 537)
*1
(Canada)
Malfunction indicator lamp
( P. 536)*1Electric power steering
system warning light
( P. 537)
*1SRS warning light
( P. 536)
(if equipped)
LDA indicator ( P. 537)
LKA indicator ( P. 537)
*1
(U.S.A.)
ABS warning light
( P. 537)*1
Slip indicator ( P. 537)

942. Instrument cluster
RX450h_U_OM0E013U
*1: These lights turn on when the power switch is turned to ON mode to indicate that a system check is being performe d. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunctio n in a system if the lights do not turn on,
or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
*1, 2
(if equipped)
PCS warning light
(  P. 538)*1Tire pressure warning light
( P. 538)
Low fuel level warning light
(  P. 538)
*1Master warning light
( P. 538)
Seat belt reminder light
(  P. 538)
Indicators
Turn signal indicator
( P. 244) Cruise control indicator
(
 P. 311, 323, 335)
(U.S.A.)
Headlight indicator
( P. 251)
(if equipped)
Radar cruise control
indicator ( P. 311, 323)
(Canada)
Tail light indicator
( P. 251) Cruise control “SET”
indicator
(
 P. 311, 323, 335)
Headlight high beam
indicator ( P. 252)
(if equipped)
LDA indicator ( P. 302)
LKA indicator ( P. 292)
*1
(if equipped)
Automatic High Beam
indicator (P. 255)
(if equipped)
LDA indicator ( P. 302)
LKA indicator ( P. 292)
Fog light indicator
(  P. 259)
*4
(if equipped)
LDA indicator ( P. 302)
LKA indicator ( P. 292)

952. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
●Drive mode indicators
Except F SPORT modelsIntuitive parking assist
indicator (
P. 339)
(Canada)
Parking brake indicator
( P. 245)
“BSM” indicator ( P. 363)
*1Brake hold standby
indicator ( P. 249)
“RCTA” indicator
(  P. 363)
*1Brake hold operated
indicator ( P. 249)
*2, 3
BSM outside rear view
mirror indicators ( P. 363) EV indicator (
P. 78)
*1, 4
Slip indicator ( P. 383)*6
Security indicator
( P. 85, 87)
*1, 5VSC OFF indicator
( P. 384) “READY” indicator
(
 P. 232)
*1, 5
(if equipped)
PCS warning light
( P. 283)*7
Low outside temperature
indicator ( P. 97)
(U.S.A.)
Parking brake indicator
( P. 245, 246)*1, 6“AIR BAG ON/OFF”
indicator ( P. 51)
Eco drive mode indicator
( P. 377) “SPORT” indicator
(
 P. 377)
EV drive mode indicator
(  P. 237)

962. Instrument cluster
RX450h_U_OM0E013U
F SPORT models
*1: These lights turn on when the power switch is turned to the ON mode to indicate that a system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the lights do not turn on,
or turn off. Have the vehicle inspected by your Lexus dealer.
*2: In order to confirm operation, the BSM ou tside rear view mirror indicators illuminate
in the following situations:
• When the BSM function is enabled on of the multi-information display, the
power switch is turned to ON mode.
• When the power switch is in ON mode, the BSM function is enabled on of the multi-information display.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*3: This light illuminates on the outside rear view mirrors.
*4: The light flashes to indicate that the system is operating.
*5: The light comes on when the system is turned off.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37 F (3 C) or lower, the indicator
will flash for approximately 10 seconds, then stay on. Eco drive mode indicator
(
 P. 377) “SPORT S” indicator
(
 P. 377)
“SPORT S+” indicator
(  P. 377) “CUSTOMIZE” indicator
(
 P. 377)
EV drive mode indicator
(  P. 237)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the hybrid system, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehi-
cle inspected by your Lexus dealer immediately if this occurs.
